12 летним опытом супер сильный 50x20x10 мм неодимовый магнит
- Category: >>>
- Supplier: Hangzhou Shengshideng Magnetics Co. Ltd.
Share on (60620757212):
Product Overview
Description

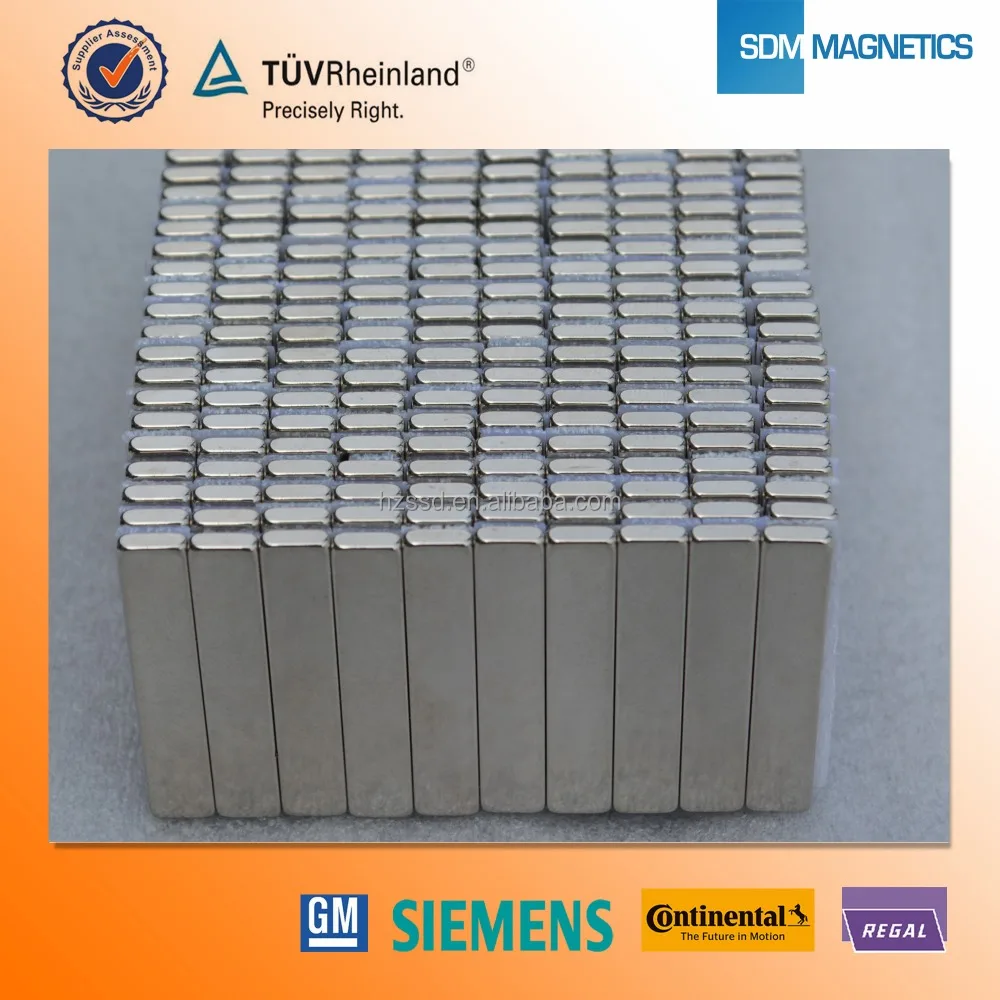

50x20x10 neodimium magnet
www.magnet-sdm.com
14 Years' Professional Permanent Magnet Manufacturer;
USD $61000 Alibaba Trade Assurance to Secure Your Transaction
Top 3 Alibaba Permanent Magnet Supplier;
Our big advantages
1:). Magnets and Magnetic assemblies are Customized.
2:). Strategic cooperation with China’s No.1 rare earth miner CHINALCO, which enables us strong and safe backup for rare earth raw materials cost stability, 3 x -3% annual price down guaranteed.
3:). ISO/TS 16949, VDA 6.3, ISO9001, ISO14001 certified company, RoHS, REACH, SGS complied product.
4:). 0 PPM performance for General Motor's OEM since 2010, remarkable customers such as SIEMENS, BMW, REGAL BELOIT, NIDEC, , S&T Motiv.
5:). Over 100 million magnets delivered to American, European, Asian and African countries.
6:). One stop service from R&D to mass production.
Product Description
50x20x10 neodimium magnet
Neodymium magnets Usages
Home
Holding Spice Cans to the Side of Your Fridge,Magnetic Therapy, Magic Tricks, Locating Nails Under Flooring, Stud Finders, Picking up Stray Nails and Screws,Erasing Video and Audio Tapes or other Magnetic Storage Media,Refrigerator Magnets, Stupid Bar Tricks,
Holding Spare Keys in Place - Home Water Conditioning, Cleaning Fish Tanks from the Outside, Attaching Name Tags to Clothing without Pins, Christmas Light and Decoration Hangers,Homemade Compass,Education
School &DIY
Building Generators, Science Experiments,Tool / Knife Holders,magnetic Clamps, Pierce-free ear Jewelry, Metal Detectors
Holding Wings on Model Airplanes,Cabinet Latches,
Making your own Fuel Mileage Extender, Attaching Bags to Motorcycles
Replacement Magnets for Bicycle,Finding Micro Meteorites
Miniature War-gaming, Magnetic Couplers on Model Railroad Cars,Traction Magnets for Slot Cars
Cars
Attaching Tracking Devices to Vehicles and Equipment,Oil Filters, Securing a Tarp to Machinery or Cars,Holding Banners on Cars and Floats in a Parade,Trailer Hitch Rods, Holding Spare Keys in Place - Car,Garage Organizers
Factory
phones, home appliance, electrical motors, Brochure Closures,Magnetic Toys, Warehouse label fixing, Levitation Experiments, Magnetic Jewelry, Magnetic Jewelry Clasps, Magnetic Stirrers
Related Products
1.The Neodymium Magnet and Neodymium Magnetic Assembly we could produce:
2. Neodymium Magnets and Neodymium Magnetic assemblies are Customized. You can tell us the Size, Shape and Grade of the Magnet, we can help you produce in 7-15 days !!
Shape | max.size | min.size |
Block | 240*100*40 | 2*2*1 |
Cylinder | D240*40 | D2*1 |
Ring | OD240*40 (hole size customized) | D5*1*1 |
Arc | per your request | |
And other special shape neodymium magnet per your request. | ||
3.More Magnets We Could Produce:
4. Grades, Coatings and Magnetization Direction
(1) Material grades include: N35--N52, N35M--N50M, N35H--N48H, N35SH--N45SH, N28UH--N42UH, N28EH--N40EH.
| Material Type | Residual Flux Density (Br) | Coercive Force (Hc) | Intrinsic Coercive Force (Hci) | Max.Energy Product (BH)max |
| N35 | 11.7-12.1 KGs | >11.0 KOe | >12 KOe | 33-35 MGOe |
| N38 | 12.2-12.6 KGs | >11.0 KOe | >12 KOe | 36-38 MGOe |
| N40 | 12.6-12.9 KGs | >11.0 KOe | >12 KOe | 38-40 MGOe |
| N42 | 13.0-13.2 KGs | >11.0 KOe | >12 KOe | 40-42 MGOe |
| N45 | 13.3-13.7 KGs | >11.0 KOe | >12 KOe | 43-45 MGOe |
| N48 | 13.8-14.2 KGs | >11.0 KOe | >12 KOe | 45-48 MGOe |
| N50 | 14.1-14.5 KGs | >11.0 KOe | >11 KOe | 48-50 MGOe |
| N52 | 14.5-14.8 KGs | >11.2 KOe | >11 KOe | 49.5-52 MGOe |
| N35M | 11.7-12.1 KGs | >11.4 KOe | >14 KOe | 33-35 MGOe |
| N38M | 12.2-12.6 KGs | >11.4 KOe | >14 KOe | 36-38 MGOe |
| N40M | 12.6-12.9 KGs | >11.4 KOe | >14 KOe | 38-40 MGOe |
| N42M | 13.0-13.3 KGs | >11.4 KOe | >14 KOe | 40-42 MGOe |
| N45M | 13.3-13.7 KGs | >11.4 KOe | >14 KOe | 42-45 MGOe |
| N48M | 13.6-14.2 KGs | >11.4 KOe | >14 KOe | 45-48 MGOe |
| N50M | 14.1-14.5 KGs | >11.4 KOe | >14 KOe | 48-50 MGOe |
| N33H | 11.4-11.7 KGs | >10.3 KOe | >17 KOe | 31-33 MGOe |
| N35H | 11.7-12.1 KGs | >10.8 KOe | >17 KOe | 33-35 MGOe |
| N38H | 12.2-12.6 KGs | >11.4 KOe | >17 KOe | 36-38 MGOe |
| N40H | 12.6-12.9 KGs | >11.4 KOe | >17 KOe | 38-40 MGOe |
| N42H | 13.0-13.3 KGs | >11.4 KOe | >17 KOe | 40-42 MGOe |
| N45H | 13.3-13.7 KGs | >11.4 KOe | >17 KOe | 42-45 MGOe |
| N48H | 13.6-14.2 KGs | >11.4 KOe | >16 KOe | 45-48 MGOe |
| N30SH | 10.8-11.2 KGs | >10.1 KOe | >20 KOe | 28-30 MGOe |
| N33SH | 11.4-11.7 KGs | >10.3 KOe | >20 KOe | 31-33 MGOe |
| N35SH | 11.7-12.1 KGs | >10.8 KOe | >20 KOe | 33-35 MGOe |
| N38SH | 12.2-12.6 KGs | >11.4 KOe | >20 KOe | 36-38 MGOe |
| N40SH | 12.6-12.9 KGs | >11.4 KOe | >20 KOe | 38-40 MGOe |
| N42SH | 13.0-13.3 KGs | >11.4 KOe | >20 KOe | 40-42 MGOe |
| N45SH | 13.3-13.7 KGs | >11.4 KOe | >19 KOe | 43-45 MGOe |
| N28UH | 10.4-10.8 KGs | >9.8 KOe | >25 KOe | 26-28 MGOe |
| N30UH | 10.8-11.2 KGs | >10.1 KOe | >25 KOe | 28-30 MGOe |
| N33UH | 11.4-11.7 KGs | >10.3 KOe | >25 KOe | 31-33 MGOe |
| N35UH | 11.7-12.1 KGs | >10.8 KOe | >25 KOe | 33-35 MGOe |
| N38UH | 12.2-12.6 KGs | >11.4 KOe | >25 KOe | 36-38 MGOe |
| N40UH | 12.6-12.9 KGs | >11.4 KOe | >25 KOe | 38-40 MGOe |
| N30EH | 10.8-11.2 KGs | >10.1 KOe | >30 KOe | 28-30 MGOe |
| N33EH | 11.4-11.7 KGs | >10.3 KOe | >30 KOe | 31-33 MGOe |
| N35EH | 11.7-12.1 KGs | >10.8 KOe | >30 KOe | 33-35 MGOe |
| N38EH | 12.2-12.6 KGs | >10.8 KOe | >30 KOe | 36-38 MGOe |
Thermal Characteristics
The Thermal Characteristics listed above are values commonly associated with each magnet's grade or material. Actual performance in your application may vary with other factors, including the shape of the magnet, the Permeance Coefficient or load line, and how it is used in a circuit. |
(2) Coating includes Ni-Cu-Ni, Black Nickel, Zn, Sn,Au, Ag,Black Epoxy, Phosphated, Parylene, etc.
(3) Magnetization directions include:
Company Information
1.Our factory
SDM Magnetics is a supplier of Siemens Ltd Australia, GM, BMW, BENTLEY, and REGAL-BELOIT in European. We have been supplying magnetic materials since 2004. Our factory is in Tonglu, Hangzhou, which is about 200 kilometers from Shanghai and Ningbo. Our products are export to American,European and Asian countries.Our customers include motor manufacturers, industries equipments producers and so on.
2. ISO 9001, ISO14001, ISO/TS16949, TUV, SGS, RoHS
Our Exhibition
We Will Join CWIEME Berlin every year;
We Will Join HANNOVER MESSE every year;
We Will Join CWIEME Chicago every year.
If you are convenient, we could talk face to face !!
We could let our customers in your country to help you send the samples, to let you check our quality
faster!!
Our Services
1. Demagnetization Curves & Outgoing Inspection Report for each customer.
2. Vacuum packing for all neodymium magnets and neodymium magetic assemblies Shielding box and wooden box to protect the neodymium magnets.
3. We have contract price with FedEx, DHL, UPS and TNT. We have our own Sea and Air forwarder. Will Give you the best support about the freight fee.
4. Payment
We accept T/T, Paypal, Western Union, ESCROW and L/C
FAQ
1: How fast can I get a reply?
You will receive our reply within 15 minutes during our work time 08:00 – 18:00(UTC-8).
2: Can I get free samples?
Free samples are available at SDM warehouse. However it may take minimum 7 days for production if your size is not on our stock list.
3: Are you able to offer best prices?
Magnets are functional products, the costs depend on how strong the materials you need. We believe the most suitable is the best, therefore SDM is keen to offer best prices to meet your target.
4: Are you able to provide best quality?
At SDM you receive products under guarantee of ISO9001, ISO/TS16949 systems.
5: What are your best lead-times?
Immediately shipments are available for stock magnets. For fresh materials, we need 7-15 days for production.
6: How can you make sure that my money is safe with you?
As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payment will not be released to vendor until buyer confirms receipt and good material of delivery.
