1 year warranty Certificate Metal Steel Heavy Duty Lifting Beam Clamp

Product Overview

Description

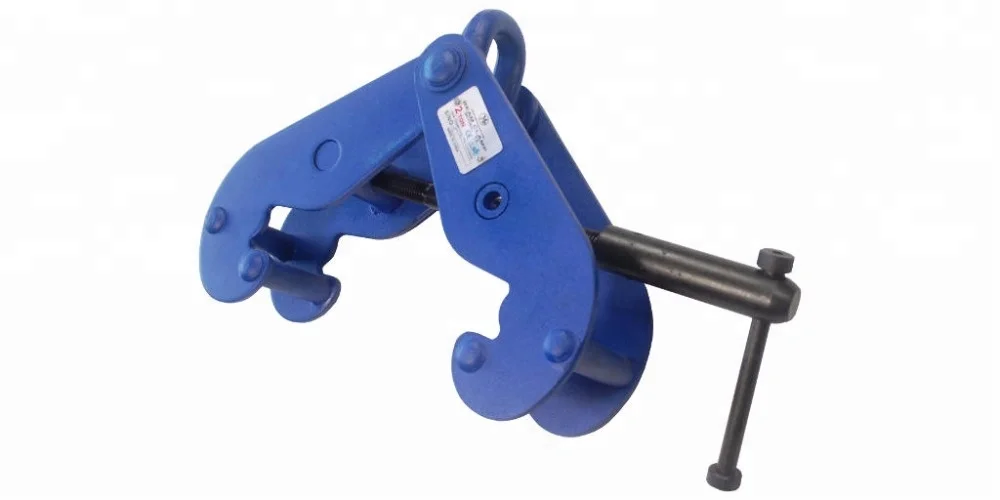

Certificate Metal Steel Heavy Duty Lifting Beam Clamp with Shackle

 Description

.Quick and versatile rigging point for hoisting equipment

.Shackle suspension point

.Highly flexible-for lifting, pulling or as an anchor point

.Multdirectional adjusting screw spindle for easy attachment and safe and secure grip

.Wide beam flange adjustment range

Details Image

How to use the beam clamp safety

• Ensure that you conduct a thorough check of your beam clamp before use. Do not use faulty beam clamps, faulty beams, or faulty hoists.




• Make sure you attach any suspending attachment to your beam clamp from a safety hook. This will prevent accidental detachment. All of our hoist  and chain blocks here at SafetyLiftinGear have a safety hook as standard.




• Ensure that the structure that you are suspending the beam clamp from, is assembled correctly, and has an adequate weight load for either an extra beam or a hoisted load. If in any doubt, do not try and set up the beam clamps, consult your supervisor or manager to confirm if it is suitable.




• Ensure that you have the right clamp for the job. All beam clamps have a different Working LoadLimit (WLL) so if you are lifting a load that is 3.1 Tonnes you will need to purchase a 5 Tonne beam clamp. Localised Overloading is extremely dangerous, this could cause the beam clamp to break and cause accidents.




• Make sure the beam clamp that you are using is compatible with the h that you are using. By this we mean, making sure that the safety hook fits correctly into the eye of the beam clamp. Do not force safety hooks into the eye of your beam clamp as this could damage your beam clamp and accessories.




• Ensure that the beam is positioned over the centre of gravity of the hoisted load. And ensure that the load is not swinging or at an angle to the beam clamp. As this can cause serious injury and impose health and safety risks.




• If you ever need to use two clamps in tandem the use of a spreader beam may be necessary, you must ensure that the beam clamps are not suspending more than their WLL.




• When dismantling the structure be sure to check over your beam clamps for any damage and make sure you are handling and storing them correctly. Make sure you don’t throw or drop your beam clamps as this could damage them and render them unusable.




• Never replace the bolts on a beam clamp without consulting the supplier, this could lead to the wrong screw being fitted that could potentially cause an accident or damage your beam clamp.
