telecom outdoor optical distribution cabinet

Product Overview

Description

telecom outdoor optical distribution cabinet ,also we called as fiber optical cross connection cabinet



Application : Telecommunication , CATV



1.Optical distribution frame can connect outdoor trunk optical cable and wiring optical cable. It can realize optical fiber splicing and the wiring possessed straight connection and cross connection functions.



2.Being adapted splicing and wiring integration drawing mode,it makes the capacity of splice box is big and the density of splice box is high.



3.The box body uses high strength SMC polyester material,it possesses anti-corrosive and aging resistant properties and can resist severe climate change and bad working environment .



4.A good seal property and its protective class can reach to GB/T4208  IP65



5.With good installation property and prevent from damage function



6.Safe and reliable optical cable fixing and earthing protection service .



7.There are 3 materials for the cabinet,SMC and stainless steel,coled rolled steel,its capacity will be 0-576 cores .

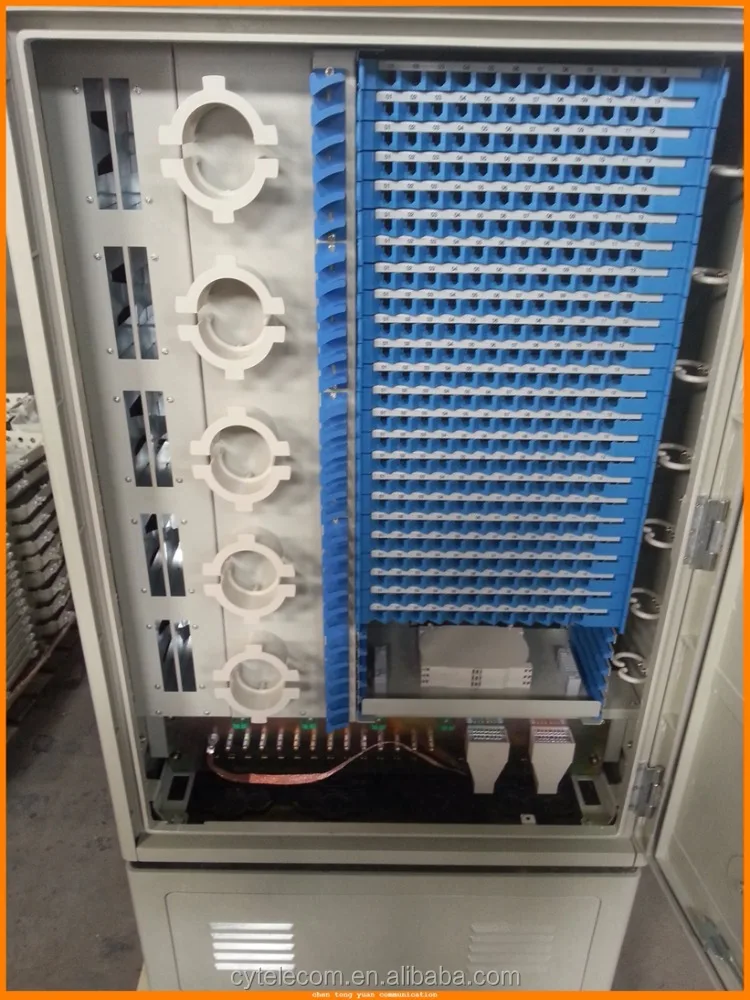

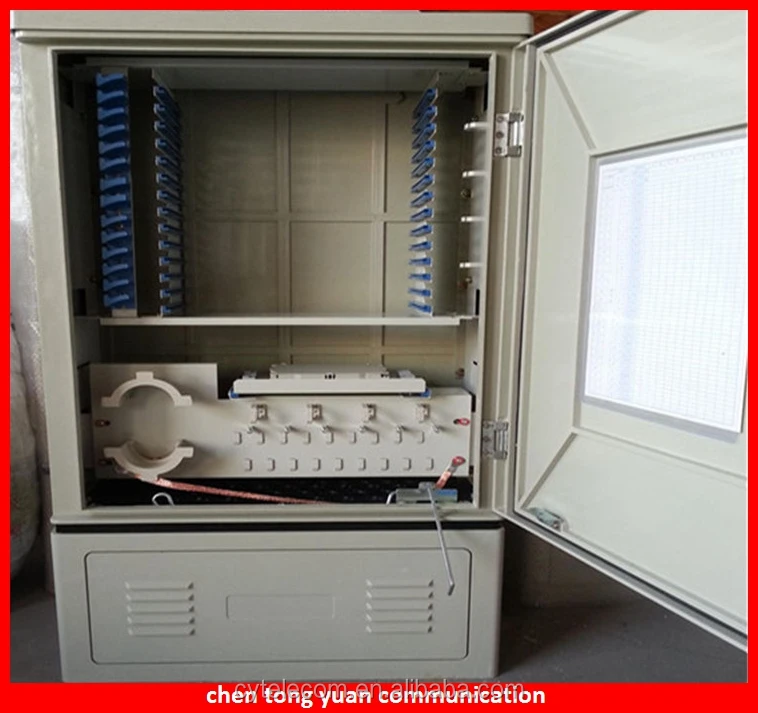

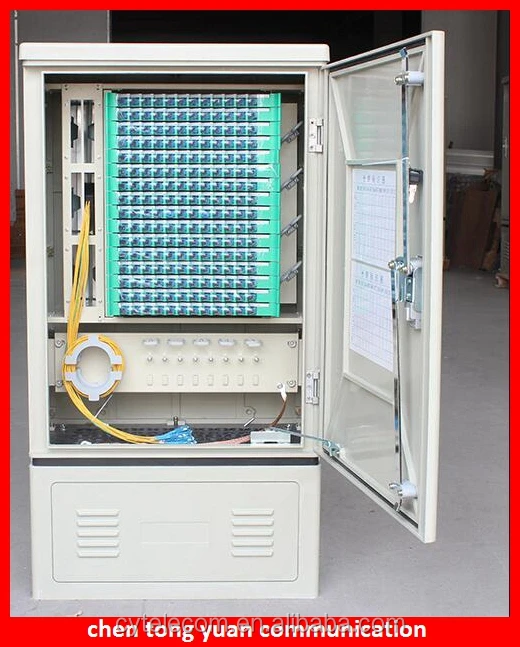

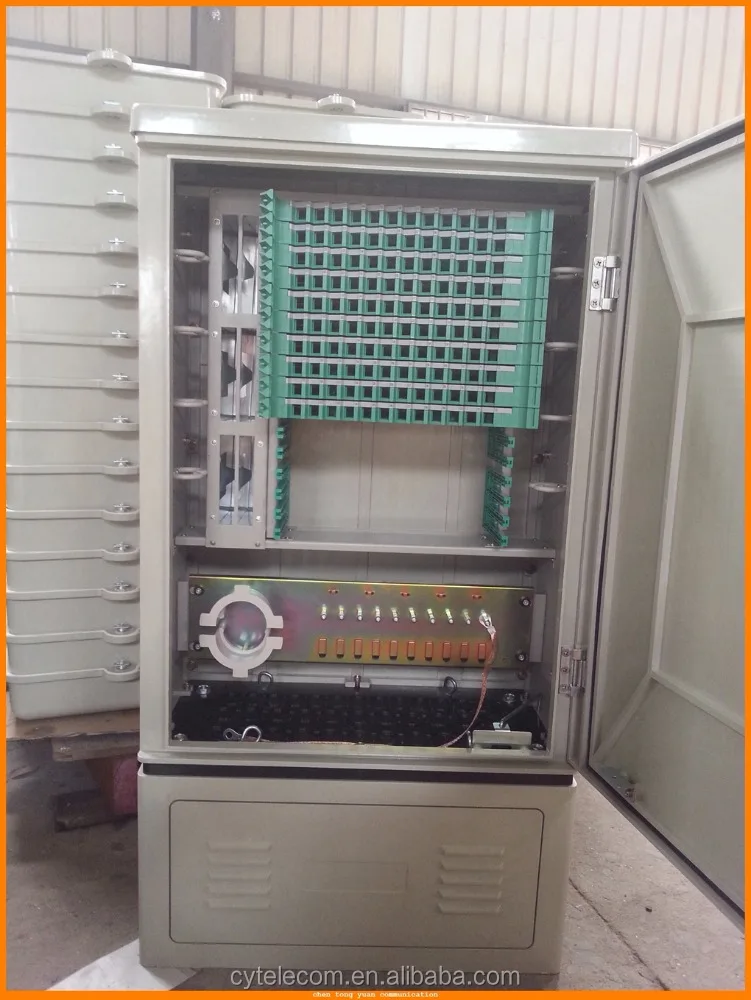

Product picture







The base

For 144 cores

For 288 cores

Outer size



Optical distribution frame can realize outdoor optical fiber wiring at ode between trunk optical cable and wiring optical cable for outdoor optical cable connecting work. It can realize optical fiber straight way,coiling storage and optical fiber splicing and schedule function. There are two installation way, outdoor landing and overhead.



Fiber optical cross connection cabinet series configurations









Please write me emails for more details on telecom outdoor optical distribution cabinet.
