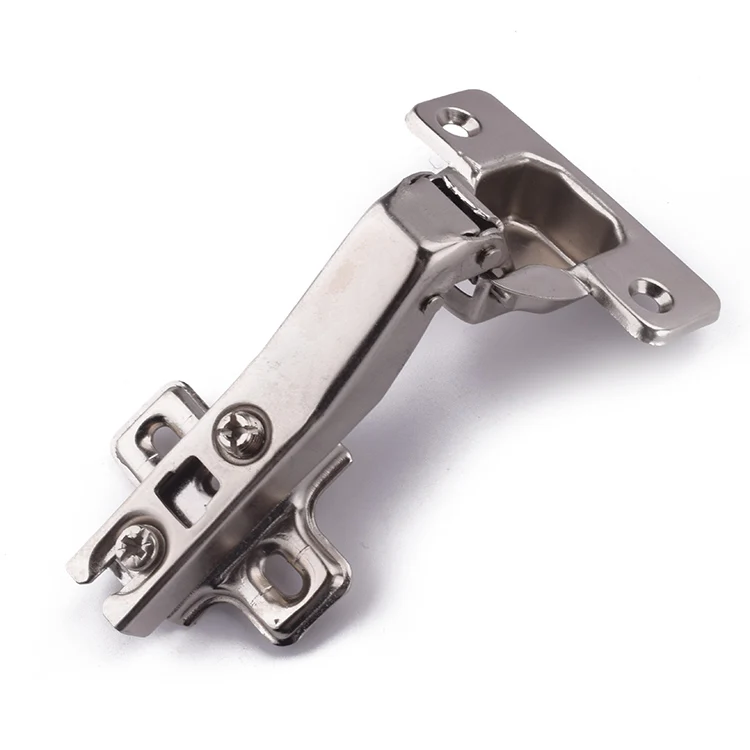

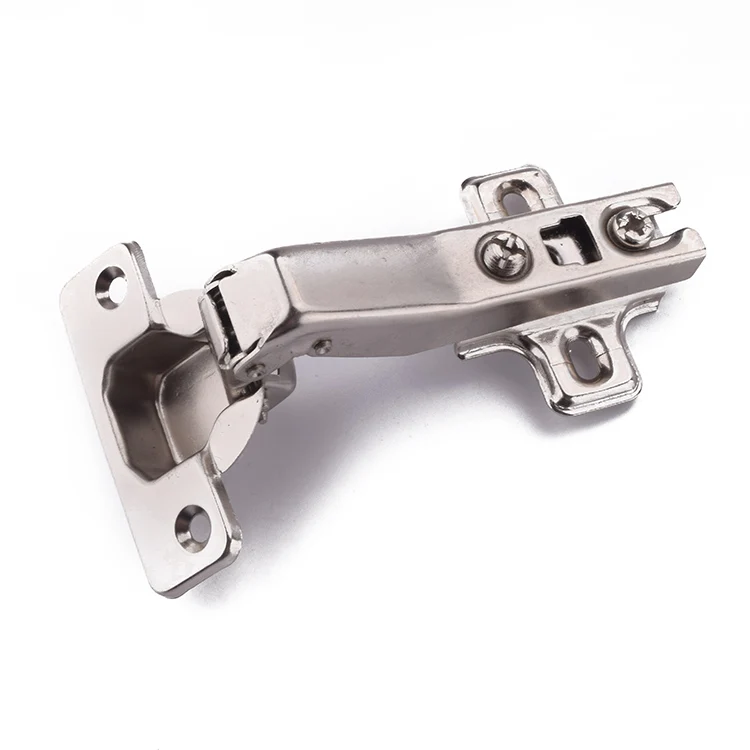

Special opening angle 45 degree hinge

Product Overview

Description

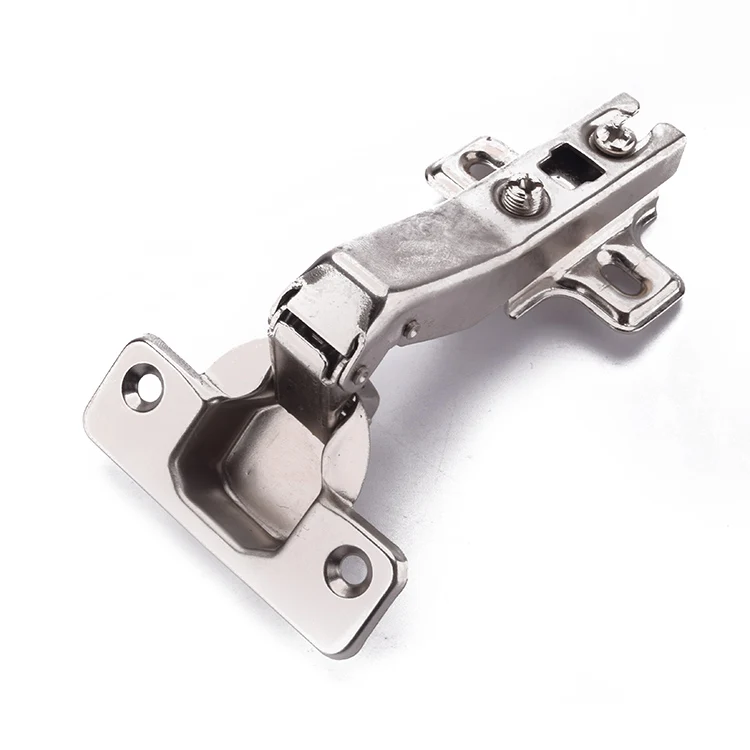

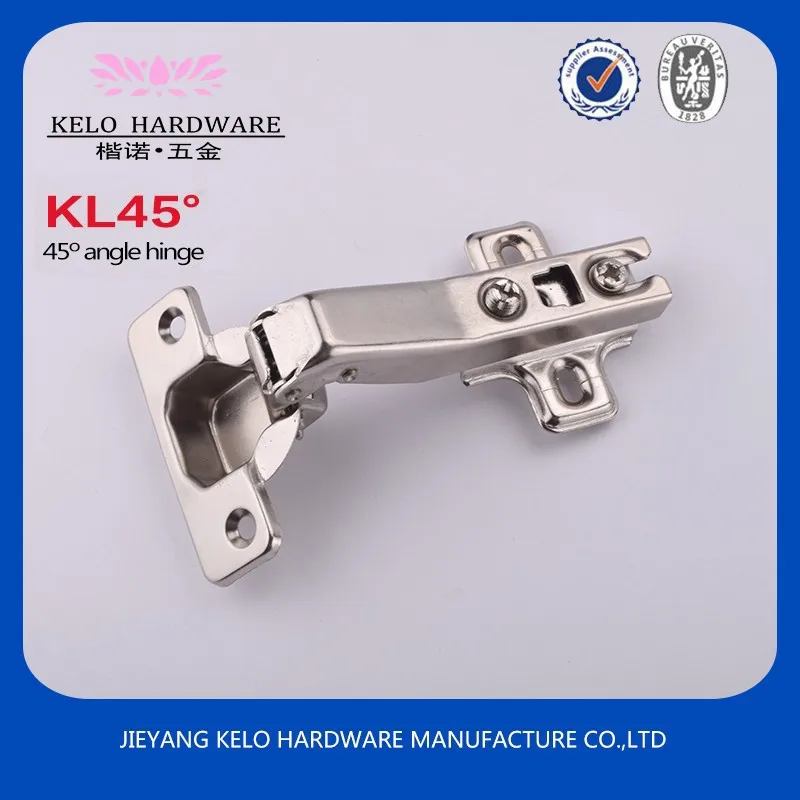

                     Special opening angle 45-degree hinge

Name	Ball Bearing Drawer Slider	Weight	as per you requirement
Marerial	Cold Roll Steel /stainless steel	Length	8"(200mm)-28"(700mm)
Finish	Blue Zinc /Black /Rainbow zinc	Test	SGS 48hour
Usage	Kitchen table drawer	Loading capacity	50KGS/20inch/(500mm)
Type	2 and 3 fold drawer slide	Ball	1 balls/2 balls/3 balls/4 balls/5 balls
Width	45mm/42mm/35mm/27mm/17mm	Package	one pair/polybag,15 sets/CTN
Thickness	as per you requirement



Width	Thickness(mm)
17mm	0.8*0.8/1.0*1.0mm
27mm	0.8*0.8/0.9*0.9/1.0*1.0mm
30mm	0.6*0.6*0.6/0.7*0.7*0.7/0.8*0.8*0.8mm
35mm	0.7*0.7*0.7/0.8*0.8*0.8/0.9*0.9*0.9/1.0*1.0*1.0mm
40mm	0.7*0.7*0.7/0.8*0.8*0.8mm
42mm	0.8*0.8*0.8/0.9*0.9*0.9/1.0*1.0*1.0mm
45mm	0.8*0.8*0.8/0.9*0.9*0.9/1.0*1.0*1.0/1.2*1.2*1.2/1.2*1.2*1.5mm
