Оцинкованная проволока ACSR 1,68 мм 2,68 мм 3,37 мм 4,77 мм

Product Overview

Description

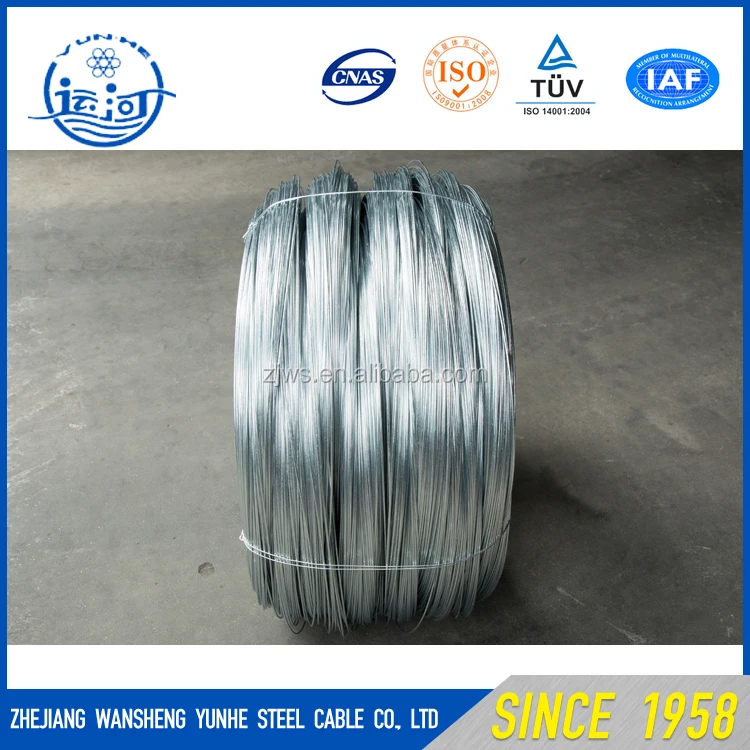

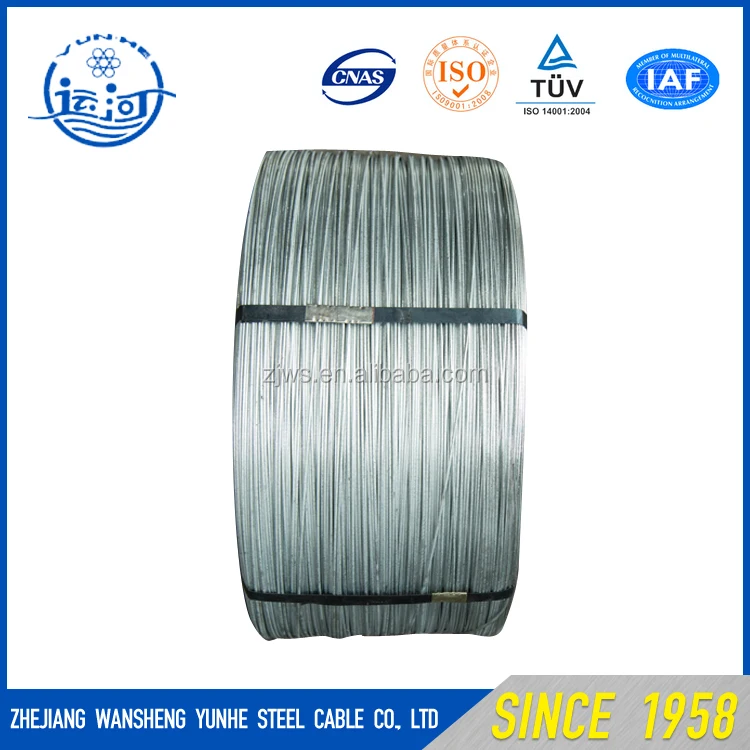

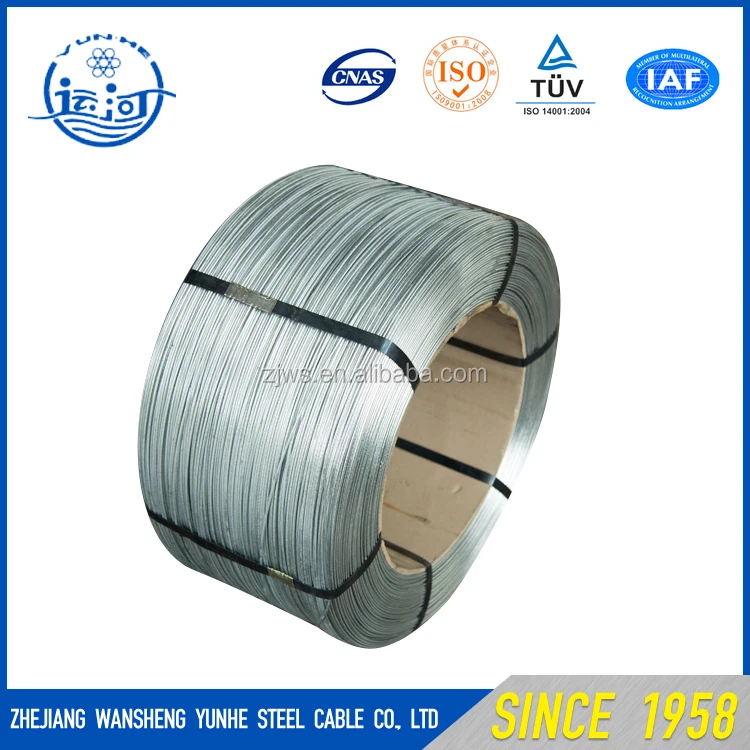

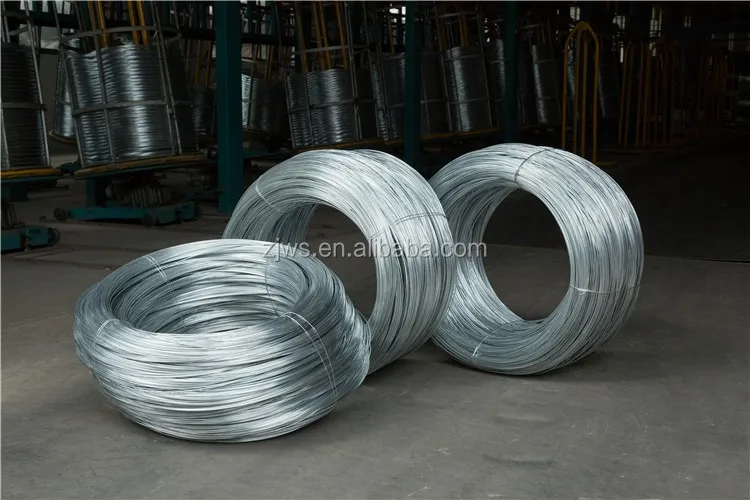

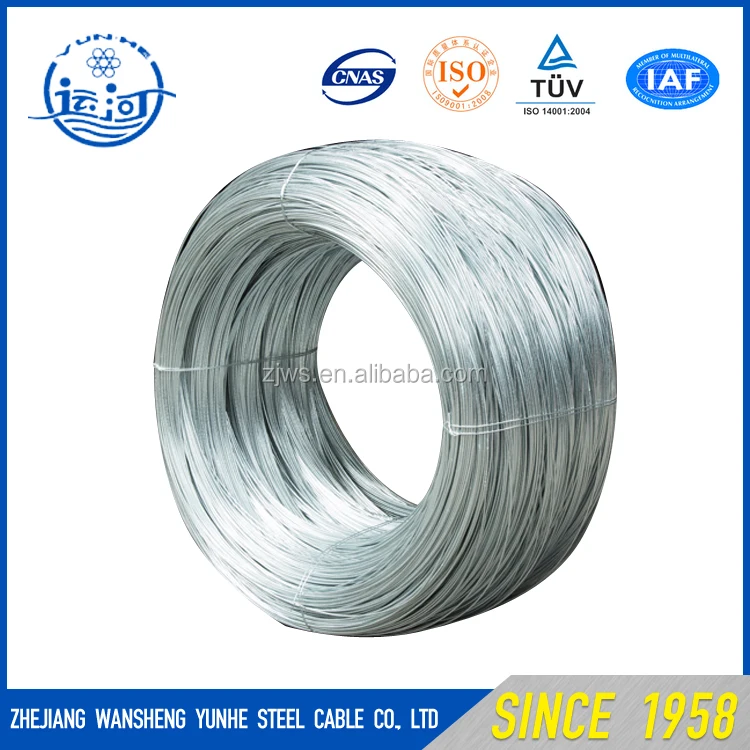

Extra High tensile Strength zinc coated hot dipped galvanised wire ( manufacture )





 ACSR 1.68mm 2.68mm 3.37mm 4.77mm  galvanised wire

Zinc coating	EN10257/BS443
Material	Q195 Q235 45# 60# 65# 70# 80# 82B carbon steel
Key word	zinc coated galvanised steel wire
	0.3-11.0mm
Surface treatment	hot dipped  galvanised wire
Application	stranded conductors/ACSR/cable/fencing gabion/guy wire/stay wire
Package	Standard export packing. In coils, water-proof cloth.Z2 packaging,wooden reel,  Or according to customer's needs.
zinc coating	30g-360g/m2 TO 0.6mm zinc coated galvanised steel wire
Tensile strength	low/mild/high
Port of loading	shanghai ,ningbo or any china port
Certificate	ISO9001/SGS/BV TO High Quality zinc coated galvanised steel wire



The factory was set up in 1958. Registered ZHEJIANG WANSHENG YUNHE STEEL CABLE CO., LTD in 2006. Nowadays it has became an enterprise which specially produce brand “Yunhe” metal product series in metallurgical industry. Also it is national key supporting hightech enterprise. We now have a registered capital of 200 million RMB and covering an area of 30 thousand  square meters. Our company has attained ISO9001 quality management system certification and ISO 14001 quality system certification.

We are well recognized and praised by numerous customers both home and abroad because of our first-class quality, in-time delivery and high-efficiency service.

Zinc-coated steel wire for stranded conductors
(Strength General)	diameter mm	Tensile Strebgth  No  Less  Than	Tensile Strength  No Less Than	LD=250mm Elongation   Noless Than%	Number Of  Twist/360   No less Than	Diameter Of Core ROD  FOR Wrap Test(times)
(A)General strength	>1.24-2.25	1340	1170	3	18	1D
	>2.25-2.75	1310	1140	3	16	1D
	>2.75-3.0	1310	1140	3.5	16	1D
	>3.0-3.5	1290	1100	3.5	14	1D
	>3.5-4.25	1290	1100	4	12	1D
	>4.25-4.75	1290	1100	4	12	1D
	>4.75-5.5	1290	1100	4	12	1D
(A)Higher strength	>1.24-2.25	1450	1310	2.5	16	3D
	>2.25-2.75	1410	1280	2.5	16	3D
	>2.75-3.0	1410	1280	3	16	4D
	>3.0-3.5	1410	1240	3	14	4D
	>3.5-4.25	1380	1170	3	12	4D
	>4.25-4.75	1380	1170	3	12	4D
Extra Higher Strength	>1.24-2.25	1620	1450	2	14	3D
	>2.25-2.75	1590	1410	2	14	3D
	>2.75-3.0	1590	1410	2.5	12	4D
	>3.0-3.5	1550	1380	2.5	12	4D
	>3.5-4.25	1520	1340	2.5	10	4D
	>4.25-4.75	1520	1340	2.5	10	4D
