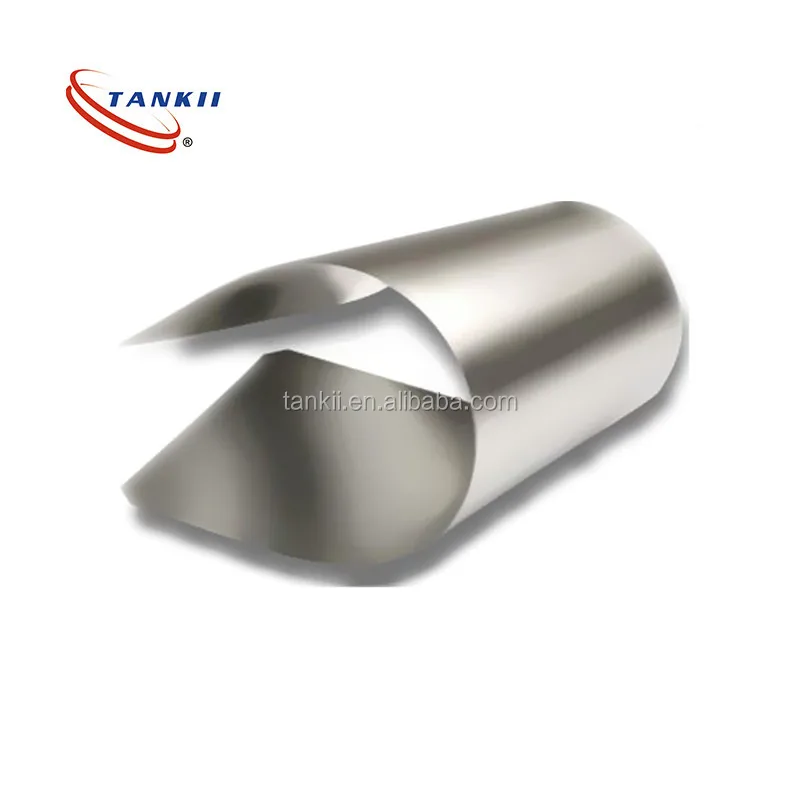

Nickel Nicr80/20, Ni80Cr20, Cr20Ni80, Karma,Evanohm,Tin,Lead,Silver, Manganin, Tape/Strip foil / coil Thickness:0.002mm
- Category: Nickel >>>
- Supplier: Shanghai,Tankii,Alloy,Material,Co.,Ltd.,[Shanghai,China]Shanghai
Share on:
Product Overview
Description
Nickel Nicr80/20, Ni80Cr20, Cr20Ni80, Karma,Evanohm,Tin,Lead,Silver, Manganin, Tape/Strip foil / coil Thickness:0.002mm
It has good mechanical strength,corrosion-resistant and heat-resistance strength.
It is widely used in electric apparatus,chemical machinery,ood processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.
Specification
Specification of Cold-drawing Round Type for nicr 8020 flat heating wire
Diameter(mm) | Tolerance(mm) | Diameter(mm) | Tolerance(mm) |
0.03-0.05 | ±0.005 | >0.50-1.00 | ±0.02 |
>0.05-0.10 | ±0.006 | >1.00-3.00 | ±0.03 |
>0.10-0.20 | ±0.008 | >3.00-6.00 | ±0.04 |
>0.20-0.30 | ±0.010 | >6.00-8.00 | ±0.05 |
>0.30-0.50 | ±0.015 | >8.00-12.0 | ±0.4 |
Specification of Cold-drawing Strip Type for nicr 8020 flat heating wire
Thickness(mm) | Tolerance(mm) | Width(mm) | Tolerance(mm) |
0.05-0.10 | ±0.010 | 5.00-10.0 | ±0.2 |
>0.10-0.20 | ±0.015 | >10.0-20.0 | ±0.2 |
>0.20-0.50 | ±0.020 | >20.0-30.0 | ±0.2 |
>0.50-1.00 | ±0.030 | >30.0-50.0 | ±0.3 |
>1.00-1.80 | ±0.040 | >50.0-90.0 | ±0.3 |
>1.80-2.50 | ±0.050 | >90.0-120.0 | ±0.5 |
>2.50-3.50 | ±0.060 | >120.0-250.0 | ±0.6 |
Technical data for nicr 8020 flat heating wire
Alloy Type | Diameter | Resistivity | Tensile | Elongation(%) | Bending | Max.Continuous | Working Life |
Cr20Ni80 | <0.50 | 1.09±0.05 | 850-950 | >20 | >9 | 1200 | >20000 |
0.50-3.0 | 1.13±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
>3.0 | 1.14±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
Cr30Ni70 | <0.50 | 1.18±0.05 | 850-950 | >20 | >9 | 1250 | >20000 |
≥0.50 | 1.20±0.05 | 850-950 | >20 | >9 | 1250 | >20000 | |
Cr15Ni60 | <0.50 | 1.12±0.05 | 850-950 | >20 | >9 | 1125 | >20000 |
≥0.50 | 1.15±0.05 | 850-950 | >20 | >9 | 1125 | >20000 | |
Cr20Ni35 | <0.50 | 1.04±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
≥0.50 | 1.06±0.05 | 850-950 | >20 | >9 | 1100 | >18000 | |
1Cr13Al4 | 0.03-12.0 | 1.25±0.08 | 588-735 | >16 | >6 | 950 | >10000 |
0Cr15Al5 | 1.25±0.08 | 588-735 | >16 | >6 | 1000 | >10000 | |
0Cr25Al5 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
0Cr23Al5 | 1.35±0.06 | 634-784 | >12 | >5 | 1250 | >8000 | |
0Cr21Al6 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
1Cr20Al3 | 1.23±0.06 | 634-784 | >12 | >5 | 1100 | >8000 | |
0Cr21Al6Nb | 1.45±0.07 | 634-784 | >12 | >5 | 1350 | >8000 | |
0Cr27Al7Mo2 | 0.03-12.0 | 1.53±0.07 | 686-784 | >12 | >5 | 1400 | >8000 |
