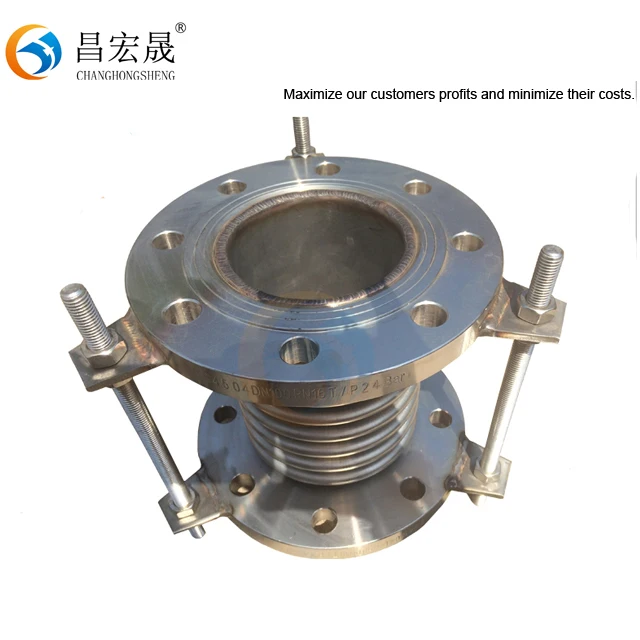

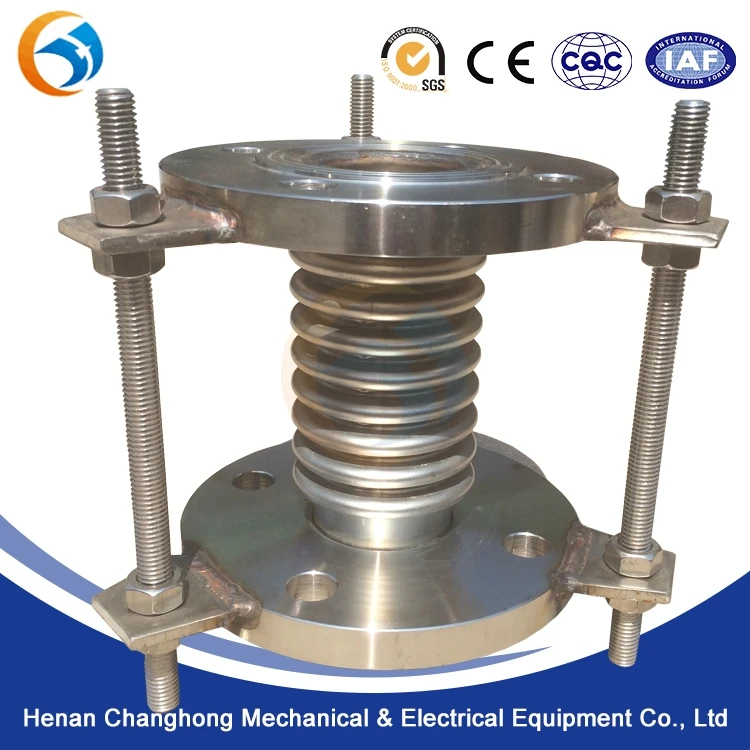

High Grade Pipeline Metal Bellows Expansion Joint Axial Corrugated Compensator

23





What's the detailes of the METAL EXPASNION JOINT?

1.Materialss304,321,316,316L,Incoloy825,800.Inconel625,Ti alloy,Copper&Alloy
2.Constructionflange,bellow,internal sleeve,tie-rod,pipe end nut
3.connector approvalLoose or fixed flange
4.Braided mesh layernoe or double layer braided
5.flange drilledBS,ANSI,DIN,JIS,UNI,or others provided drawings sample
6. surfacecarbon steel flange galvanized or AL painted
7. normal sizeID40~600MM,overall length:300~400mm
8. usagefor the chemical industry,metallurgy,electrical,shipbuilding,construction and other industri

Product Details

HTB1lxUiQVXXXXcTXFXXq6xXFXXXG_07



WHAT'S THE MAIN SIZE OF METAL EXPANSION JOINT?

DN

Number

of wave

Pressure grade(Mpa)

Available area

(cm2)

Max size

(mm)

 Length(mm)
0.250.611.62.5
 Flange JDZ/F		Pipe JDZ/F

Axial compensation mm/  N/mm
  32 8 25/2122/26 20/26 18/63 15/98   16 110 160/250264/210
 16 50/1146/14 41/14 36/32 31/47  220 244/291316/320
  40 8 25/2822/44 20/44 18/89 15/10   23 130 164/259269/260
 16 50/1446/22 41/22 36/45 31/55  240 230/304319/400
  50 8 25/3022/51 20/70 18/70 15/13   37 150 172/276282/230
 16 50/1646/26 41/35 36/35 31/70  260 240/342347/450
  65 8 33/2830/35 26/44 22/55 19/68   55 170 215/294300/260
 12 42/1638/22 38/32 34/40 29/50  280 260/334340/470
  80 8 40/20 36/26 34/33 28/41 24/54  81 200 240/338344/260
 10 53/14 49/17 49/21 43/26 38/33 230 270/368374/300
  100 6 45/4745/60 40/75 35/93 29/11   121 220 235/317323/280
 10 76/2674/32 64/40 57/50 49/63  260 305/381387/320
  125 5 48/3842/47 38/59 34/74 29/92   180 250 282/314316/320/600
 9 85/2377/29 66/36 58/45 50/56  290 382/386388/360
  150 5 49/4244/50 40/62 34/78 29/97   257 250 282/389338/320
 8 79/3471/43 64/51 54/59 46/65  290 356/399402/360
  200 4 52/4946/55 42/68 38/78 34/11   479 300 280/384348/370/200
 6 73/3165/44 59/52 53/58 48/78  340 340/402402/420
  250 4 72/30 65/34 59/42 52/45 47/55  796 330 315/379415/420/300
 6 108/1697/21 87/35 79/39 71/47  360 393/459493/460
  300 4 72/5165/55 59/59 52/65 47/71   1105 340 366/427466/480
 6 108/3297/35 87/37 79/41 71/45  400 464/525564/520
  350 4 72/5865/62 59/67 52/74 47/81   1307 340 397/452497/480
 6 108/38 97/41 87/44 79/48 71/47 420 509/564609/540
  400 4 72/5465/58 59/62 52/68 47/75   1611340 412/478512/480/430
 6 108/3697/39 87/43 79/47 71/52  420 522/588622/560





 PLEASE CLICK HERE AND GET A QUATATION!
