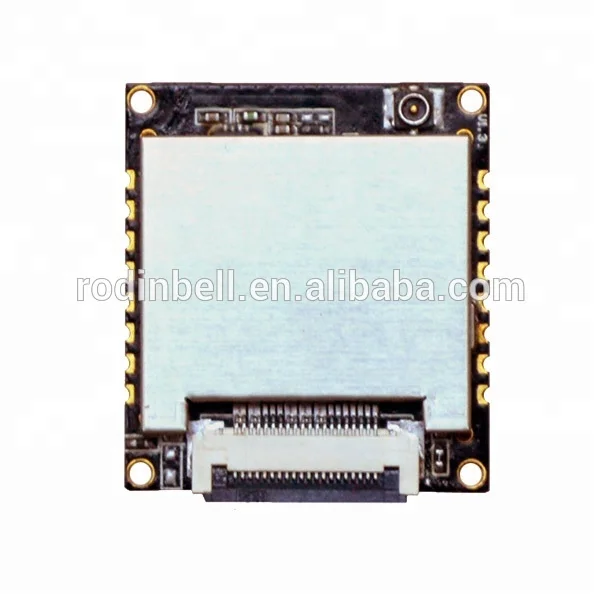

Phychip pr9200 smallest long distance passive rfid reader module for desktop reader

Product Overview

Description

Phychip pr9200 smallest long distance passive rfid reader module for desktop reader



Specification of products

Operating Voltage	3.5V – 5 V
Standby Mode Current	<80mA (EN high level)
Sleep Mode Current	<100uA (EN low level)
Operating Current	180mA @ 3.5V (26 dBm Output,25°C) 110mA @ 3.5V (18 dBm Output,25°C)
Operating Temperature	- 20 °C  -  + 70  °C
Storage Temperature	- 20 °C  -  + 85  °C
Humidity	< 95% ( + 25 °C)
RF Chip	Phychip PR9200
Air Interface Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ISO 18000-6B
Spectrum Range	860Mhz – 960Mhz
Supported Regions	US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China, Japan, Korea, Malaysia
Supported Regions	0 – 26dBm
Output Power Precision	+/- 1dB
Output Power Flatness	+/- 0.2dB
RF Connector	I-PEX
Receive Sensitivity	< -70 dBm
Peak Inventory Speed	> 50 tags/sec
Tag Buffer Size	200 tags @ 96 bits EPC
Tag RSSI	Supported
Host Communication	TTL Uart port Wiegand 26/34
GPIO	2 inputs optical coupling    2 outputs optical coupling(3.3V TTL Level)
Max Baud Rate	115200 bps(Default and Recommended) 384000 bps
Cooling	Air cooling (Don’t need external Heatsink).

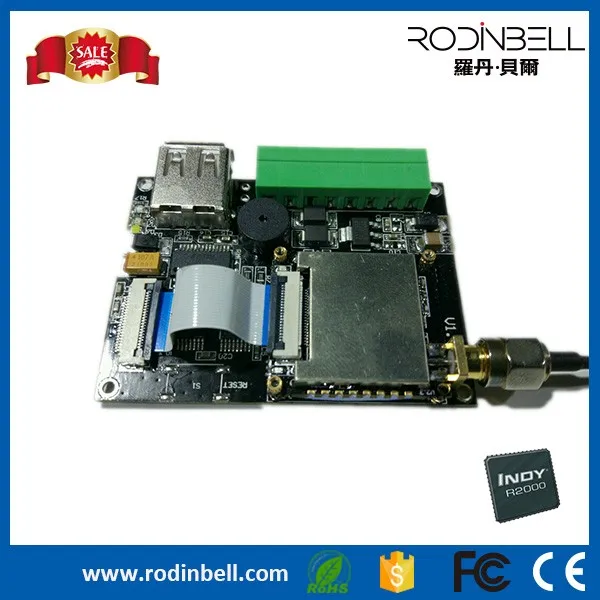

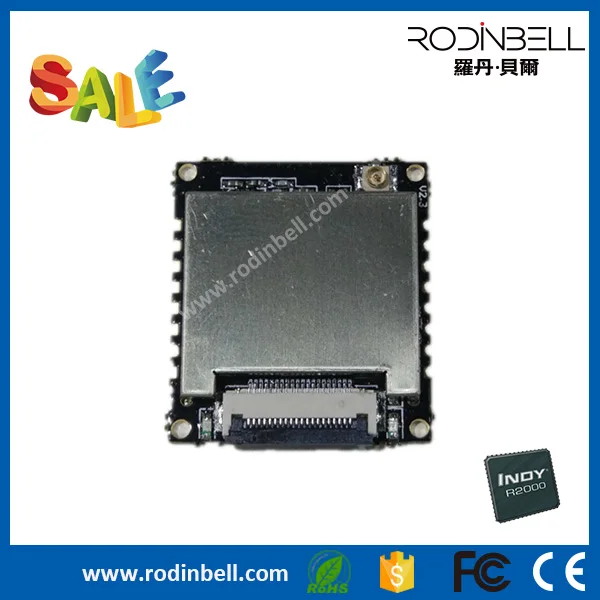

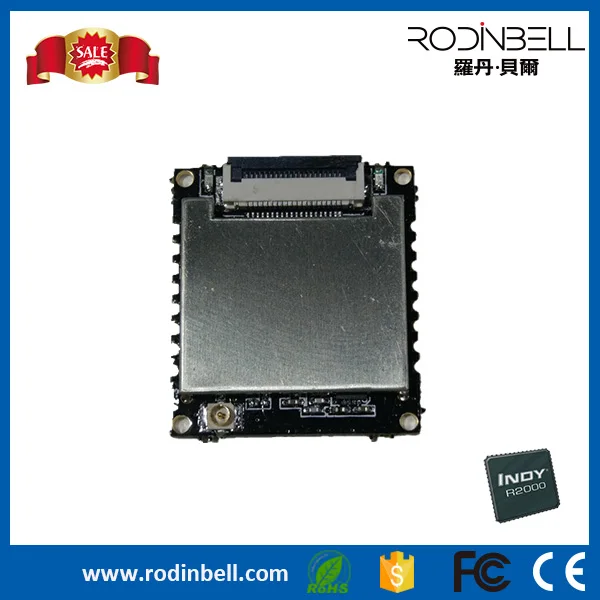

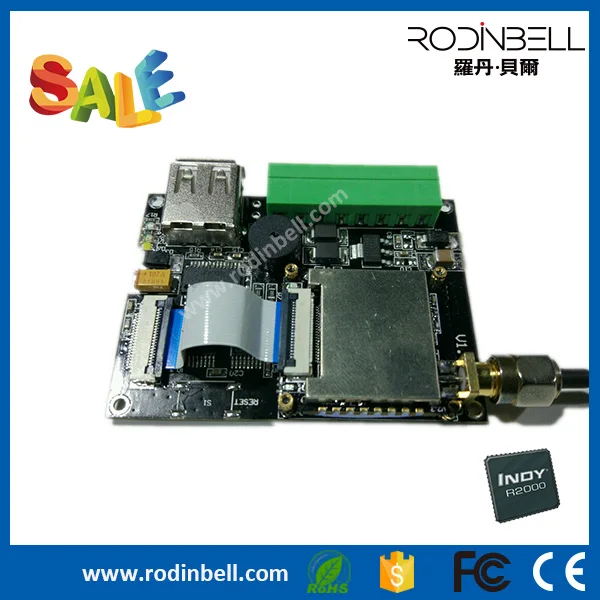

Detail pictures of products

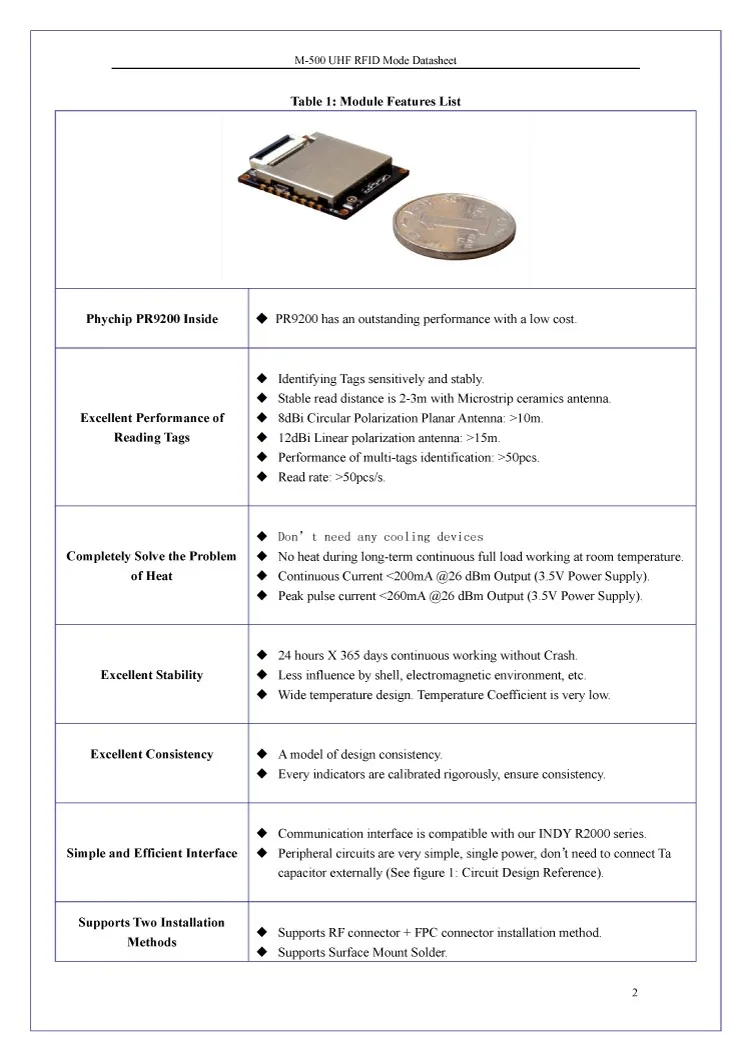

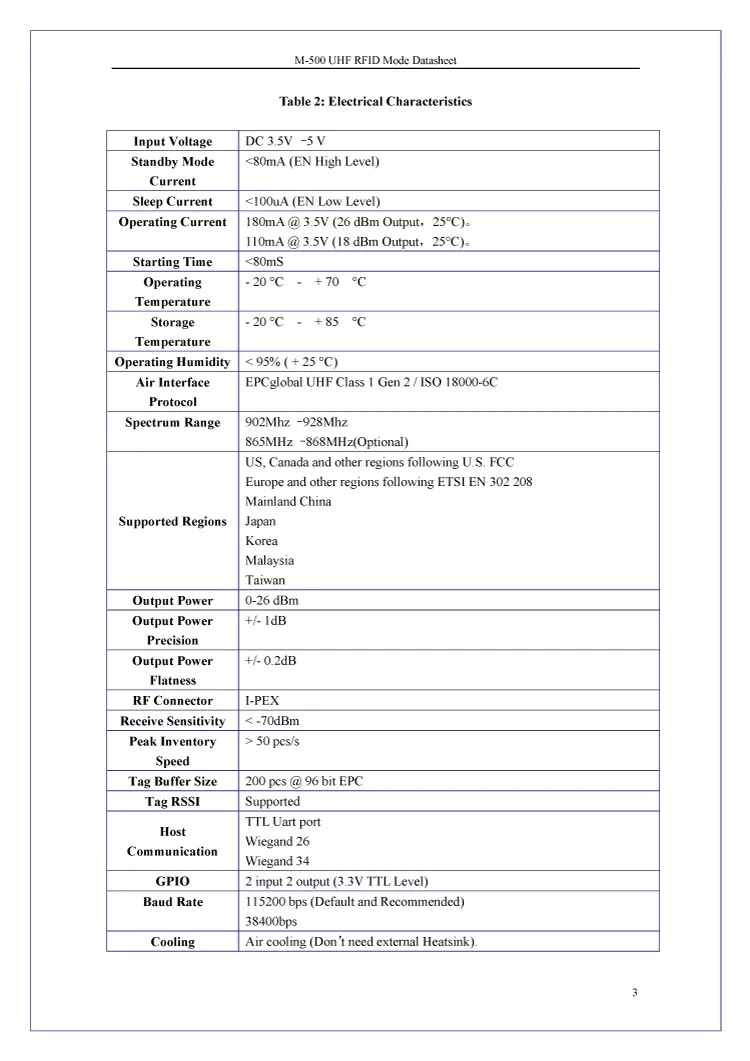

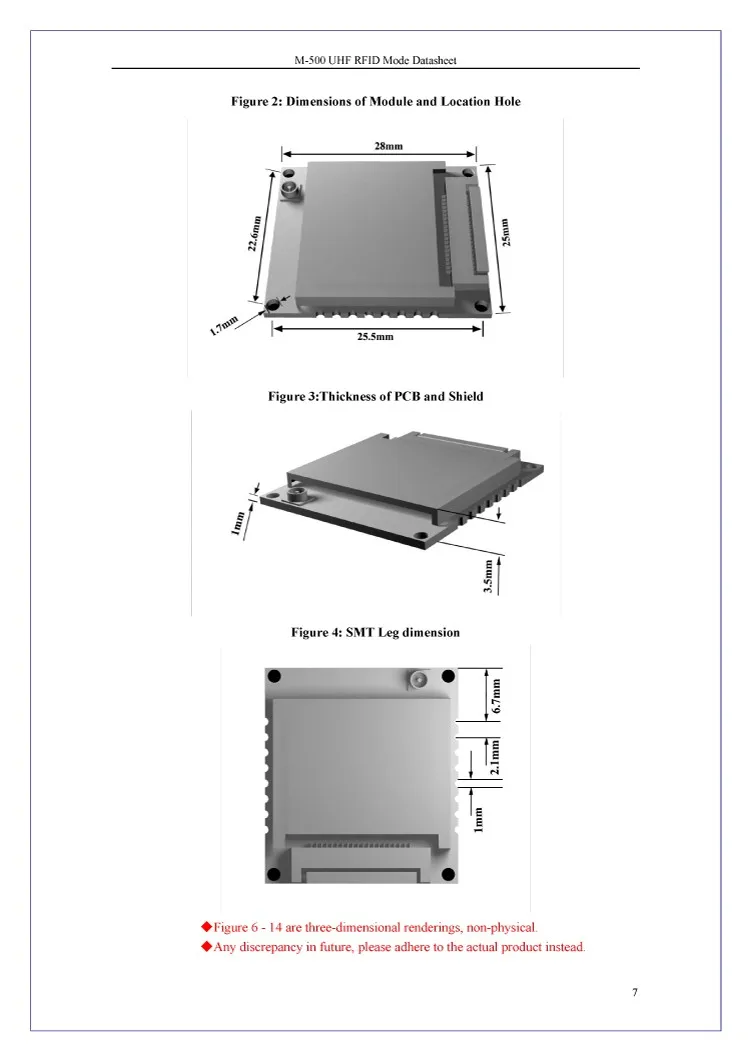

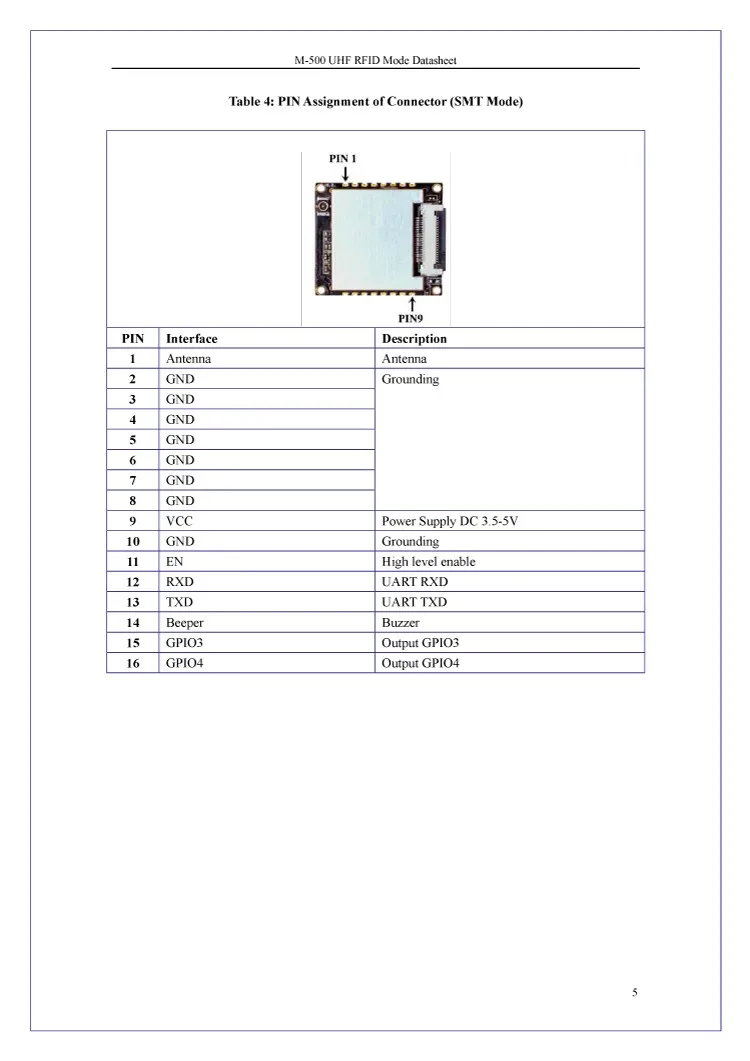

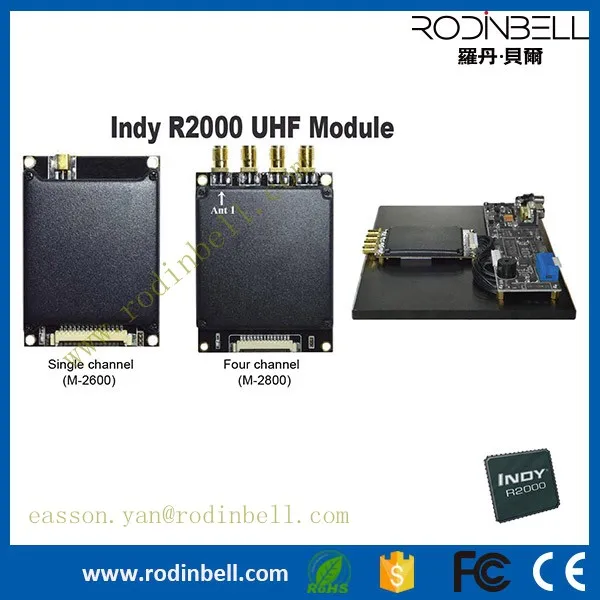

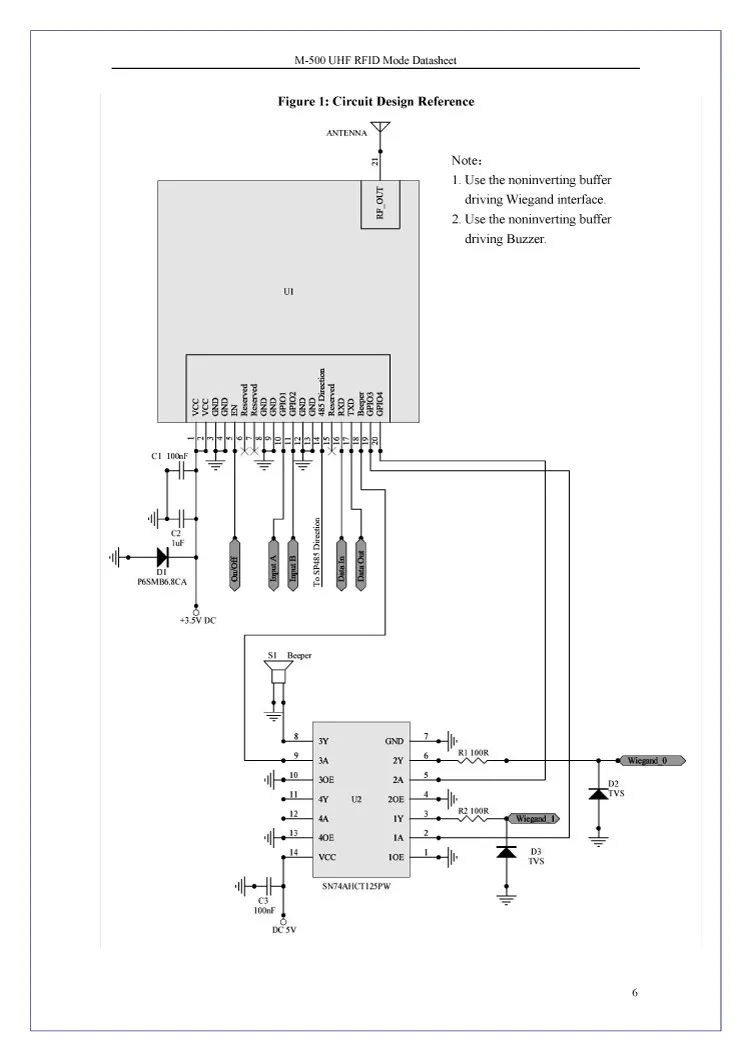

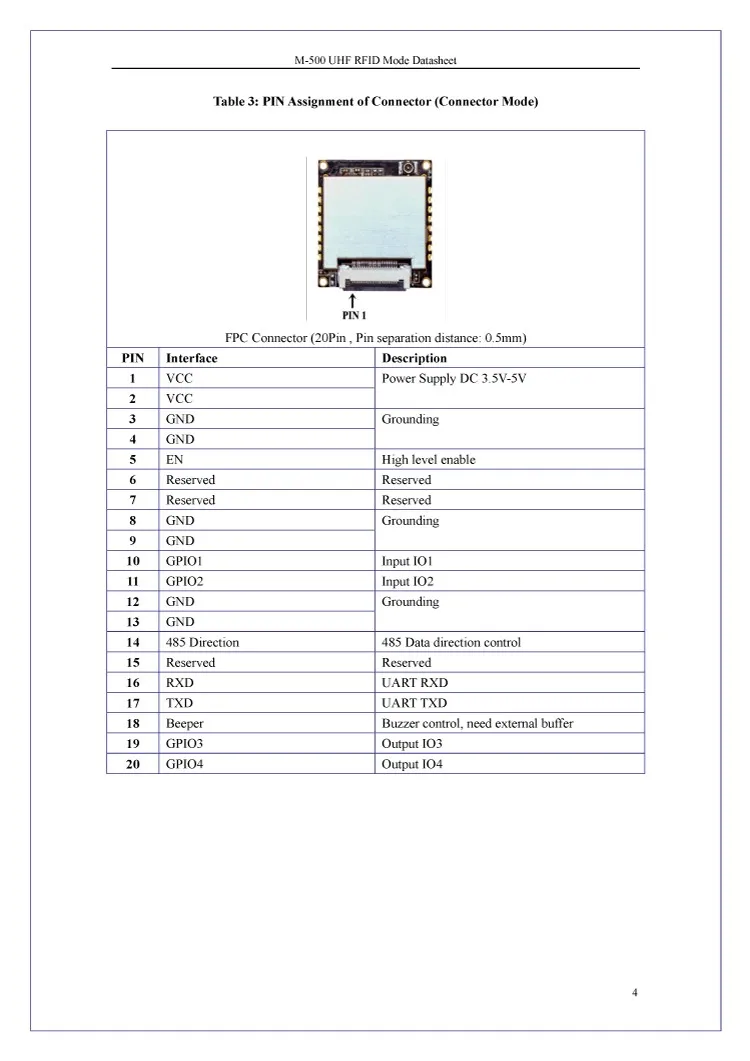

Specifications of UHF Modules



Packing & Shipping



Packed with PP bag and Paper box

Shipped with DHL, FEDEX, UPS, TNT and other methods



Company Information



Founded in 2010, Shenzhen RodinBell Technology Co., Ltd. is one of the leading companies that offers products and solutions confining industrial and commercial intelligent equipment.

With the importance we attached to the integrity of research, development and innovation, and to the respect for independent intellectual property rights, RodinBell R&D team is made up of engineers and designers including those who had worked in microwave communications, embedded operating systems, application development and industrial design for more than 20 years.



Our service:



ADK/API file willed be provided for you with the products
