AFC 105 adjustable AC Power Source 500VA rated power frequency converter
- Category: >>>
- Supplier: Dongguan Sophpower Electronics Co. Ltd.
Share on (60621520302):
Product Overview
Description
Overview
AFC-105 Frequency Converter 500VA Ac Power Source
The AFC Series single phase AC power source are compact and cost effective units that offer excellent performance and ease of use. Using model IGBT/SPWM switch mode technology for efficient operation, these units come in power levels from 500VA to 1000kVA.
The AFC Series are ideally suited for burn-in and test of large industrial equipment. The frequency can also be adjusted to 400 Hertz for applications such as the testing of military/avionics equipment or for the operation of 400 Hz electronics that are onboard an aircraft or a military vessel. The adjustable frequency band of 45 to 400 Hz in conjunction with the dual voltage ranges of 0-150 volts or 0-300 volts provides full capabilities for testing and operating electronics.
Key Features
1) Simple Front Panel Controls.
2) Low Voltage Distortion.
3) Current Limit Protection.
4) Up to 0-300Vac Voltage Output or 600V optional.
5)45-500 Hz Full Power Bandwidth.
6) RS232/RS485 or GPIB Interface Options.
Applications
AC Test Power
The AFC Series AC Power Source is equipped with a powerful microcontroller to create a stable and accurate output frequency, regardless of AC input conditions. It can be programmed to supply a variety of power conditions to the device under test and meters all output parameters.
Frequency/Voltage Conversion
The AFC Series is an excellent source of stable AC voltage over a frequency range of 45 to 500 Hz. The output frequency is quartz-crystal stabilized. Output voltages up to 300 VAC or 600VAC are provided.
Export/Import Product Development and Test
With the ability to provide any single phase voltage and frequency combination found around the world, the APS1000 Series is a great choice for evaluating AC products for worldwide use. In particular, household appliances intended for export to regions of the world with various utility grid voltage and frequency combinations can be tested in high volume using the higher power AFC Series models.
Avionics Power
Whenever 400Hz, 115Vac single phase is required to power up shipboard or airborne equipment, the AFC Series can do the job. With up to 500A of current available, even large equipment can be powered up.
Specs
Model | AFC-105 | |
INPUT SPECIFICATIONS | ||
Phases | 1Ø2W + Ground | |
Voltage | 110V/220V±10% | |
Frequency | 50/60Hz±5% | |
OUTPUT SPECIFICATIONS | ||
Rated Power | 500VA | |
Max Current | 150V Range | 4.2A |
300V Range | 2.1A | |
Phases | ||
Voltage | Low Range | 0-150V |
High Range | 0-300V | |
Resolution | 0.1V | |
Frequency | Range | 50,60,45-500Hz(Optional) |
Resolution | 0.1 Hz | |
Harmonic Distortion | ≤ 1% ( Full Load 2% ) | |
Crest Factor | ≥ 3 : 1 | |
Load Regulation | ≤ 1% | |
Protection | Over Current, Short Circuit, Over Temperature,Over Load ,Phase Deficient, Low-voltage Protection, Alarms | |
Efficiency | ≥ 85% ( at full load ) | |
ENVIRONMENTAL | ||
Operating Temperature | 0° - 40° C / 32° - 104° F | |
Relative Humidity | 10-90%,non-condensing | |
DISPLAYS AND CONTROLS | ||
3 Digit LED Meters | Voltage, Current, Frequency,Power or Power factor(Optional) | |
Interface | RS-485 or RS-232(Optional) | |
MECHANICAL SPECIFICATIONS | ||
Dimensions(W*H*D)(mm) | 425*89*480 | |
Weights(Kg) | 20 |

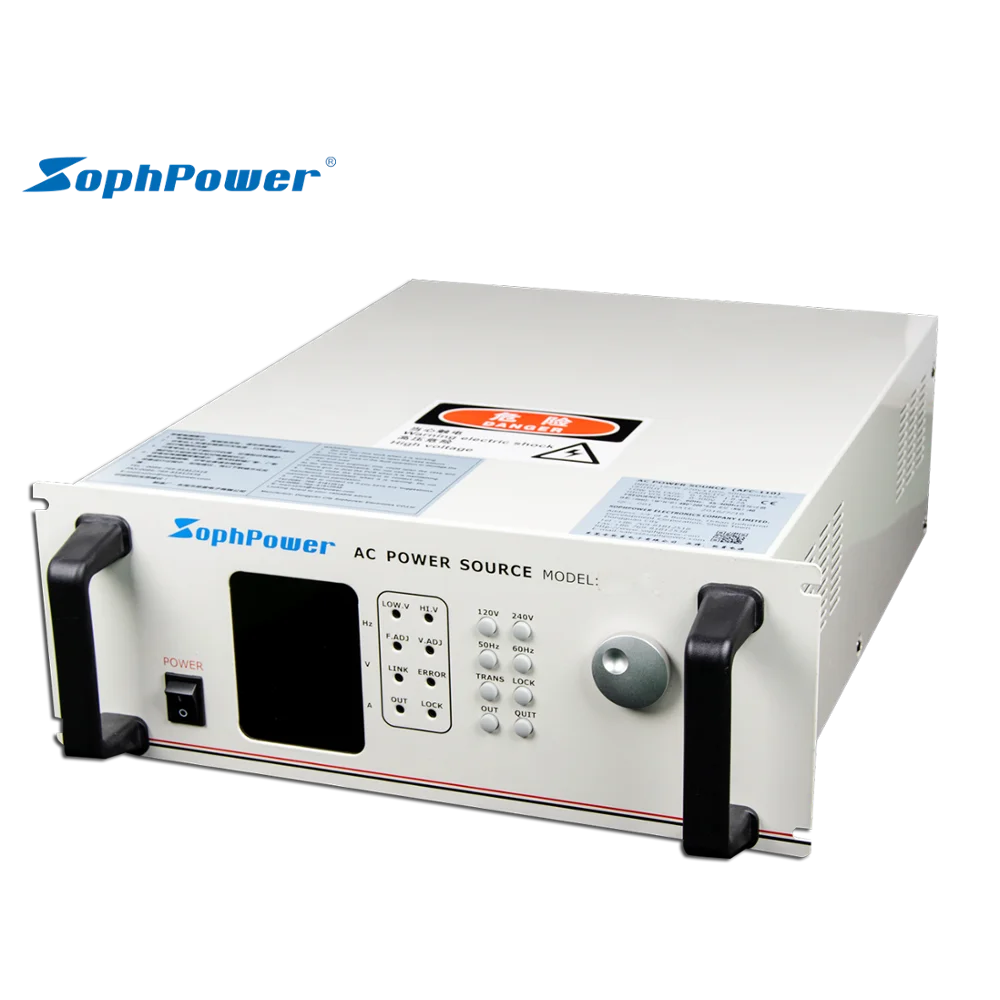

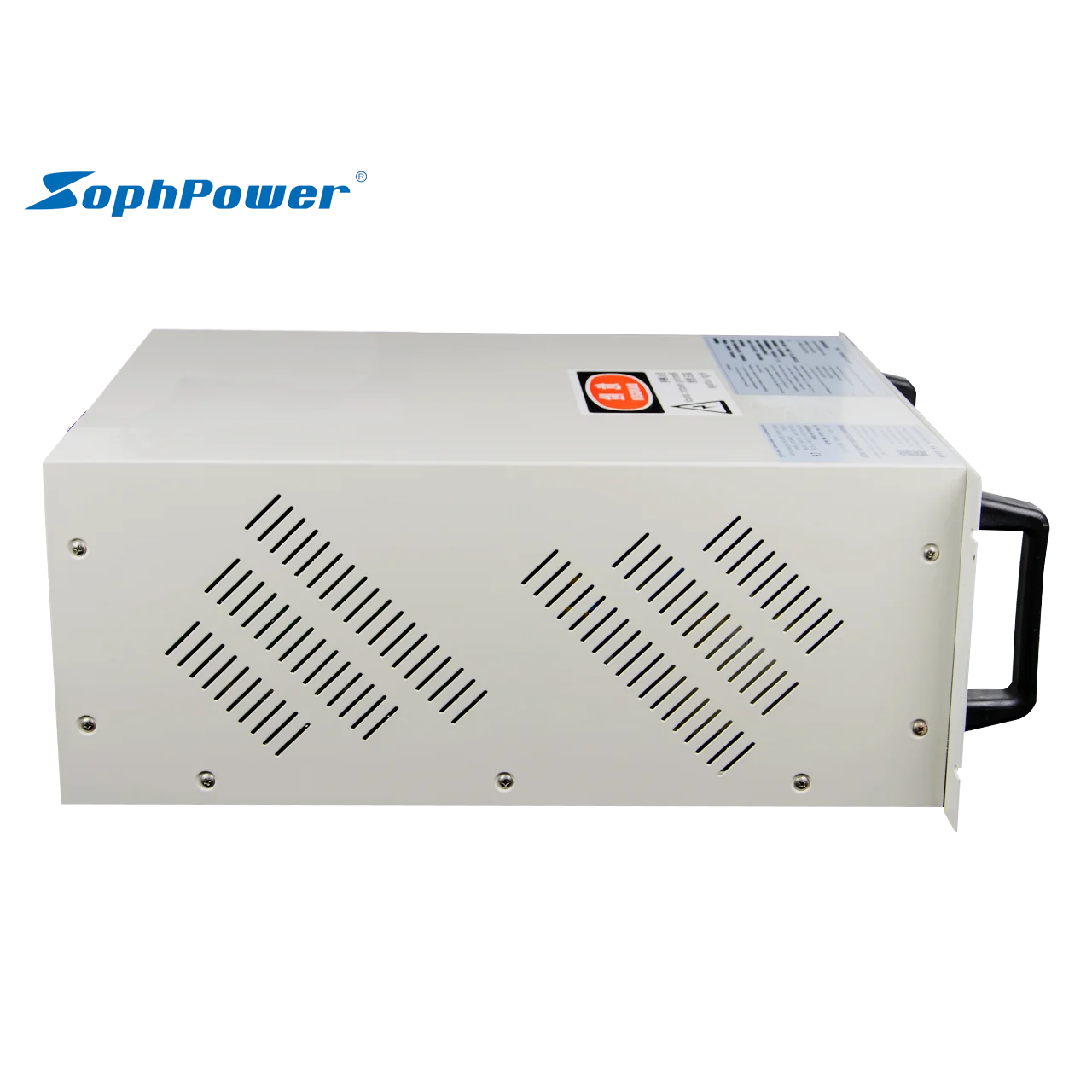

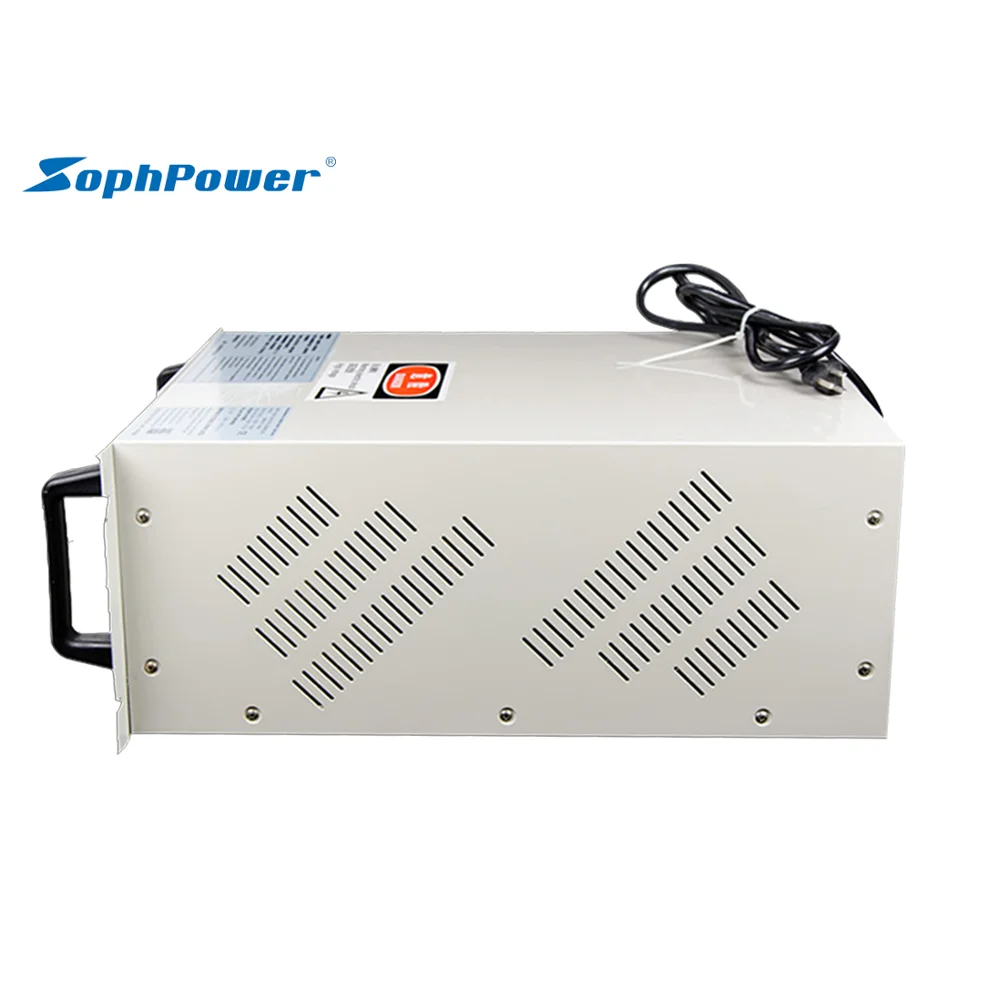

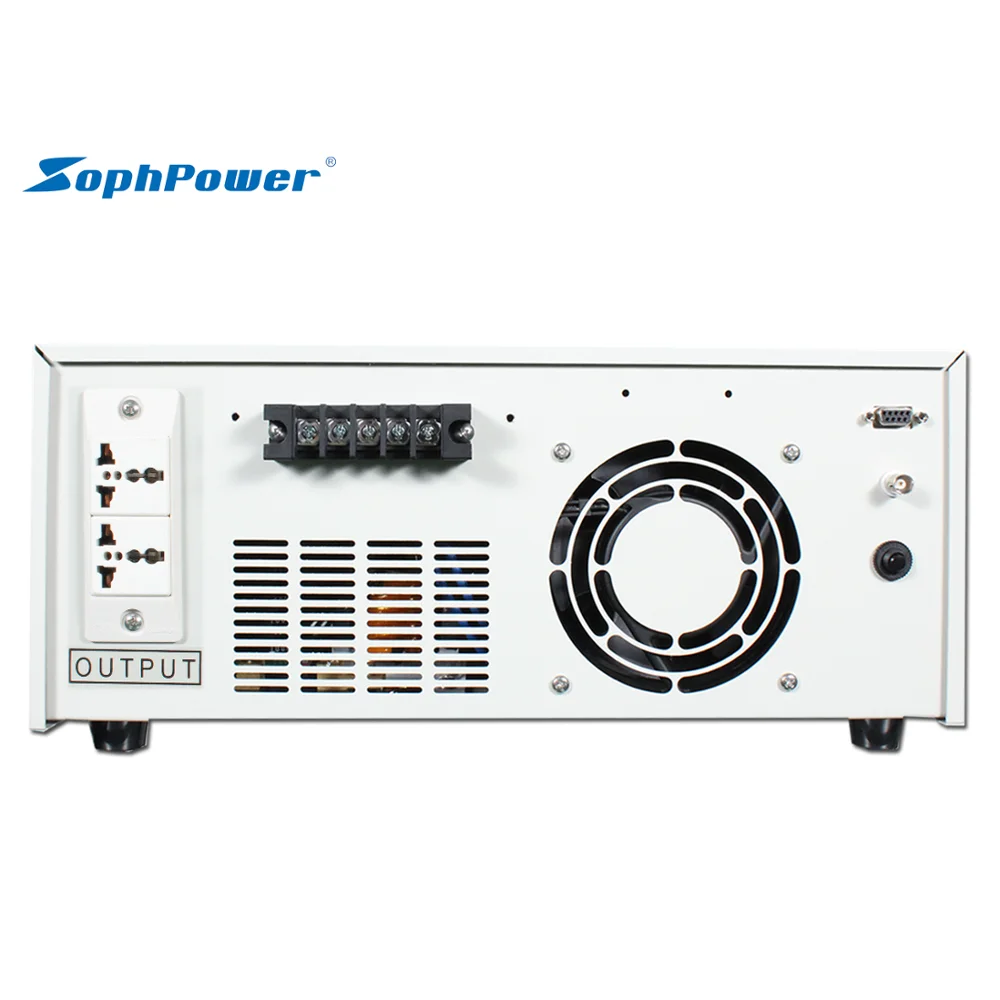

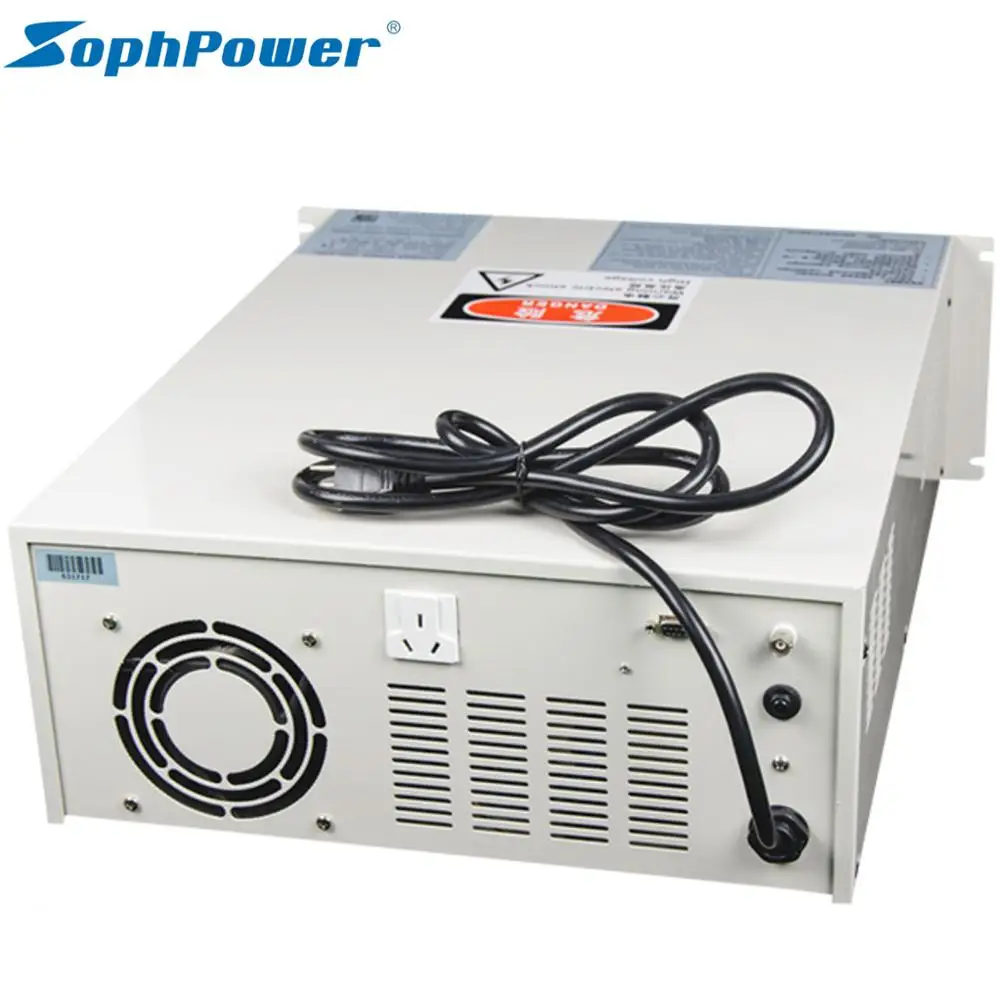

Photos
