Product Overview

Description

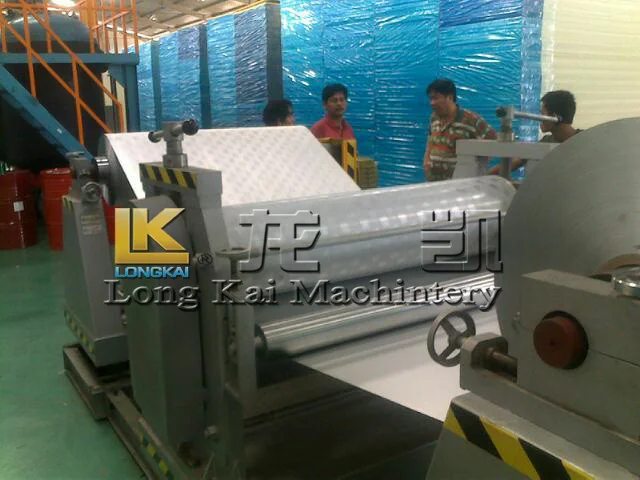

Automatic metal sheet 3d embossing machines

Performance & Characteristics:

1. Material:copper aluminum, color steel, cold-rolled board sheet, stainless steel.etc

2. Pattern: rain -drops, stucco, star, grain- rice ,diamond and so on,can be designed accordingly.

3. Thickness within 3.0mm

4. Weight of coil: within 1tons, width of sheet or coil: within 1000mm

5. Embossed sheet or coil applicable for family electric devices, refrigerator, building outer walls, elevator car walls.etc.

6. Double side pattern:high simulating degree,clear figure,obvious line and coherent gradation.

7.This makes the embossed sheet more beautiful and more strong.



Technical paremeters:

Style	LK-D
Fix the coil	by diameter 152mm axle
Loading	2000kg
Uncoiling	magnetic powder motor
Unloading the coil	By crane
Rolling motor	100N·m motor
Size of the rollers	Dia.268×1350(seamless pipe)
Size of the uncoiling	Dia.152×1350mm
Machine motor	4.0kw,7.5kw
Moving motor	0.75kw
Speed	0-30m/min,controlled by PLC
Voltage	380v



Coiled material specification:

Material	aluminum foil
Thickness	aluminum foil 0.03-0.10mm
Width	1350mm
Length	according to the request
Patttern	oranger peel effect ,or customize



Notes:

1.There are frames for unrolling, pressing and rolling;
2.The pattern can be designed as per the clients' requirements;



Delivery terms:

1. Sample is free.

2. Time of delivery: about 60 days

3. Trade terms: FOB , CIF, CRF

4. Term of payment: L/C , T/T

5. Packaging: export packing or according customer request.

Longkai have delivered embossing machines of aluminium and steel mills and to sheet metal manufacturers who’s product range includes roofing and building panels, garage doors, curtain walls, ventilation ductwork and components, domestic appliances, automotive components, caravans and a variety of decorative applications
