roller hearth furnace Glass Product Making Machinery Max Temp : 1400°C
Roller Hearth Glass Tempering Furnace
Product Description
Usage :
Mainly used in the production of ceramic tiles and other ceramic building materials.It is continuous heating and work, it is made by the rotation of the ceramic tube as the roller kiln vehicle the ceramic tiles or bricks materials in the kiln inner chamber.The rotation of the ceramic tube with high temperature(high-alumina),or SiC depending on the calcination temperature and ar driven by independent controller.Products are conveyed through preheating,calcinating and cooling zones on rotating rollers and are placed on selters according to the shape and dimensions.Products are heated uniformly by the upper and lower heaters(electric resistance wires,silicon carbide(SIC) or silicon molybdenum rods(MoSi2) ).
used glass tempering furnace Glass Product Making Machinery Working Temp : 1300°C
Technical Data
The temperature Category: 1200 °C 1400 °C 1600 °C 1700 °C 1800 °C five kinds.
Model
KSS-1400
Dimension(L*W*H)
8000*400*200mm Can customize
Working Temp
1300°C
Max Temp
1400°C Can customize
Heating Rate
1 °C/h to 40 °C/min adjustable
Temperature Accuracy
+/-1°C
Temperature Controller
30 steps programmable and auto control
Thermocouple
B Type
Heating Element
SiC Heaters
Refractory
Imported high purity alumina fiber
Working Voltage AC
AC 220V/380,50/60 Hz (or according to your requirements)
Max. Power
40 KW
The Furnace Materials
Imported Morgan materials
Furnace sturcture
Double shell steel case with air cooling.
Furnace Chamber Standard Size:
Chamber size/Inner size(WxHxD mm)
2000x400x200mm (can customize)
4000x400x200mm (can customize)
6000x400x200mm (can customize)
8000x400x200mm (can customize)
10000x400x200mm (can customize)
12000x400x200mm (can customize)
( Chamber size and brand can also be customized according to customer requirements,and it's free)
Furnace chamber materials :
mini glass tempering furnace Glass Product Making Machinery Power : 40 KW

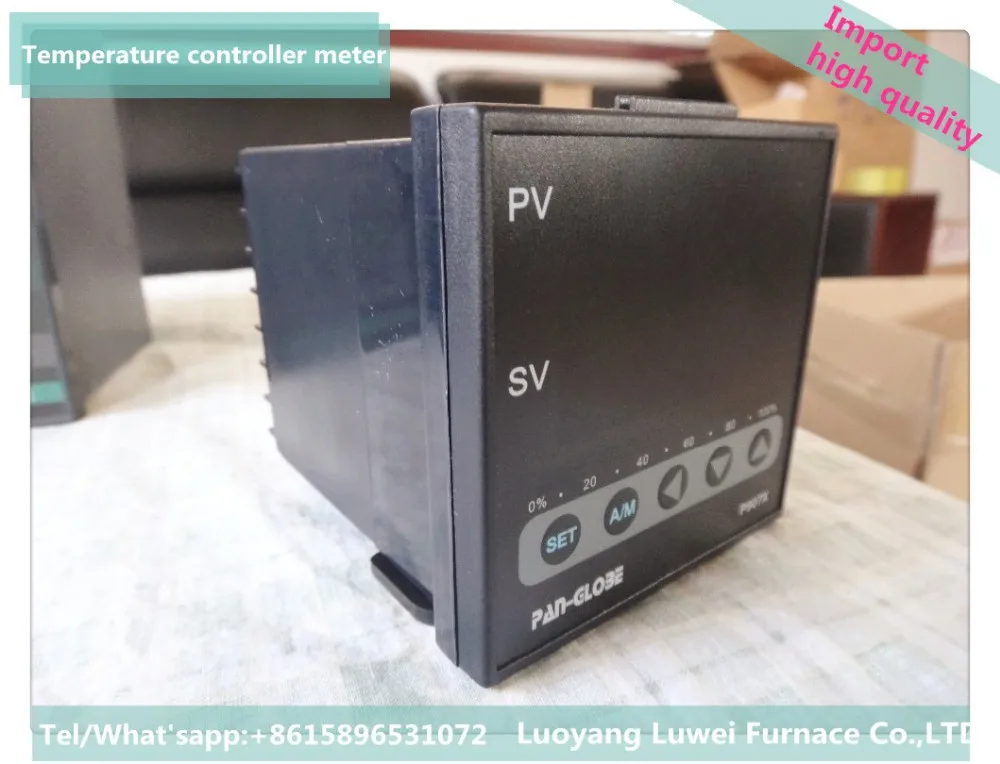

Temperature controller instrument :
roller hearth furnace Glass Product Making Machinery Thermocouple : B type
Furnace Heating elements :
used glass tempering furnace Glass Product Making Machinery Net weight(Kgs) 500
Packaging & Shipping
mini glass tempering furnace Glass Product Making Machinery Chamber size(mm) 8000x400x200
roller hearth furnace Glass Product Making Machinery Voltage AC : 220V/380V,50Hz/60Hz.
Certificates
used glass tempering furnace Glass Product Making Machinery Heating elements : SiC Heaters
Company Information
mini glass tempering furnace Glass Product Making Machinery Heating rate : 0~20°C / min (suggestion =< 10°C)
Similar Products
You may like following similar electric resistance muffle furnace/Oven :
roller hearth furnace Glass Product Making Machinery Working chamber materials : Imported Morgan materials fibers
Cheap muffle furnace
You may like following similar cheap muffle furnace/Oven :
used glass tempering furnace Glass Product Making Machinery Max Temp : 1400°C
FAQ
1). Are you a manufacturer or trade company ?
Yes, we are 100% manufacturer with more than 10 years experiences in production about all kinds of furnaces. All the proc edures will be finished by us, that is good to control the quality and production process.
2). How to get exact price from you ? Our price is based on furnace working or max temperature and furnace working zone(chamber) sizes(inner Length*Width*Height), structure, chamber material, quantity you need. Each request above is necessary.
3). Do you have stock products to sell ? Yes, we have furnace in stock like our standard chamber size list above for your reference.If you also have your detail requirements, we also work on OEM order. Each product we do is according to customers. You can have your own design about the furnace chamber size.
4). How to ship the goods ?
A: If you have own forwarder in China, we can just provide you EXW price. B:If you need us to make shipment for you, we can provide you FOB, CFR, CIF etc. C: In a word, by sea, by air or by express is up to you. More options, you can suggest.
5). Why are you choose us ?
We have a professional R&D team, and rich production experience of 10 years point service,customer brand, multiple selections, and customers all over the muddle East, Europe and America, Southeast Asia and other regions.
mini glass tempering furnace Glass Product Making Machinery Working Temp : 1300°C
