4 sections plate HTST pasteurizer

Product Overview

Description

4 sections plate HTST pasteurizerteurizer

There are 4 types' pasteurizer(sterilizer), we can suggest as your requirements.

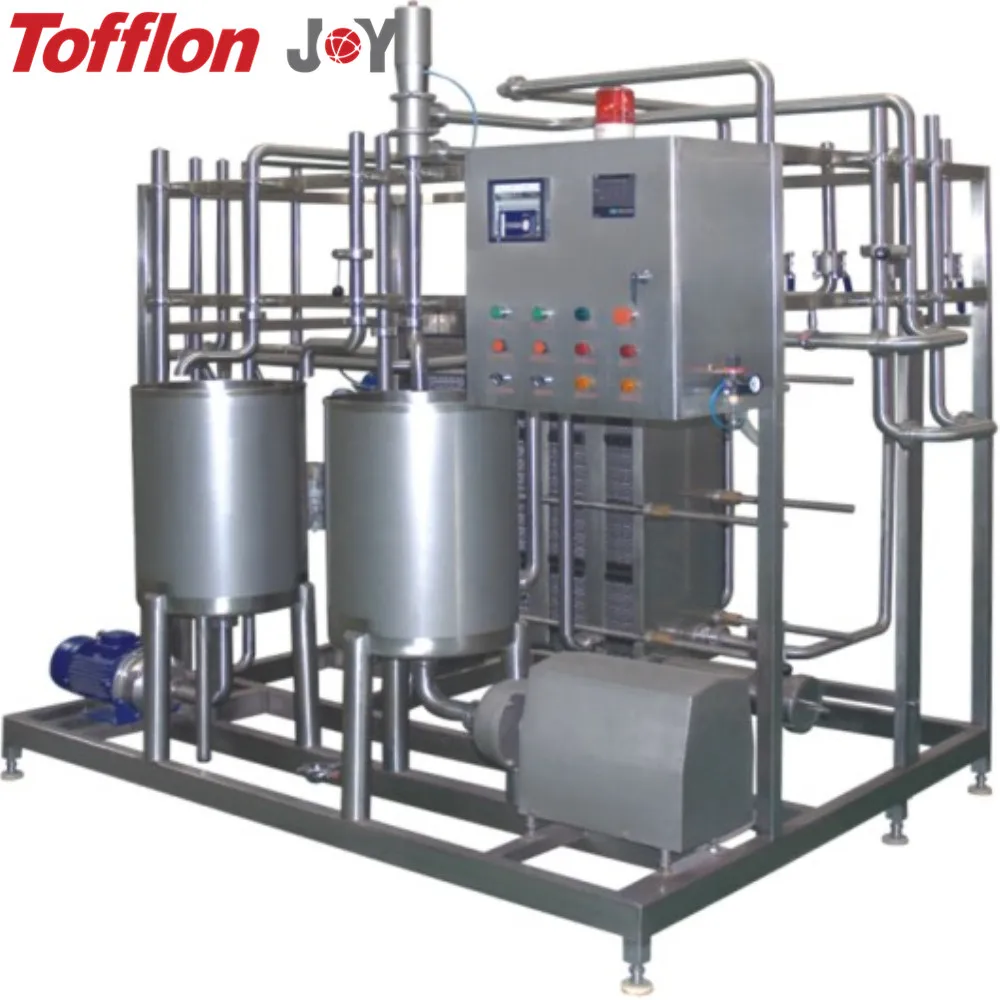

1. Plate pasteurizer(3 sections)---(5℃--65℃(homogenization)--85~95℃(15s)--5℃)

was mostly used as material pre-processing, heating, sterilize, warming, cooling for milk, milk beverage, jice, tea, alcohol, etc.







Production capacity: 500L-20T/H

Model	Process Capacity	Heat exchanging area(m2)	Power(kw)	Steam cost(kg/h)	External dimension(mm)	Total weight of machine(kg)
BR16-3-0.5	0.5	5	5.2	52	1200*1200*1500	790
BR16-3-1	1	8	5.2	60	1500*1500*1800	880
BR16-3-2	2 t/h	13	6	104	1800*2000*1800	980
BR26-3-3	3 t/h	20	6	156	2000*2000*2200	1080
BR26-3-4-5	4-5 t/h	30-45	8	260	2250*2000*2200	1250
BR26-3-6-8	6-8 t/h	35-50	8	400	2250*2000*2200	1250
BR26-3-10	10 t/h	60	11	520	2800*2000*2200	1650
BR26-3-15	15 t/h	75	15	780	3000*2200*2200	2150
BR26-3-20	20 t/h	80	18	945	3000*2200*2200	2350



Control type:

Full-automatic control(PLC with touch screen), Semi automatic PID control





Standard attachments:

1. Plate heat exchanger
2. Material-balancebucket
3. Hot water balance drum
4. Hot water pump
5. Product pump
6. Steam & water mixer
7. Electricity box
8. Stainless steel pipes and valves

4 sections plate HTST pasteurizer

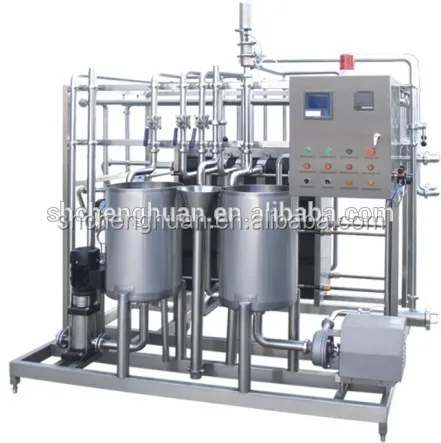

2. Yogurt specially used 4 sections pasteurizer, which temperate range was 5℃--65℃(homogenization)--90~95℃(300s)--43℃, the 300 seconds heat processing, make whey protein denaturate and conbine with water, thus get good taste yogurt.





Technical

Model	Process Capacity	Heat exchanging area(m2)	Power(kw)	Steam cost(kg/h)	External dimension(mm)	Total weight of machine(kg)
BR16-SN-05	0.5 t/h	5	5.2	80	1200*1200*1800	780
BR16-SN-1	1 t/h	8	5.2	110	1500*1500*2000	950
BR16-SN-1.5	1.5 t/h	11	6	130	2000*1600*2000	980
BR16-SN-2	2 t/h	14	6	160	2200*2000*2500	1020
BR16-SN-3	3 t/h	21	8	190	2400*2000*2500	1120
BR26-SN-5	5 t/h	30	11	320	2600*2000*2500	1260
BR26-SN-10	10 t/h	54	11	620	2800*2000*2500	1680



4 sections plate HTST pasteurizer

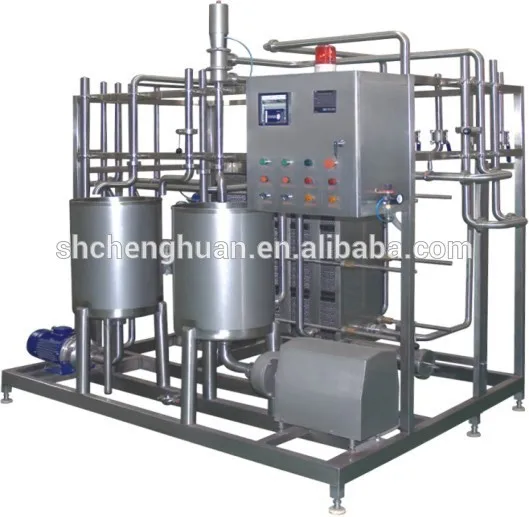

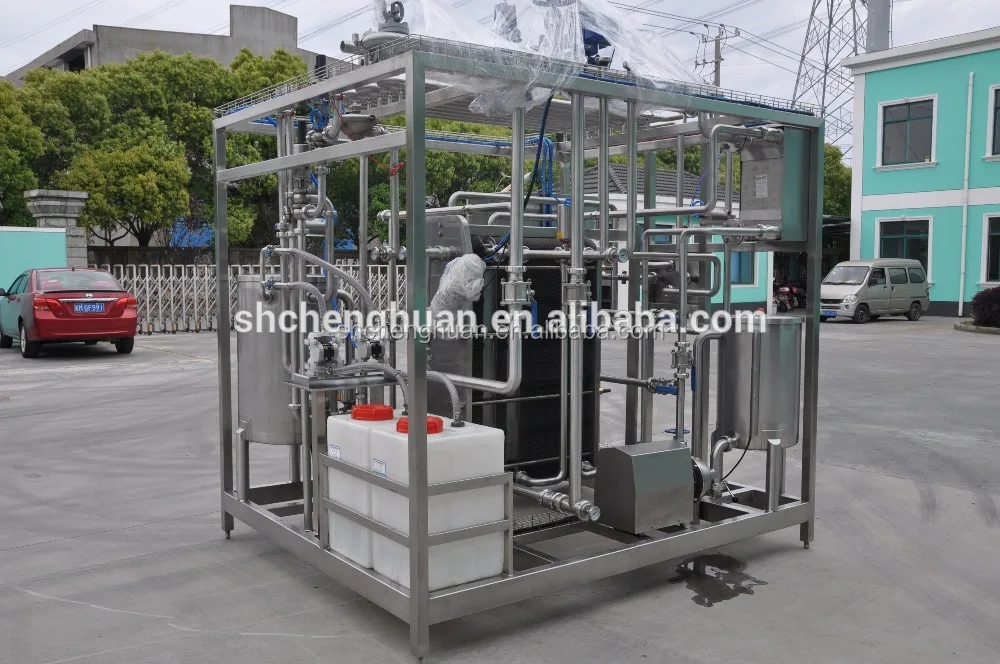

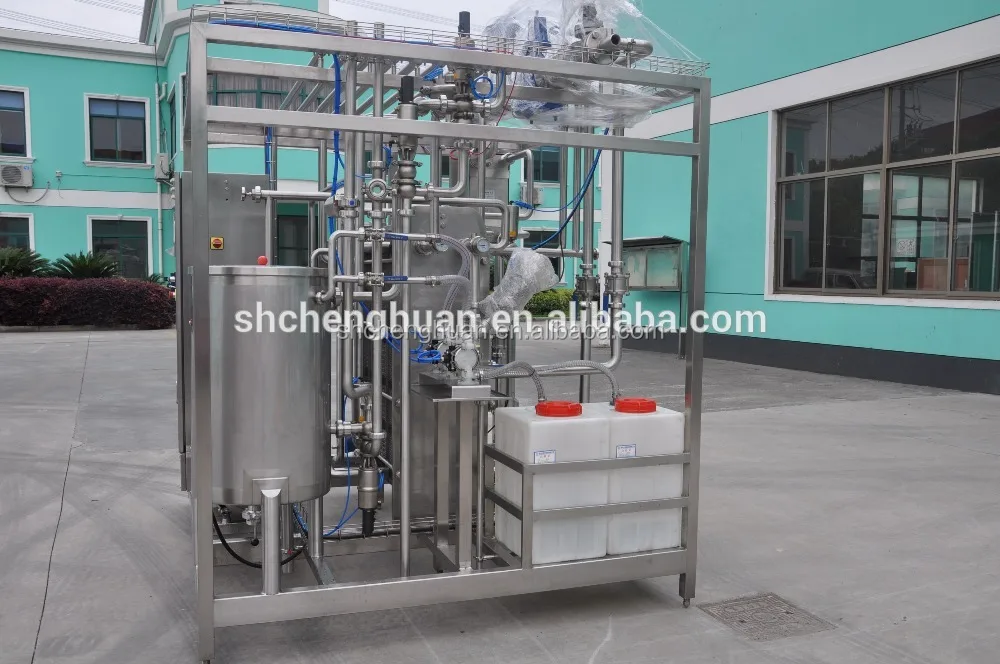

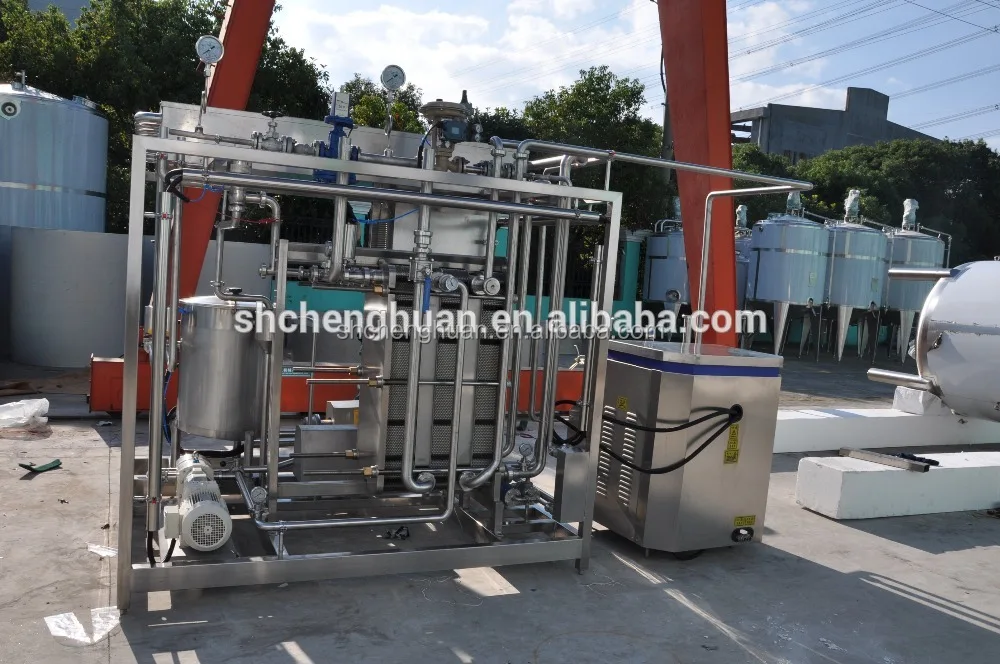

3. Plate HTST(high temerature, short time) pasteurizer(4 sections), which temperature range was 5℃--65℃(homogenization)--120℃(15s)--25℃/5℃, this for continuous sterilize for milk, modulated milk, wine, soymilk, milk beverage or similar products.





Contain high grade imported valve, sensor, temperature controller/recorder, hot water pump, and PLC controller for semi-auto control and full automatic control system.



4 sections plate HTST pasteurizer

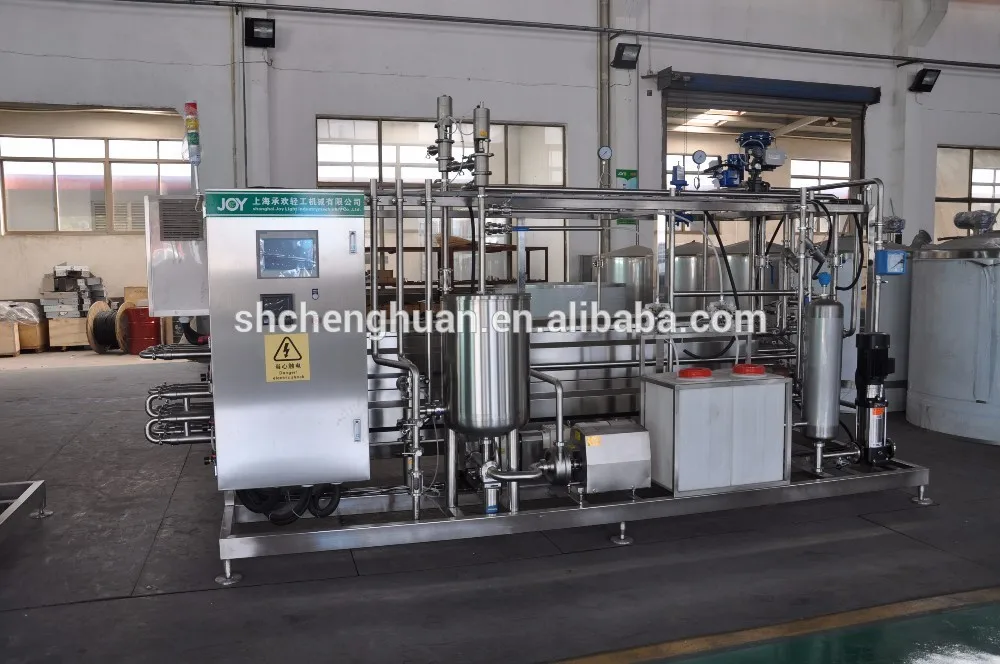

4. Tubular UHT(Ultra heat treated) sterilizer, this machine adopt highest imported PLC Full-Auto control with touch screen, mainly used for continuously sterilizing fruit juice, tea beverage and other product. It can be connecting with homogenizer, degasser etc.



Technical parameters

1) 5℃→65℃(Homogenize)→137℃(3-5S)→20℃-25℃, applicable for aseptic package;

2) 5℃→65℃(Homogenize)→115℃/125℃(5-15S)→88℃-90℃, applicable for hot filling;

3) 5℃→65℃(Homogenize)→115℃/125℃(5-15S)→75℃-78℃, applicable for middle temperature filling





Tubular sterilizer performs the hot processing on the liquid foods and beverage product. It has the following advantages compare with other similar type sterilizer:

1. High heat efficiency, 90% heat recover efficiency after processing product;

2. Temperature difference between product and heating medium is small, heat exchange pipe use corrugated pipe, high heat exchange efficiency, few scaling, long working life;

3. High automation degree, which can automatically control the CIP cleaning, self-sterilization, and the whole sterilization procedures steps; It can record and control all the procedures;

4. It can precisely control the sterilizing temperature, strictly automatic control steam pressure, steam flow rate and product flow rate;

5. Product pipe inner wall adopts advanced polish skill and automatic welding, pipe design to be cleaned automatically, and self-sterilization ensures whole system at aseptic state;

6. It is a strong safety system, whole system parts use good performance product, steam, hot water, product etc. all have pressure protection measure and alarm system.

7. It is highly reliable system, main parts like product pump, hot water pump, various types of valve, control system electrical components and parts all use world famous brand.

8. With self- SIP system.

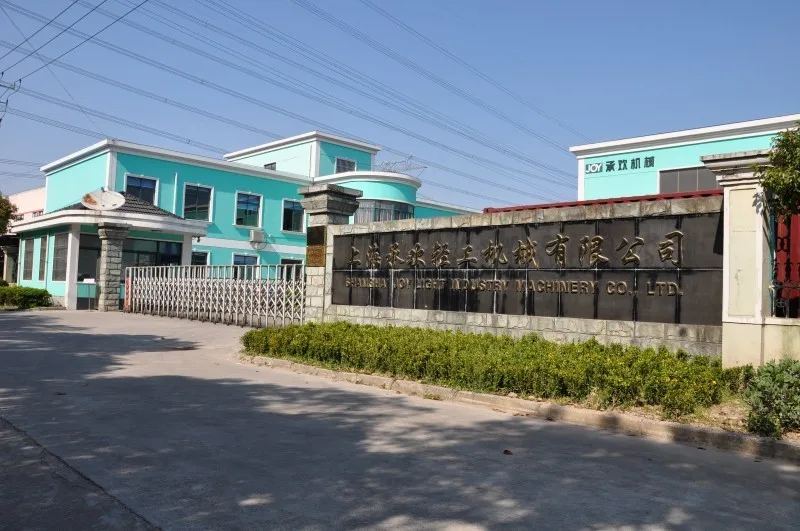

Shanghai JOY Light Industry Machinery Co., Ltd is a manufaturer for food machinery. We do design, manufacturing, instllation, trainning service, commissioning and turnkey projects of production lines for dairy, beverage, fruit and vegetable juice, can and ice cream, and biological engineering, chemical industry and medicine. We are professional in machinery, engineering, techonology and automatic control. We provide excellent product quality and top-ranking services for customers.
