Product Overview

Description

 Solar runway lights, Used runway light for sales,Airfield lighting





Descriptions:

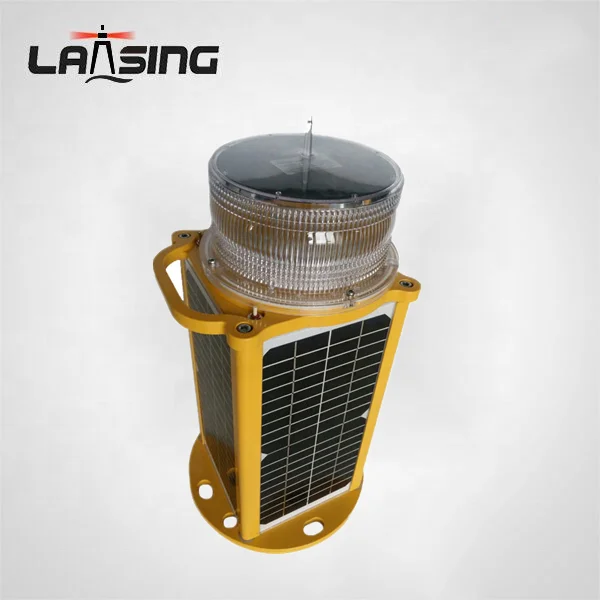

The JCL50-RF is a robust, completely self-contained LED light designed for a range of emergency aviation applications including runway, threshold, this fully functioning light can be controlled from the tower with no costly cabling or trenching required.



The unit is made from cast aluminium, subject to 7-stage powder-coating in aviation yellow. Four premium grade solar modules are integrated into the assembly and mounted to collect sunlight at all angles.



The solar array charges the 16Ah battery during daylight hours, and at dusk the light will automatically begin operation.



16 independently controlled LED drivers within the light optic (patents pending) allow the meet the photometric requirements of FAA L861 runway edge and threshold when set to temporary high mode.



The JCL50-RF has non-precision IFR and VFR capability with both visible and near infrared
encrypted repeating mesh network.



Features:

• Over 50hrs of continuous operation at FAA non precision MIRLs per AC/150-5345-46D L861 without solar or auxiliary charge in temporary high mode

OR

• Over 110hrs of continuous operation at ICAO Annex 14 runway edge, 50cd

• Integrated and replaceable Solar Panels - Enables continuous operation

• Optional NVG Mode - Illumination invisible to naked eye to support covert operations

• Modes of Operation - Programmable lighting groups, dusk-till-dawn operation, adjustable intensity, sequence





Specifications:

LIGHT OUT-PUT
SPECIFICATIONS	Steady-on: Blue-31  Red-32.5  Green-33.3  White-29.7 Yellow-28 Flashing: Blue-47  Red-50  Green-49   White-54 Yellow-48.7
Nominal Night Range	>10 KM
LED Color Available	Red
Vertical Divergence	10 Degree
Horizontal Out-put	360 Degree
Illumination	Ultra-bright LEDs
LED Lifespan	100,000 Hours
OPERATION
Autonomy	100 Hours
On & Off Level	70/100 Lux
Flash Pattern	20-90FPM (Preprogrammed default 40FPM)
POWER SUPPLY
Power Source	Solar module, mono-crystalline silicon
Solar Efficiency	13.5%
Max. Power Out-put	20 Watts
Battery Type	High-efficiency Lead-Acid rechargeable battery
Battery Capacity	12V / 16AH
Battery Replacement	Yes, replaceable
MECHANICAL STRUCTURE
Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
Water-proof	IP67
Weight	9 KG
Temperature Range	-40C ~ +55C
Dimensions	448mm H, 235mm Diameter
Warranty	5 years for light 2 years for Lead Acid battery



Applications:

--- Solar Barricade Light

---Solar Caution Light

--- Solar Taxiway Light(ICAO)

---Solar Threshold Light

---Solar Obstruction Light
