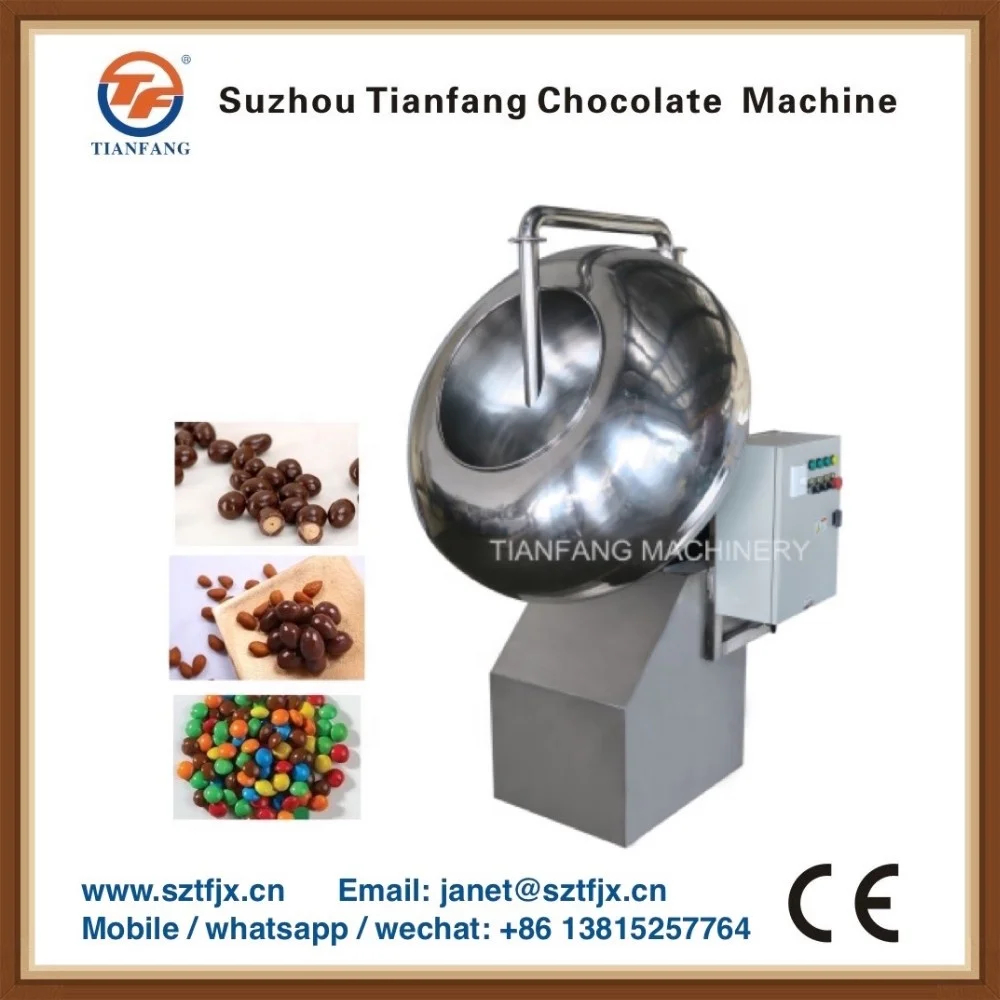

tablet coating pan
- Category: >>>
- Supplier: Suzhou Tianfang Machinery Co. Ltd.
Share on (60622019367):
Product Overview
Description
Product Description
USE:
Tablet coating pan is used for coating sugar syrup on the surface of tablet. It is also used for polishing the products to make it be excellent in luster, color and shape.
Main Parameters:
Model: TPGJ1000
Capacity: 45-90kg/batch
Diameter of pan: 1000mm
Dip angle of pan: 30 degree (non stage control)
Motor power: 1.5kw
Rotation speed: 30-32 round per minute
Weight of machine: 300kg
Size of machine:1000x1000x1600mm
Material of pan: all stainless steel
Material of machine frame: stainless steel or painted carbon steel
Variable rotation speed of pan.
Hot air heating system.
For option: Cold air cooling system based on increased cost.
We have two size of chocolate coating pan. One pan diameter is 1000mm with model is TPGJ1000. Another pan diameter is 1250mm with model of TPGJ1250.
Model | TPGJ1000 | TPGJ1250 |
Capacity (kg/batch) | 45-90 | 60-110 |
Diameter of pan (mm) | 1000 | 1250 |
Dip angle (degree) | 30 | 22 |
Rotation speed (r.p.m) | 30-32 | 36 |
Power of motor (kw) | 1.5 | 2.2 |
Size of machine (mm) | 1000X1000X1600 | 1020X1250X2000 |
Weight of machine (kg) | 300 | 420 |
Packaging & Shipping
1. Strong seaworthy wooden package.
2. Protection against humidity.
3. Skilled capability of delivery to your country.
Guarantee & After-Sales Services
1. One-year guarantee period for complete machine.
2. Free charge of accessories within guarantee period excluding false operation.
3. Free charge of layout design, instruction with details, installation guide and local team training.
4. Experienced engineer is available to set up the machines upon request.
5. 24 hours technical support service by email and mobile.
