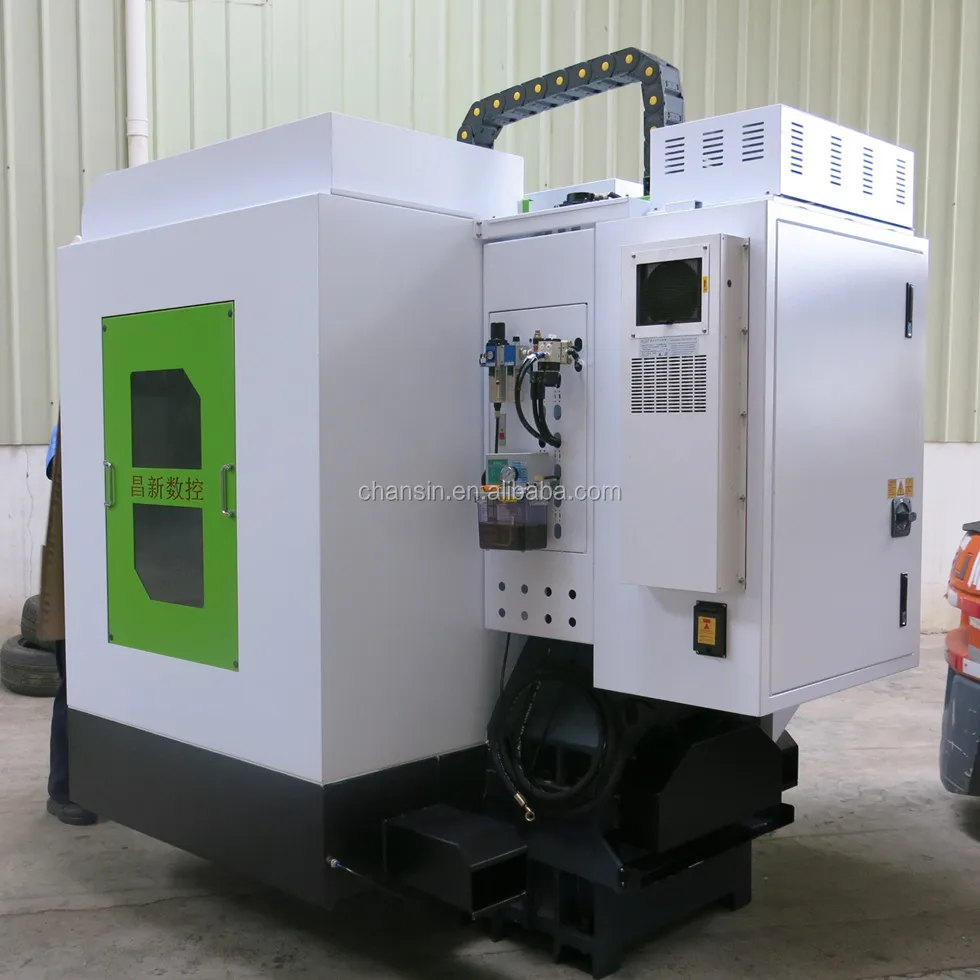

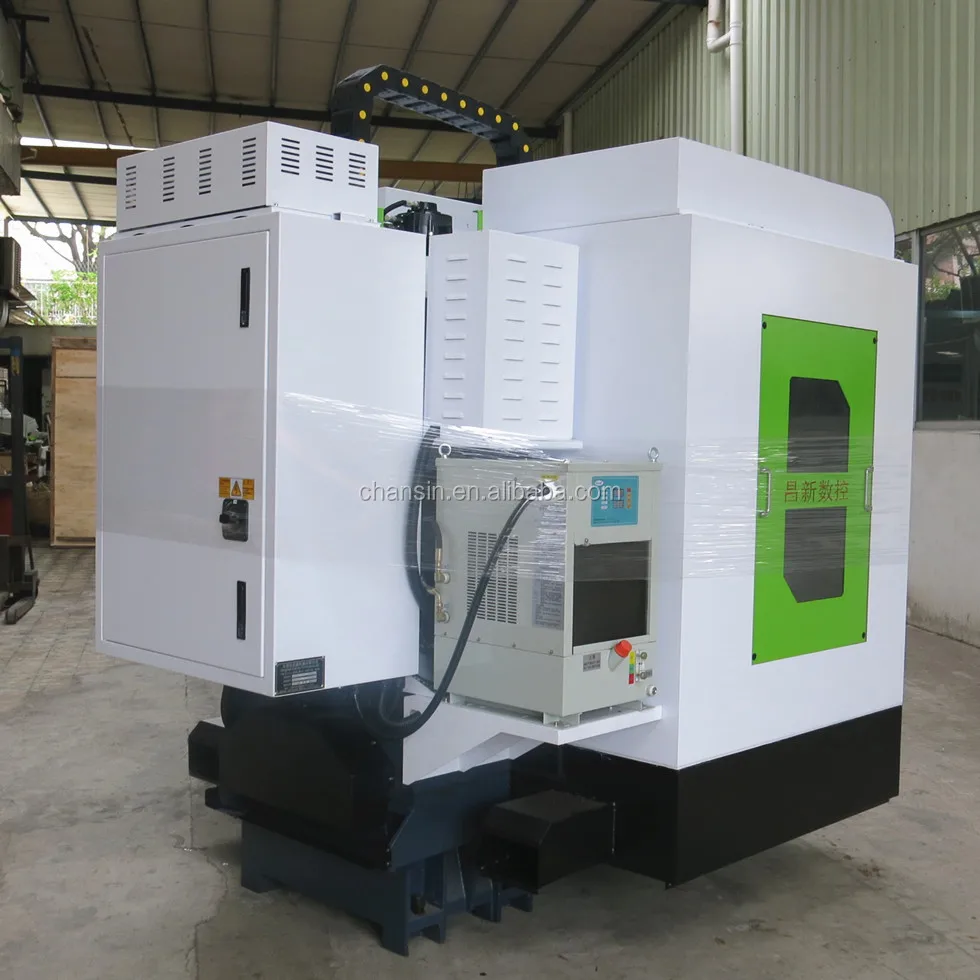

Fanuc control system robodrill/mini metal cnc milling machine/cnc tapping center TC 640
Fanuc control system robodrill/mini metal cnc milling machine/cnc tapping center TC-640
Fanuc control system robodrill/mini metal cnc milling machine/cnc tapping center TC-640
Fanuc control system robodrill/mini metal cnc milling machine/cnc tapping center TC-640
Fanuc control system robodrill/mini metal cnc milling machine/cnc tapping center TC-640
Fanuc control system robodrill/mini metal cnc milling machine/cnc tapping center TC-640
Fanuc control system robodrill/mini metal cnc milling machine/cnc tapping center TC-640

Fanuc control system robodrill/mini metal cnc milling machine/cnc tapping center TC 640

Share on (60622111658):


Price:$21,641.79 - $23,880.58

Quantity:


Product Overview

Description


Product Description

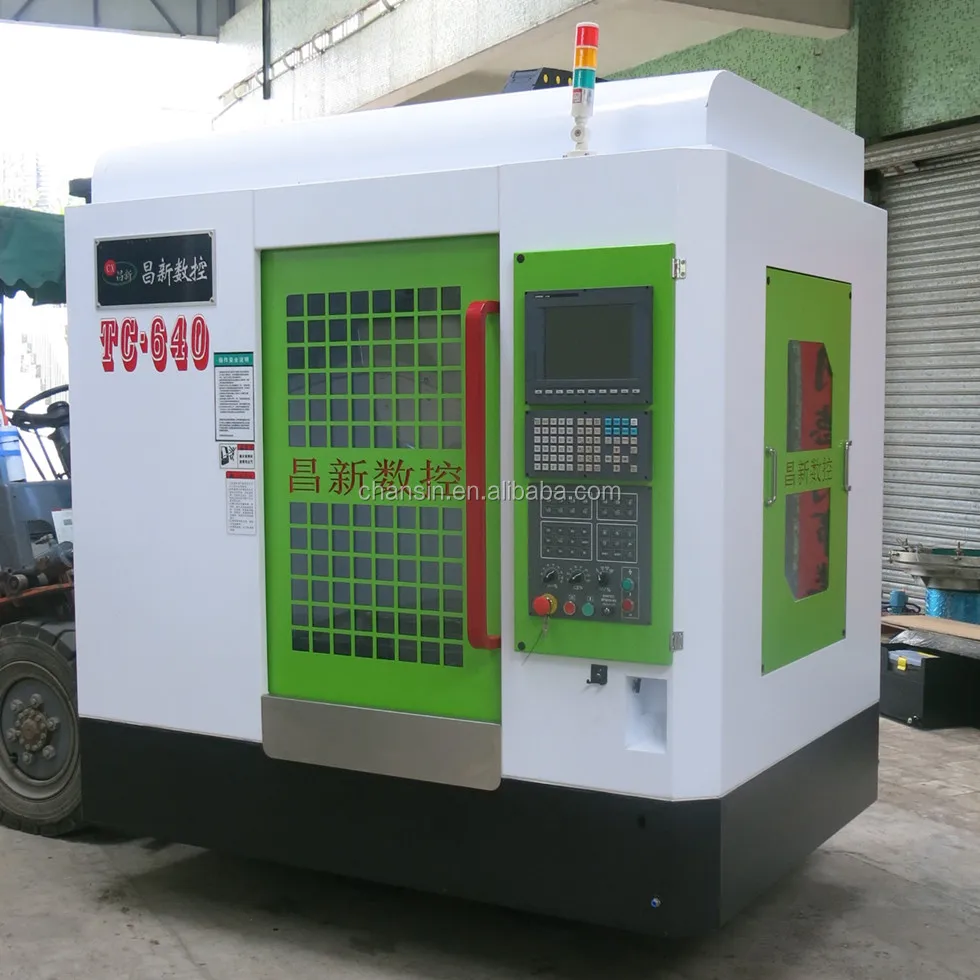

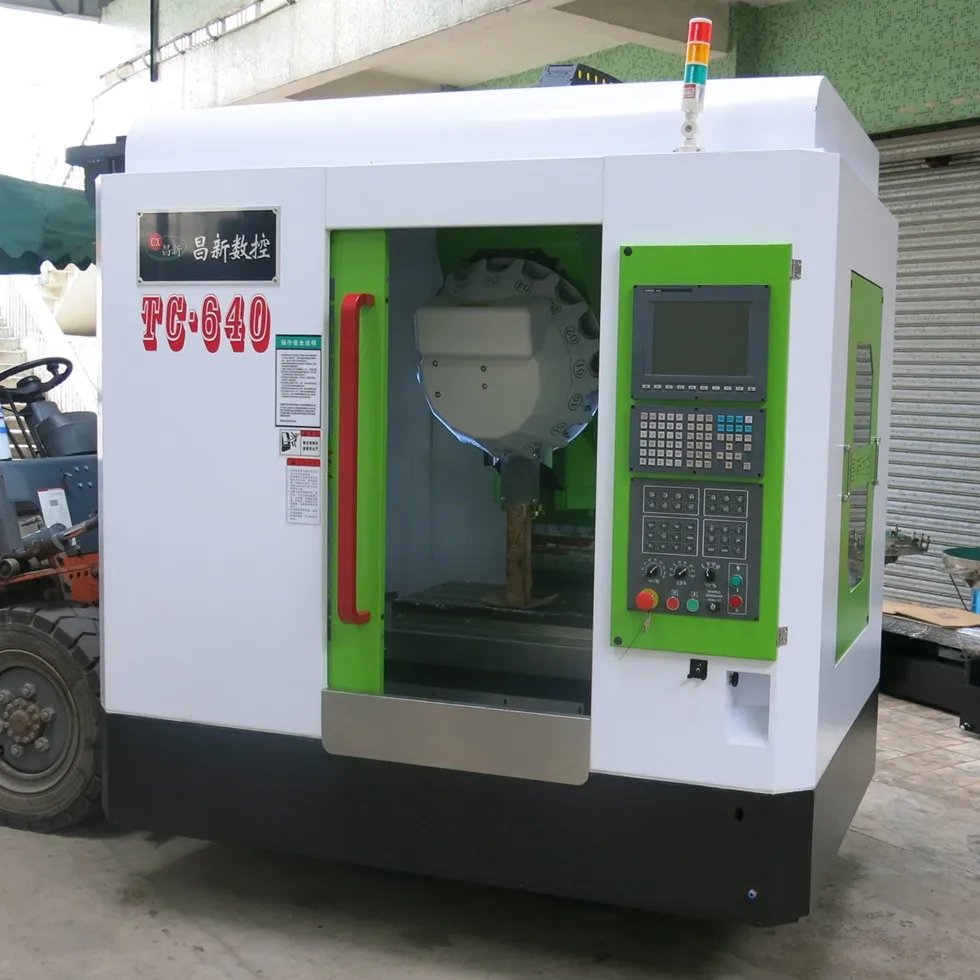

Vertical CNC Drilling Tapping Milling Machine

TC-640  is CNC drilling tapping center experts. Equipped with clip arm type tool magazine with 16 tools,speed of tools changing is very fast, less than 3 seconds. It is widely used in various industry, such as watch parts, IT parts, die casting parts and metal parts processing.

\t
SPECIFICATIONS FOR CX-640 CNC MACHINING CENTER
\t
Table
\t
Size
\t
mm
\t
700*420
\t
Travel of 3 axis(X/Y/Z)
\t
mm
\t
600/400/300
\t
Max table load
\t
kg
\t
350
\t
T-slot
\t
Number*width*space
\t
mm
\t
3*18T*100
\t
Spindle
\t
Spindle taper
\t
\t
BT30
\t
Spindle center to column
\t
mm
\t
450
\t
Spindle nose to table
\t
mm
\t
120-490
\t
Max spindle speed
\t
rpm
\t
12000/15000/20000
\t
Spindle Motor power
\t
kw
\t
5.5
\t
Accyracy
\t
Positioning accuracy
\t
mm
\t
±0.005
\t
Repeatability
\t
mm
\t
±0.003
\t
Axis motor
\t
Power of X/Y/Z
\t
kw
\t
1.5/1.5/3.0
\t
Feeding Speed
\t
Rapid feed of X/Y/Z
\t
mm/min
\t
48000
\t
Cutting feed of X/Y/Z
\t
mm/min
\t
20000
\t
Parameters
\t
Weight
\t
kg
\t
4000
\t
Dimension(L*W*H)
\t
mm
\t
2050*2350*2300
\t
Power
\t
v
\t
380
\t
Bearing
\t
Japan NSK or German FAG optional
\t
Motor
\t
Japan YASKAWA Servo Motor

Main Features

1) With high rigid body structure design, it could meet the demands of high performance and powerful cutting.

2) With international, high-standardized and refined sheet metal design, the machine tools are with excellent  performance .

3)England imported laser high precision checking machine accuracy,the accuracy get to the international level.

4) Strict resistance shaking check.

5)High quality elite technical team,quality control system. Perfect after sale service system.

6) With various configuration modularization,personalized options are available for different clients to meet their processing   demands.

Detailed Images

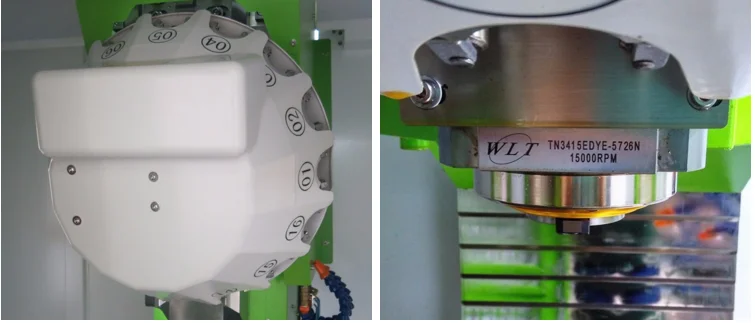

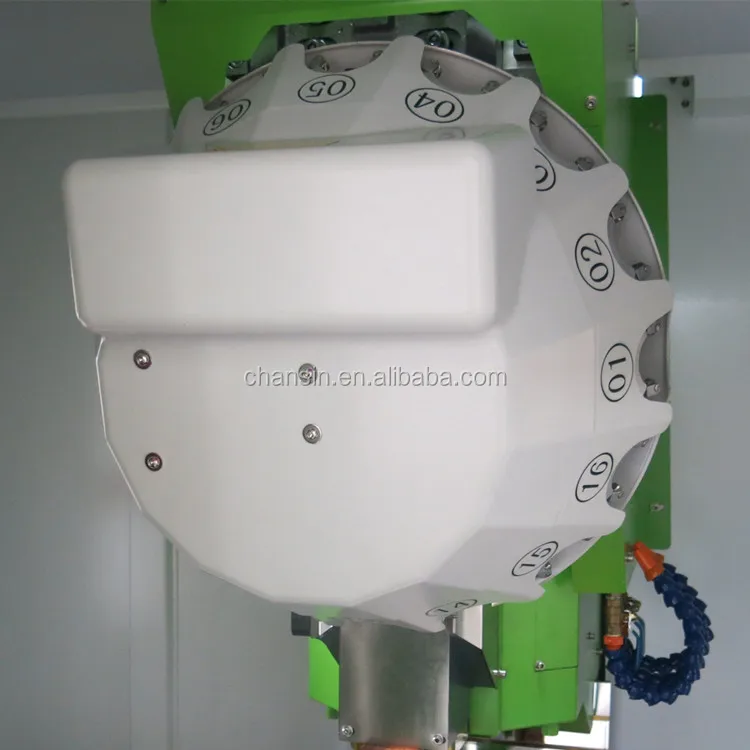

Taiwan Sanjie Clip Arm Type Tool Magazine

16 tools, tool change time: 2.3 sec

Taiwan Spindle Bt30 15000rpm

Brand: Taiwan Sanjie, 20000rpm optional

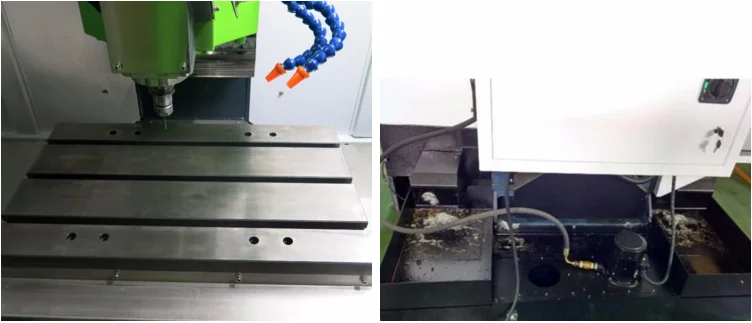

Work-Table

Table size :700*420mm, T-slot:3pcs*18T*100mm

Chip-Conveyor with Water Pump

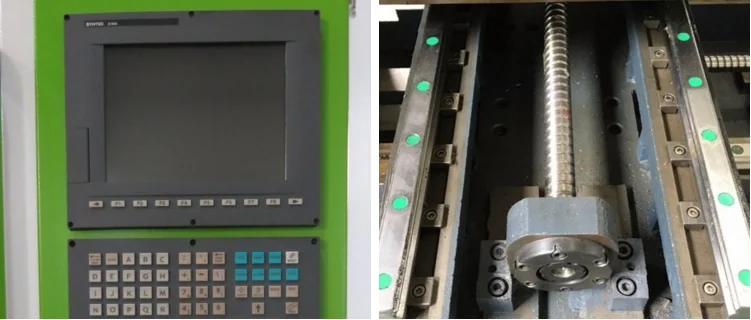

Control System

Taiwan Syntec,Janpan Mitsubishi, Japan Fanuc and German Siemens optional

Ball screw and linear guide rails

Brand: Taiwan Hiwin

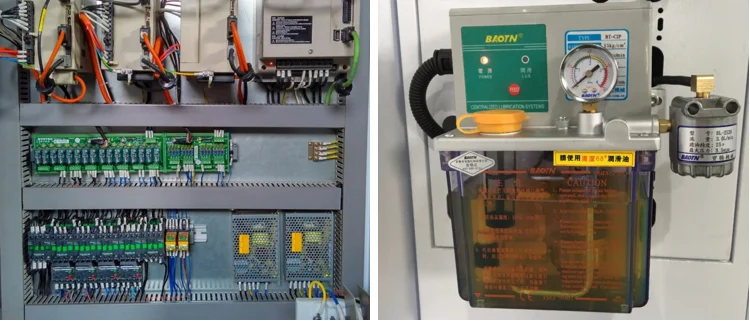

Electrical Cabinet


Auto Lubrication System

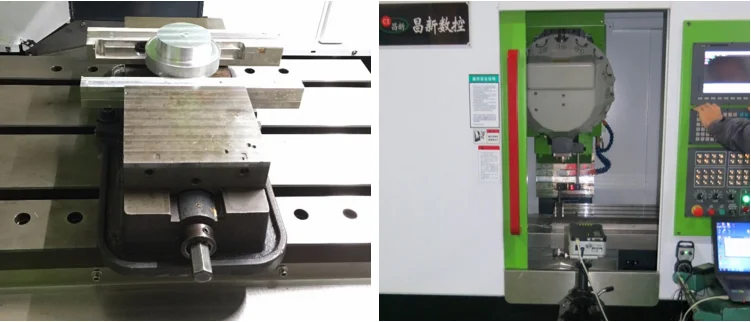

Vise


Renishaw Strict Laser Checking

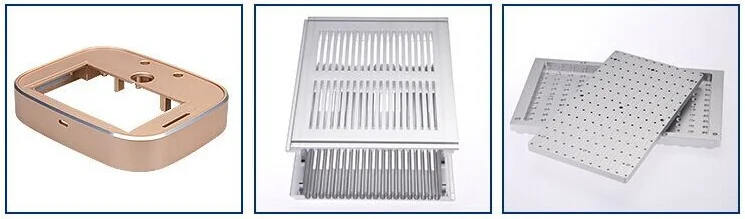

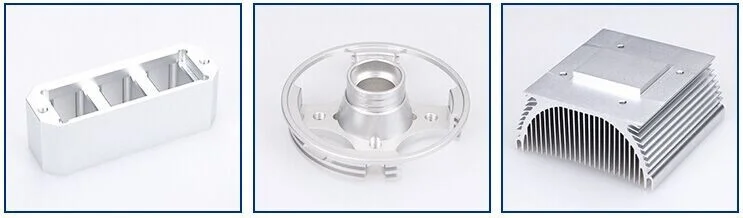

Machined Samples

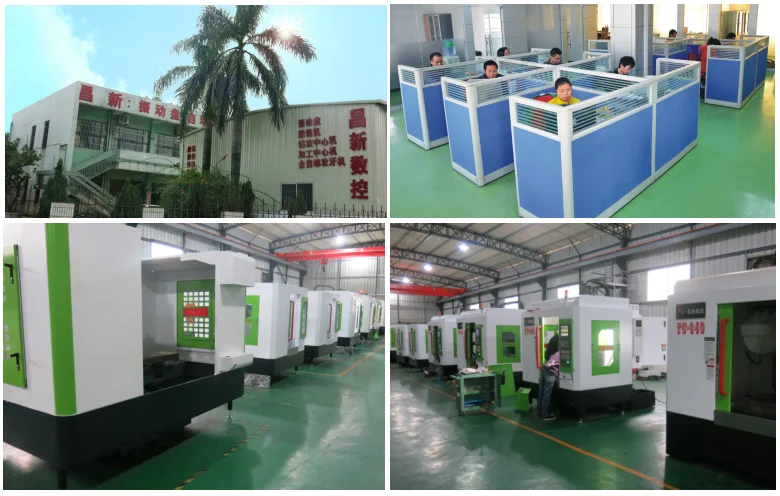

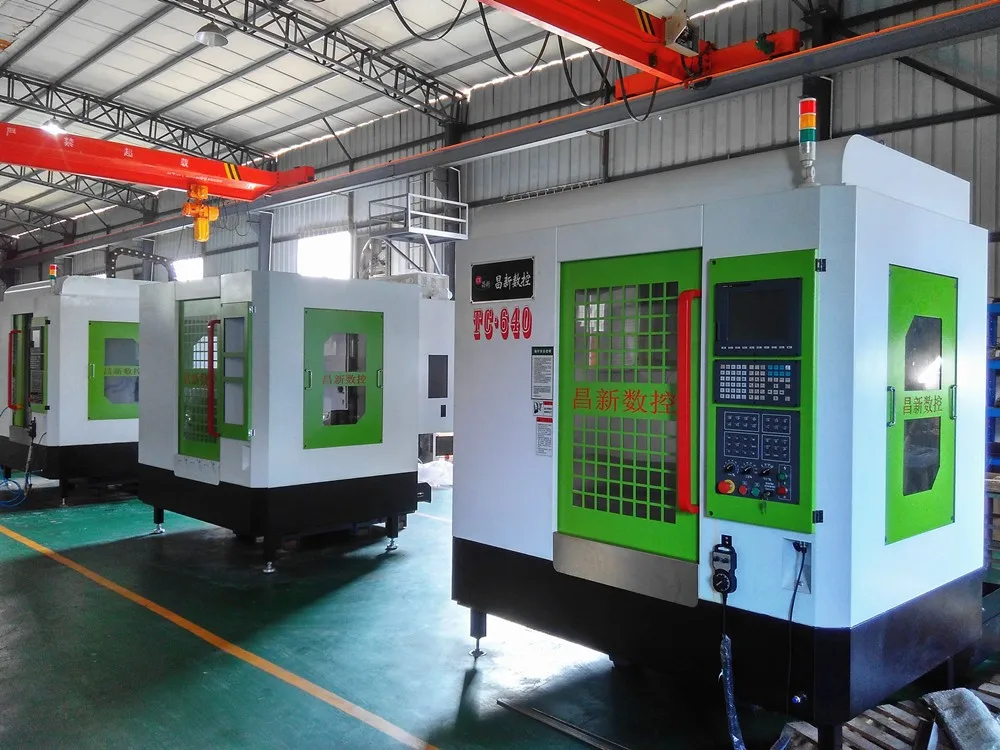

Our Company

Dongguan Chansin Hardware Machinery Co., Ltd. was founded in 1998, which is one of the leading manufacturers in China producing auto drilling machine, auto tapping machine, cnc milling machine and cnc machining centre. We have professional technology team integrating R & D, production, selling and service. Our engineers are available to overseas service machinery and have training class. Our company takes a tenet of mutual benefit, long-term cooperation, common development, and looking forward to building business relations with customers all over the world.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t



Packaging Details
\t


1.The machine will be packed with stretch film in wooden cases.
2. The machine will be shipped by vessel.
FAQ

1.Payment term
After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
2. Arrange production
Mass production is managed upon getting deposit . Usually, CNC milling machine is finished within 20 days, automatic drilling machine and automatic tapping machine within 15 days.
3. Package
we recommend you to choose wooden box packing to avoid damage during the transportation.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any problem about machine, please take pictures and contact us immediately.
5.Warranty time
One year warranty. We can send you the machines' components for free in the first one year if it is not be damaged on purpose. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.
We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals.
12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
6.OEM Service
We accept purchase orders with customers' brand or trade mark.
