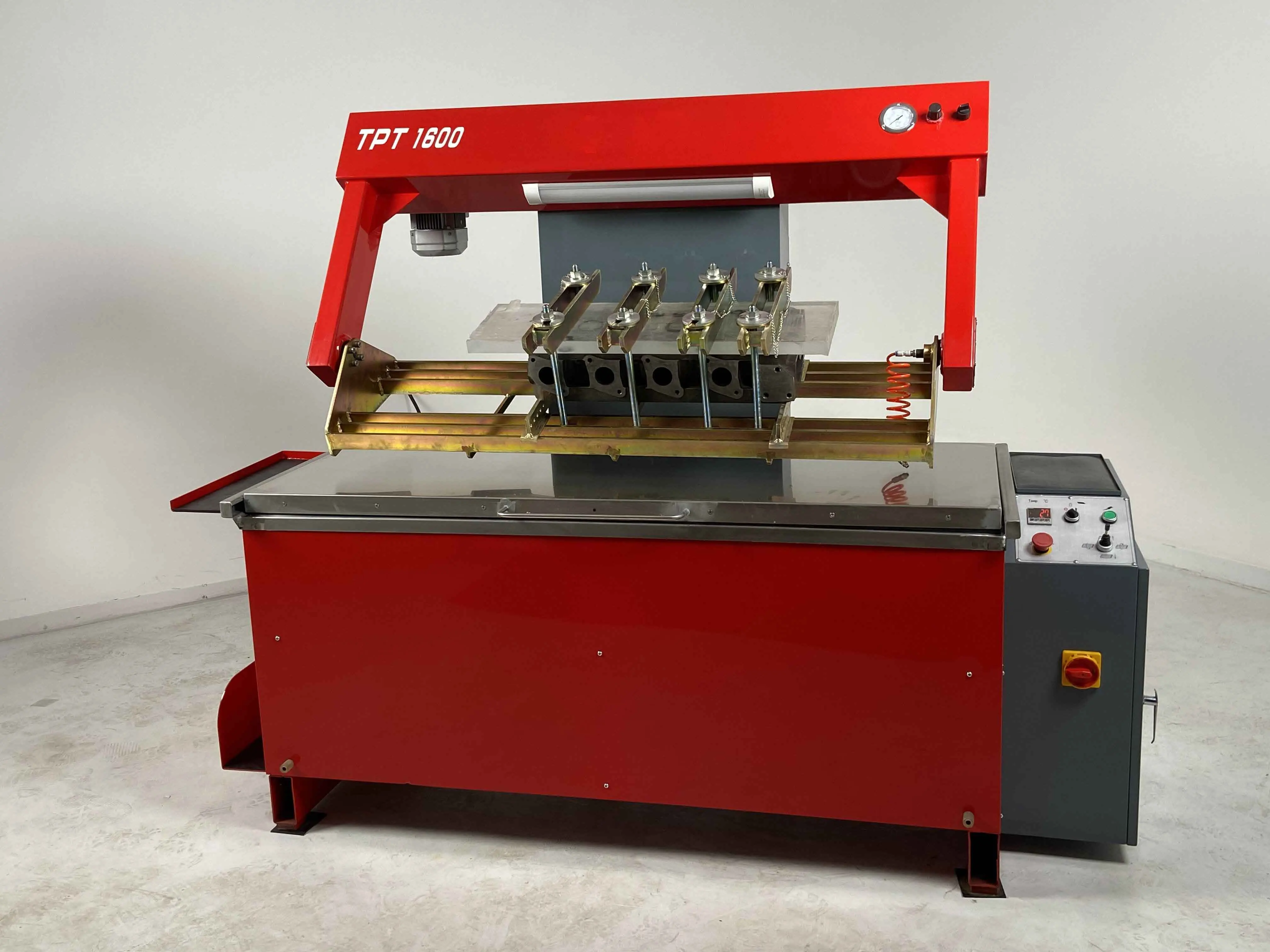

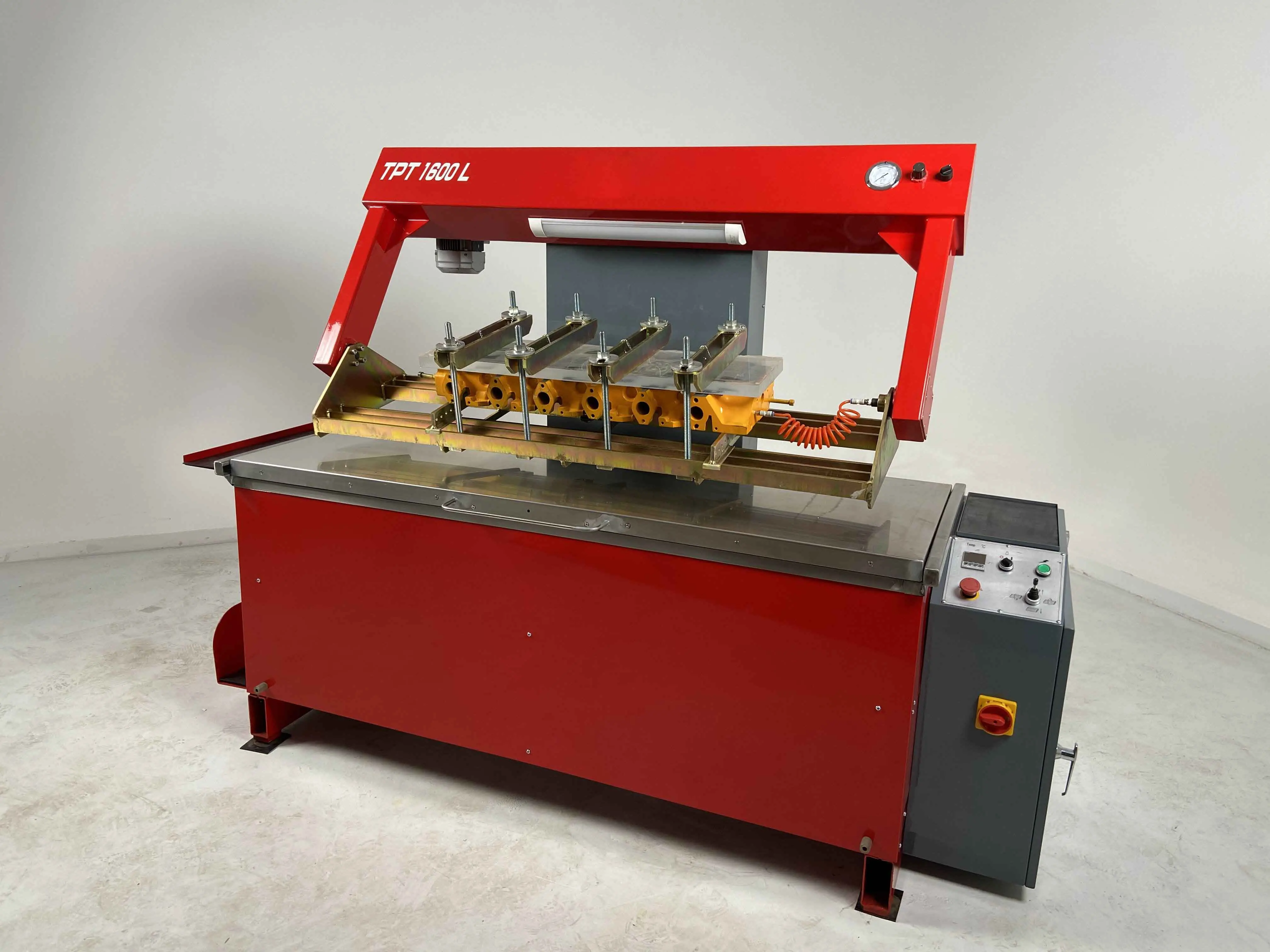

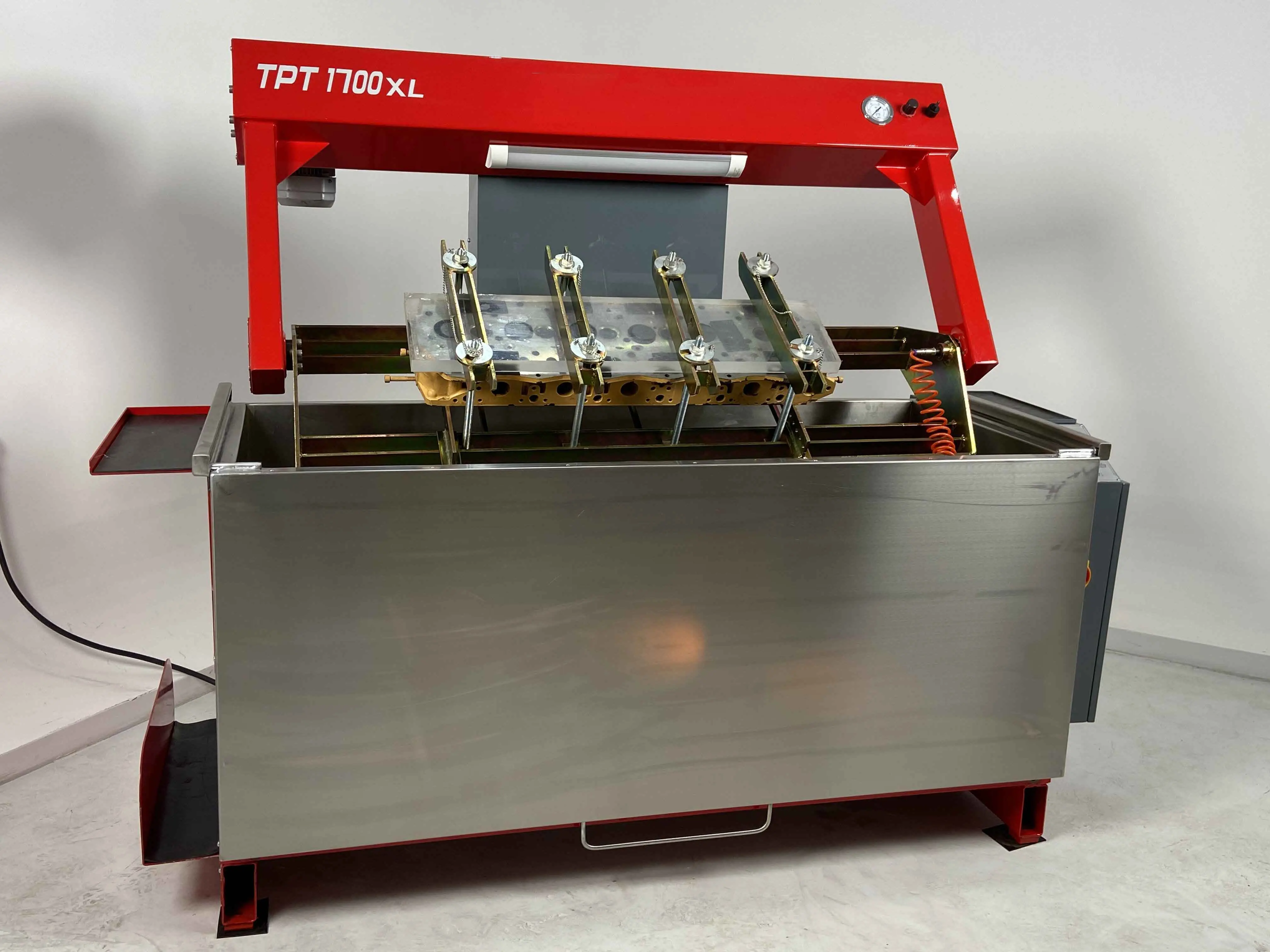

Cylinder Head Pressure Tester TPT1600/1600L/1700XL

Product Overview

Description

Cylinder Head Pressure Tester

Easy and efficient pressure test of cylinder head and cylinder block coolant circuits. Quick and easy clamping system allowing tests at a pressure of 4 to 5bar.
* 360° Electric powered roll-over fixture.
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control.
* Low voltage: 24V operating control.
* Electronic adjustable thermostat.
* Heating programmer: daily or weekly.



Part Characteristics	TPT1600	TPT1600L	TPT1700XL
Maximum length (mm/inch)	1200 mm	1350 mm	1350 mm
Maximum width (mm/inch)	400 mm	400 mm	460 mm
Maximum height (mm/inch)	300 mm	300 mm	410 mm
Capacity of stainless steel tank	500liters / 132 USngal	500liters / 132 USngal	500liters / 132 USngal
Heating elements (kw)	2x4.5	2x4.5	2x4.5
Hydraulic hoist (kw)	0.37	0.37	0.37
Gear-motor (kw)	0.25	0.25	0.25
Rotational speed (tr/min)	4	4	4
Up and down travel time (mm/inch in 10sec)	600mm/23.62	600mm/23.62	600mm/23.62
Thermostat ( °C )	0-70	0-70	0-70
Power supply	400 V 3 PH + Ground (no neutral)	400 V 3 PH + Ground (no neutral)	400 V 3 PH + Ground (no neutral)
Net weight approx (kg/lbs)	480/1058	480/1058	480/1058
Length(mm/inch)	2000 mm / 78.75”	2000 mm / 78.75”	2000 mm / 78.75”
Width (mm/inch)	1050 mm / 41.34”	1050 mm / 41.34”	1050 mm / 41.34”
Height (mm/inch)	1700 mm / 67”	1700 mm / 67”	1700 mm / 67”
