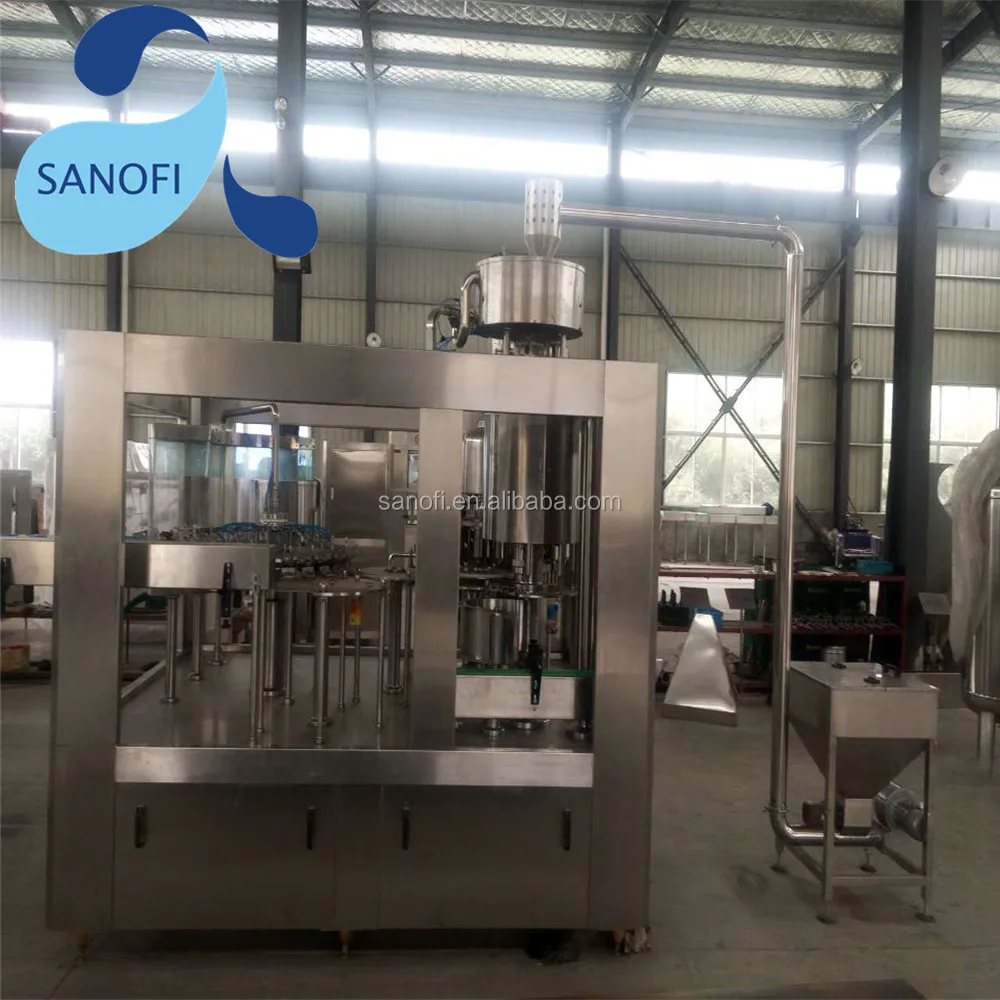

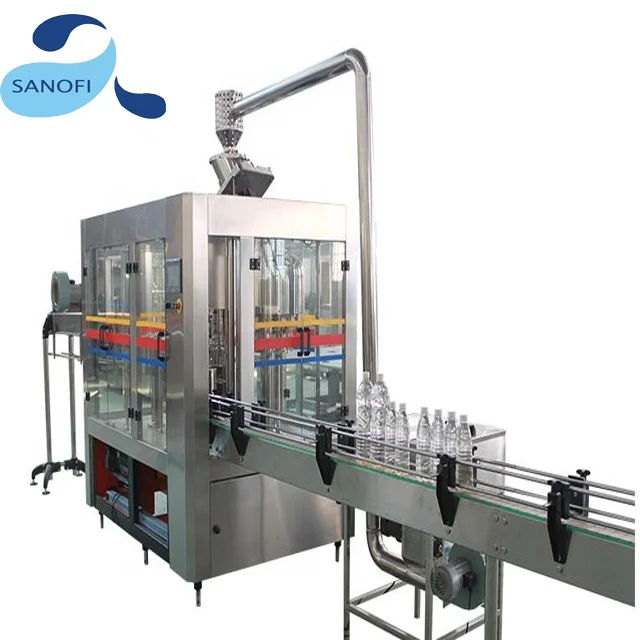

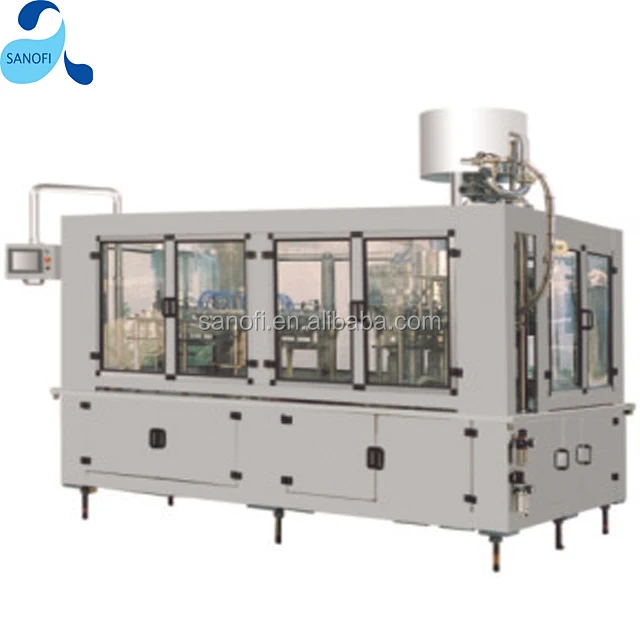

Drinking Water Plant/Drinking Water Factory/Pure Water Project
Washing, filling and sealing devices equipped on the same machine. The design of the machine is scientific and reasonable. The appearance is beautiful and the function is complete. Its operation and maintenance is convenient. Its automation is high. The advanced technology from Italy and Germany are employed. The speed of filling is fast and the liquid amount is controlled accurately. The filling can be stopped automatically when there is no bottle or bottles are damaged. The advanced auto-washing technology is used in system. Pneumatic valve and damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of screw capping can also be fixed, and the caps will not be damaged, the capping is shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically. The whole machine is controlled by PLC with touch-screen as the interface between human and machine. The amount of the drinks in the drink tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When are cramped wrongly or when caps are not available, the machine can be stopped automatically.
Model | Filling Heads | Capacity @ 500ml | Power | Weight(KG) | Dimension(mm) |
CGF8-8-3 | 8 | 2000BPH | 2.2KW | 1500 | 2200×1580×1950 |
CGF12-12-6 | 12 | 4000BPH | 4.78KW | 2000 | 2300×1560×1950 |
CGF18-18-6 | 18 | 6000BPH | 5.03KW | 3000 | 2750×2000×2300 |
CGF24-24-8 | 24 | 9000BPH | 6.57KW | 4000 | 2900×2250×2300 |
CGF32-32-10 | 32 | 13000BPH | 8.63KW | 6500 | 3430×2630×2750 |
CGF40-40-10 | 40 | 16000BPH | 9KW | 7800 | 4300×2930×2750 |
CGF50-50-12 | 50 | 20000BPH | 11KW | 8200 | 5004×3826×2750 |
CGF60-60-15 | 60 | 22000BPH | 13KW | 8500 | 5300×3950×2750 |
Details Images

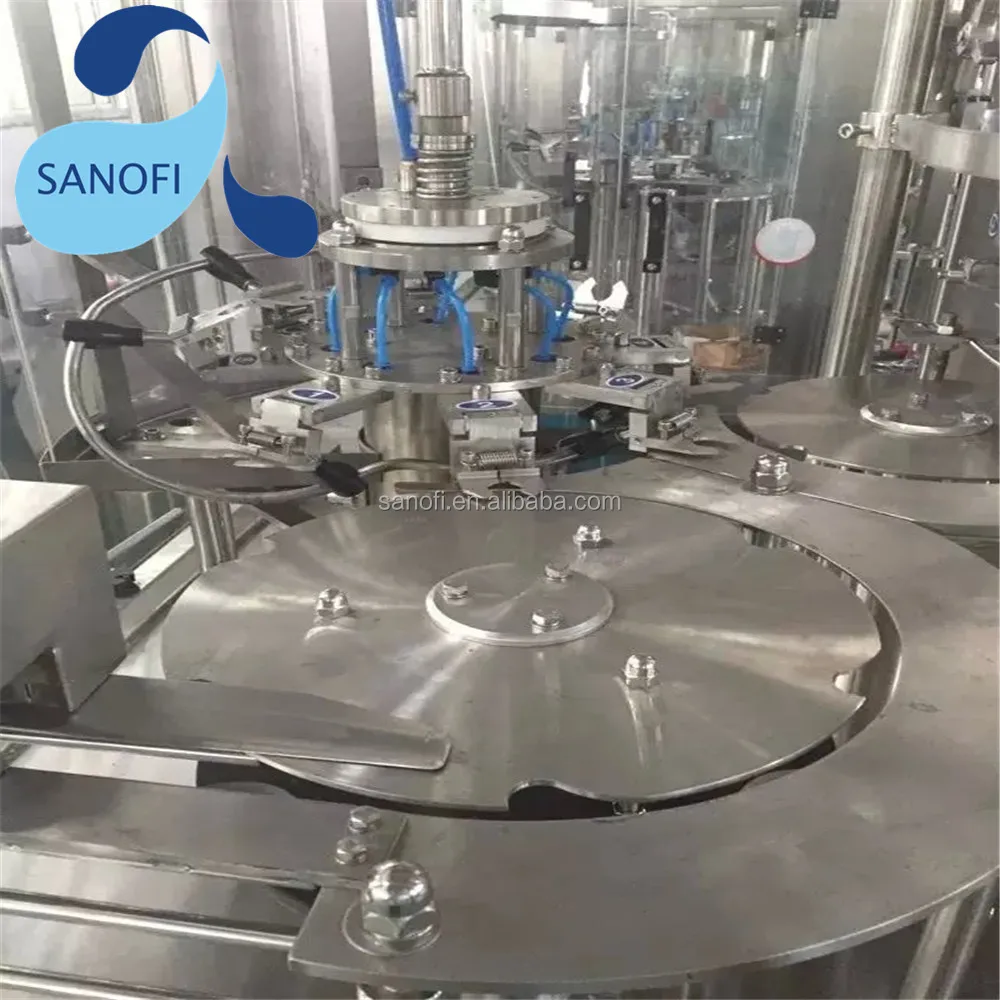

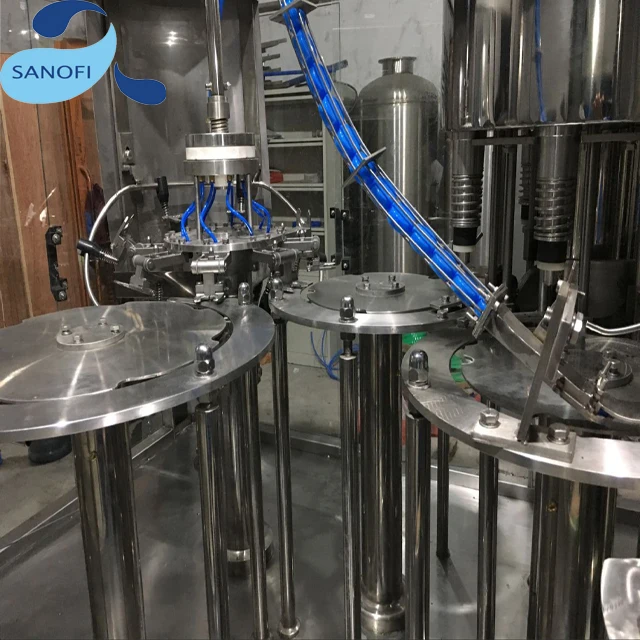

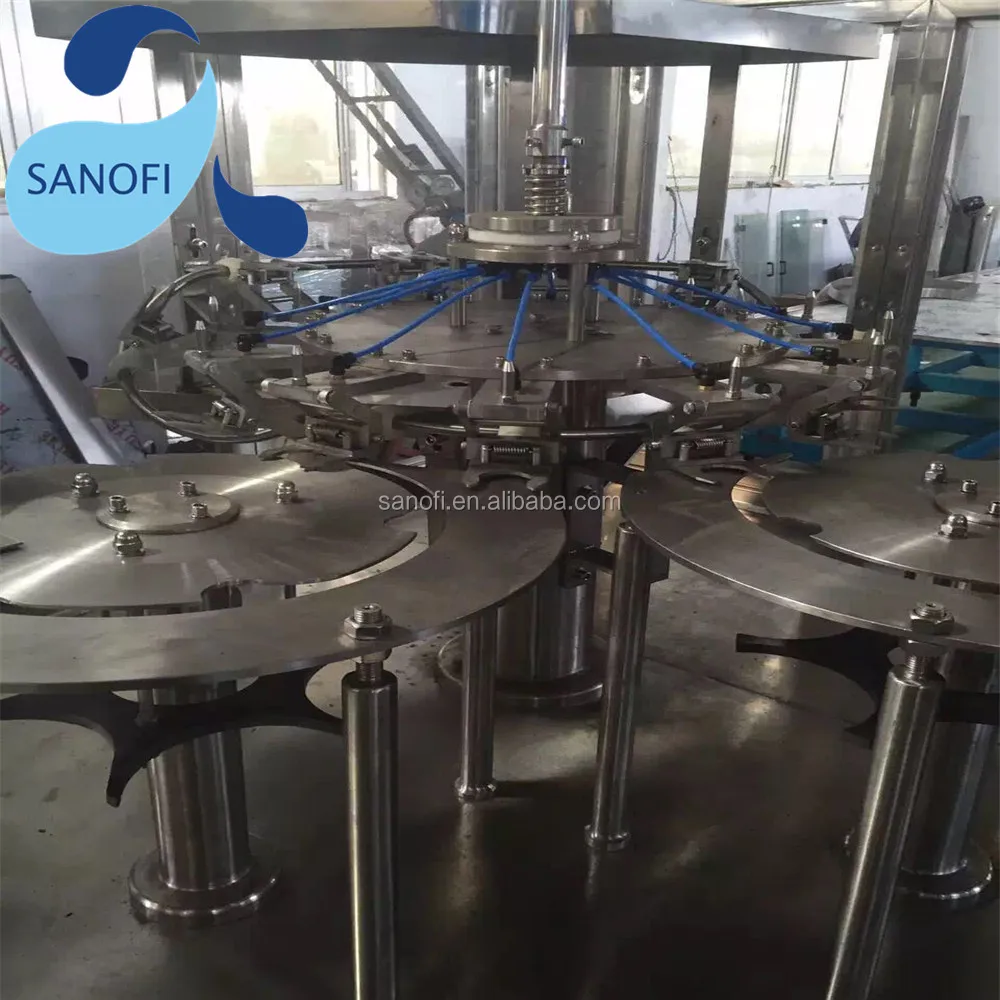

Washing part for filling machine
* Stainless steel 304/316L washing heads.
* Using unique design,avoid the traditional bottle on rubber clip to block the bottle
threaded parts may be caused by the
pollution.
* Washing pump is made of stainless steel.
* By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
* Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.
threaded parts may be caused by the
pollution.
* Washing pump is made of stainless steel.
* By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
* Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.

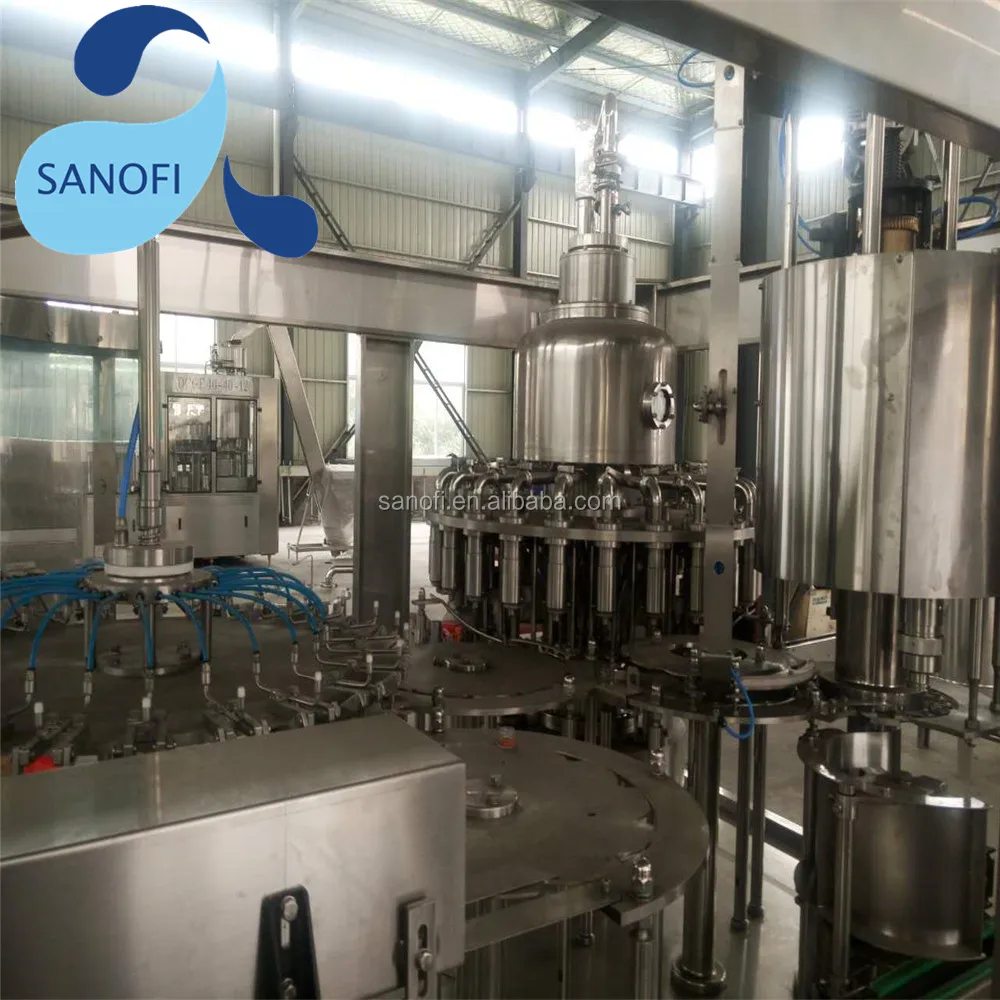

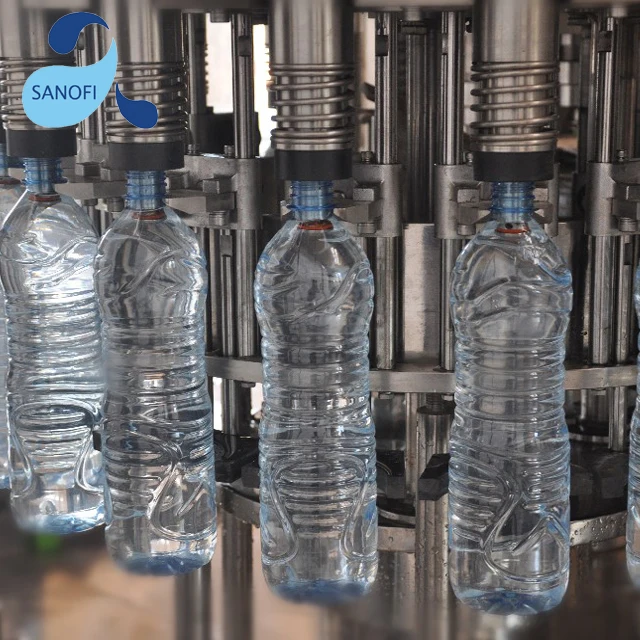

Filling Part For Filling Machine
* Filling method for gravity filling.
* Filling valve manufactured SUS 304/316L.
* High precision, high speed liquid filling.
* Filling move by the rack drive system through gear transmission.
* Hydraulic cylinder controlled by a float liquid level.
* Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.
* High precision, high speed liquid filling.
* Filling move by the rack drive system through gear transmission.
* Hydraulic cylinder controlled by a float liquid level.
* Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.

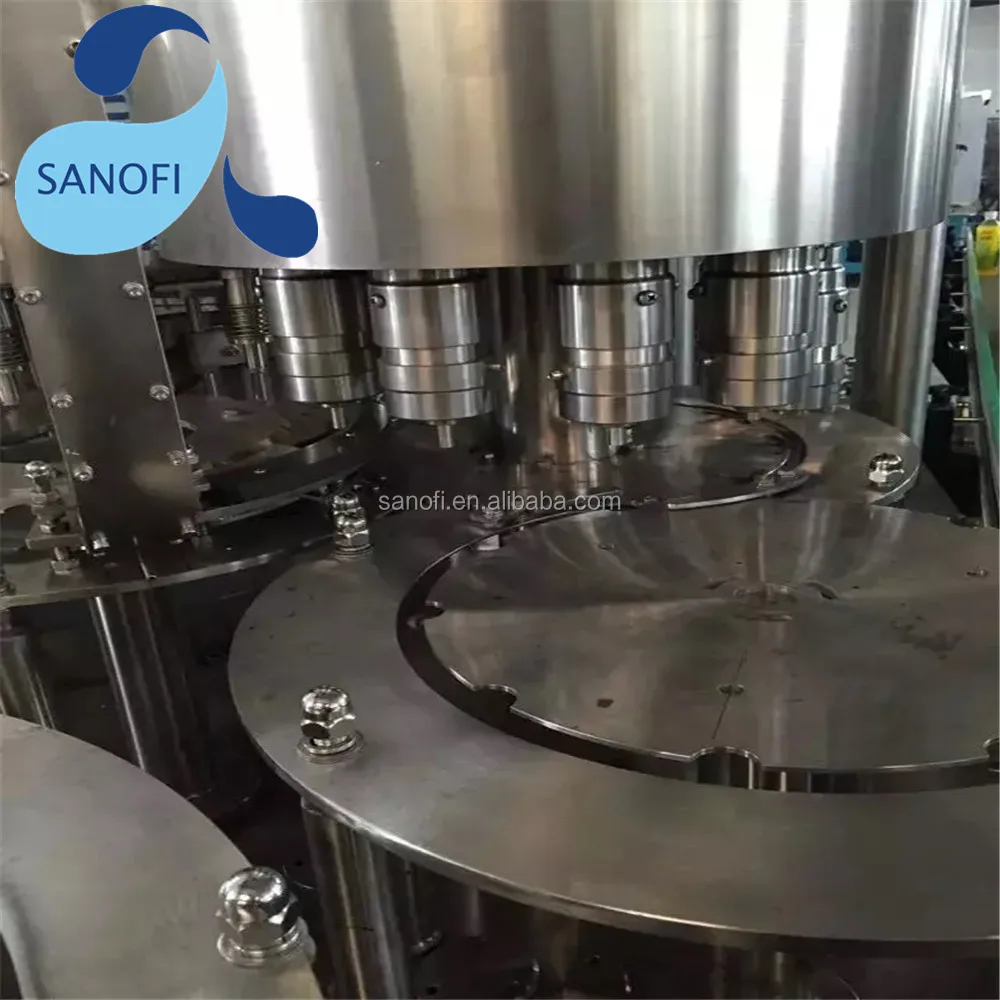

Capping Part For Filling Machine
* Automatic check,no bottle no capping.
* Capping heads in stainless steel 304/316L.
* Capping heads stop working when lack of bottle.
* Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
* High efficiency centrifugal principle.
* Capping heads stop working when lack of bottle.
* Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
* High efficiency centrifugal principle.
Recommend Products
Product packaging
After Sales service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas. After equipment reached the workshop of customer, place the equipment
according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at
the same time make the equipment reach the rated producing capacity of the line.
* Engineers available to service machinery overseas. After equipment reached the workshop of customer, place the equipment
according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at
the same time make the equipment reach the rated producing capacity of the line.
