Product Overview

Description

10HP 20HP 30HP Deep Well Submersible Water Pump



Applications For water supply from wells or reservoirs. For domestic use,for civil and industrial applications. For garden use and irrigation.   Operating conditions  Maximum fluid temperature up to +35℃. Maximum sand content:0.25%. Maximum immersion:80m. Minimum well diameter:4".   Motor and Pump Rewindable motor or Full obturated screen motor Three-phase:380V-415V/50Hz Single-phase:220V-240V/50Hz Pumps are designed by casing stressed Curve tolerance according to ISO 2548   Options on request Special mechanical seal  Other voltages or frequency 60 Hz   Warranty:1 year (according to our general sales conditions).

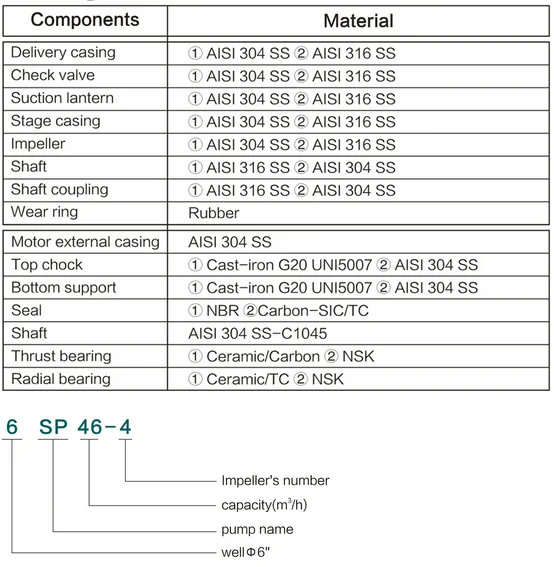

Delivery casing AISI 304SS AISI 316 SS CHECK VALVE AISI 304SS AISI 316 SS SUCTION LATERN STAGE CASING IMPELLER SHAFT SHAFT COUPLING WEAR RING RUBBER Motor exteral casing AISI 304 SS Top chock 1.Cast-Cu ASTM280 2.Cast-iron G20 UNI5007 Bottom support AISI 304 SS Mechanical seal Special seal for deep well (carbon-SIC/TC) Shaft AISI 304 SS-C1045 Bearing NSK Seal lubricant oil Oil for food machinery and pharmaceutic use.







1.More Details

Model	P2		DN	Dimensions(mm)			Weight(kg)
3~ 380V/415V	KW	HP		L1	L(s)	ΦD	Pump	Total
4SP46-4	7.5	10	3"/4"	630	1296	144	12	61
4SP46-5	7.5	10	3"/4"	720	1386	144	15	64
4SP46-6	9.2	12.5	3"/4"	810	1526	144	17	69
4SP46-7	11	15	3"/4"	900	1686	144	19	78
4SP46-8	13	17.5	3"/4"	990	1926	144	21	83
4SP46-9	15	20	3"/4"	1080	1966	144	23	89
4SP46-10	15	20	3"/4"	1170	2056	144	26	92
4SP46-11	18.5	25	3"/4"	1260	2171	144	28	99
4SP46-12	18.5	25	3"/4"	1350	2261	144	30	101
4SP46-14	22	30	3"/4"	1530	2516	144	34	113
4SP46-16	26	30	3"/4"	1710	2771	144	39	123
4SP46-18	30	40	3"/4"	1890	3206	144	43	135
4SP46-20	30	40	3"/4"	2070	3206	144	48	140

In the list: L(s) is single phase motor, L(t) is three phase motor

In the list: G(s) is single phase motor. L(t) is three phase motor

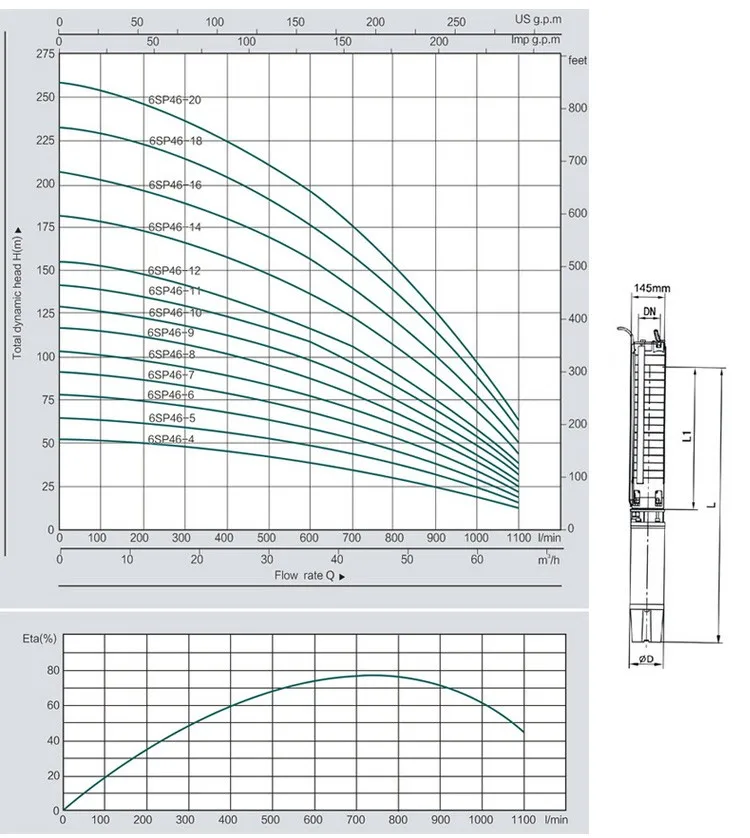

2.Performance Chart

3.Performance Date





More Choice for SP Series
4SP 2	4SP 3	4SP 5	4SP 8	6SP 17	6SP 30	6SP 46	6SP 60



Other Series Recommendation
4SD Series	6SP Series	4SKM Series
DK series	JET Series	QDX Seires

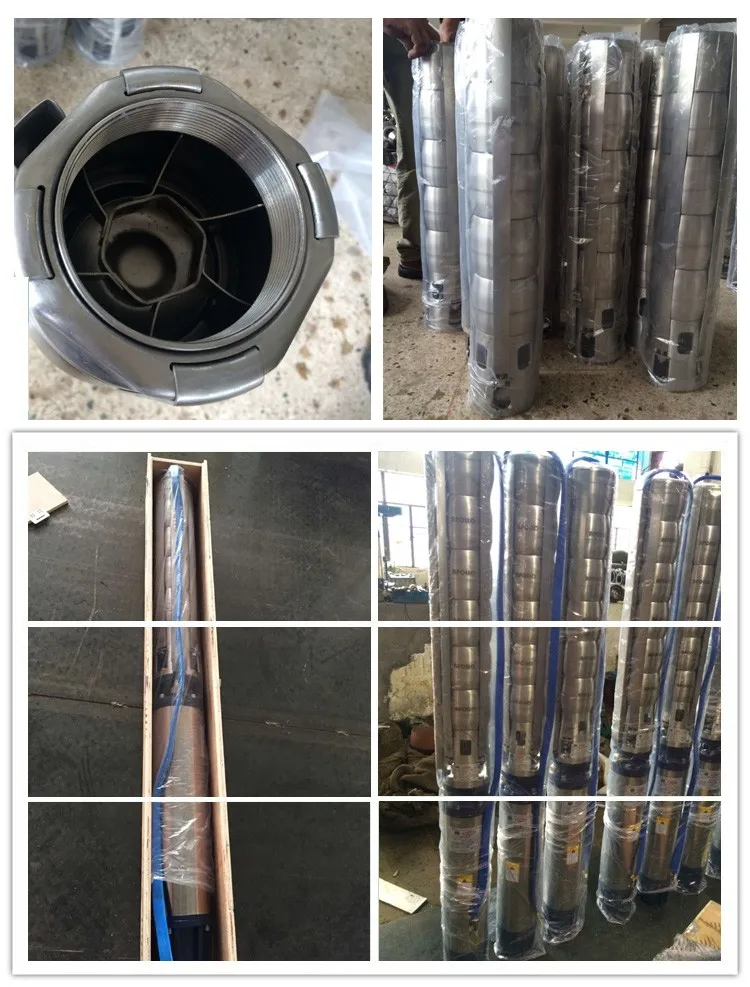

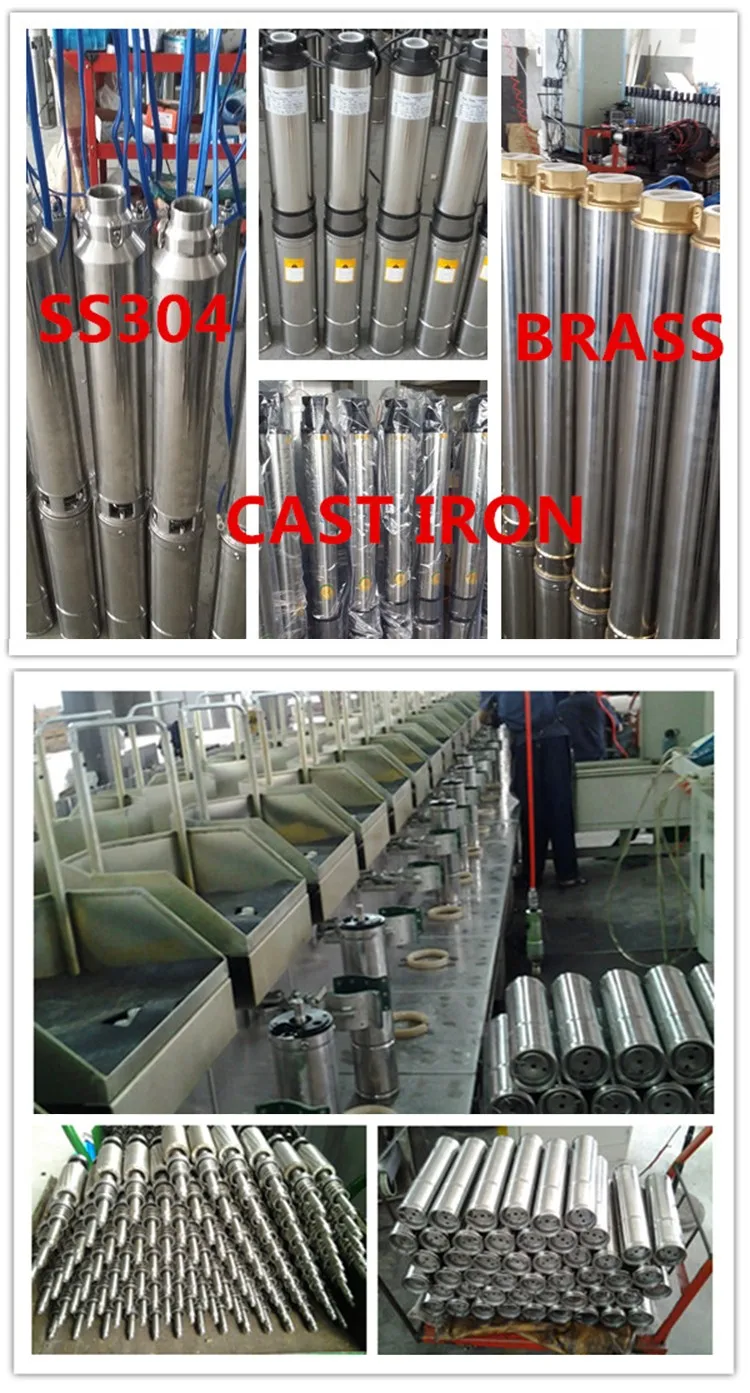

Production Display





FQA



1.Are you a trade company or a manufacturer?
A:We are an ISO,  CE,  approved manufacturer specialized in water pump. OEM & ODM service are available.



2.What is your MOQ?
A: Our minimum order quantity is 100 piece.

3.What is your delivery date?
A: The delivery date is about 5-15 days after receipt of payment.

4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

5.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,

or you can call your courier to pick up from our office.
