CATV antenna coaxial cable RG12 RG11 with PVC PE LSZH jacket
- Category: >>>
- Supplier: Jiangsu Elesun Cable Co. Ltd.
Share on (60622715150):
Product Overview
Description
CATV antenna coaxial cable RG12 RG11 with PVC PE LSZH jacket
Product Description
Description:
. Standard Mil-c-17
. Similar to: SYV75-4
. Insulation Material: Solid PE
. Impedance:75Ω±3
. Color: Black, White
Typical Application:RG11 RG12 is a specific type of coaxial cable, often used for transmission of a video and radio signals in application such as security system or CATV.

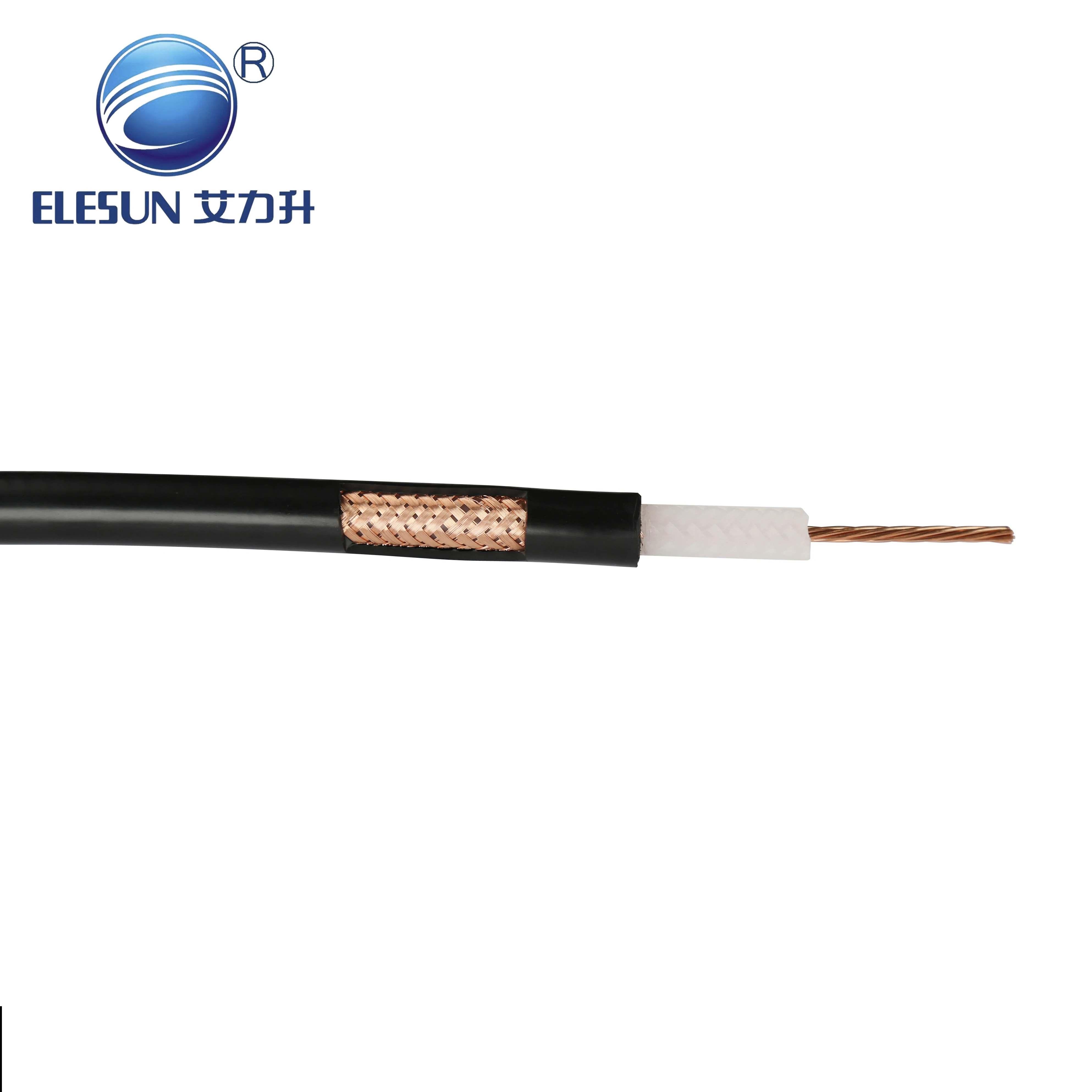

RG-11A/U SYV75-7 coaxial cable specifications | |
Material of Inner Conductor | Bare Copper, CCS |
Structure of Inner Conductor | 7/0.40mm |
Material of Insulation | Solid PE |
Diameter of Insulation | 7.11mm |
Material of Braiding(Shielding) | CCA, Bare Copper, Tinned Copper |
Structure of Braiding(Shielding) | 128*0.15mm |
Material of Jacket | PVC |
Diameter of Jacket | 10.30mm |
Working temp | -40℃/80℃ |
Impedance | 75Ω±3 |
Voltage | 4000V |
Company Information
Packaging & Shipping
Our Services
FAQ
Q: What 's the MOQ of cable ?
MOQ ususally 2km and lead time 4 days. It will be 7 days if customize cable assembly
Q : Can i get a free sample ?
Yes, we offer 1m-20 free charge for new customer
Q: Could you print text on cable ?
It is no problem to print on RG142, RG400 ,RG393...
Q: May i know the package style ?
Package will do according customer needs .
