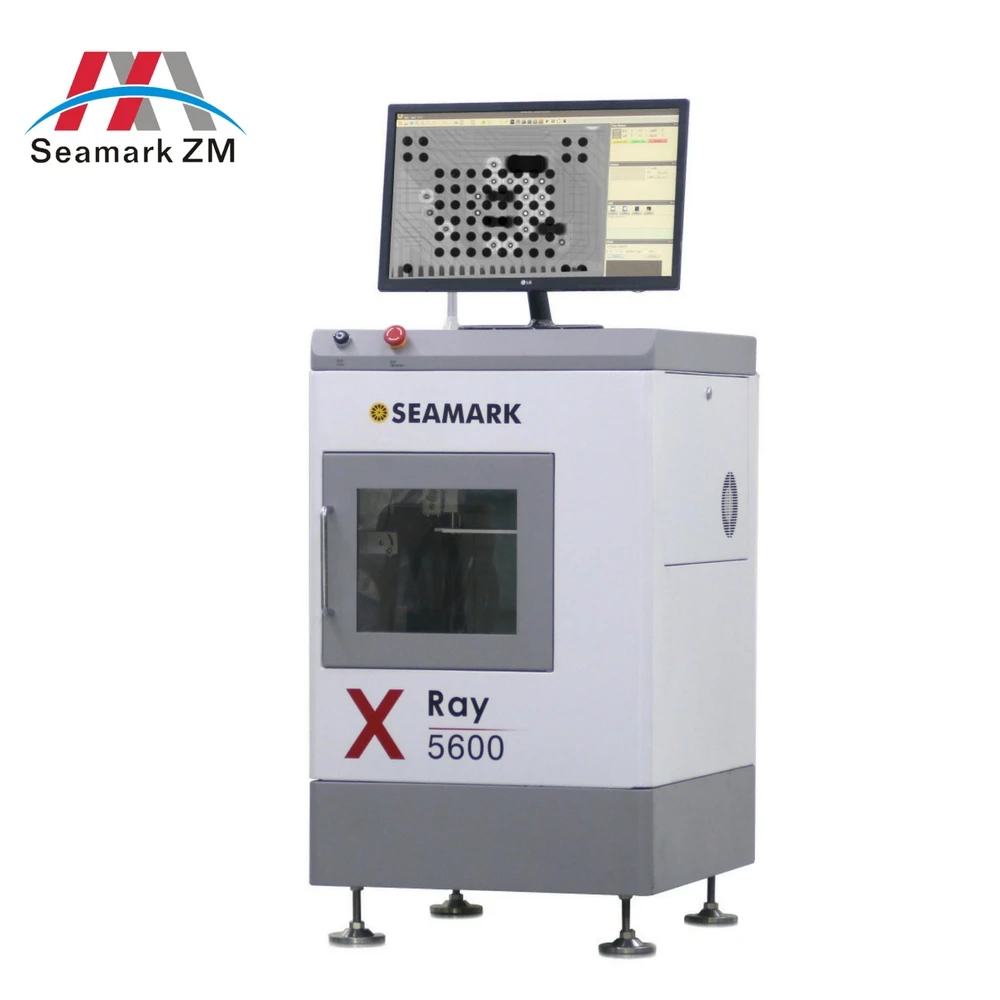

pcb bga x ray inspection machine/xray screening machine x5600
- Category: >>>
- Supplier: Shenzhen Zhuomao Technology Co. Ltd.
Share on (60622790357):
Product Overview
Description
More details ,welcome to contact us.
Angela Luo
whatsapp/Tel/Wechat : 0086 150 135 11044
skype:bgajuan
Email:luoxiaojuan(@)zhuomao.com.cn
pcb bga x-ray inspection machine/xray screening machine x5600
1, Main Features:

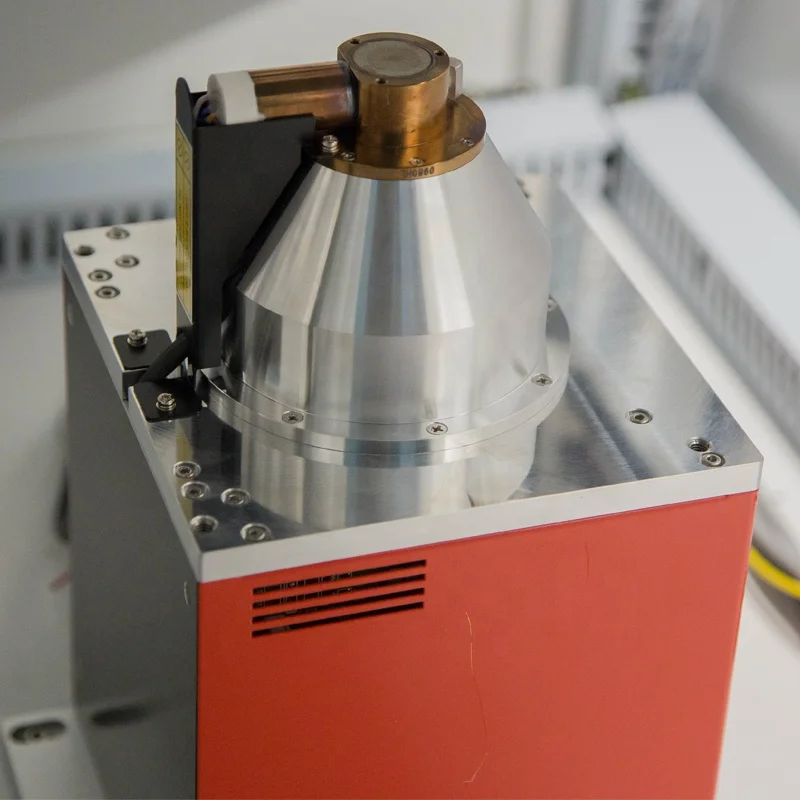

- Fully integrated, 130 kV high power closed X-ray tube
- Micro-focus
- Spot size down to 5µ
- 5″ x 5″ or 4″ x 3″ high resolution and ultra resolution CMOS digital flat pane imagel detectors
- 60° camera tilt for oblique angle viewing
- 22″ x 18″ Inspection Stage with 350° Rotation
- Color mapping camera with zoom window provides easy location and identification of faults
- Z axis movement of the x-ray tube and detector
- Computer controlled kV and mA settings
- Computer controlled variable speed X-Y stage (and rotate)
- Simple point and click, intuitive GUI provides access to create advanced inspection routines
- All s/w tools standard including (but not limited to)
- BGA Void detection and automatic calculations
- Mobile Flex Cable FPC x-ray inspection

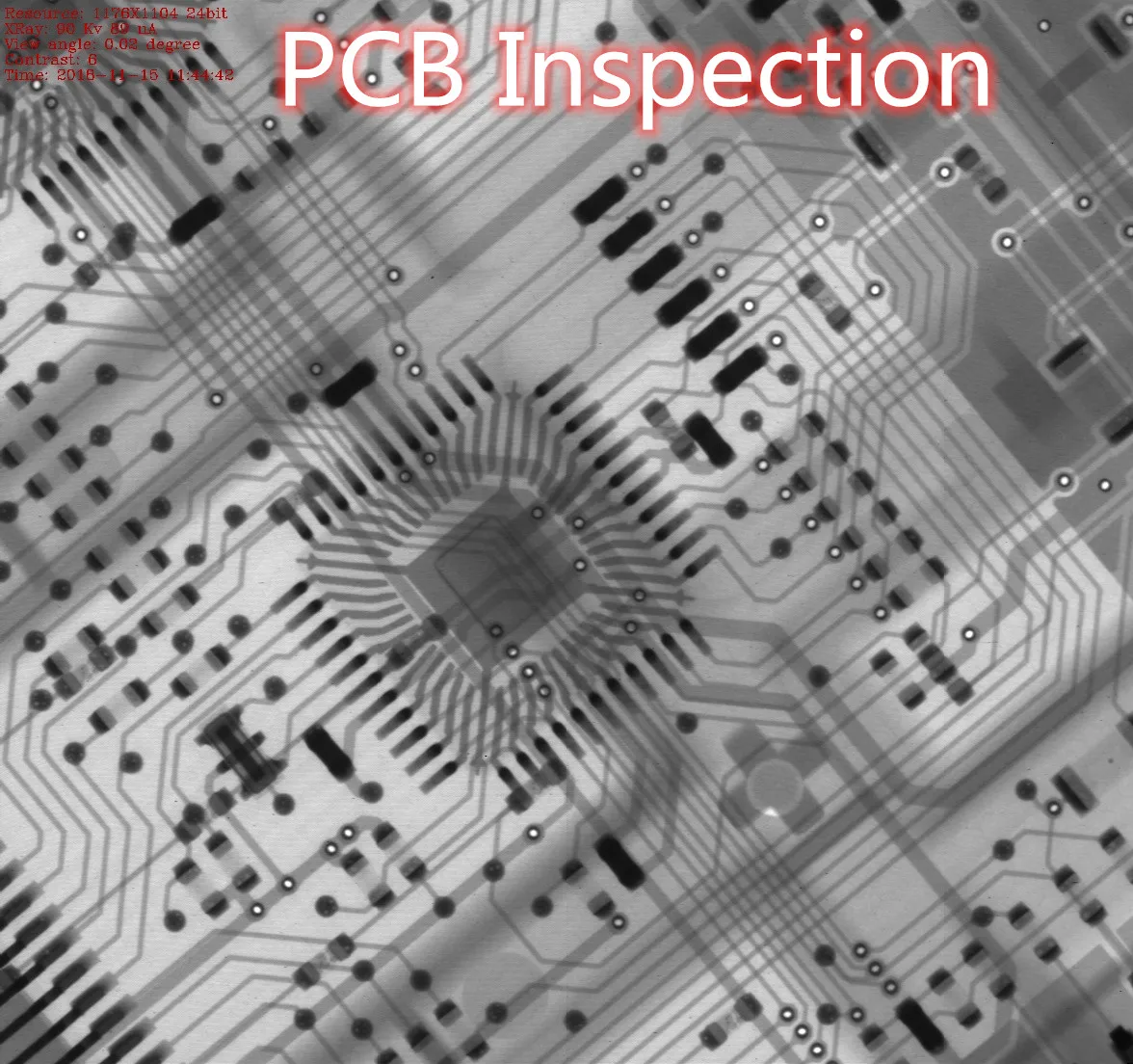

- SMT Mounting and PCB X-ray inspection
- Easy macro recording for intuitive step and repeat programming
- Various measuring tools for TH, radius, area, perimeter, etc
- Industrial PC with Windows 7 PRO, 23″ LCD flat panel display
2, Specification:
| X-Ray Tube |
| Tube Stylex-ray PCB equipment | Closed Type | |
| Tube Voltagex-ray PCB equipment | 90-130kV | |
| Tube Currentx-ray PCB equipment | 0.32mA | |
| Focal Spot Sizex-ray PCB equipment | 5 Micron | |
| Tube Coolingx-ray PCB equipment | Forced Air | |
| Geometric Magnificationx-ray PCB equipment | 250X | |
| System Magnificationx-ray PCB equipment | 1000X | |
| Digital Flat Panel Detector |
| Detector Size | 5″ x 5″ high resolution | 4″ x 3″ ultra resolution |
| Grayscale | 14-bit (16,384 shades of grayscale) | 14-bit (16,384 shades of grayscale) |
| Speed | 30 FPS | 10 FPS |
| Resolution | 100 µm | 50 µm |
| X-Ray Cabinet |
| Dimension | 1450mm (L) x 1600mm (W) x 1670mm (H) / 59″(L) x 62.9″ (W) x 62.9″(H) | |
| Sample Table Size | 560mm x 457mm / 22″ x 18″ | |
| Inspection area | 360mm x 290mm / 14.2” x 11.6” | |
| Weight | 1600 kg / 3527 lbs. - Steel – Lead – Welded construction | |
| Power |
| Automatic switching power supply | AC 110-230VAC, 50/60Hz (Universal) | |
3, Principle Diagram

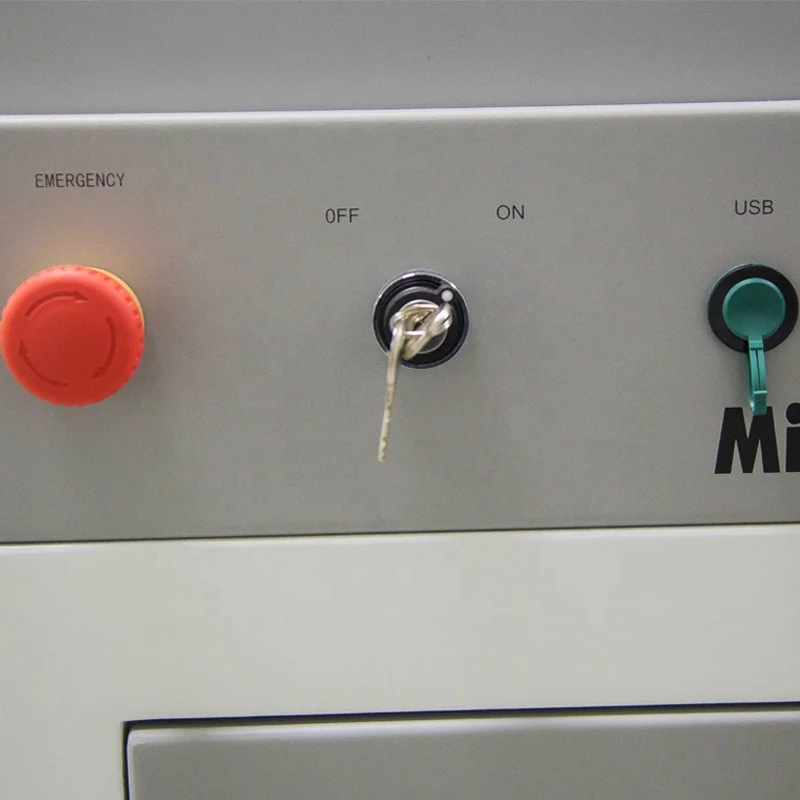

4, Detail Presetation
Digital Panel Detector Mapping Guide System+PC Control Interface

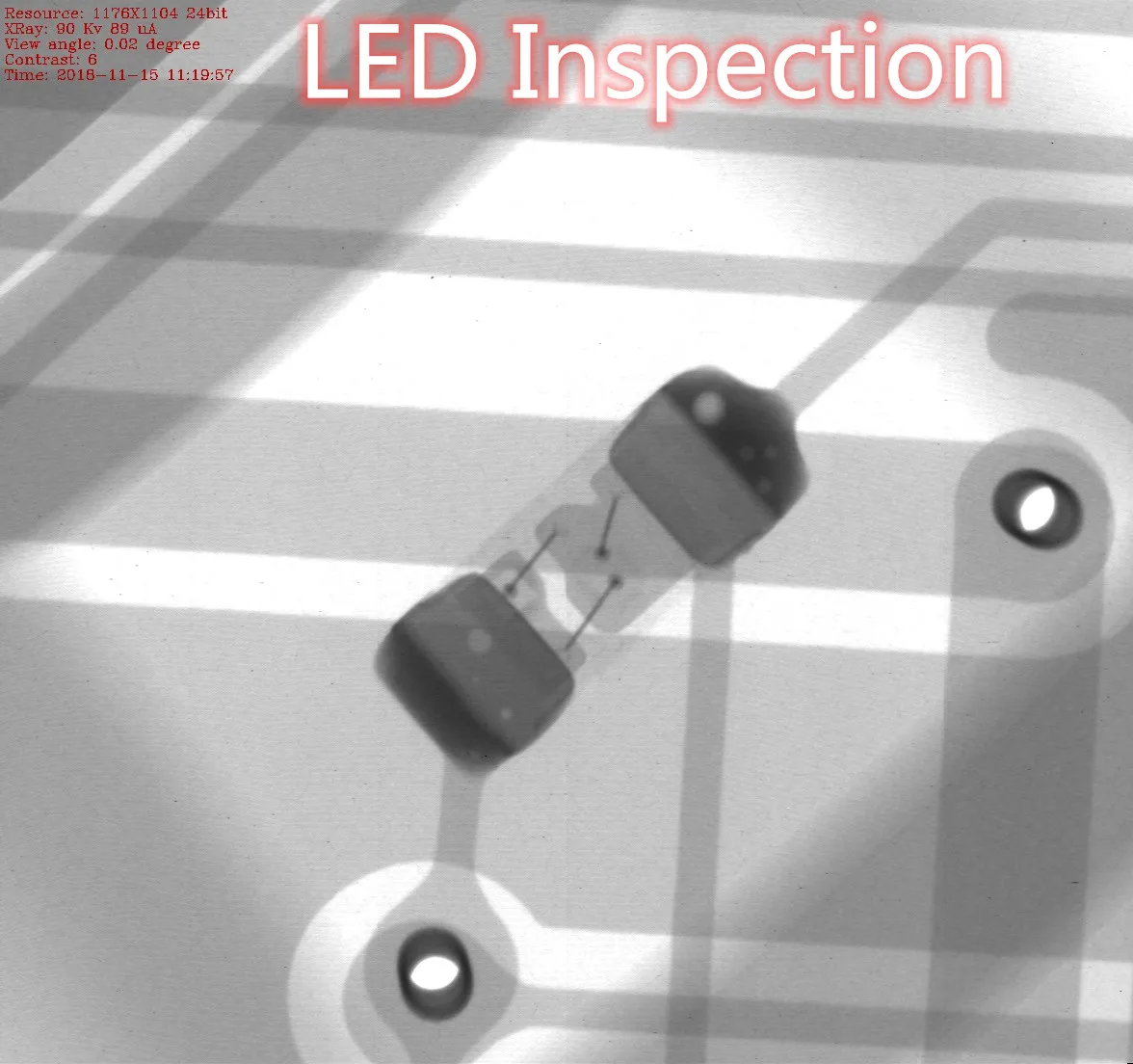

5, Application
Customer Visiting
Nearly every day some customers from home and abroad come to visit our factory, we arrange the technician to show the PCB X-ray machine operation. Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
FAQ
1. How about the package ? Is it safe during the delivery ?
All PCB X-ray machine is packed by standard strong wooden carton.
It is safe when shipping.
pcb bga x-ray inspection machine/xray screening machine x5600
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
pcb bga x-ray inspection machine/xray screening machine x5600
3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
pcb bga x-ray inspection machine/xray screening machine x5600
4, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
pcb bga x-ray inspection machine/xray screening machine x5600
5. What is the payment way ?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.
pcb bga x-ray inspection machine/xray screening machine x5600
If any question, you can send INQUIRY , or CHAT with us, we will be glad to service you !
