ISO7241 B 304 STAINLESS STEEL KZF CLOSE TYPE HYDRAULIC QUICK COUPLING
- Category: >>>
- Supplier: Shanghai Century Industry Co. Ltd.
Share on (60622819252):
Product Overview
Description

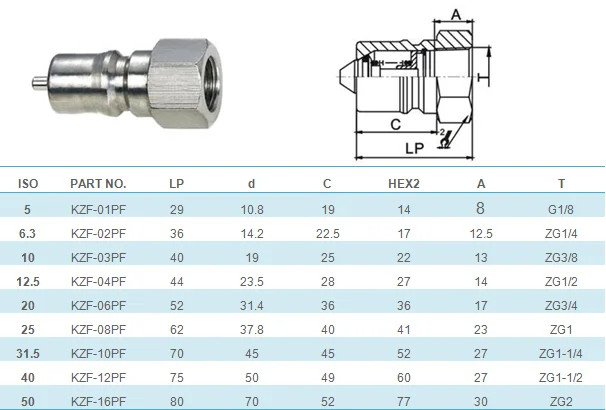

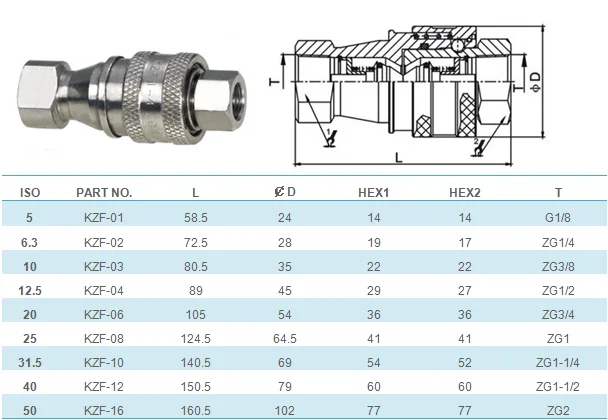

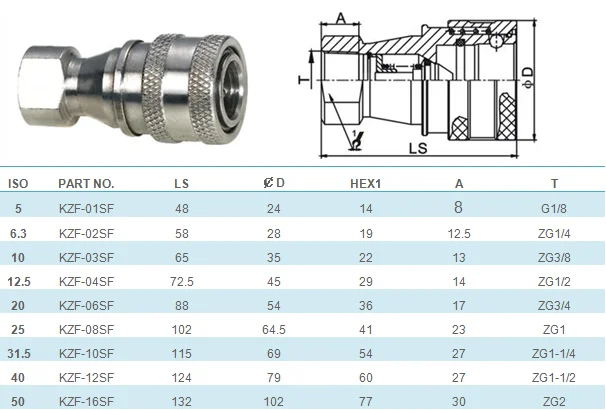

KZF Close Type Hydraulic Quick Coupling (stainless steel 304)
KZF couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZF couplings are also used with chemicals, water, steam, and some gases.

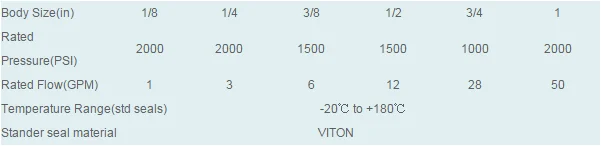

Specification:
KZF Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. KZF series conforms to the standard of ISO 7241-B
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
Packaging & Shipping
Packaging:Carton or wooden Pallet
Shipping:Vessel or Courier
Company Information
Workshop
Semi-finished Product Area
Warehouse
Testing Machines
FAQ
Q: Can you provide samples?
A: Yes, we can provide samples if we have stock, but the express should be paid by yourside.
Q:How about the delivery time?
A:It depends, we need to know the quantity, normally we can ship the goods in 30 days.
Q:How is quality of your goods?
A:Our engineer has more than 30 years experience of hydraulic fitting, I think good engineer is the assurance of quality, and also we have CNC processing machines, and testing machines, to ensure the quality.
