2022 новый ультразвуковой датчик уровня воды/топлива с GSM GPRS WIFI LoRa NB IoT
- Category: IoT Solutions & Products >>>
- Supplier: Beijing Dingtek Technology Corp. Ltd.
Share on (60622827689):
Product Overview
Description
Overview

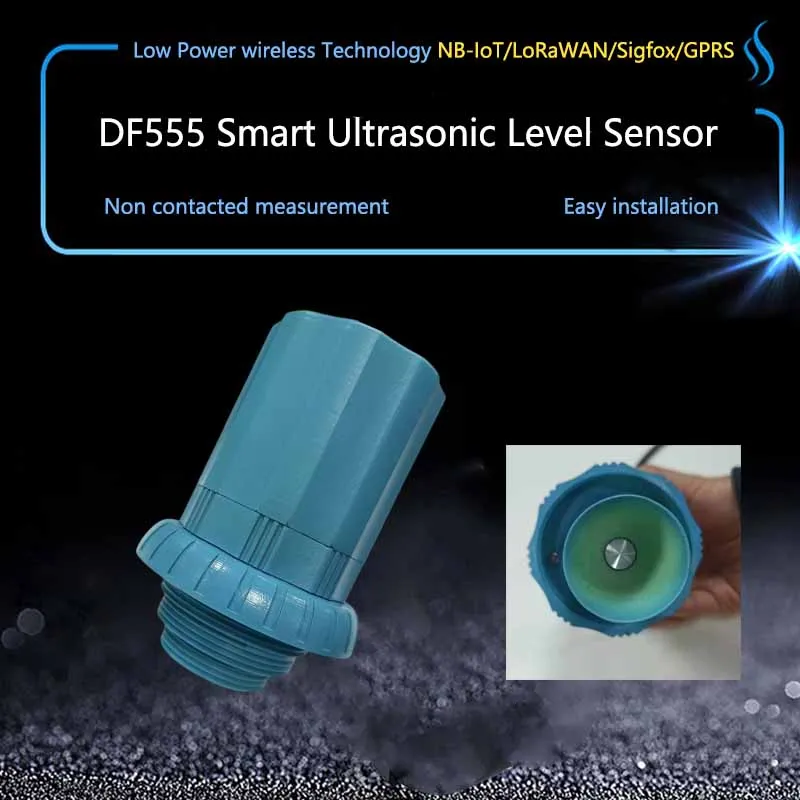

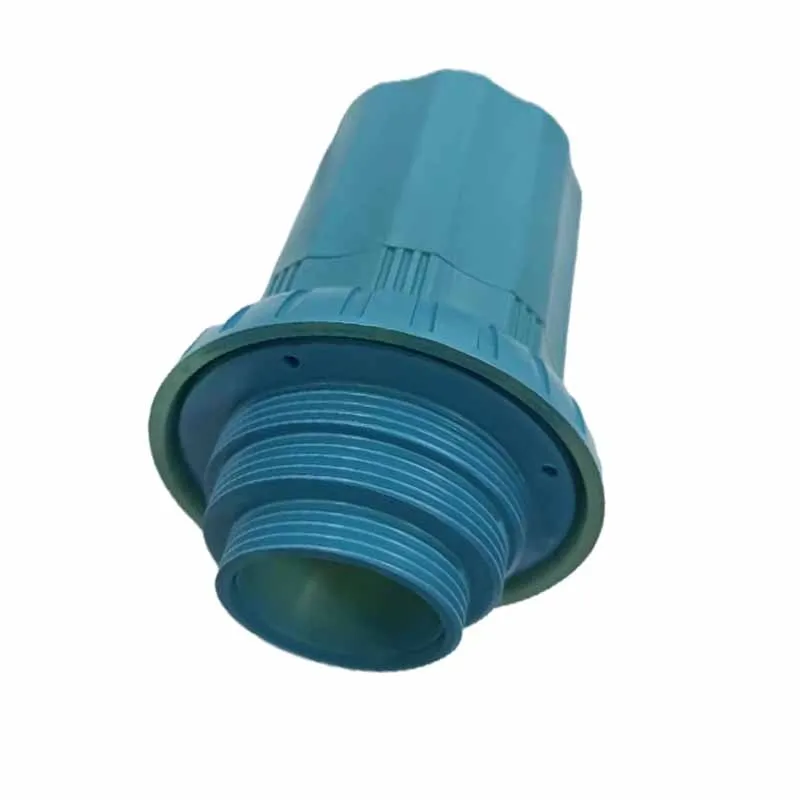

➽ DF555 is ultrasonic level (distance )sensors which can measure the air height directly and calculate the liquid or solid height based on the total height of the container (distance).
➽ It is applicable for the close container or open container, or even the river. Furthermore it can calculate the volume of the container or the liquid.
➽ NB-IoT/LoraWAN/Sigfox/GPRS wireless Technology
➽ GPS: Optional
➽ Power: Internal battery/external power supply, optional
➽ Antenna: Internal antenna/external power supply, optional
Features
➽ Non contact measurement, 5m measuring range
➽ Top installation, need drill holes.
➽ NB-IoT/LoraWAN/Sigfox/GPRS wireless Technology
Product Paramenters
Overview | Dimension | 190mm(H)*72mm(W)*72mm(L) |
Color | Black | |
Ultrasonic | Principle | Ultrasonic |
Detection Range | 5 meters | |
Blind area | 0-20cm | |
Accuracy | 3mm or 0.3%FS, the bigger one | |
Resolution | 1mm or 0.1%FS, the bigger one | |
Driving Frequency | 40khz | |
Power | inner battery | ER26500, 8500mah |
Environment | Operating Temperature | -20 ~ +70℃ |
Storage Temperature | -40 ~ +85℃ | |
Protection Level | IP68 | |
Media | liquid | Diesel,gasoline, water, LPG, Ethanol, and other liquids |
Mounting | Top flange fixing | The sensor is attached to the top of the tank by a flange. |

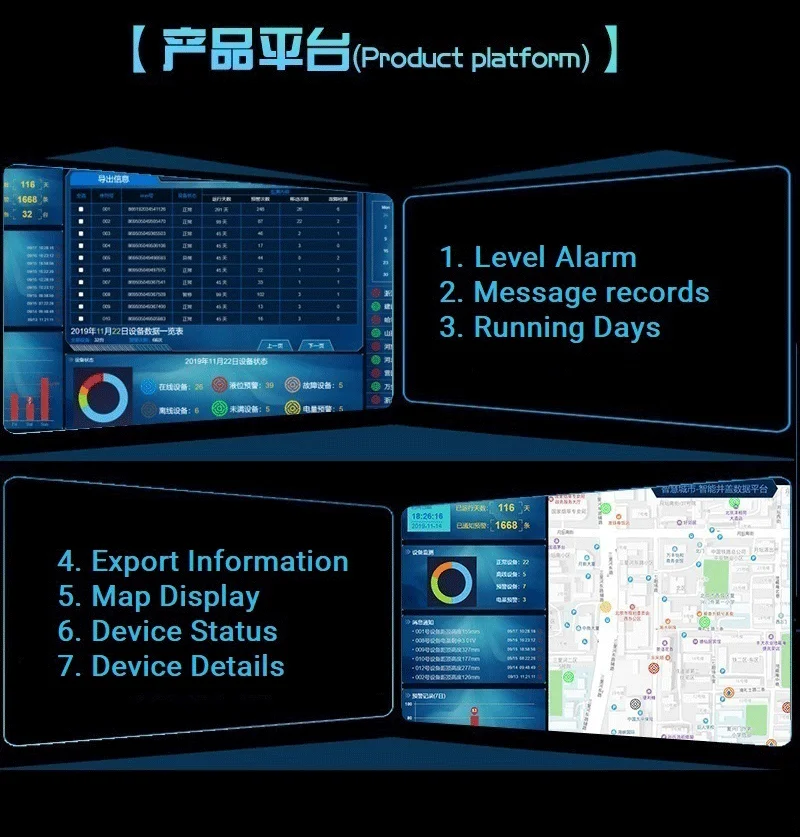

SAAS

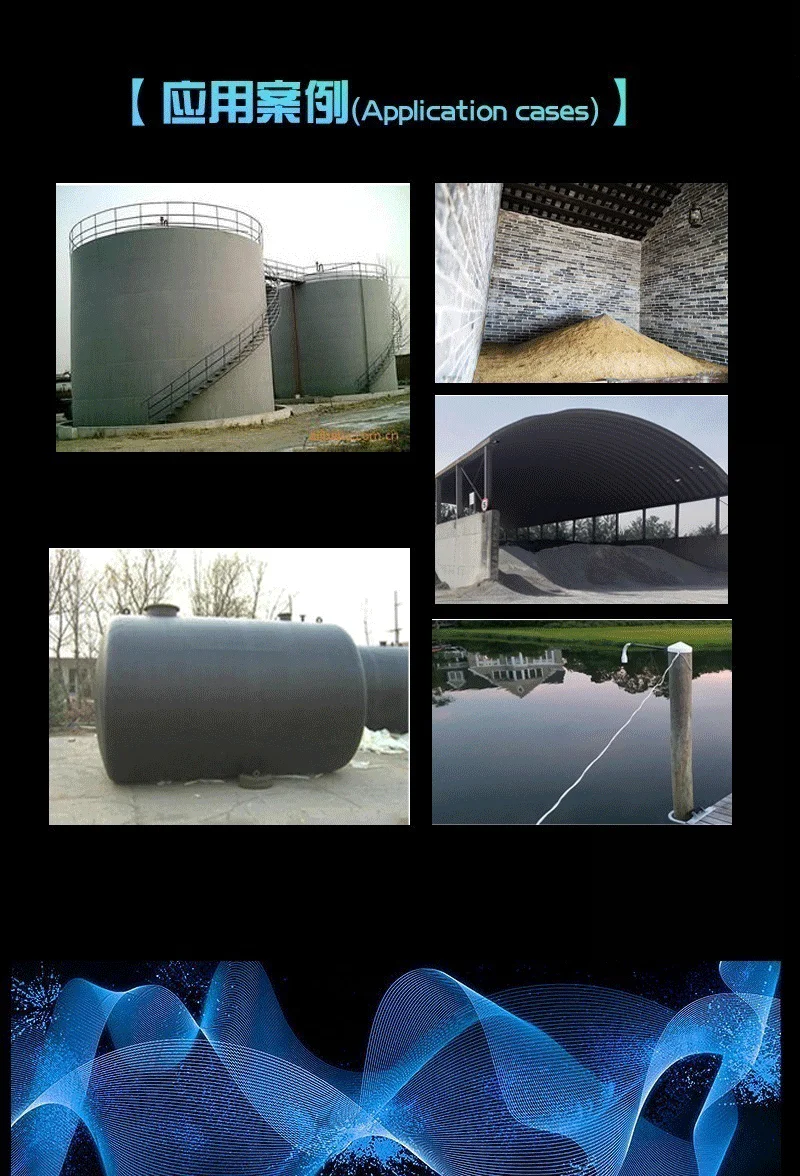

Application Case
