Multifunctional insulated bus bar connector flexible aluminum foil busbar
- Category: >>>
- Supplier: Zhejiang Rhi Electric Co. Ltd.
Share on (60622869873):
Product Overview
Description
Product Description
Multifunctional insulated bus bar connector flexible aluminum foil busbar
Aluminum bus bars are often used as electrical conductors in power distribution systems, where heat can easily be dissipated. Because of the low value of the metal, it can be the best economic option for the application.
As with all custom components, the moment a question or quote request comes to RHI our engineering design team employs a process designed to make sure that each customer makes the right choice in metal, design and fabrication. Whether the choice is to shop online for Rectangular Aluminum Bar, to create custom aluminum or copper bus bar we work side-by-side with your engineers with the shared goal of making your part work from inception to completion.
Material: Aluminium ,1050,1060, 1100, 2024, 2A12, 2A16(LY16), 2A02( LY6), 3003, 3A21, 4A01, 5052, 5005, 5083, 5A05, 6061, 6063, 7075,7050,
Surface Finish: Nickel or tin plated
Size: OEM/ODM Service
Test: Conductivity Testing, Temperature Rise Testing, Bending Testing etc
Surface Plating: 3-12um tin, nickel or silver according to busbar's size
Load Voltage: 220 V to 15 KV according to size
Strength:quality aluminum has plenty of tensile strength to withstand thermal expansion strain.Depending on the alloying agents employed, the strength of aluminum itself can range from dead soft to mild steel. ≥ 180 MPa
Ampacity: Contingent on busbar size, aluminum busbar can handle currents up to 4000A, which is more than sufficient for many applications.
Conductivity:Aluminum busbar conductivity is dependent on the alloy and temper. Pure aluminum conductivity is approximately 65.0% of IACS.
Resistance:High quality, high strength aluminum can have mechanical resistance up to 530 Newton/mm2. Aluminum is fatigue resistant and corrosion resistant. Aluminum also offers easy corrosion removal with simple stripping.
Weight: Aluminum can be as much as 70% lighter than copper.
Aluminum Bus Bar Advantages:
High Corrosion Resistance
Good Conductivity
Great Heat Exchange
Efficient Thermal Dissipation
Lightweight
Cost Effective

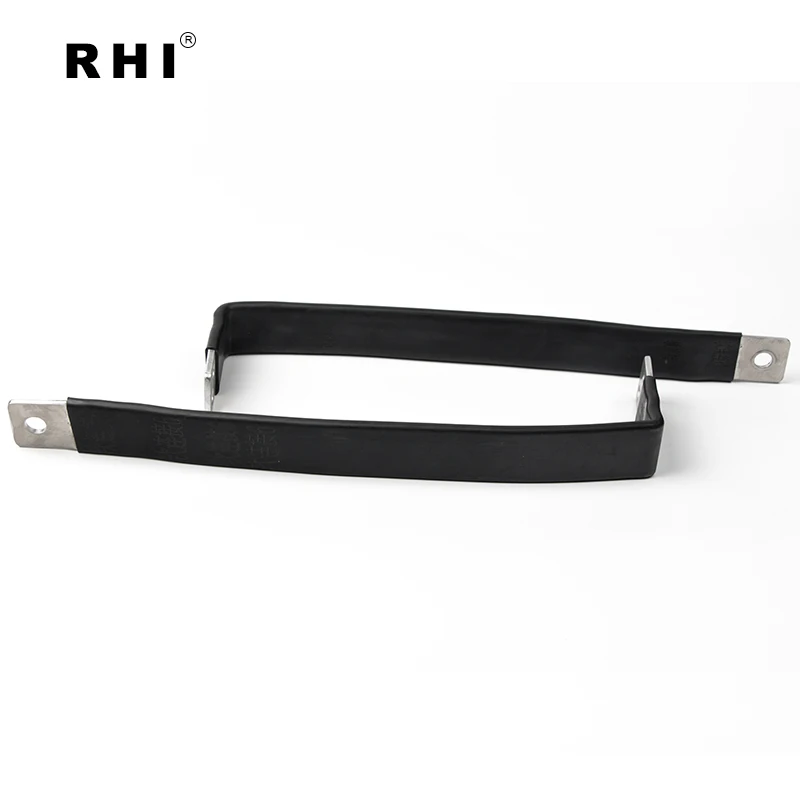

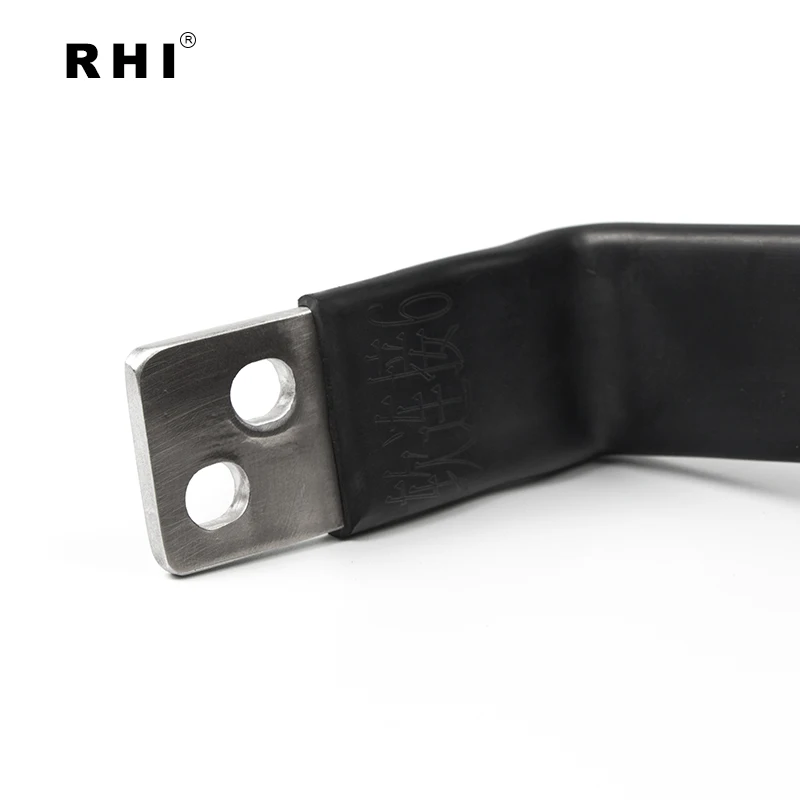

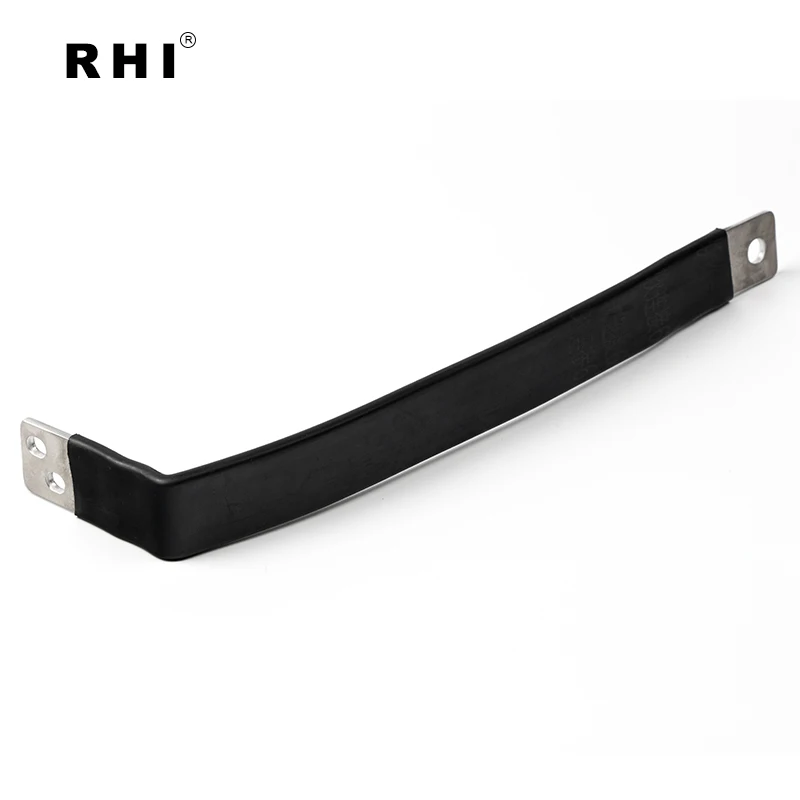

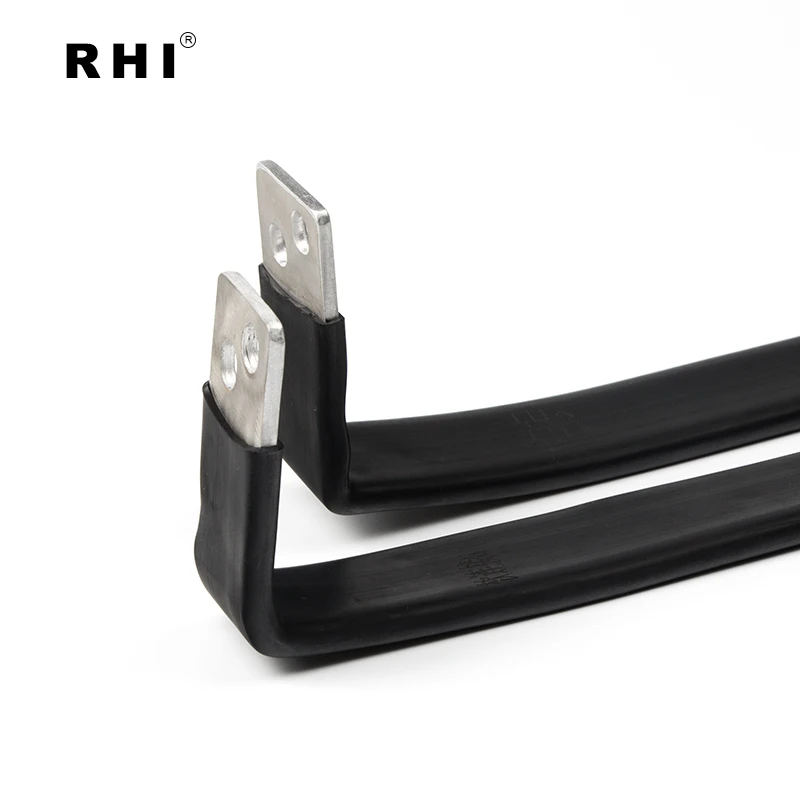

Photo Show
 |  |

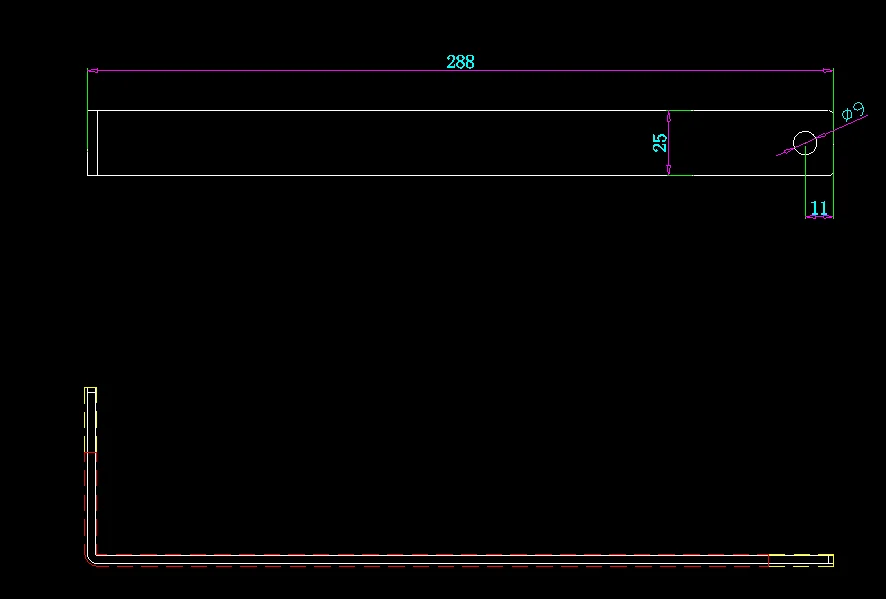

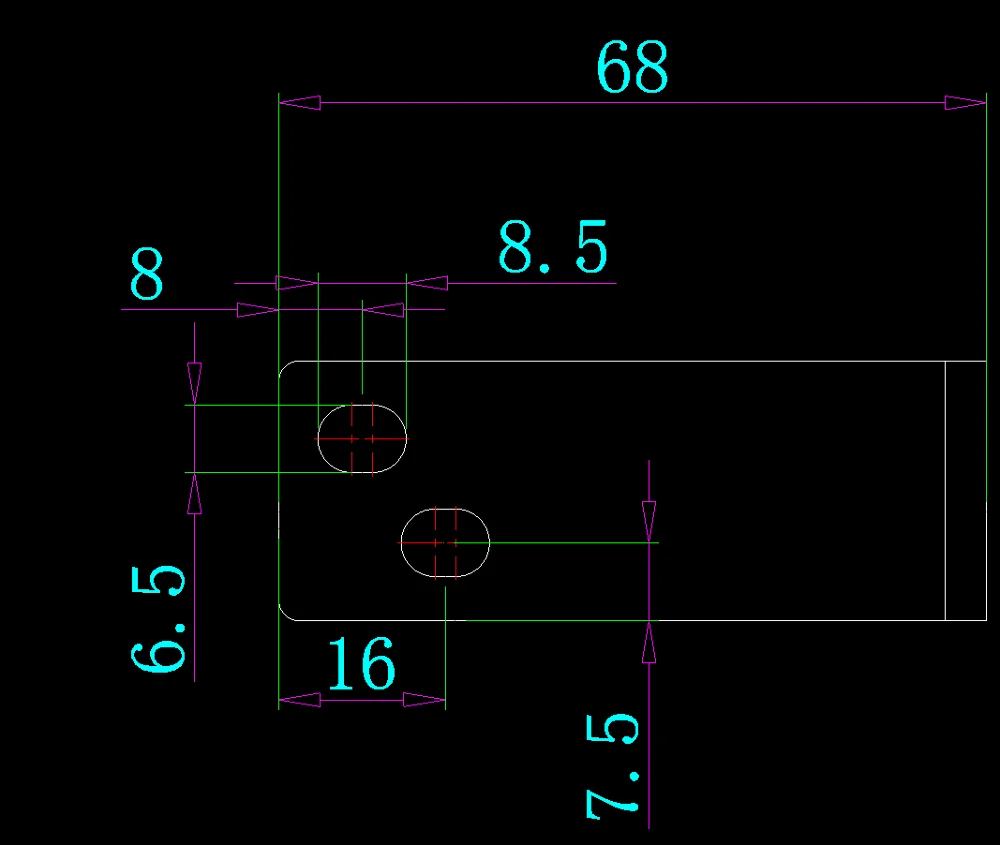

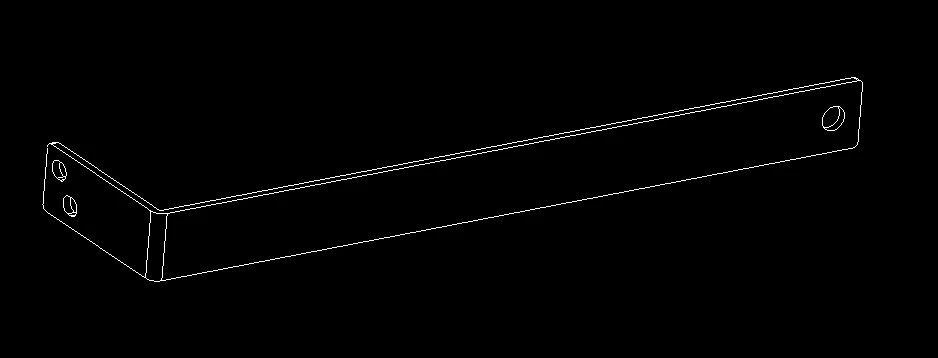

Drawing of flexible busbar
Any length /thickness can be adjusted
Busbar tester
Testing Capabilities
| Test Programs | Tester | Standard | Test Result |
| Endurance test | Endurance meter | upon your request | √ |
| Release force test | Universal material testing machine | upon your request | √ |
| Loop resistance,contact resistance test | Loop resistance testing equipment | upon your request | √ |
| Temperature rising test | Temperature rising tester | GB/T14048.1-2000 | √ |
| Electric conductivity test | Conductivity tester | YS/T478-2005 | √ |
| Salt spray test | Salt spraying tester | GB/T2423.17-2008 | √ |
| Thermal ageing, heat vibration test | Air exchange aging test machine | upon your request | √ |
| Coating thickness test | X-ray coating thickness tester | upon your request | √ |
| Voltage drop test | Voltage drop tester | upon your request | √ |
Our Services
1.Perfect management systems: Implement ISO9001 & IATF16949 and provide PPAP document
2.Professional sales team:more than 6 year export experience and 24-hour service line to meet customer’s need.
3.Premium quality:test from raw material to packaging and many advanced testing equipments,like temperature tester,electrical conductivity tester.
4.High production efficiency and low cost :10 year experience of production and complete production chain.
5.Highly intelligent production workshop: robot production line and high-precision machines.
Customer feedback
FAQ
1. Are You A Factory or A Trading Company ?
We are a factory with our own Export Ability .
2. How Can I Get a Quote?
Before quoting, we should have some basis infomation about the item. Basis infomation include the structure reference, detail dimensions, material request, printed graphics, and quantity,certificate Request . The more details, the better price will be sent to you ASAP.You can send inquiry to any Sales from RHI on Website .
3. What is the Solution If the Products is Broken Receiving?
This case need to double check. When you received a broken showcase, please take some photos on the broken items, and send us immediately, we will double check, if it is broken before delivery, we will resend you freely.
4. Do You Accept Small Order?
Yes, small order or trial order is available. But the price will be much higher, because we are manufacturer, and no matter how many pieces will be done, the machines need to launch on.
5. How Long for Making Sample?
Normally, it takes about 1-2 days; but for OEM goods , we may need 5-7 days to make sample molds
6. What About the Delivery Time?
It will take 3-20 days according to different quantity .if we have in stock,we can deliver goods at once or 1-2 days after receiving your payment
7. Could you send Sample By Free ?
Sample is free for you .The shipping fees will be paid by your side , but the shipping fee will all refund once you place an order with us in the future.
8. What are the Payment Terms?
We support T/T, Western Union and Paypal.
9. What Price Terms Do You Have ?
EXW, FOB, CNF ,CIF ,FCA can be accepted by us
10. Could I Visit Your Factory and Know Your Production Capacity ?
Yes, Welcome .
11. What Certificates do you have of your products ?
We have ROHS .REACH .UL94V-0 Standard according to different Items.
12. Which Year Your Factry Was Established ? How Large Is Your Factory ?
Our Factory has been established in 1997 with 19 years’ experience . Our Factory has 7000 Square meters.
