Woodworking Solid wood Plywood Partical board Multiple rip Cutting Saw Machine

Product Overview

Description

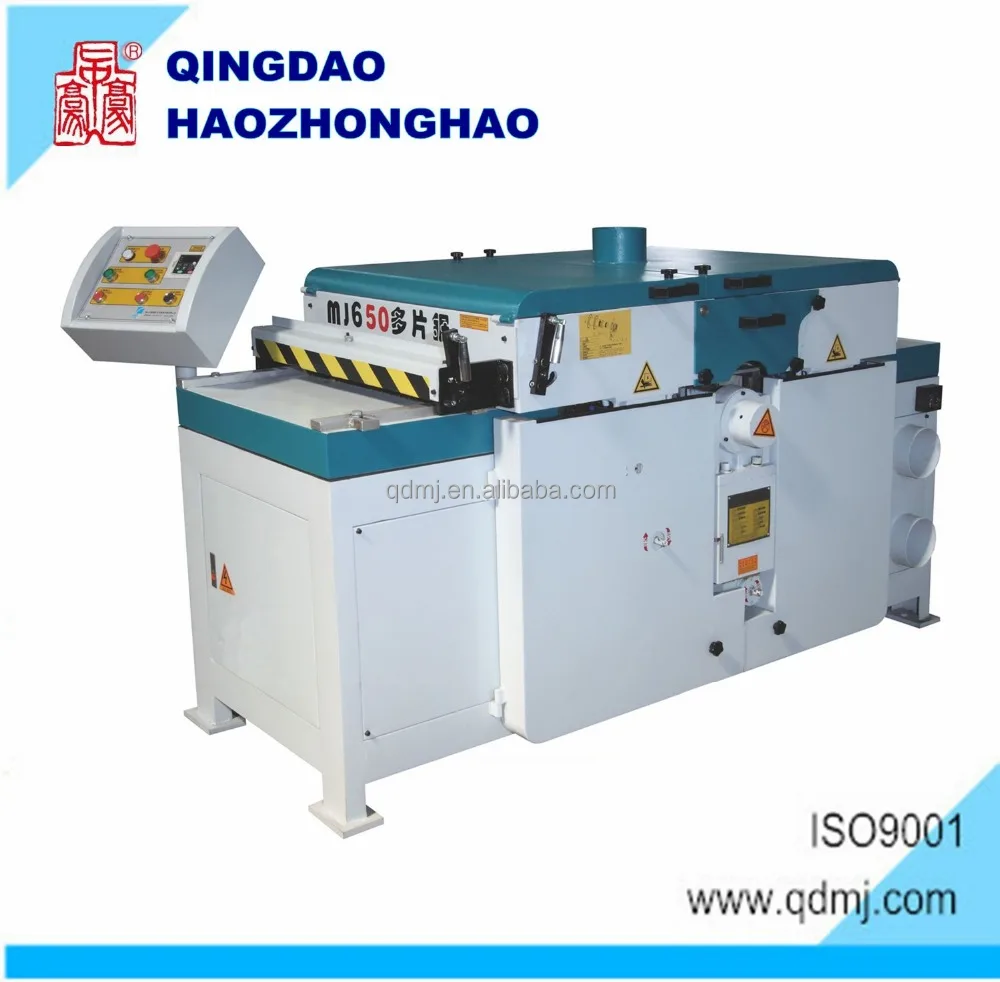

 We supply high quality Woodworking Multiple rip Saw Machine MJ650-X3

Model	MJ650-X3

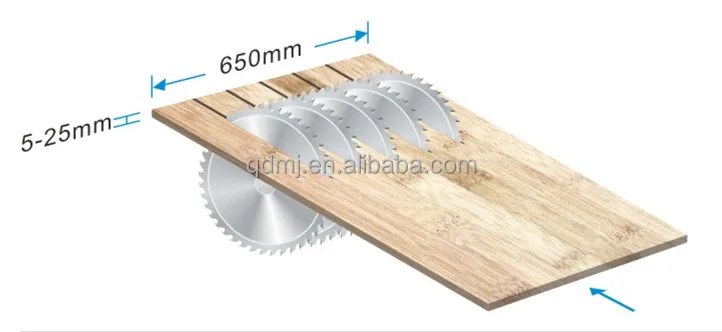

Max Working width (mm)	650
Working thickness(mm)	5-25
Min. Working Length (mm)	400
Spindle Speed (r/min)	2600
Saw Blade Diameter (mm)	205
Power of Spindle Motor (kw)	7.5
Power of Feeding Motor (kw)	1.5
Total Power of Installed Motor (kw)	9
Feeding Speed (m/min.)	0-12
Pair Number / Number of Feeding Roller	6units/12 pieces
Voltage	380V 50Hz 3Phase
Overall Dimensions (mm)	2030*920*1230
Weight (kg)	1200

Function

It can be used to grooving on solid wood, MDF, composite board and non wood filler, or cut the board into narrow strips.



Characteristics

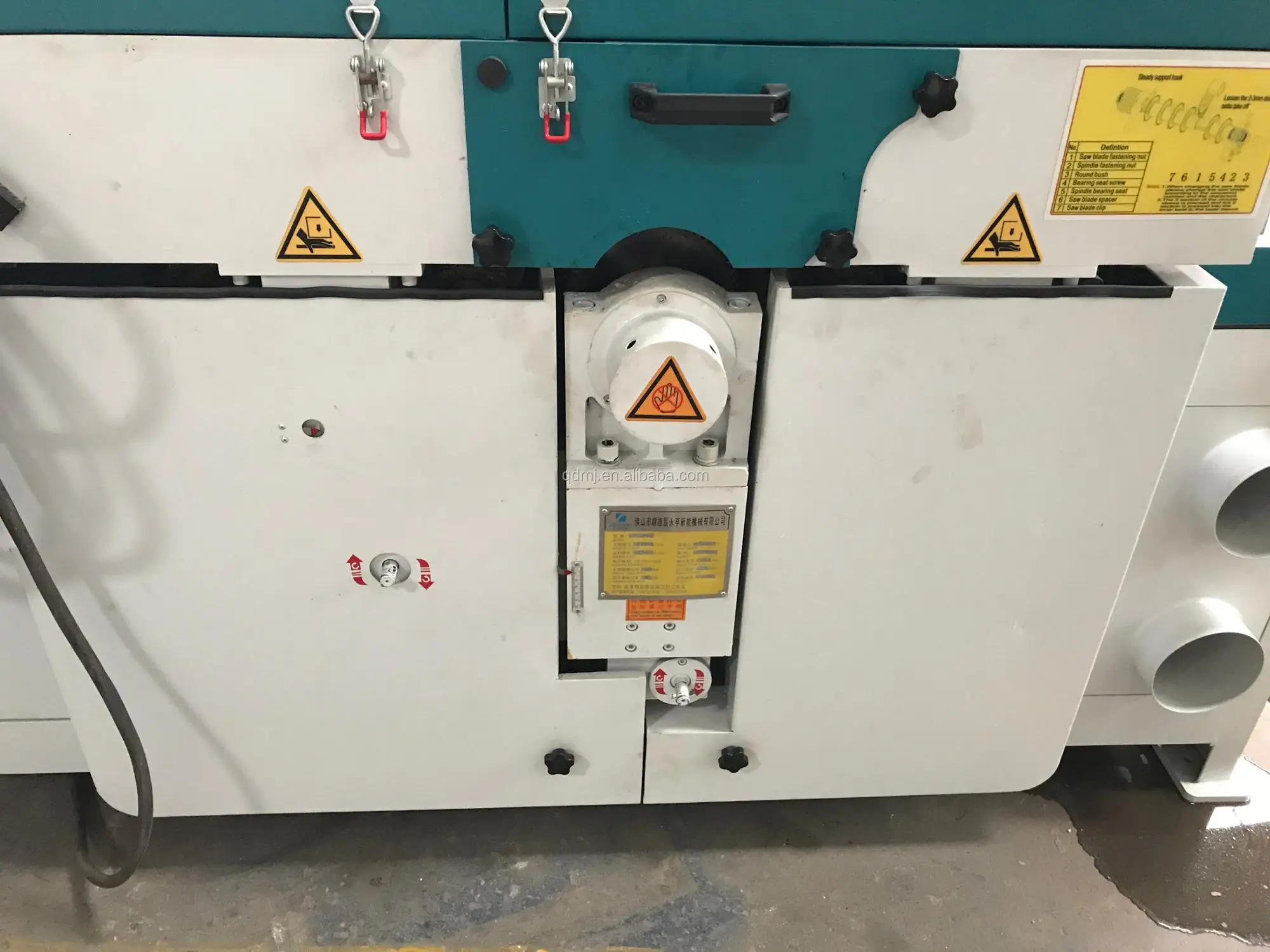

The spindle of saw can lift and down,which is suitable for different kinds of wood material.

Welding machine frame has enough strength and rigidity to provide solid basis for power cutting and smooth feeding.
Longer feeding platform and reference guide can make sure of high process precision.

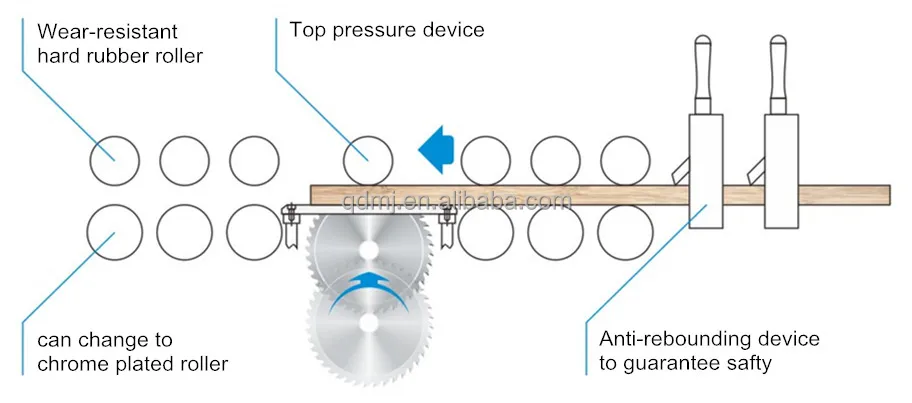

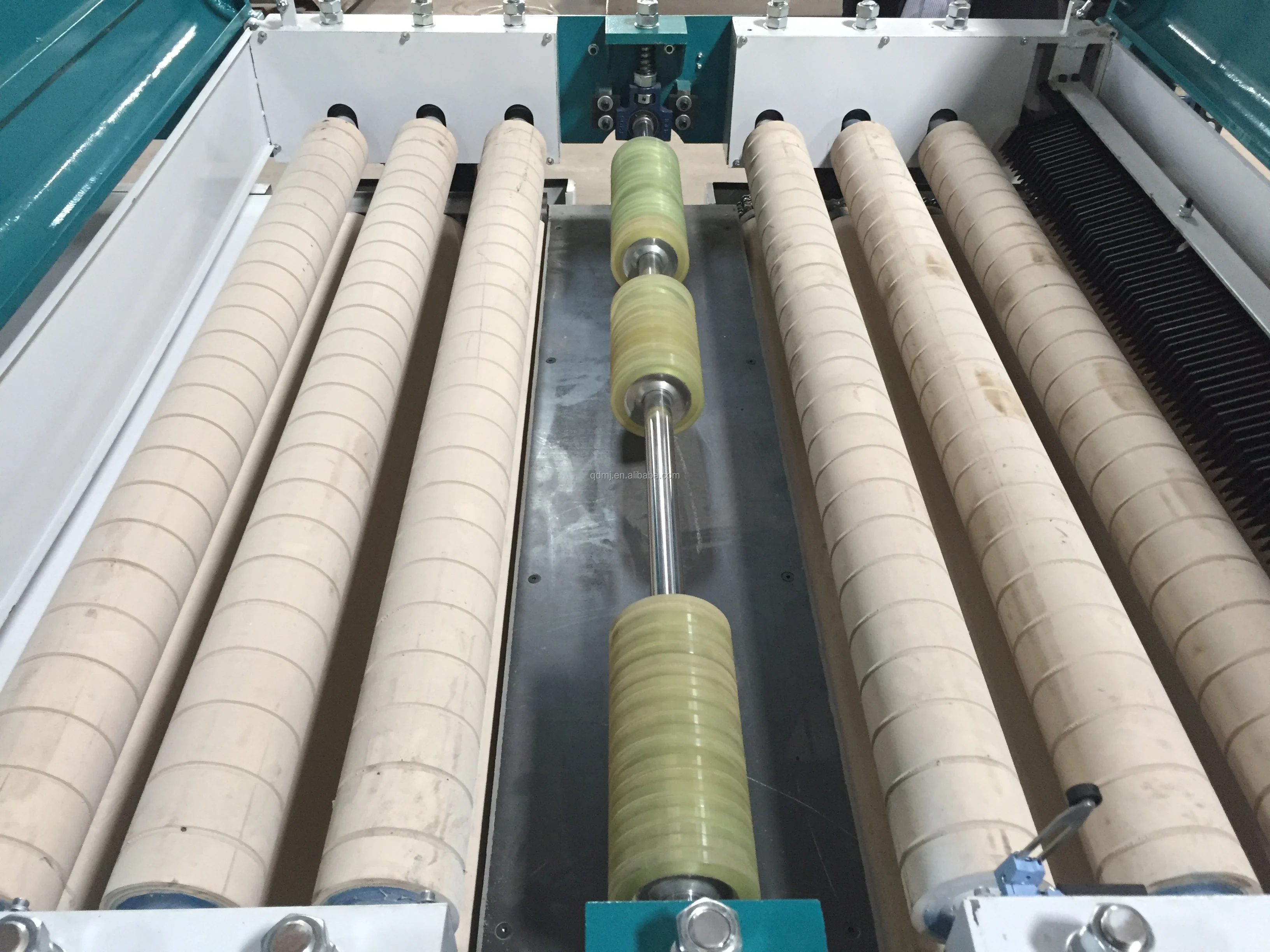

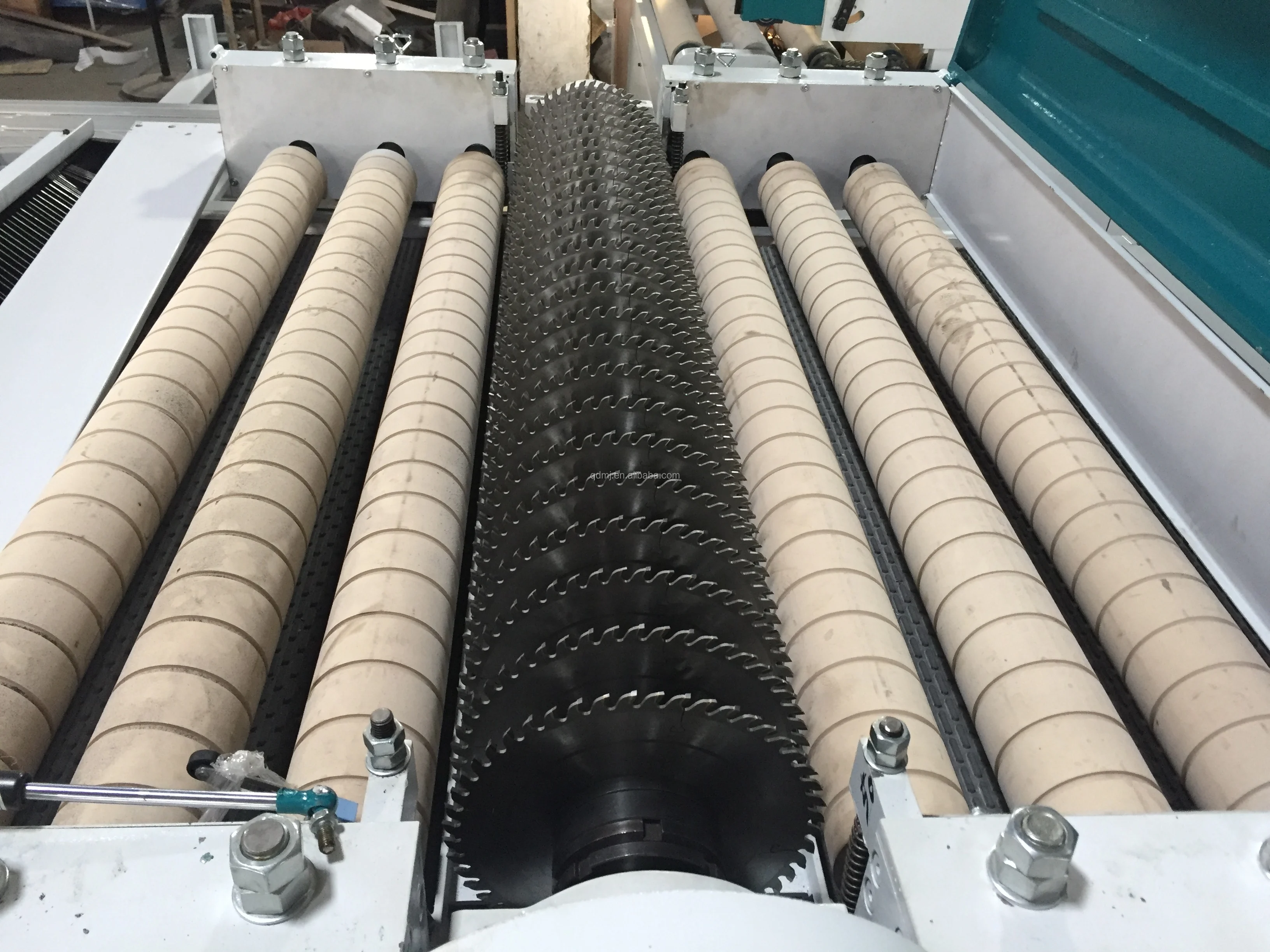

Feeding platform and outfeed platform separately has 6 units of active feeding rollers to make sure of smooth feeding power.
The upper press rollers make all the press rollers press the panel tightly and make sure of smooth feeding.
Large dust removing cover can remove the dust thoroughly and make sure of good working surroundings.





Payment: 30% by T/T deposit in advance as down payment, balance by T/T before shipment, or L/C

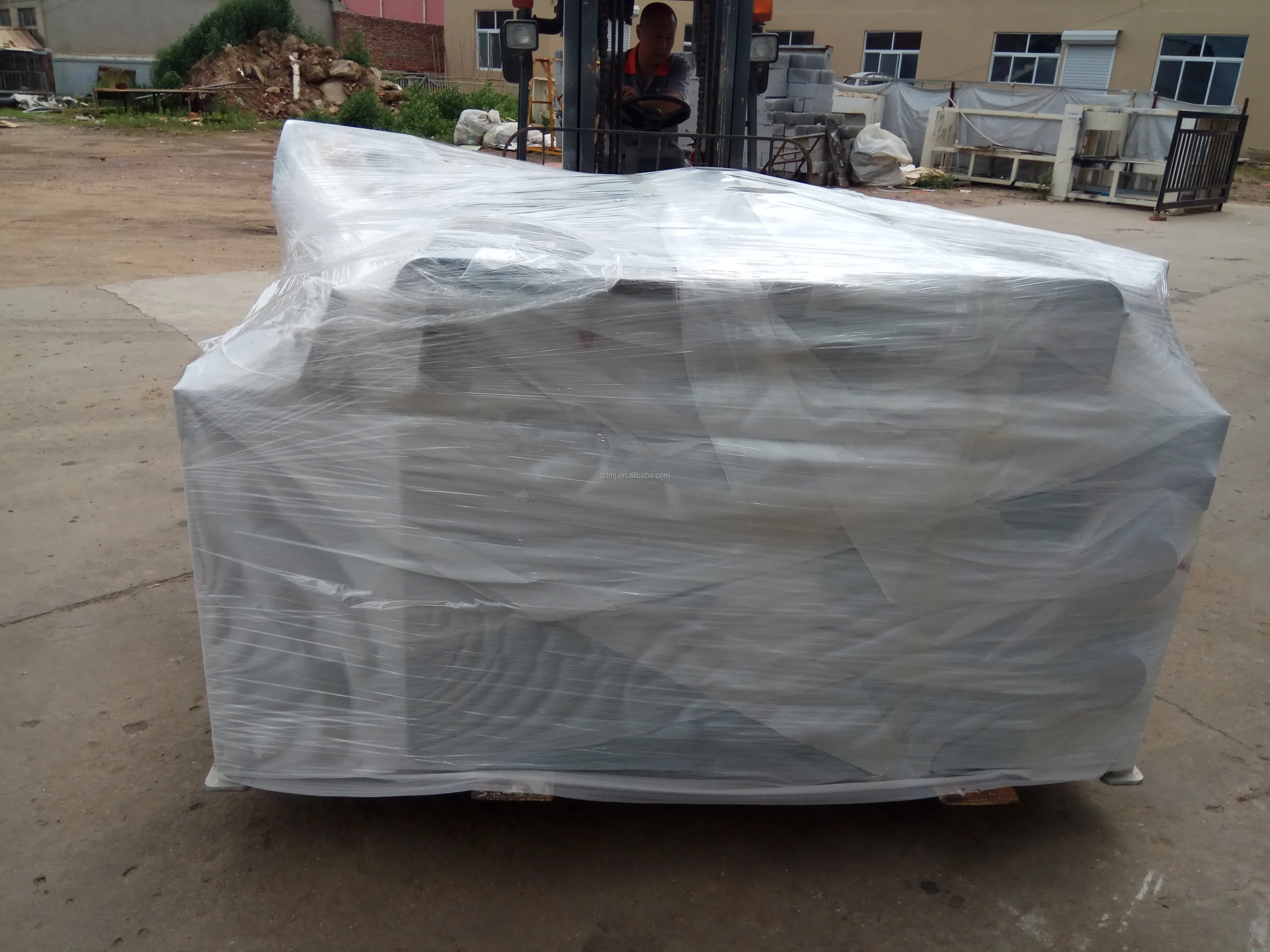

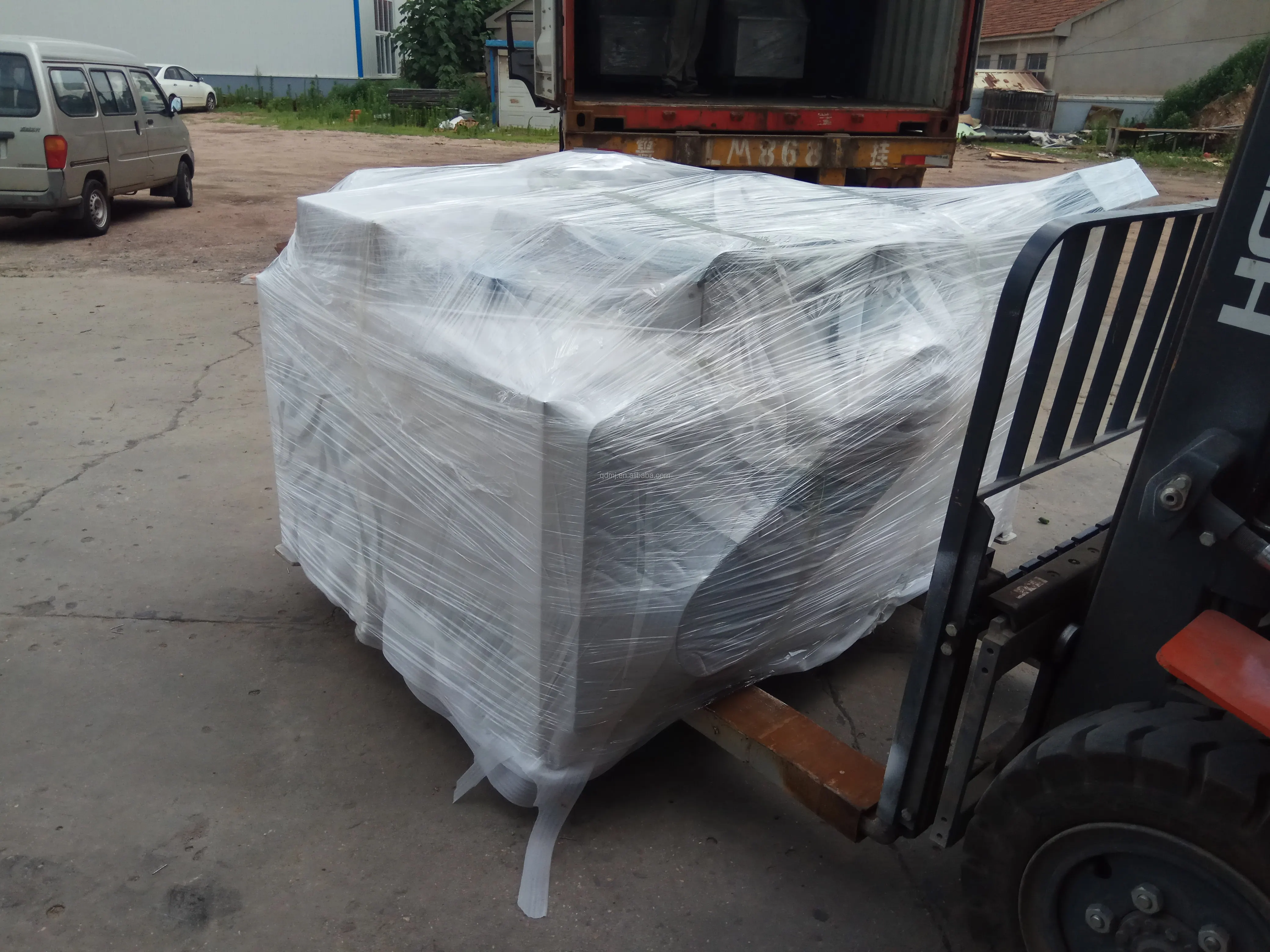

Package: Plastic film packing

Delivery: About 30 days after receive the down payment.

Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
