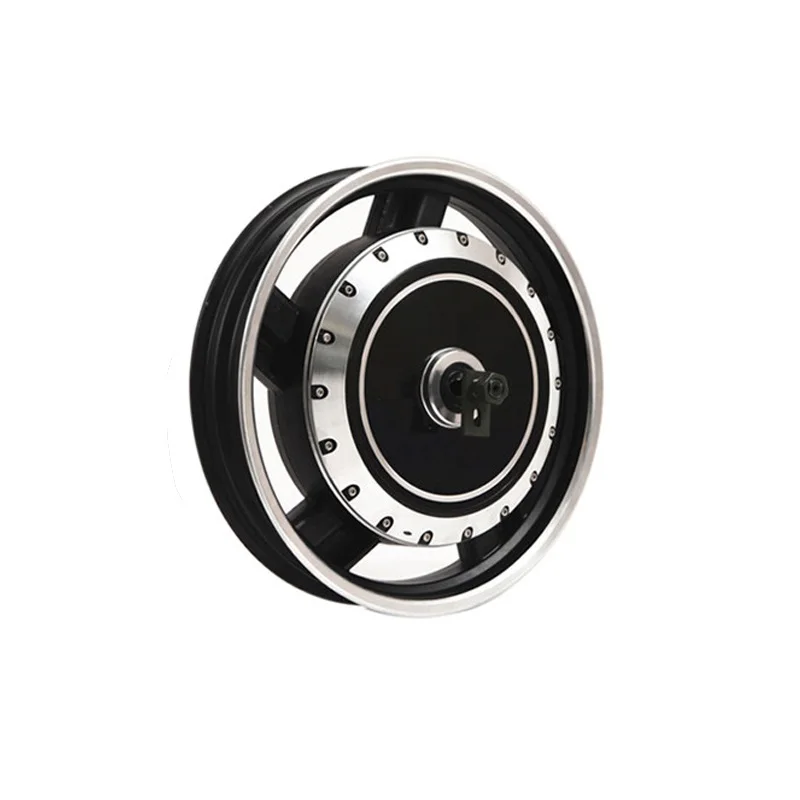

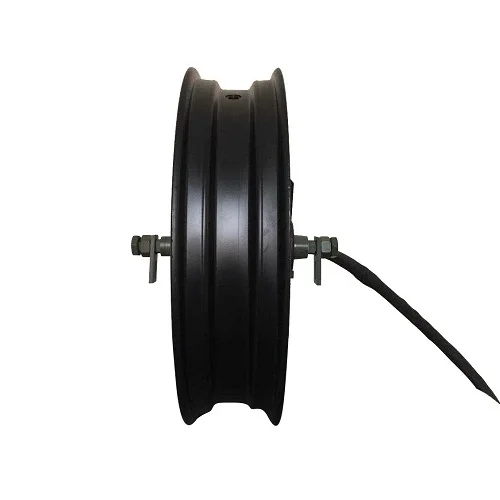

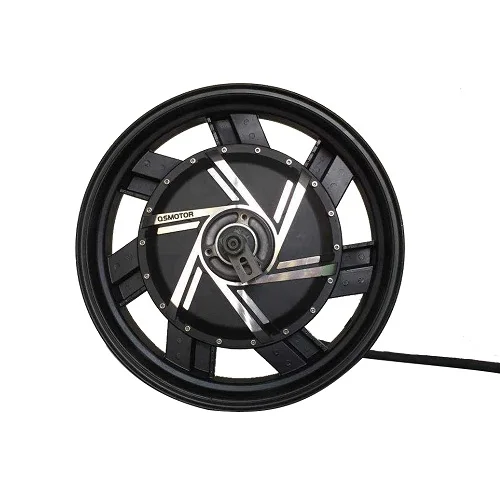

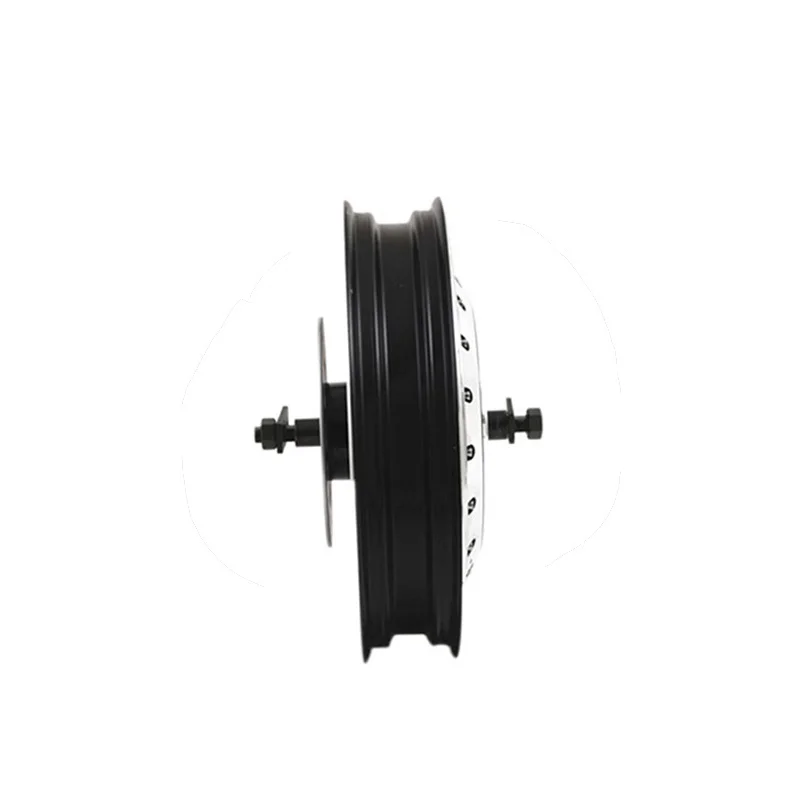

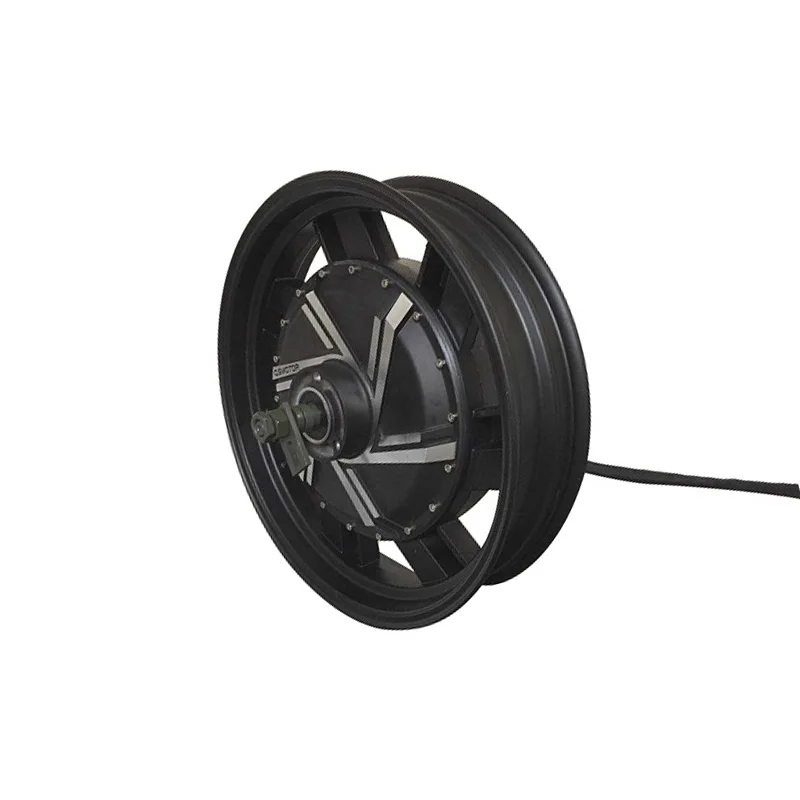

QS Motor 16 inch 273 5000w 72v Electric Motorcycle In Wheel Hub Motor(45H) V2 Type

Product Overview

Description







16inch 273 E-Scooter In-Wheel Hub Motor(45H) 5000W V2 Type





16inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.





1.      Motor Type: BLDC Hub Motor with Permanent Magnets

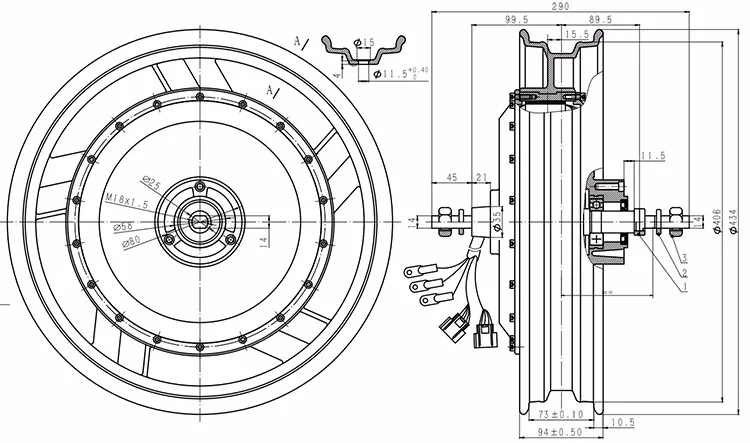

2.      Motor design: Double axle out with 16inch Aluminium rim

3.      Rim size:3.0x16

4.      Matching Tire: 110/90-16

5.      Magnet Height: 45MM

6.      No. of Pole Pairs: 28 pairs

7.      Rated Power: 5000W

8.      Max Power:7200W(Peak 10000W)

9.      Rated Voltage: 72V( 60V-144V Can be optional)

10.  Speed: 100km/h (30-100km/h can be customized)

11.  Max No-load RPM:1000RPM

12.  Max Torque: 230N.M

13.  Max Efficiency: 88%

14.  Continious current:78 A

15.  Max current:120A ,Peak 170A

16.  Brake type: Disc brake

17.  Rear Fock width for installation: 200mm

18.  Winding Core material: Aluminium

19.  Cross Section of Phase wire: 16 mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  N.W./ G..W. : 21kgs / 22kgs



25.  Package Size: 58*58*40CM
