1200.C Heat treatment Inert Gas Protection Atmosphere Furnace For Sintering Annealing Metal Steel Ceramics Parts
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60623183012):
Product Overview
Description

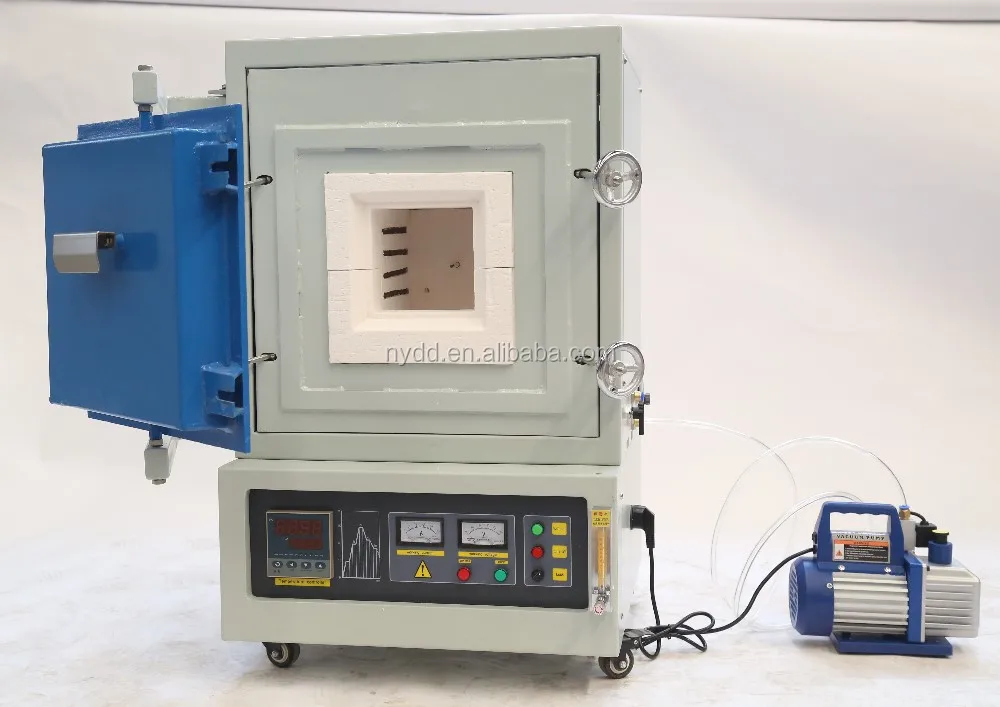

1200.C Heat treatment Inert Gas Protection Atmosphere Furnace For Sintering Annealing Metal Steel Ceramics Parts
Product Description

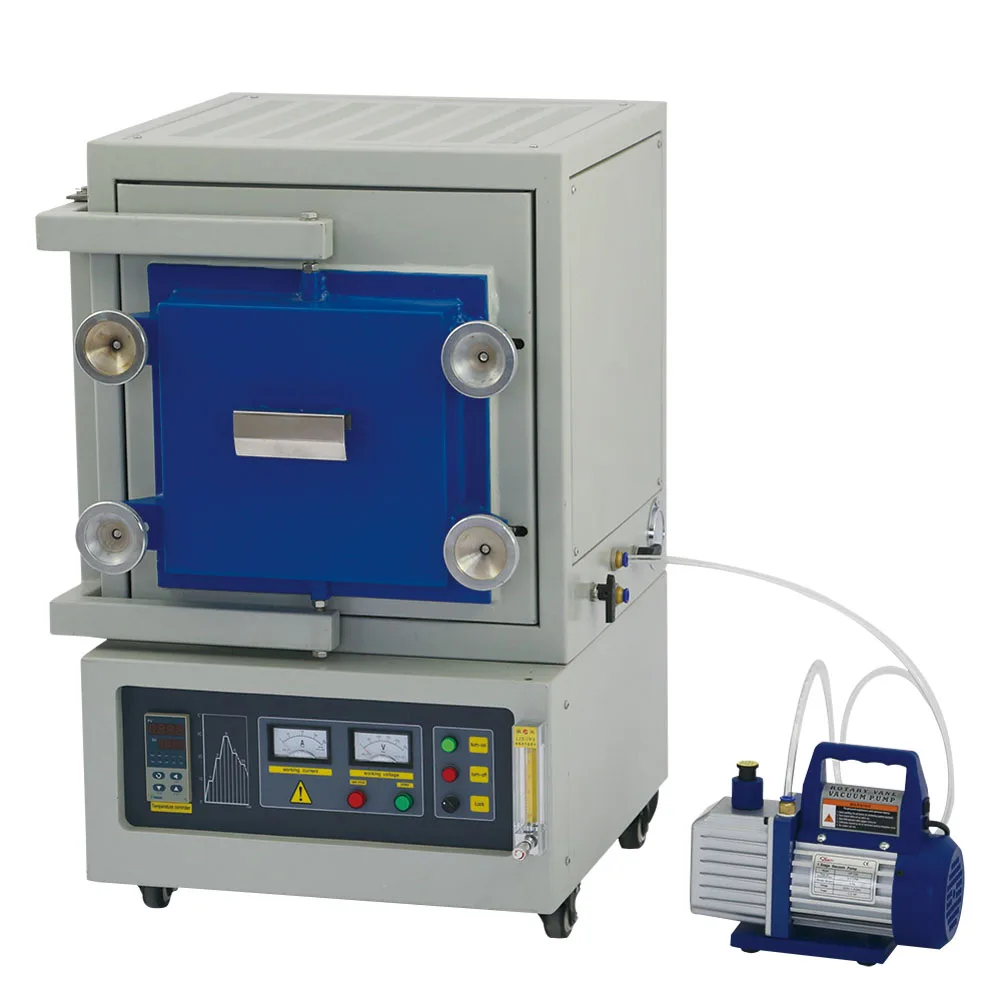

XY series box atmosphere furnace can protect materials from oxidation and decarburiz ion with flowing Nitrogen, Argon and other Inert gas. It's an ideal furnace for sintering, reducing with inert-atmosphere in labs of university,Research Institution and industrial company.
Detailed Images

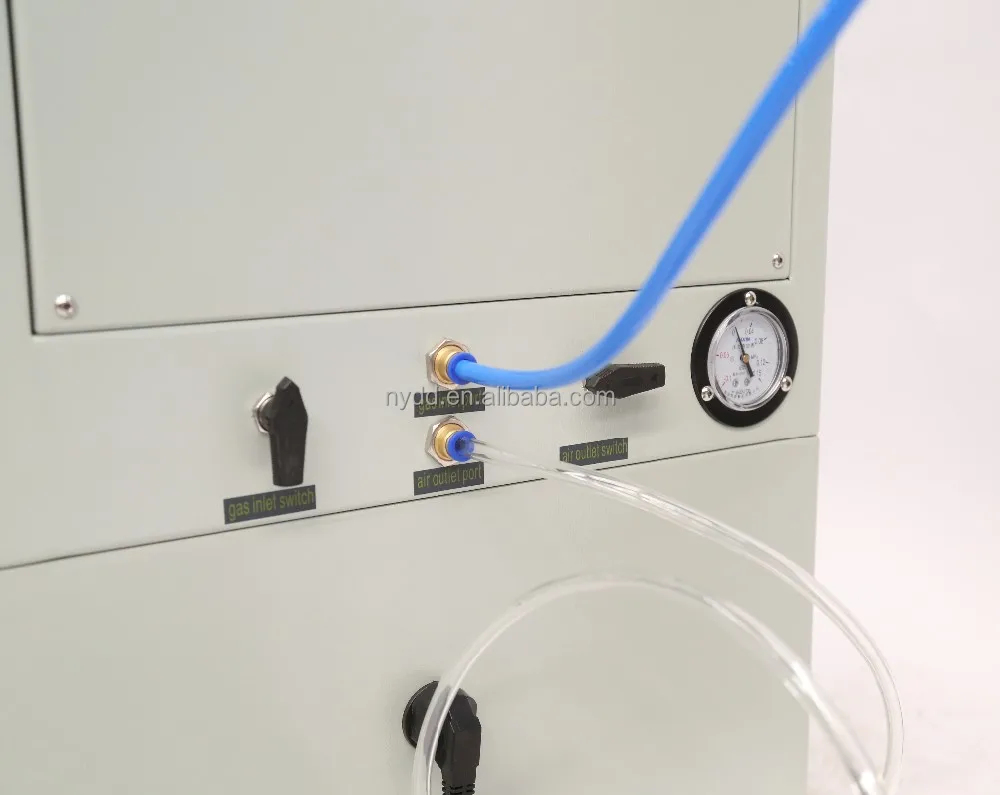

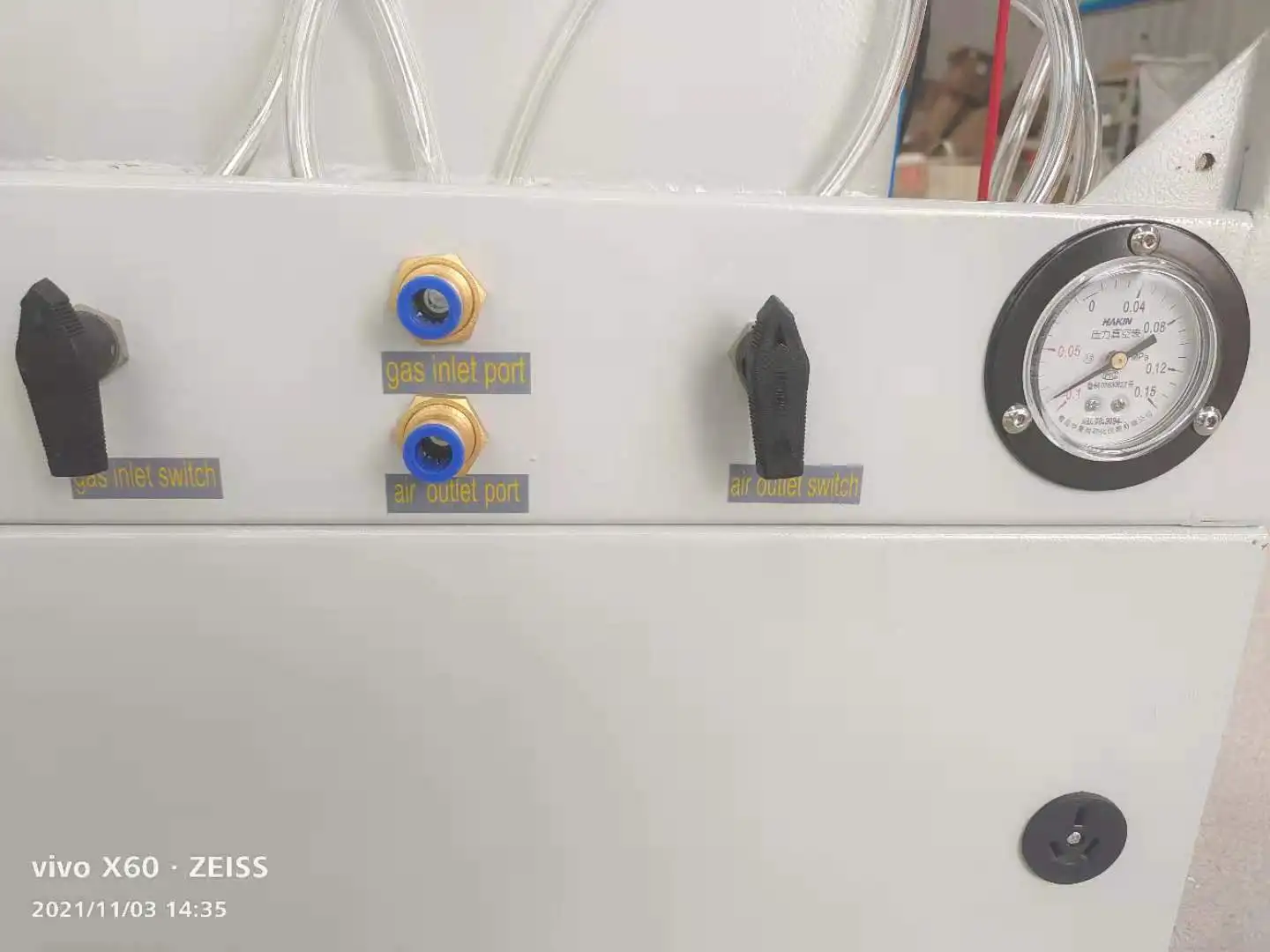

1.Float flowmeter 2.Gas system 3.Vacuum system
Clear and accurate measurement of airflowClear One air inlet, one air outlet and valve, Adopt VP125/VP180
and accurate measurement of airflow vacuum gauge monoblock pump

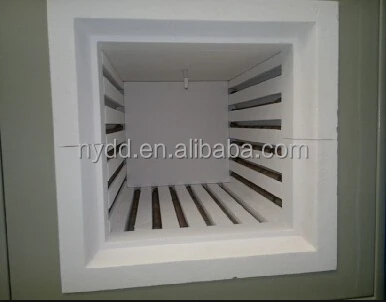

High temperature furnace test area
Technology parameter
Product application: Widely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.
The detail specifications of high temperature lab electric furnace
| Max.temperature | 1200C |
| Working temperature | 0-1100C |
| Furnace Chamber size(DWH)mm | 100*100*100 or as your requirement |
| Heat element | Resistance wire |
| voltage and frequency | 220v 50Hz/60Hz |
| Heating rate | 0-20C/min |
| Temperature accuracy | ±1°C |
| Thermocouple | K type |
Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
Max.vacuum | -0.1Mpa |
Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
| Gas control | The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
| Sealing way | Furnace door adopts integral plane milling, silica gel strip embedded seal, with strong sealing, easy to open and close furnace door |
Appearance design | The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. |
Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
| Furnace Chamber material | Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
| Furnace chamber design | Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
| Sandard accessories | Vacuum pump 1pc, Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
| Other temperature options | 1200C,1400C,1700C,1800C |
| Furnace chamber standard size | 100*100*100mm,200*150*150mm,300*200*200mm,400*300*300mm or other OEM size |
| Waranty | One year |
Company Information
Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacture which with more than 15 years experiences.
We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.
The most important thing is that we have our own furnace shell processing factory, which has a great advantage for delivery time and price.
Our furnaces have been exported to more than 30 countries and with good feedback from our customers.
Our quality policy is "first-class Quality, first-class technology and sincere service to make customers satisfy".Our eternal faith is "living on quality, reputation on honesty, development on mutual benefit". We are looking forward to offering our best services to our friends from at home and abroad.
Mainly products:
Car bottom furnace | High vacuum furnace | Tube furnace |
Muffle furnace | Atmosphere furnace | Crucible furnace |
Bottom loading furnace | Dental sintering furnace | Etc. |
Why choose us?
1. Factory Advantages
Xinyu was founded in 2005. We have nearly 17 years of experience in the design and production of high-temperature experimental equipment, with stable quality and a comprehensive daily output of more than 10 sets.
Independent design and research department, constantly innovate and optimize product structure, reduce customer costs and improve product quality.
2. Product materials
The product is made of international standard high-quality ceramic fiber board and ceramic fiber cotton, and the shell is made of SPCC cold-rolled carbon steel plate.
Furnace Shell Structure: Double-layer carbon steel plate shell, surface sprayed with heat resistant plastic powder coating to
ensure that the outer surface temperature of the furnace is ≤40.C.
3. Quality control
Professionals are responsible for each process to check the quality of raw materials and packaging.
Installation test will be carried out before packaging to ensure that each product is intact.
4. After sales service
7 * 24-hour after-sales service to solve all your concerns.
