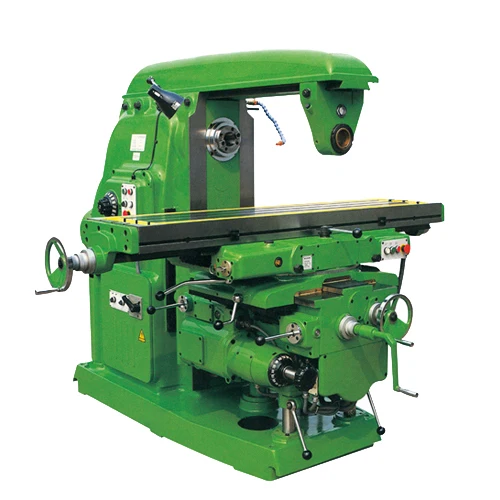

Automatic slotting head universal horizontal milling machine X6036
- Category: >>>
- Supplier: Nantong Lianzhong Machine Co. Ltd.
Share on (60623204878):
Product Overview
Description
Product Description
1. Rectangular column guide way
2.Table size 1600*320mm is optional.
3. X/Y/Z axis is centralized automatic feeding by one gear box.
4. Vertical head is standard.
5.Horizontal is spindle ISO50, vertical head is ISO40
6.Vertical cutter head swivels and can easily be disassembled and handled via a machine-mounted bracket
7.standard equipment cover coolant, chip tray and central lubrication system.
horizontal milling machine
1.column for the rectangular guides
2.X trip to the1000mm
| Model | Unit | X6036 | X6036A | X6036B |
| Spindle taper | 7:24 ISO50 | 7:24 ISO50 | 7:24 ISO50 | |
| Distance from horizontal spindle to worktable | mm | 0-440 | 0-380 | 0-350 |
| Distance from horizontal spindle to supporting | mm | 175 | 175 | 175 |
| Spindle speed range | r/min | 60-1800(12steps) | 60-1800(12steps) | 60-1800(12 steps) |
| Table size | mm | 1250X360 | 1250*360 | 1250×360 |
| Table travel(x/y/z) | mm | 600/250/440 | 600/320/380 | 1000/320/350 |
| Worktable longitudinal/cross power feed | mm/min | 18-555(8 steps) 810 (max.) | 22-550(8steps) 810(max.) | 15-370(8 steps) (max.540) |
| Vertical up-down(z axis) speed table | mm/min | 590 | 590 | |
| T-slot NO./width/distance of rotary table | mm | 3/14/95 | 3/18/80 | 3/18/80 |
| Cantilever travel | mm | 500 | 500 | 500 |
| Main motor | kw | 4 | 4 | 4 |
| Motor for rapid device of table | w | 550 | 750 | 0.75 |
| Motor of lifted table | w | 1100 | 1.1 | |
| Motor of cooling pumps | w | 90 | 90 | 90 |
| Speed of cooling pumps | L/min | 25 | 25 | 25 |
| N.W/G.W. | kg | 1850/2050 | 1900/2200 | 2100/2400 |
| Overall dimension | mm | 2220*1790*1700 | 1880*1700*1700 | 2220×1790×1700 |
Standard accessories:
Middle sleeve, Inner-hexagon spanners, Dead head spanners, Mill arbor, Draw bar, Cooling system, horizontal milling machine
