YN 1325 hot sale good business heavy 4x8 feet cnc router kit machine China for wood mdf plywood acrylic aluminum shape cutting
- Category: >>>
- Supplier: Jinan Yuannuo Cnc Equipment Co. Ltd.
Share on (60623249031):
Product Overview
Description

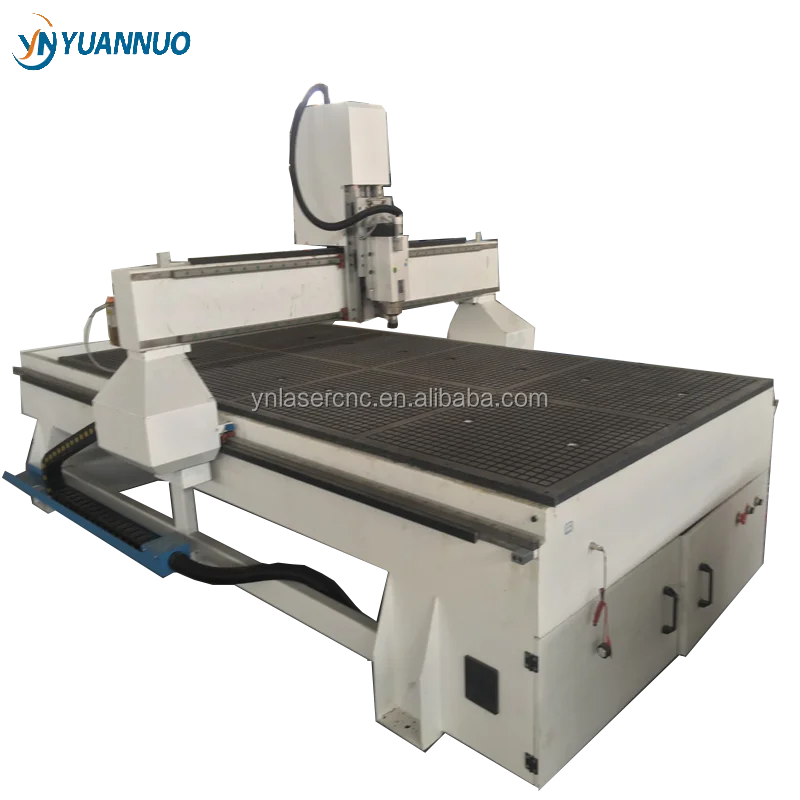

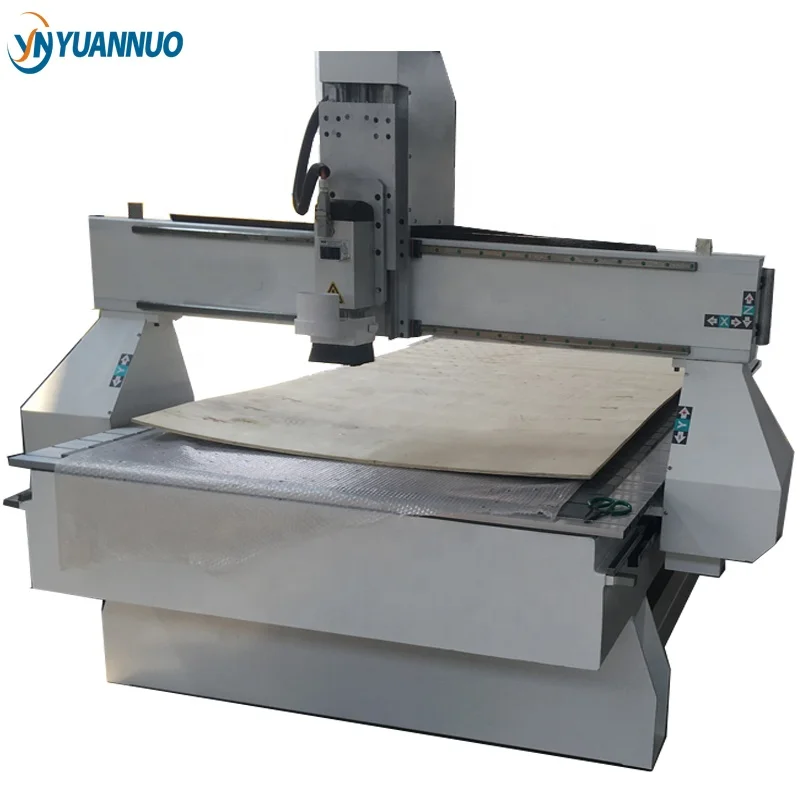

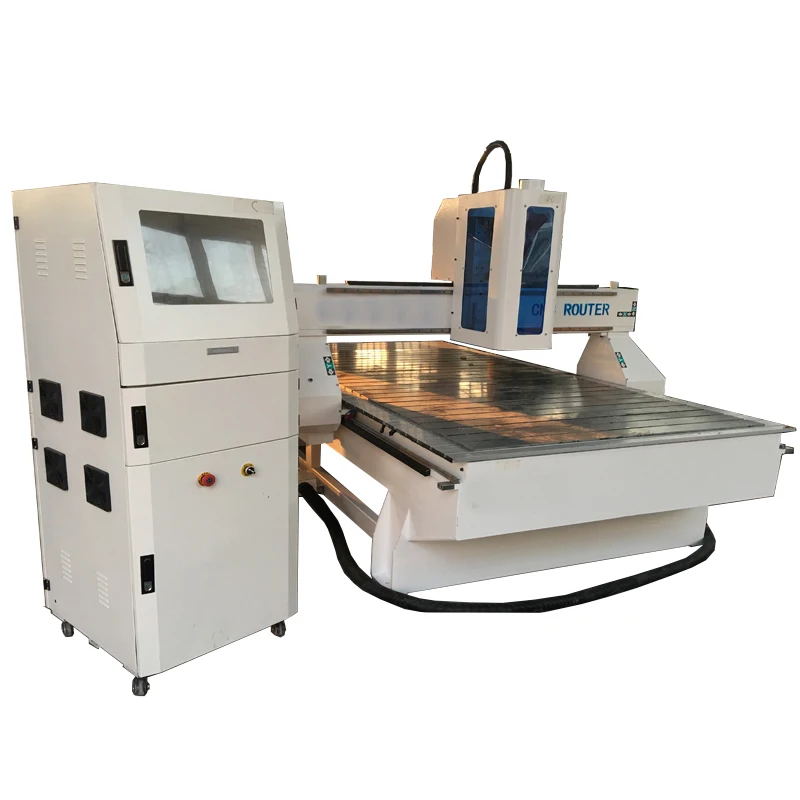

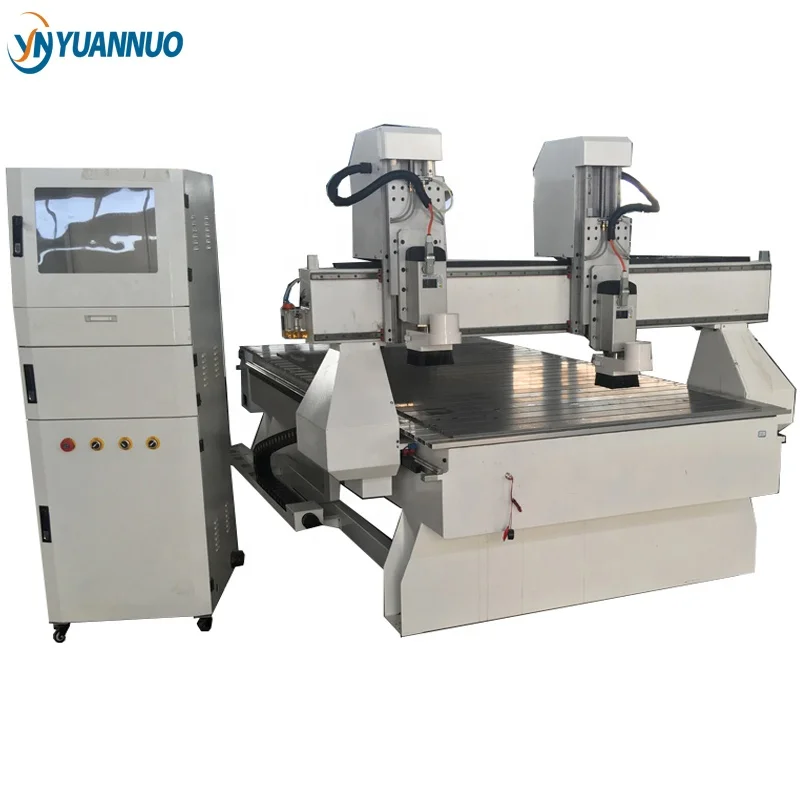

4x8 feet cnc router China for wood
Heavy duty Strong machine frame, 8mm thickness steel pipe, high temperature quenching milling
Air cylinder roller on table move as spindle, and press equipment on spindle, for fix materials well
Original DSP A11 or NC studio 95A-3L control system control machine by computer directly
Best Chinese HQD 4.5KW water cooling spindle and Fulingfrequency inverter
Taiwan Helical gear rack and Germany ball screw, Original HIWIN sqaure rails
APPLICATION MATERIALS of 4x8 feet cnc router China for wood
Various wood, MDF, acrylic, marble, stone, soft metal, ABS, PP,PE,PP,PVC,PCB etc.
APPLICATION MATERIALS of 4x8 feet cnc router China for wood
1) Furniture: Wooden door and furniture, window, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments etc.
2)Advertising: Billboard, logo, sign,3D characters cutting, acrylic, LED neon channel, literal-hole cut, light-box mold, stamp, mound, etc.
3)Board processing: Insulation, plastic chemical components, PCB, car boady,bowling tracks, ABS, PP, PE etc.
4)Decoration: Acrylic, PVC, MDF, Glass, plastic and soft metal such as copper, aluminum etc.
 |  |  | ||
| high temperature quenching handle | Cylinder control rollers move as spindle for fix wood materials | Fuling brand frequency inverter | ||
 |  |  | ||

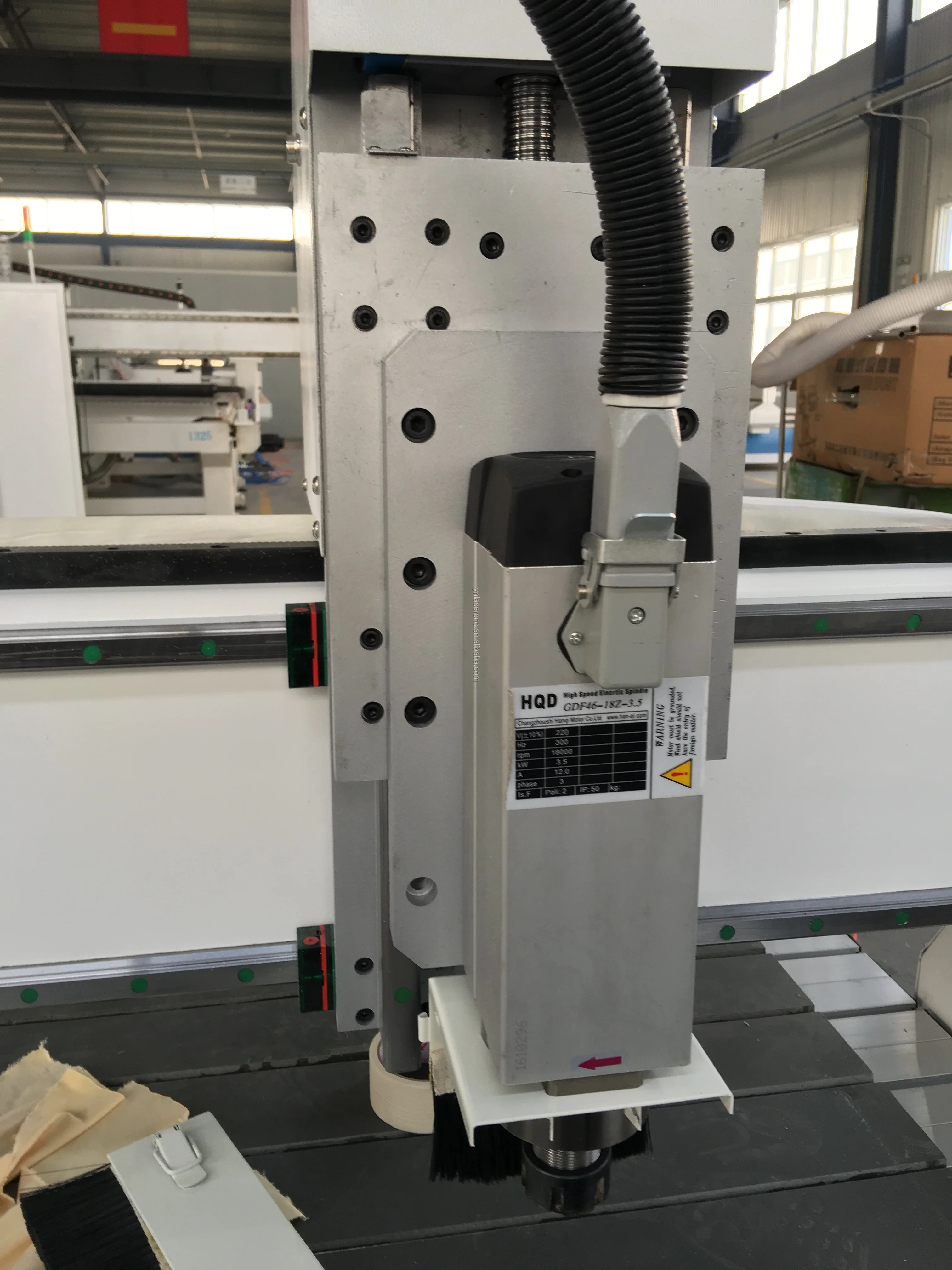

| High precision Helical gear wheels | Best Chinese HQD air cooling spindle | Big YAKO 2811 driver system with strong energy |
Parameters of YN 1325 hot sale good business heavy 4x8 feet cnc router kit machine China for wood mdf plywood acrylic aluminum shape cutting
Machine | YN 1325 hot sale good business heavy 4x8 feet cnc router kit machine China for wood mdf plywood acrylic aluminum shape cutting |
Working table | T slot table (vacuum table with T slot is optional) |
Workable size | 1300x2500x200mm |
Spindle motor | best Chinese HQD 4.5KW air cooling spindle |
Max. Travel ling speed | 45m/min |
Max. working speed | 30m/min |
Spindle Rotation Speed | 0-24,000rpm |
Operating system | Original NC studio or DSP A11 or Mach3 controller |
Command | G Code |
Driver & motor | Four sets Big stepper motor and leadshine driver system(servo motor and driver is optional) |
X,Y,Z Transmission | Z---Germany Ball Screw; X,Y--- Helical Gear transmission |
X,Y,Z Guide Rail | Taiwan HIWIN Guide Rail |
Dust Collecting System | 3KW dust collect(Option) |
Working Voltage | 220V / 380v,50hz,3ph |
| Weight | 1650KG |
Samples of YN 1325 4x8 feet cnc router China for wood
Jinan YuanNuo CNC Equipment Co., Ltd., located in the beautiful spring city Jinan, is a world famous manufacturer for producing various cnc router and laser machine. The company has a strong technical R & D strength, is committed to providing customers with the most suitable industry solutions. Now we have panel furniture production line, woodworking machining center, CNC cutting machine, advertising engraving machine, laser engraving machine, laser cutting machine, laser marking machine etc., we are high-tech enterprises which is the integration of research and development, production and sales. Company philosophy: quality as the core, and service to the customer as basis, to do what we say, say we can do, serve the global customers. JiNan YuanNuo CNC Equipment Co., Ltd., is willing to cooperate with friends from all over the world sincerely, welcome to come to negotiate.
| 1.How to make order: | |
| 1.1 | Please inform us more information about your work, such as: what is the materials you want to process, the work is engrave or cut or others The max size of the materials: Length*wideth*thickness |
| 1.2 | Quotation: According to your requirement, we will suggest the most suitable machines, and quoted the most competitive price with best quality. |
| 1.3 | Deep communication: Then we talk about the details, such as specification, accessories configuration included, parameters, cooperation terms, shipping things etc. Fix everything and avoid any misunderstanding. |
| 1.4 | Placing order: If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures. |
| 1.5 | Strat to produce: As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc. Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery. |
| 1.6 | Delivery: After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom |
| 1.7 | Docusments: After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc. |
| PAYMENT | |
| 1 | T/T---the most popular and convenient method |
| 2 | Alibaba trade assurance---place order online, customer get full protection |
| 3 | L/C---For big order could accept L/C payment |
| 4 | Western union---for small parts under 1000USD |
| SHIPPING | |
| 1 | Usually by sea, could use LCL or full container as your choice |
| 2 | By air, cost about 3~4 days, depends on different countries |
| 3 | By DHL or TNT or FEDEX etc., cost about 5-7 days. |
| GAURATEE AND AFTER SALE SERVICE | |
| 1 | One year guarantee for whole machine under normal use |
| 2 | Supply full englishh manual and operating video on how to use step by step, easy to learn |
| 3 | Supply 24 hours online service by phone,skype,MSN, Romot or email |
| 4 | If need, customer could come to our factory for detailed free training |
| 5 | If need, could also send engineer to your place for training, just customer will stand cost for engineer living, ticket etc. |
