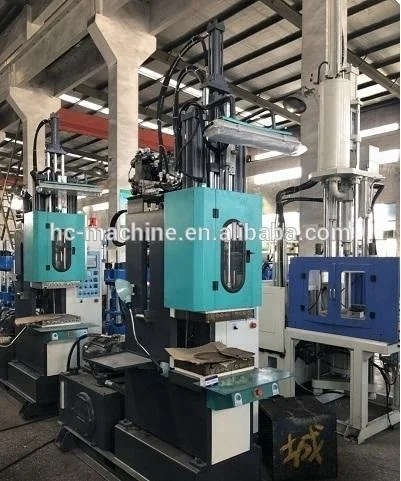

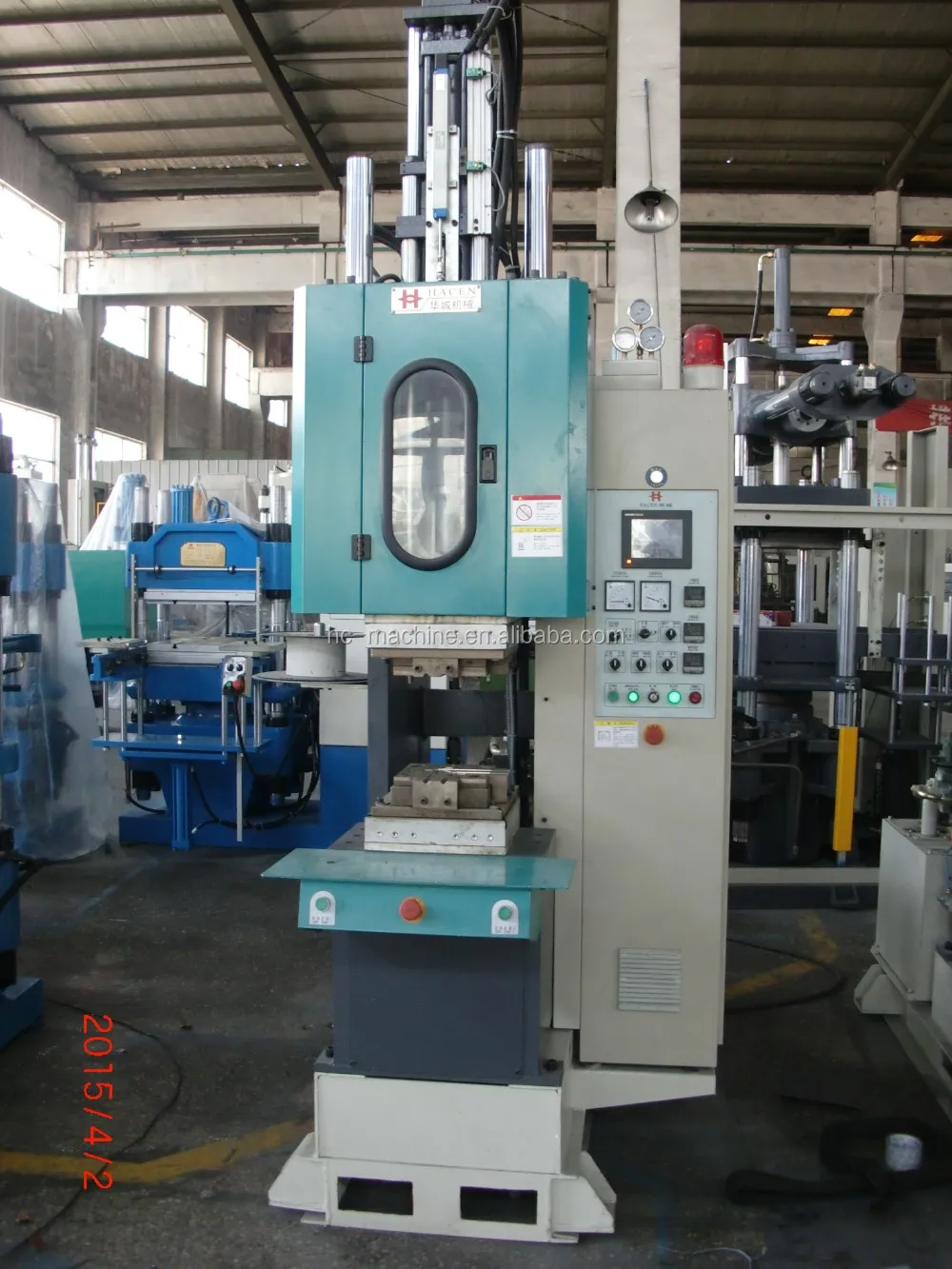

XZL/C EPDM sealing strips junctions molding machine

Product Overview

Description

Rubber injection molding machine

Features:

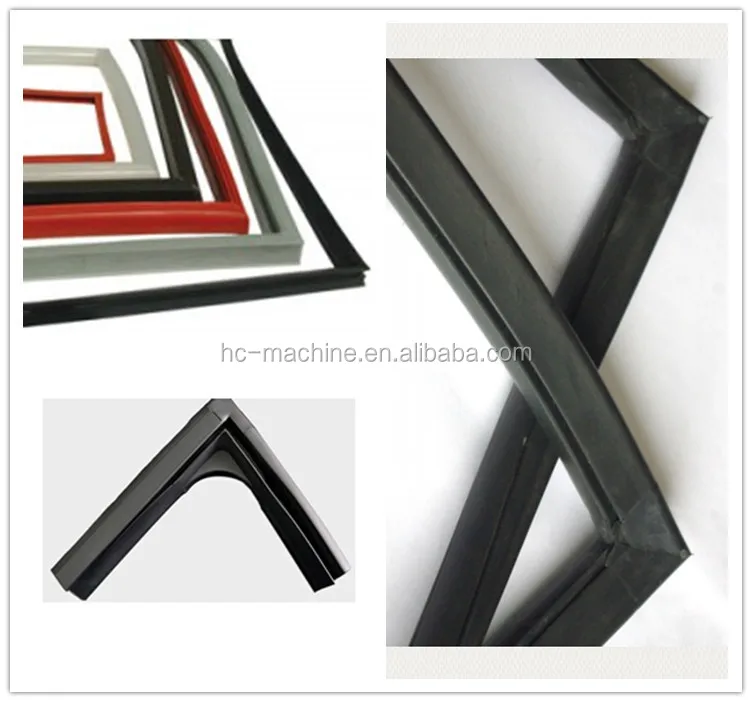

1.This machine mainly applies to angle joining of automobile sealing strip and machining of relevant accessories.

2.This machine features long stability ,reliable operation and low fault rate.

3.The working table adopting reinforcing design,features deformation small,good parallelism and less flash during machining.

4.Unique design of mold locking cylinder,which has been patented ,makes the working table and locking mold more reliable and stable.

5.Both worker table and injection position are controlled by electric ruler which ensures accurate positioning and precise injection,effectively reducing waste and defect rate.

6.This machine is controlled by Mitsubishi PLC and touch screen which ensure reliable control and convenient parameter setting.

7.Variable pump controlled by double-proportion(pressure-flow)valve is more efficient and power saving than ordinary pimp by 35%-40%;combined with electric ruler,it can achieve 3-stage control of working table and injection pressure-flow and meet all kinds of technological conditions.

8.Temperature controlled by temperature controller is even and stable.

9.Stressing operation safety,this machine uses base cover and double-hand start to protect personnel safety.

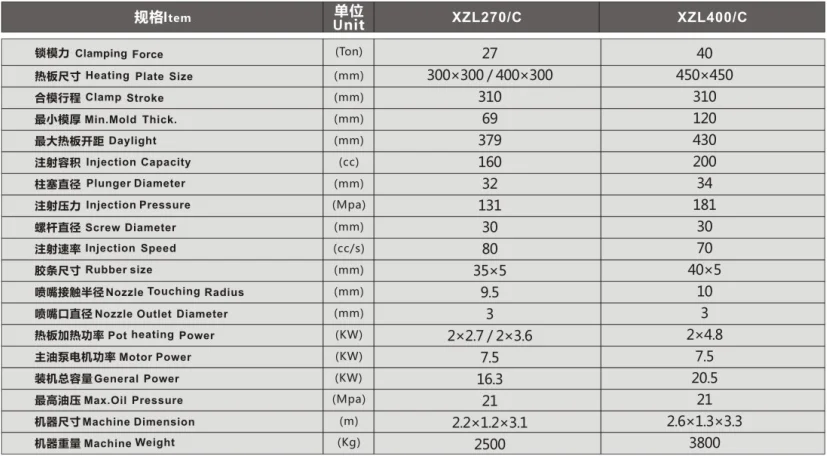

 Main technical data:

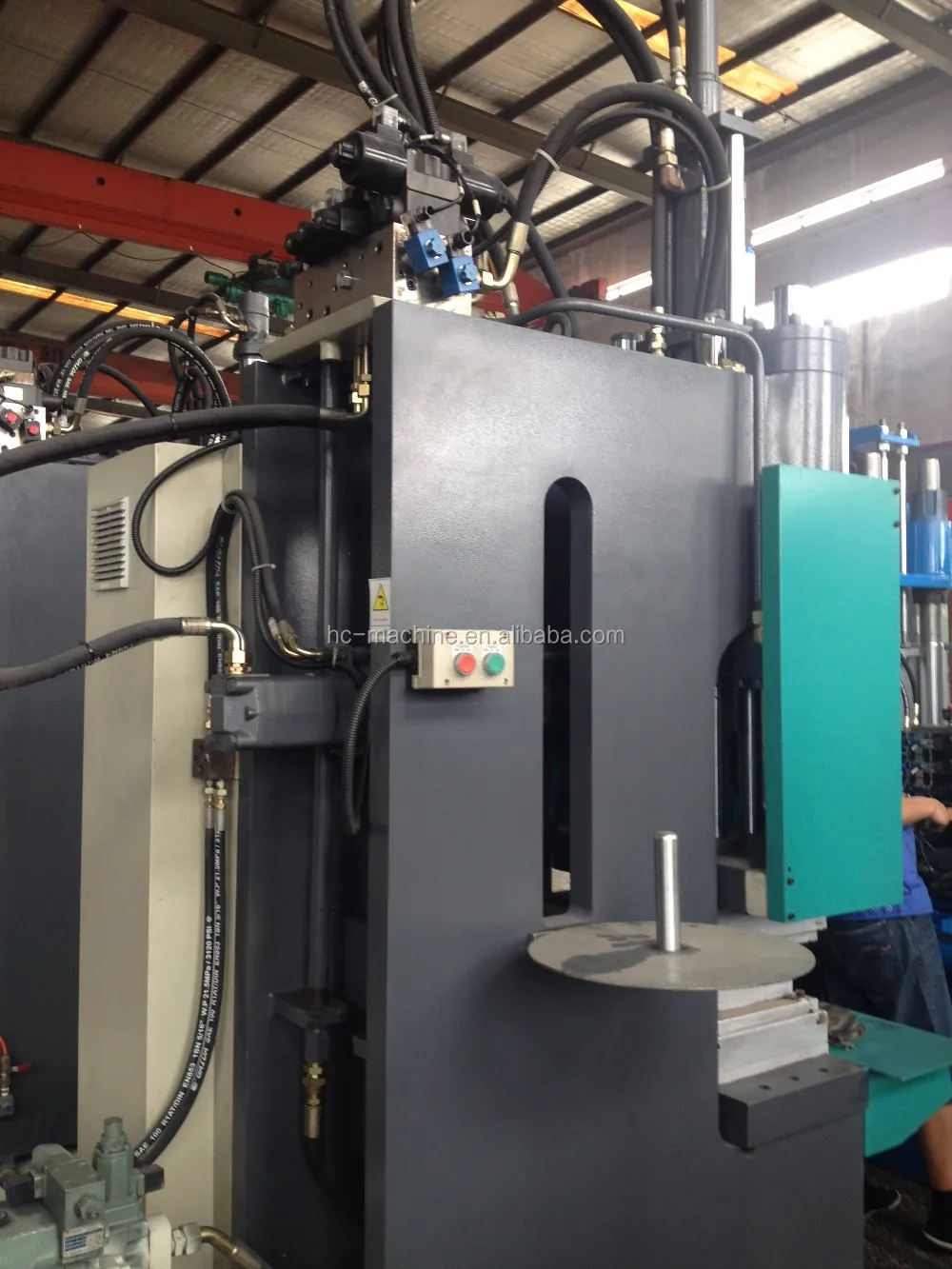

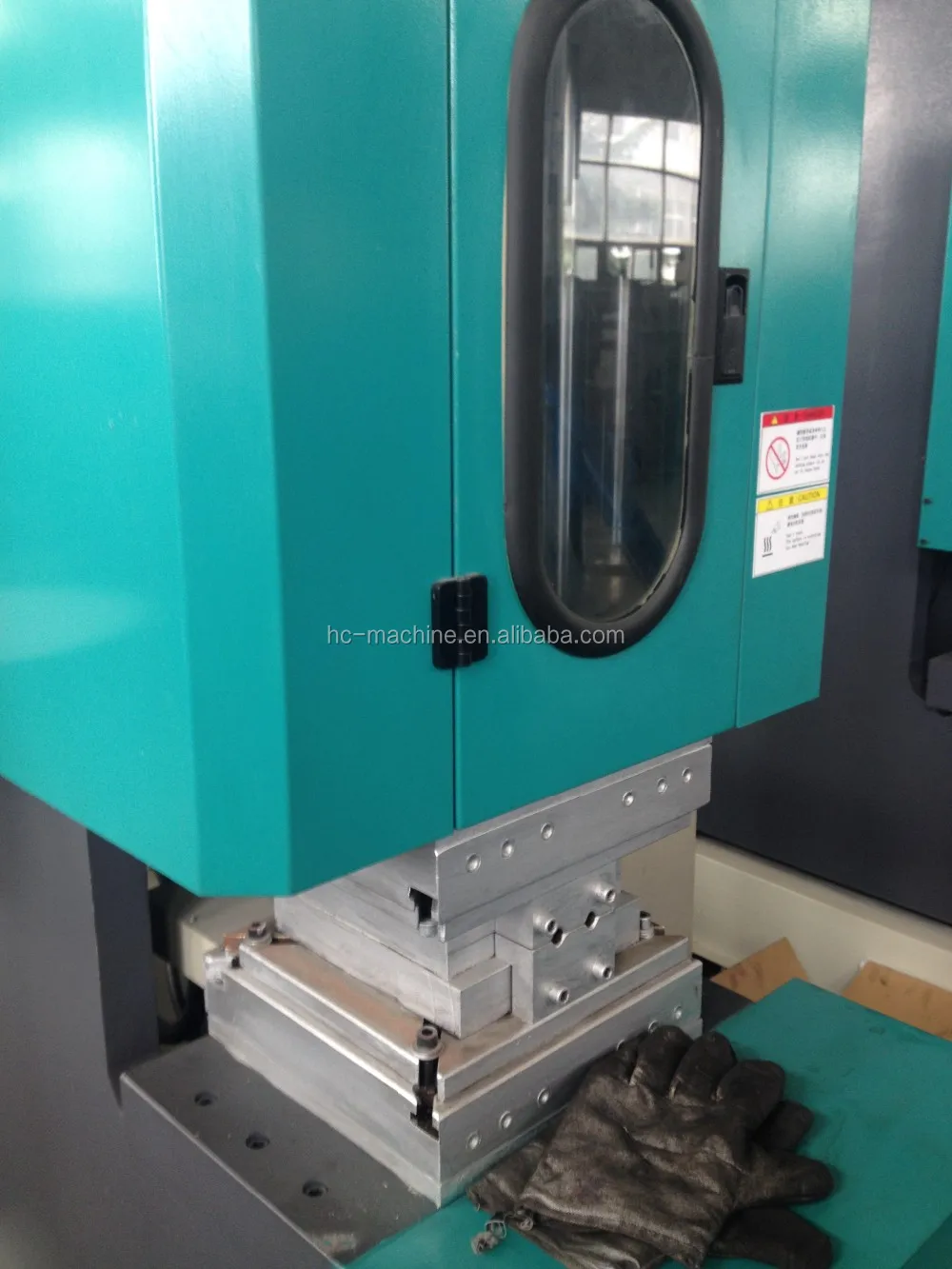

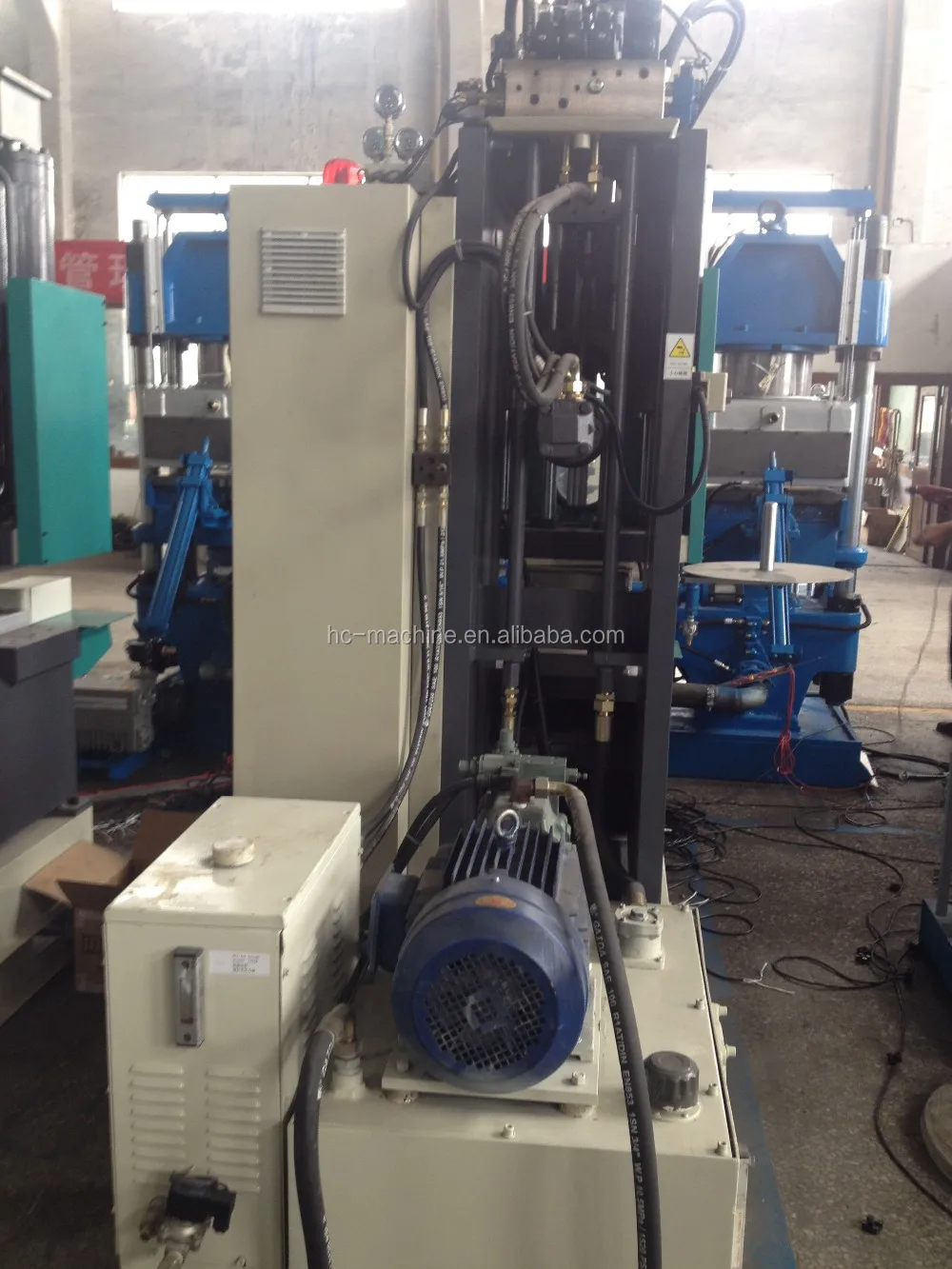

Machine Details:



 our company production capacity:

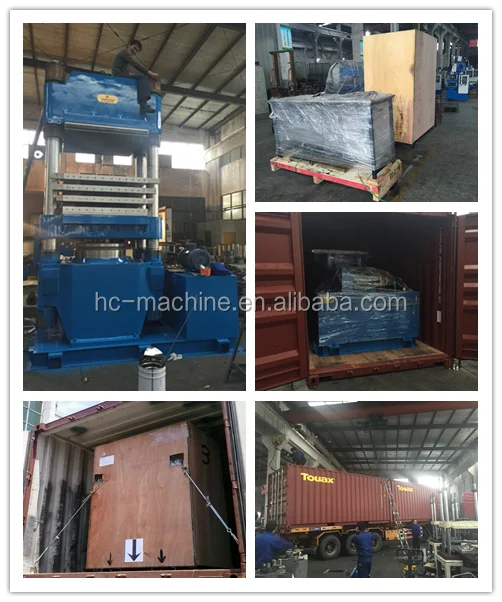

Logistics information:



The exhibition information:

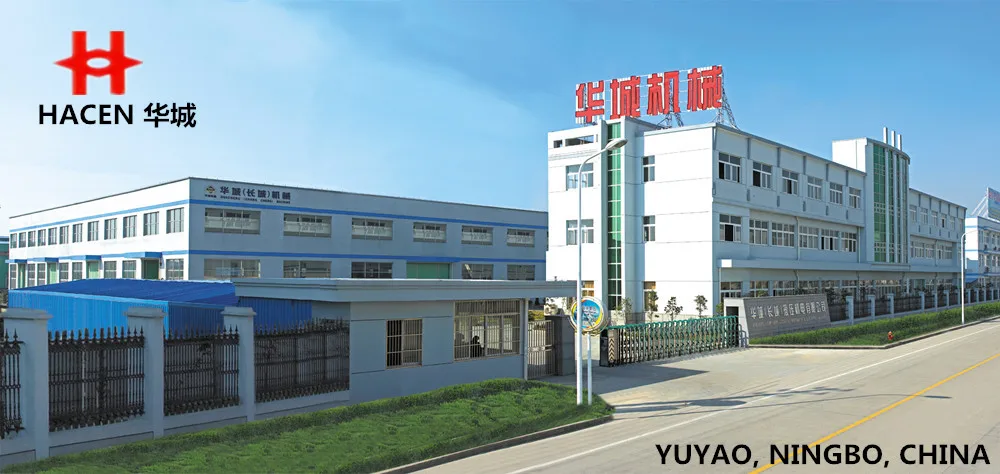

About us:

Yuyao Huacheng Hydraulic Electromechanical Co.,Ltd.Is specizlling in producing thermosetting material molding process and equipment with the history of more than 20 years.It is covering a land area of 28000 square meter and building area of 25000 square meter.Rely on the Huacheng machine electricity development center ,adopt the ERP manngement software ,use the advanced technique ,craft in abroad in absorption continuously ,now we have introduce BMC/DAP/LSR those thermosetting injection machine .The principle of our prodcuts is to provide customers with maximum value-added products ,satisfy the customer's request.The annual production capacity is over 2000 sets per year,which is exporting to many countries and regions .Huacheng is focusing in talent people ,technology and reputation .And we have the courage to invovate and pursue outstanding.
