Super High Pressure 10,000 PSI 3/8' NPT Thread Lock Hydraulic Quick Coupling Coupler
- Category: >>>
- Supplier: Shanghai Century Industry Co. Ltd.
Share on (60623535045):
Product Overview
Description

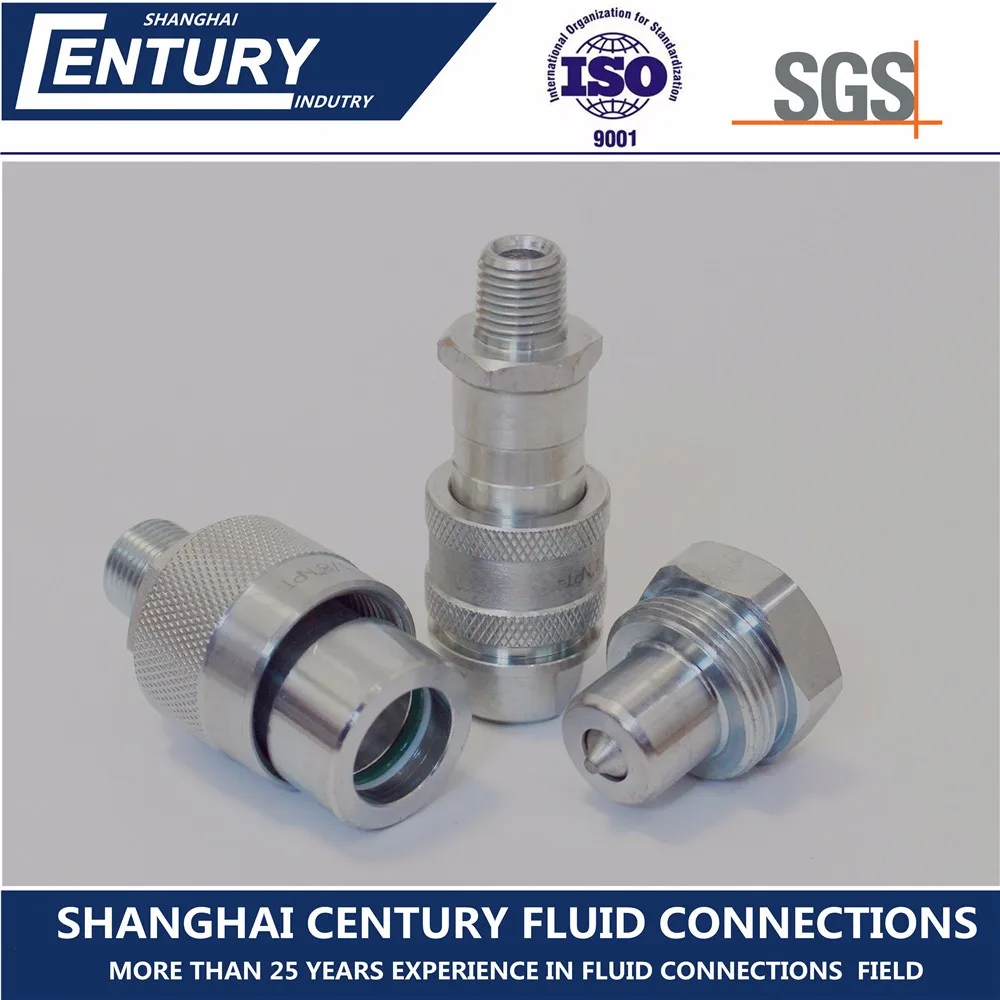

KZE-B Thread Locked type hydraulic quick coupling(steel)
Applications: KZE-B Series couplings with their threaded union locking system and precision ball-type check valves, are designed for extreme high pressure applications such as portable hydraulic jacks.

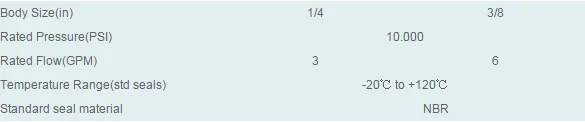

Specifications:
KZE-B Features:
1.Machined from solid steel barstock for durability.
2.The KZE-B Series employs a threaded sleeve locking mechanism, mates with matching male threads on the nipple. The two halves must be manually threaded together for connection.
3.Hard, chrome alloy balls are used for valving. They are spring loaded for positive seating of the valve.
4.The valve provides a metal-to-metal seal between the ball and coined seat.
5.The interface seal is polyurethane which resists high pressure extrusion.
6.A threaded valve retainer provides a valve stop that assures positive valve alignment.
7.Compatible with PARKER 3000 Series and FASTER PVVM Series.

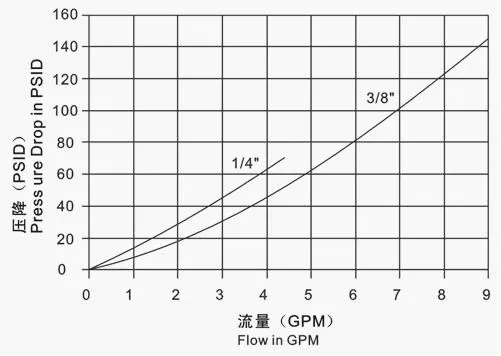

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.
Packaging & Shipping
Packaging:Carton or wooden Pallet
Shipping:Vessel or Courier
Company Information
Workshop
Semi-finished Product Area
Warehouse
Testing Machines
FAQ
Q: Can you provide samples?
A: Yes, we can provide samples if we have stock, but the express should be paid by yourside.
Q:How about the delivery time?
A:It depends, we need to know the quantity, normally we can ship the goods in 30 days.
Q:How is quality of your goods?
A:Our engineer has more than 30 years experience of hydraulic fitting, I think good engineer is the assurance of quality, and also we have CNC processing machines, and testing machines, to ensure the quality.
