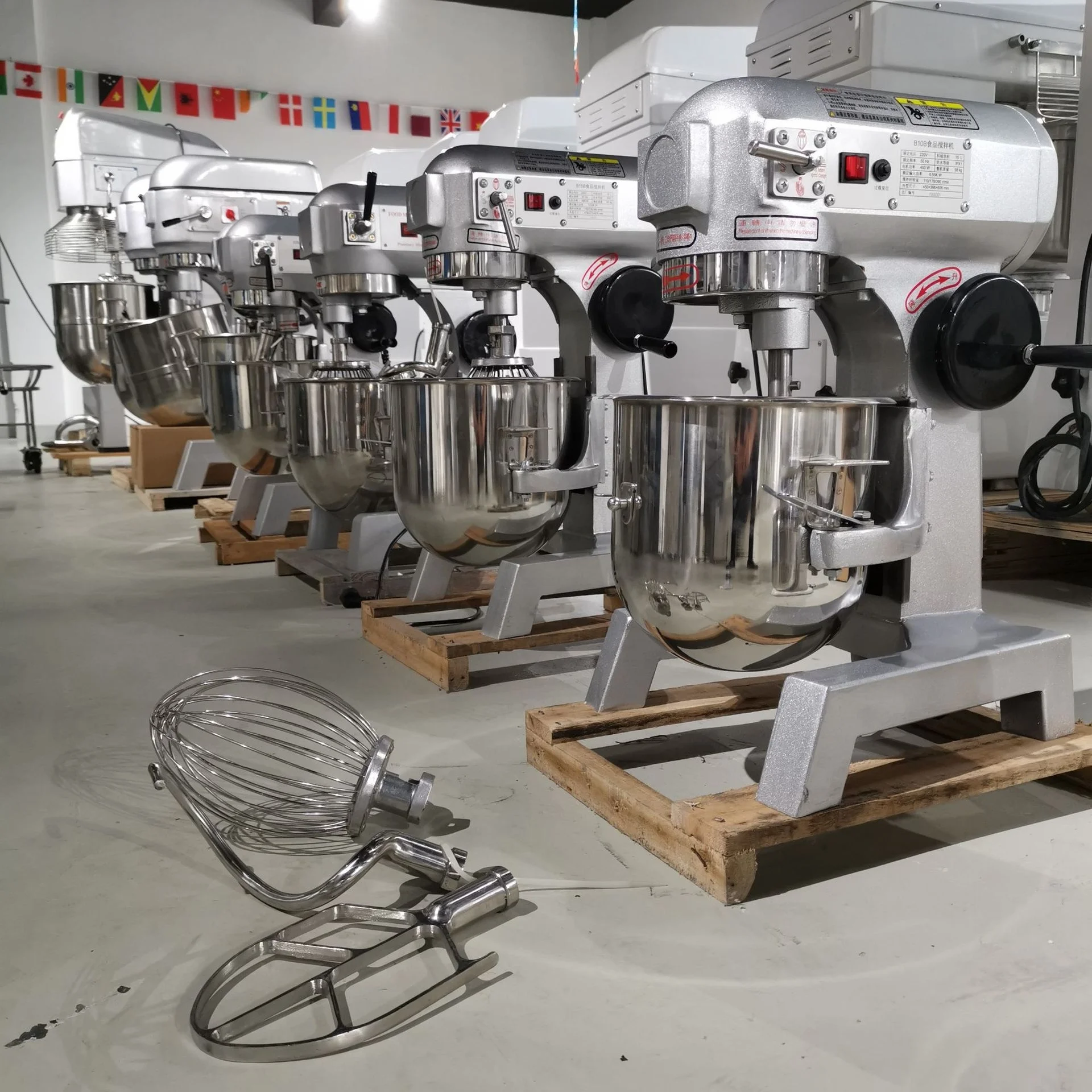

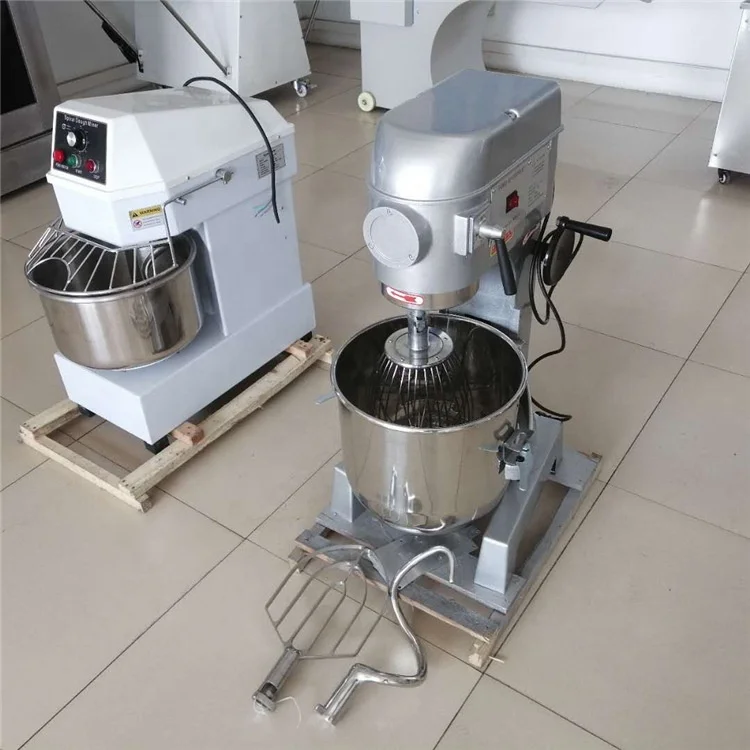

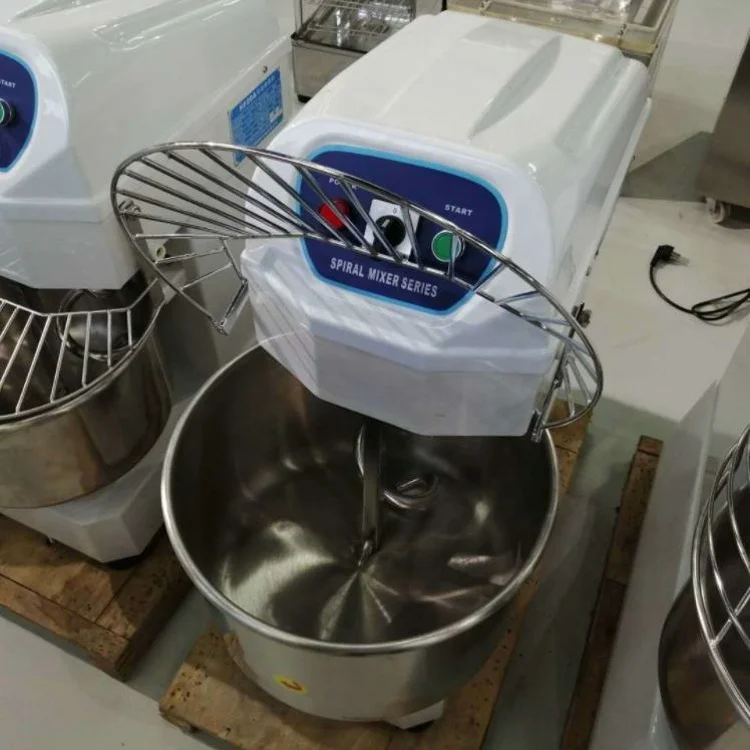

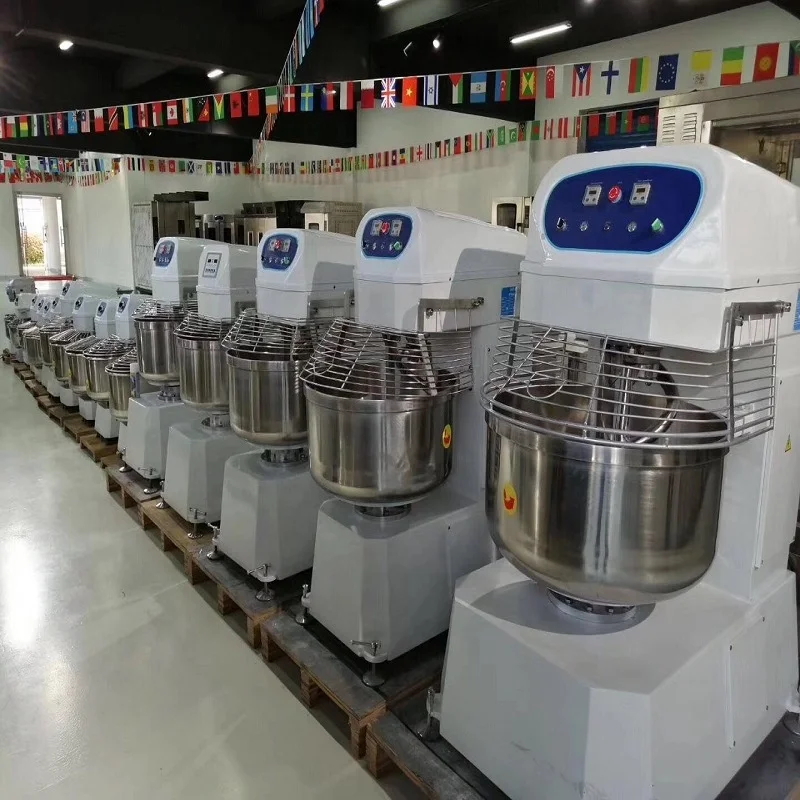

Commercial dough mixing machine pastry dough mixer Spiral dough mixer

Product Overview

Description

spiral dough mixer bakery / Commercial dough mixing machine / pastry dough mixer

Introduction of dough mixer

The FX series dough mixerflour blender  are the main equipments for food processing, they can mixwater,

flour,granule, paste evenly . (you can also add some other additive such as edible oil, sugar etc.) .

You can save labors and increase the work efficiency in aid of this kneader.

Dough mixerflour blender    have the characters of high conformability, compact structure, good seal,

homogeneous mixing, little noise, less waste, less manpower,stable run,easy operation, high

efficiency.

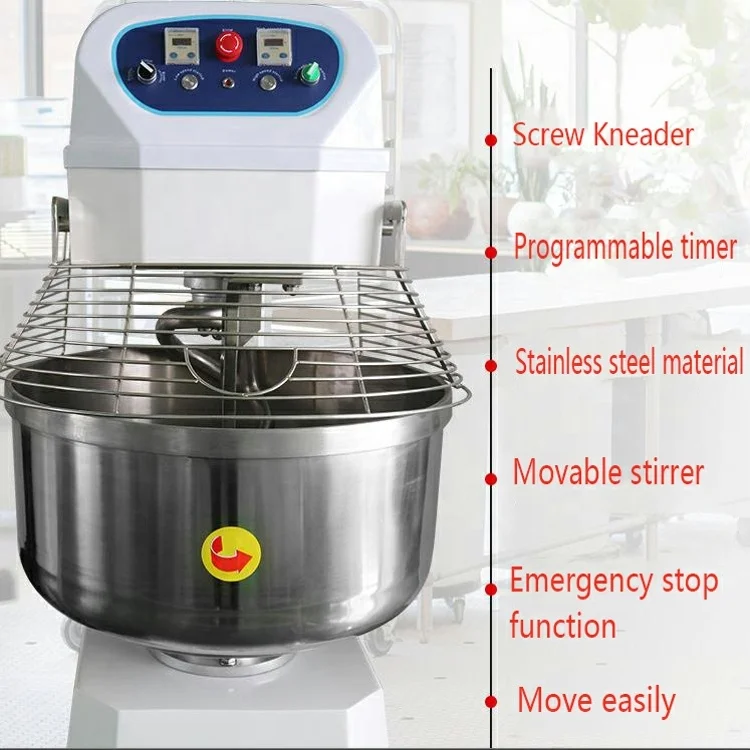

Main Features of dough mixer

1. Stainless steel food mixers work in high performance, the agitator is designed to do planetary motion inside the

   bowl where the food can be fully blent.

2. The machines are complete with 3 types of agitator and have 3 grades of speed for different mixing purposes like

    flour mixing, stuff mixing, egg beating and etc..

3. All parts in contact with food are made of Stainless steel or steel with specially treated surfaces, which are

    endurable in use and in conformity with national food hygiene standard.

4. Meat micer attachment is optional.



5. Fine and elegant appearance,easy to operate and clean.

Technical parameters :

Model	Voltage	Power(KW)	Capacity(Kg)	Mixing time(min)	Bucket speed	Mixer speed	Dimension(MM)	Weight(KG)
QT-20	220/380	1.5	8	10-12	12.5/25	125/250	700*500*770	120
QT-30	220/380	2.2	12	10-12	12.5/25	125/250	770*550*850	130
QT-40	220/380	3	15	12-18	12/25	125/250	770*550*850	150
QT-50	220/380	3.5	22	12-18	12.5/25	125/250	880*530*920	200
QT-60	220/380	4	25	12-18	12.5/25	125/250	880*530*920	240
QT-80	220/380	6.3	50	15-20	12.5/25	125/250	1100*730*1200	455
QT-90	220/380	9.8	75	15-20	12.5/25	125/250	1420*830*1350	760
QT-100	220/380	13.8	100	15-20	12.5/25	125/250	1500*970*1530	920
