Household 2kw small wind turbine

Product Overview

Description

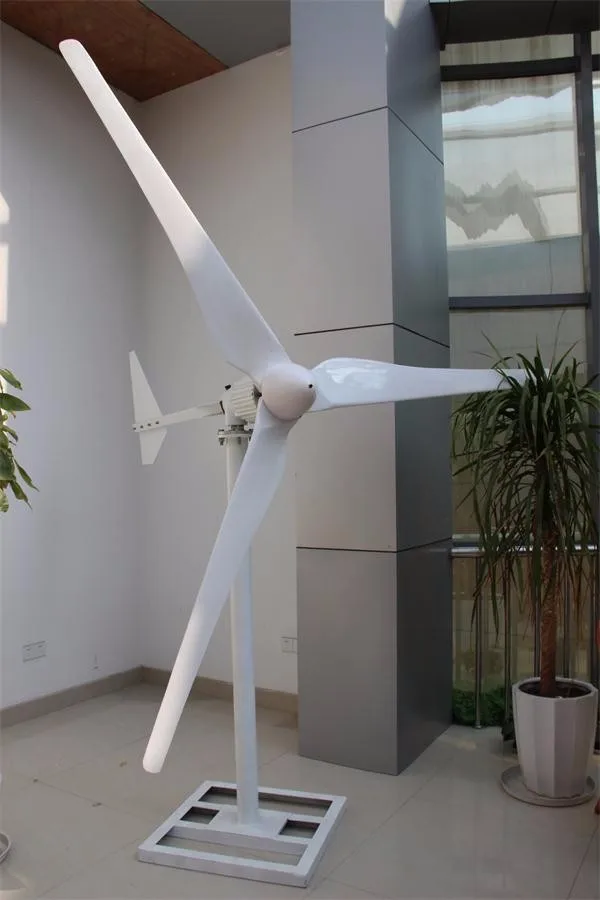

Household 2kw small wind turbine

 Introduction

       Excellent power output performance.High efficient synchronized PMG generator with low starting torque. Lower RPM rotational speed avoid the risk of over speed malfunction and bring lower noise emission.

  Dual brake protection systems as reliable passive self furling and electromagnetic brake. Equipped with high quality HRB brand sealed bearing.

  Long life span design by using superior aluminum alloy and cast steel in accurate die casting tech and the anti corrosion treatment for all kinds of circumstances.

Rated power 2kw    Max power 2.5-2.8kw

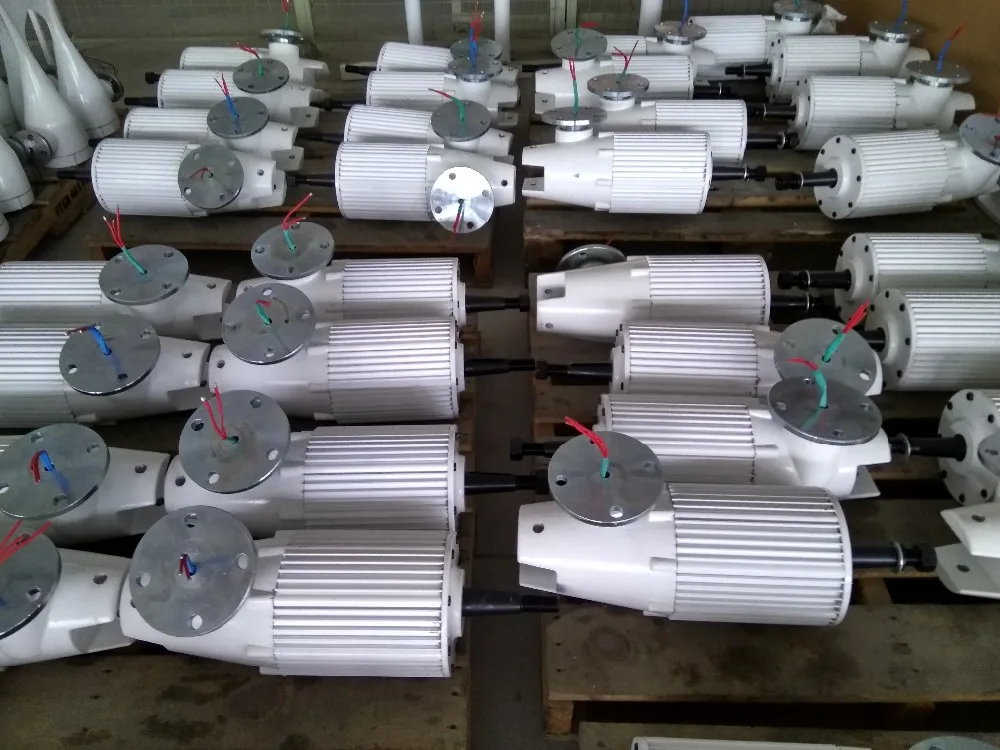

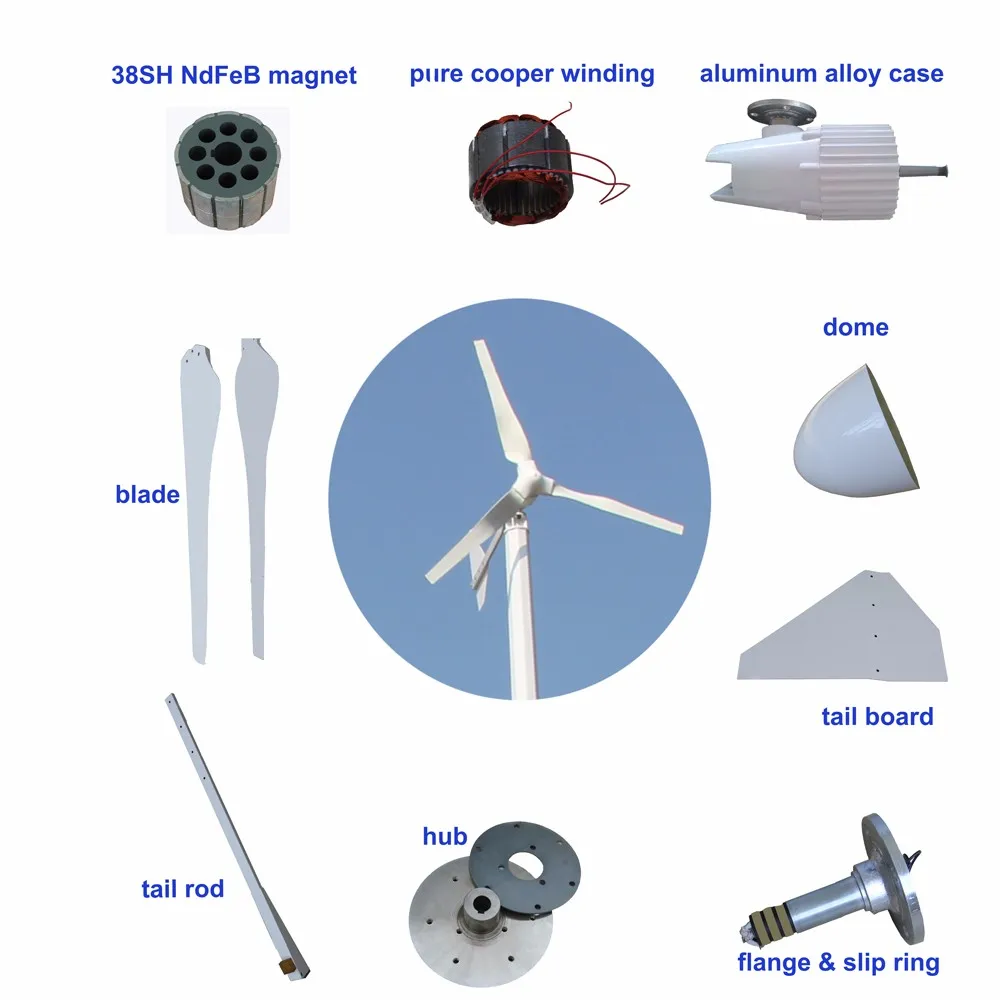

Spare parts of Household 2kw small wind turbine

Details determine success or failure

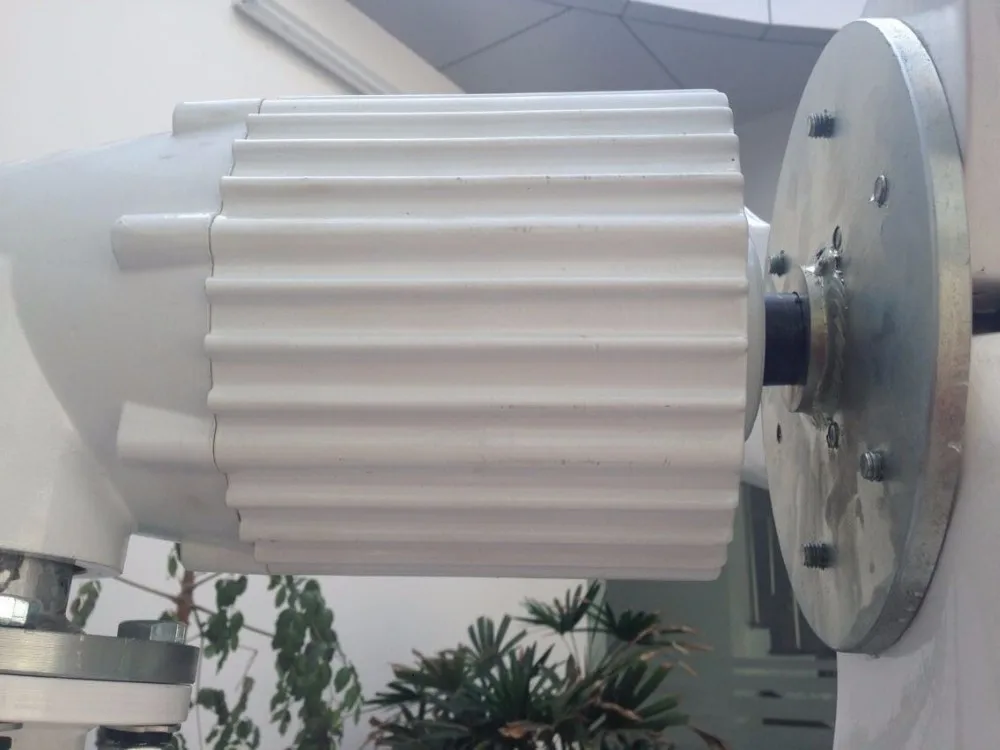

Core components of Household 2kw small wind turbine

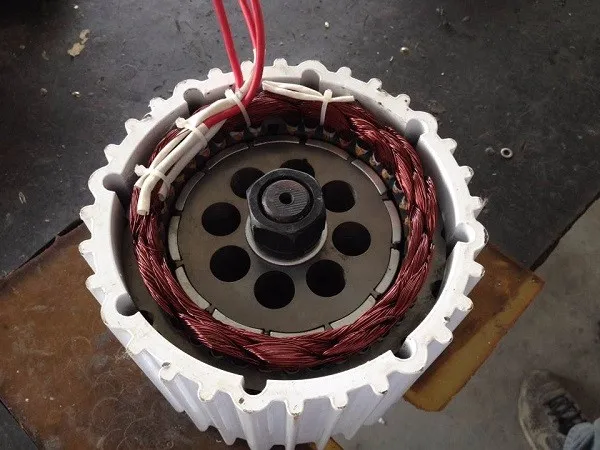

PMG:Stablize and reliable

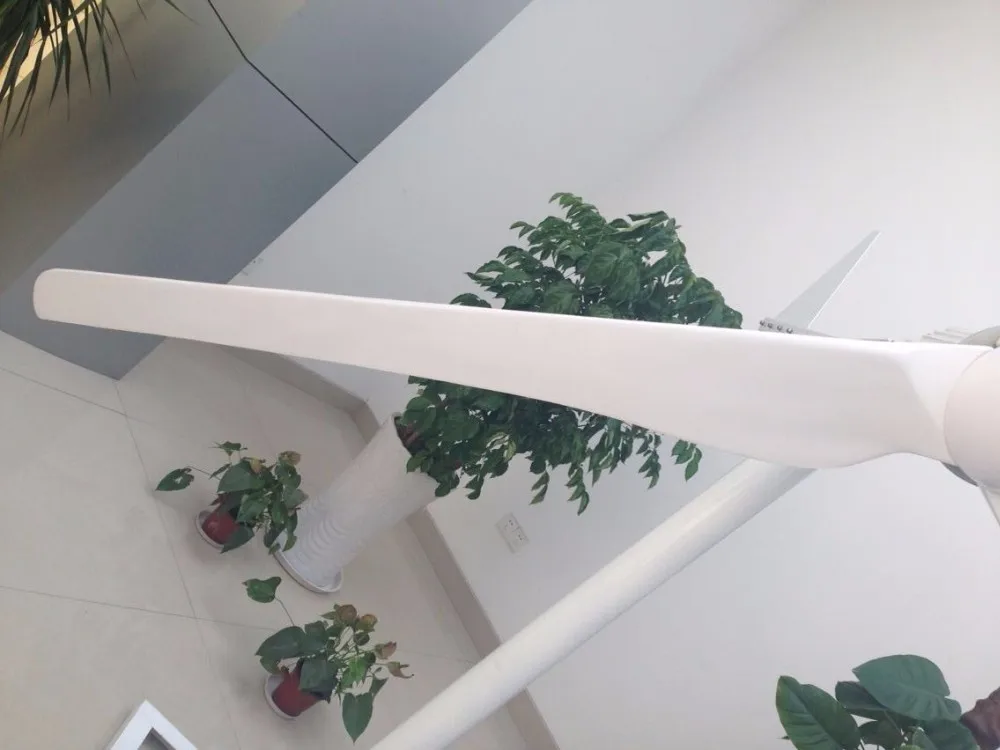

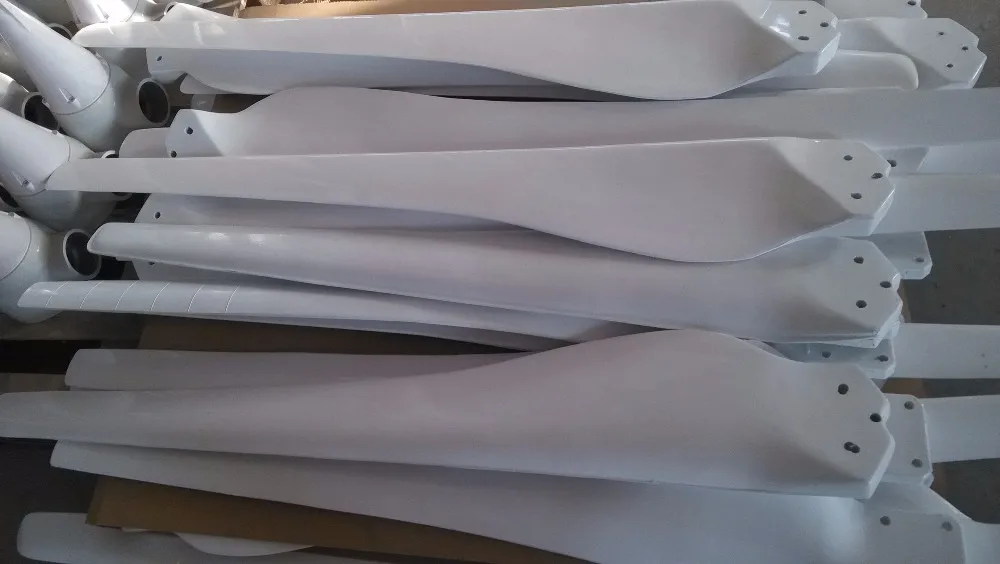

Blades for Household 2kw small wind turbine

Longer blades    Higher efficiency

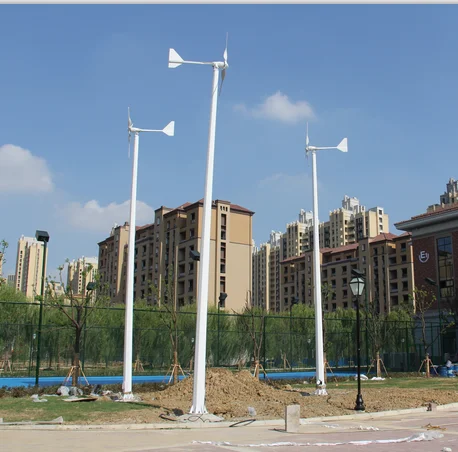

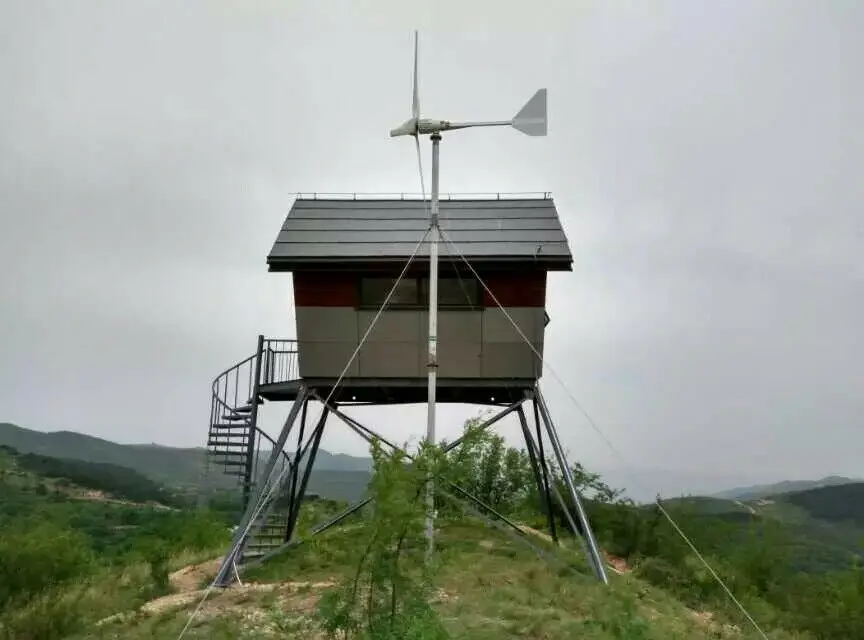

Projects for Household 2kw small wind turbine

Warm welcomed by customers all over the world!!!!!!!

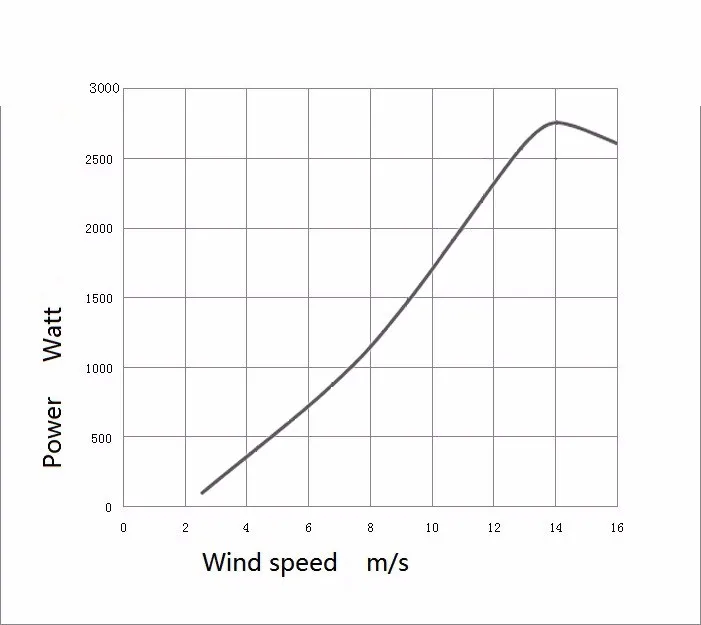

Data speak louder than words



FT-2000L
Performance
Rated power	2000L
Peak power	2800w
Start-up wind speed	3m/s
Working wind speed	3.5-25m/s
Survival wind speed	50m/s
Rotor
Rotor diameter	3.2m or 3.7m
Blade	3pcs reinforced fiber glass
Blade length	155cm or 180cm
Shell material	Casting aluminum alloy
Rated RPM	500r/m
Weight	52kg
Others
Generator type	3-phase AC PMG
Speed regulation & protection	Yawing + electromagnetic brake
Rated voltage	AC 48/96V
Working temperature	-40℃ to +80℃
