Modbus RS485 Fan Coil thermostat
- Category: >>>
- Supplier: Beijing Brade Controls Tech Co. Ltd.
Share on (60623899102):
Product Overview
Description
T808 Series models is used on the control of water heating system (circulation pump,valve , water valve on the collector), and Wall mounted boiler etc.
Product Description
T808 Series main function is control Environment Temperature. Hand and automatic control wind speed.
Feature:
Temperature Sensor:NTC
Measurement Accuracy: 1℃
Measure Range: 0℃-99℃
Setting Range: 5℃-35℃
Display Type: LCD
Operation Type:Touch Screen
Power Consumption:<1W
Shell Material:PC+ABS(Flame Retardent)
Power Voltage:86VAC-260VAC,50/60Hz
Output:220VAC 2A(Resistive load)
220VAC1A(Inductive load)
Dimensions:92mm×86mm×18mm

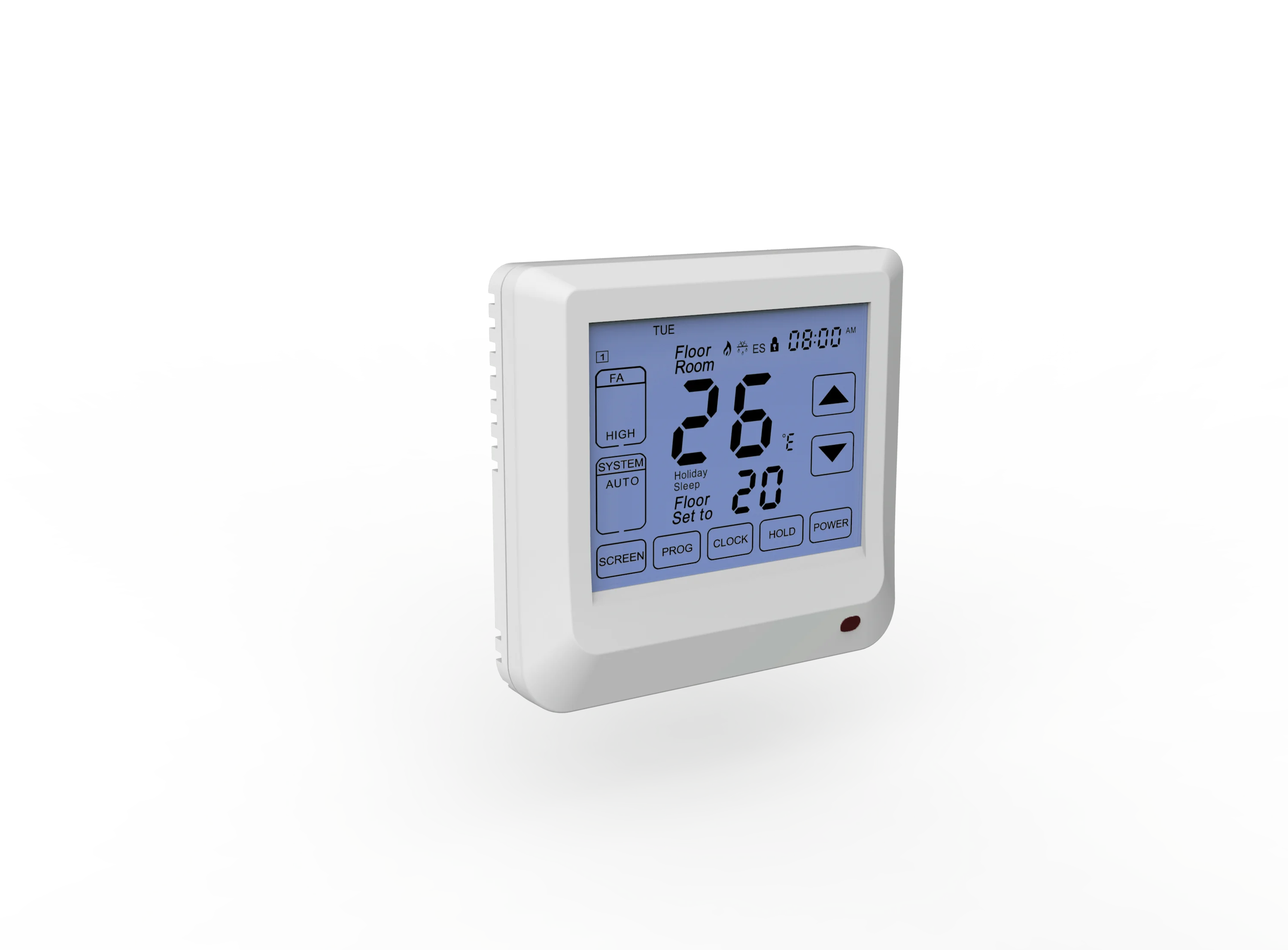

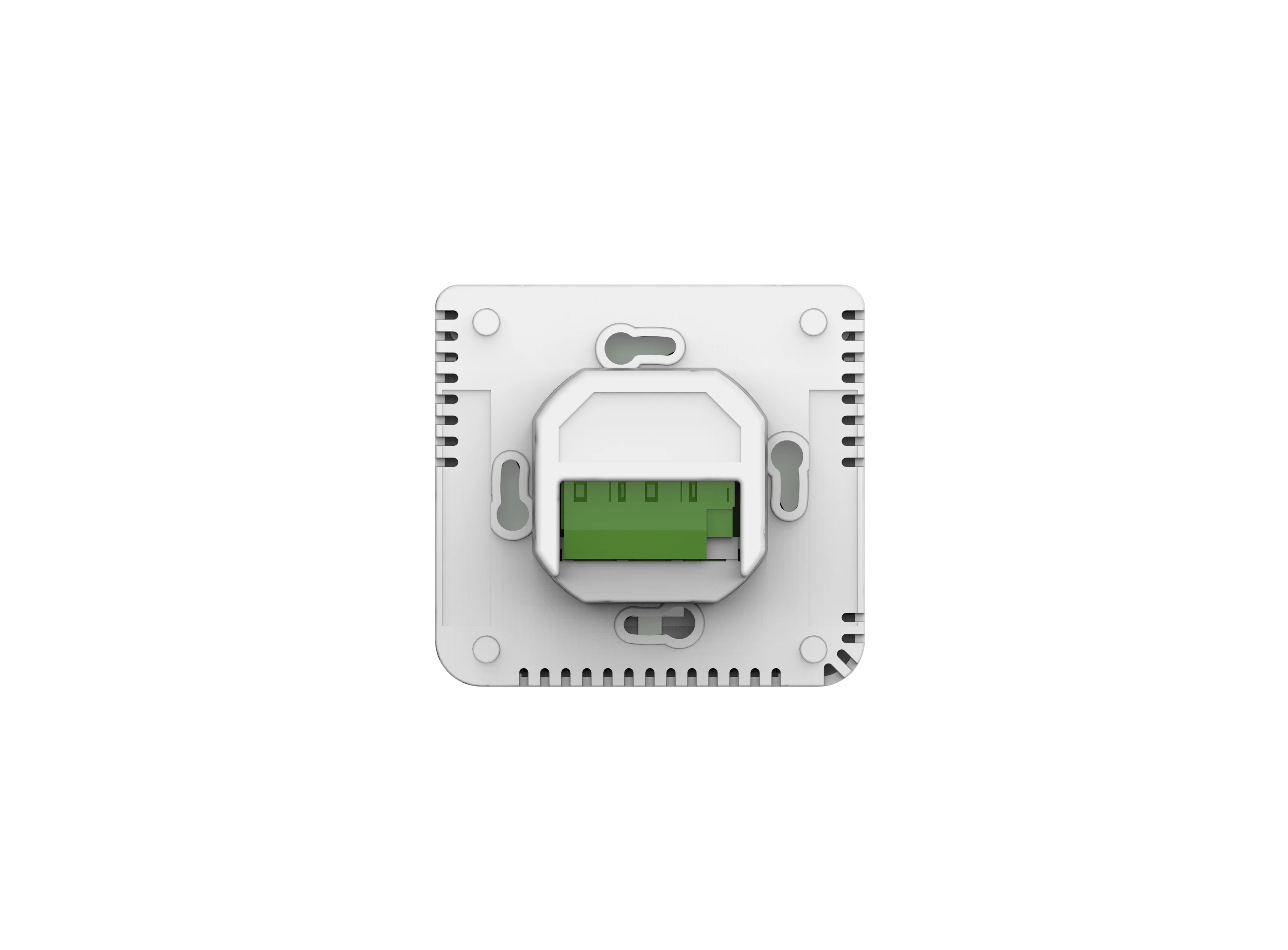

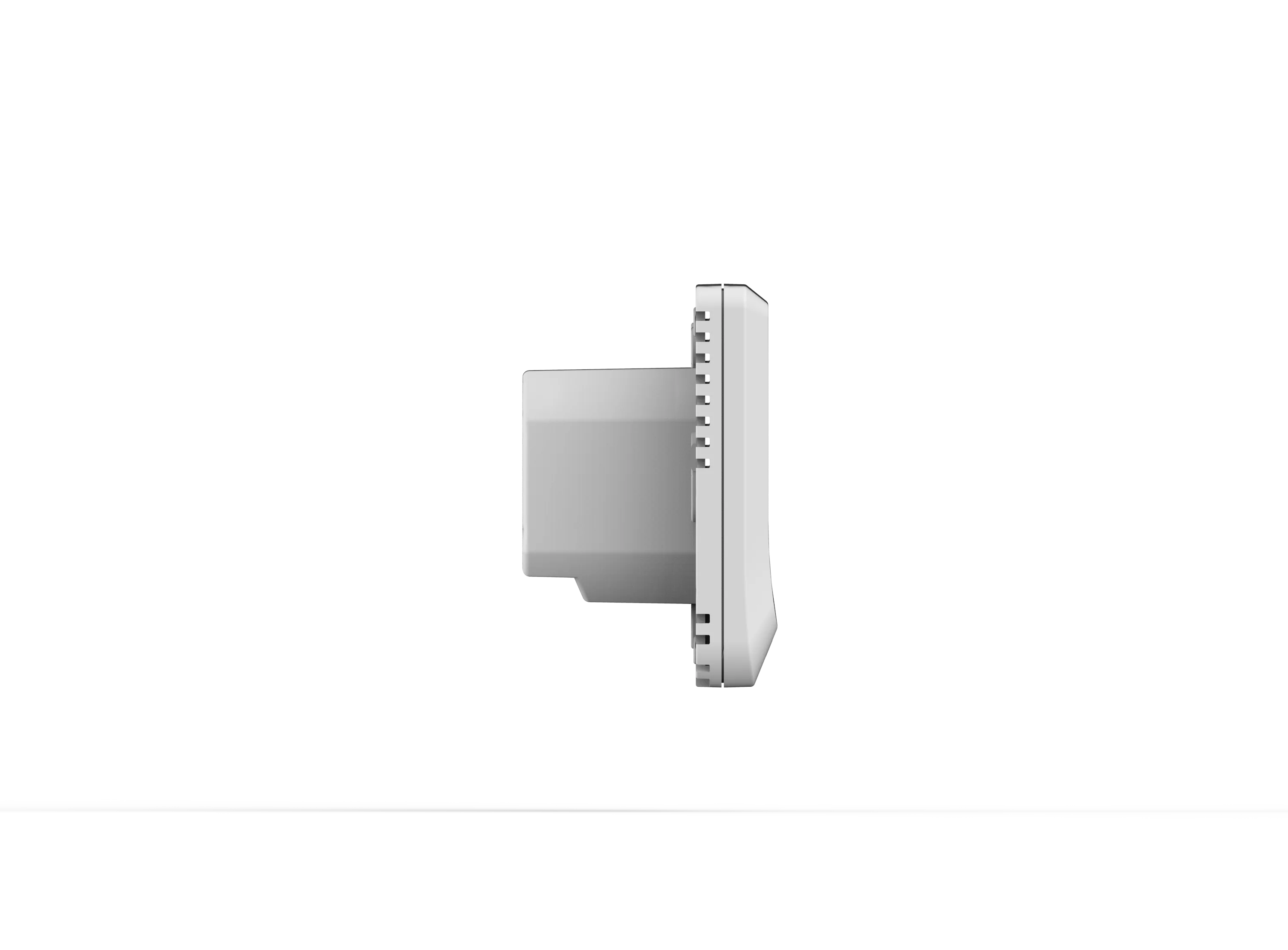

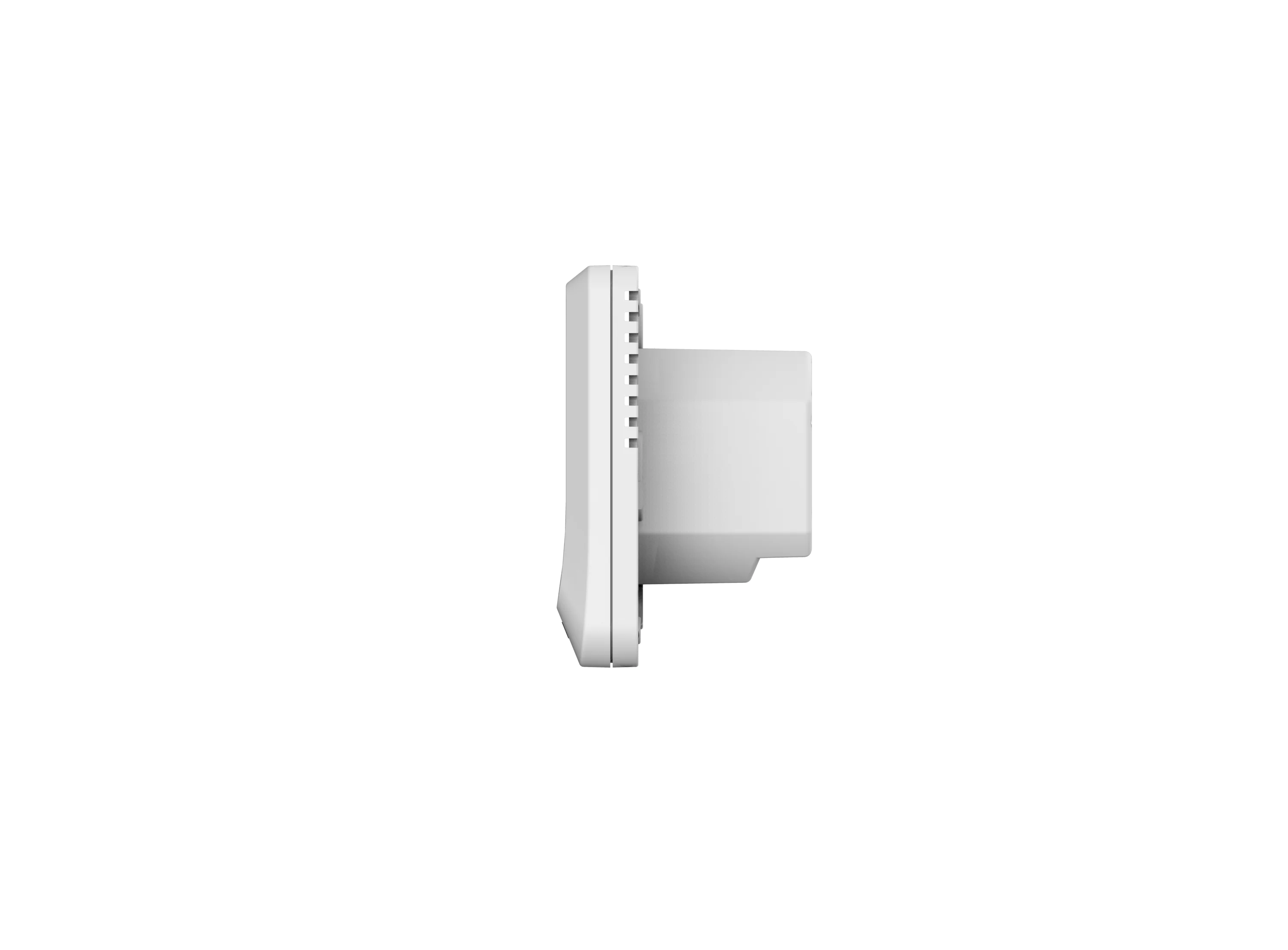

Product Display
Wiring Diagram
OEM Customisation
1. Company Logo on Product
2. Company Logo in boot video
3. Branded Packaging
4. Branded Manual
5. Branded Terminal Label
MS RS485 Protocal
