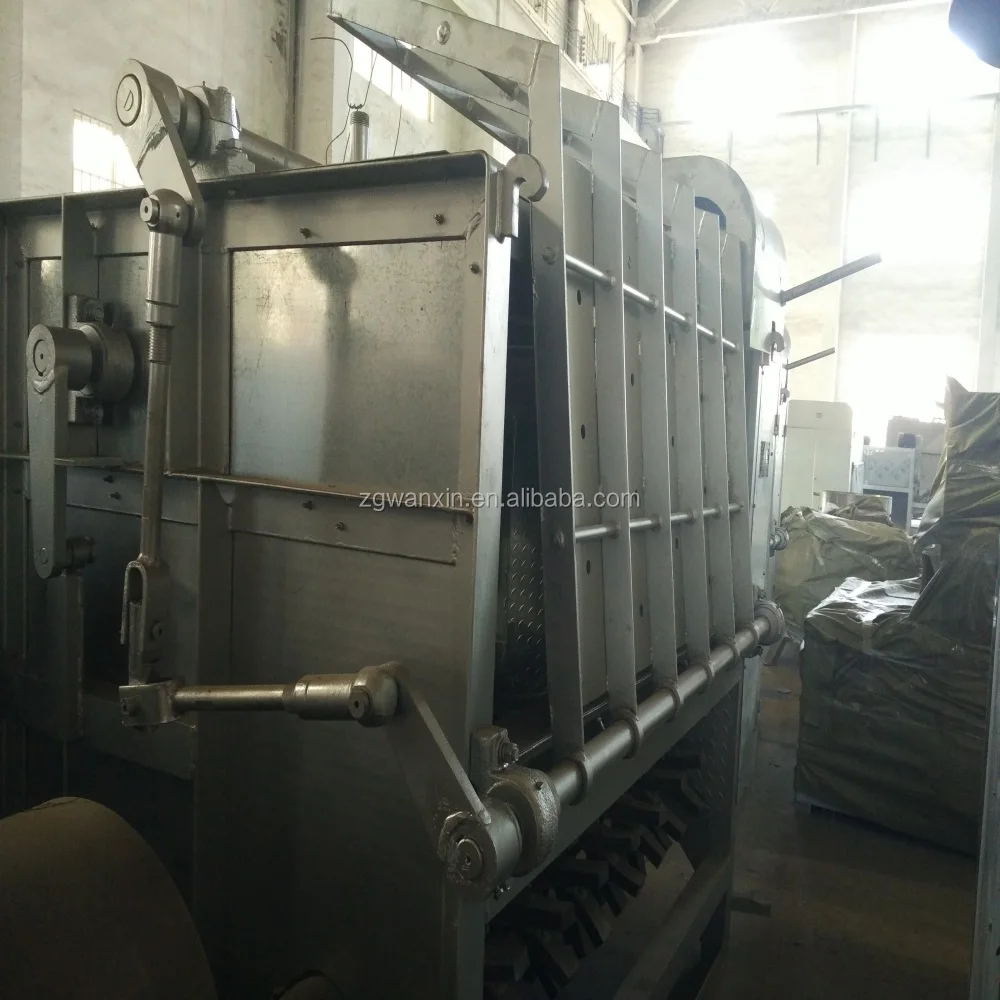

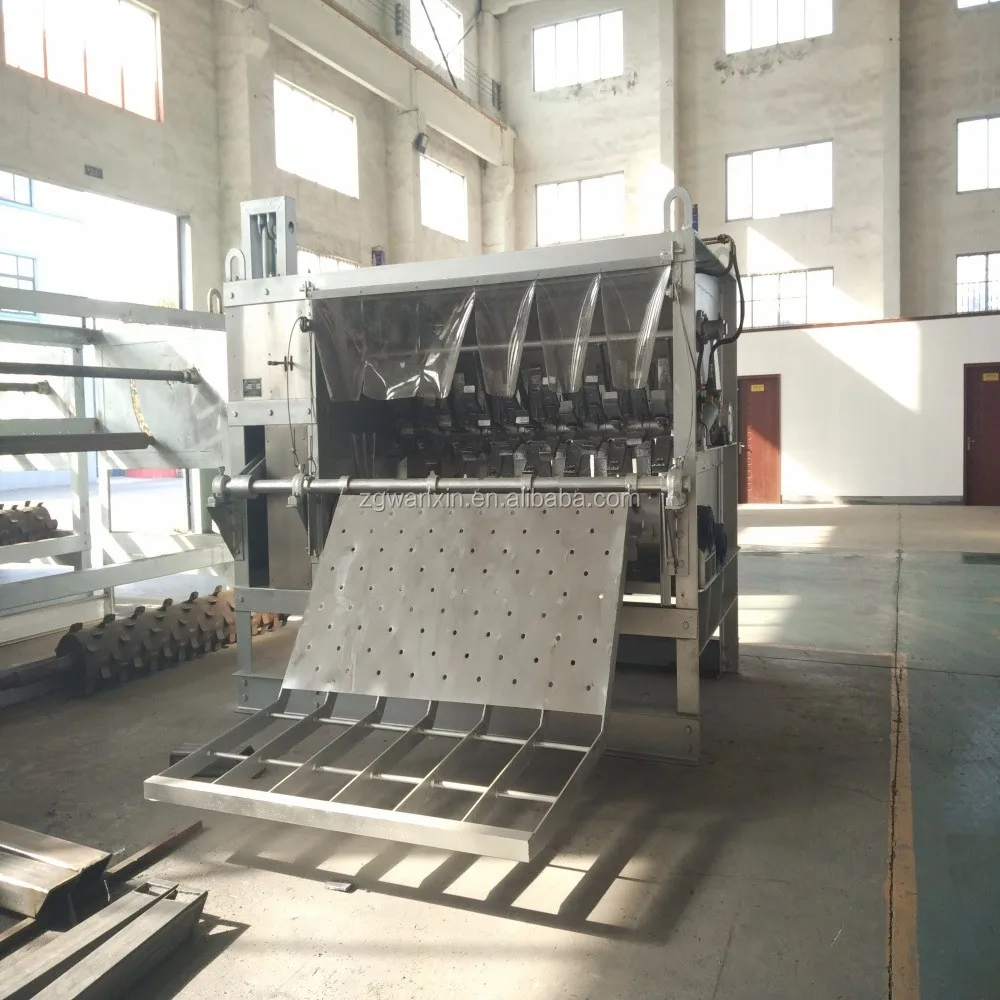

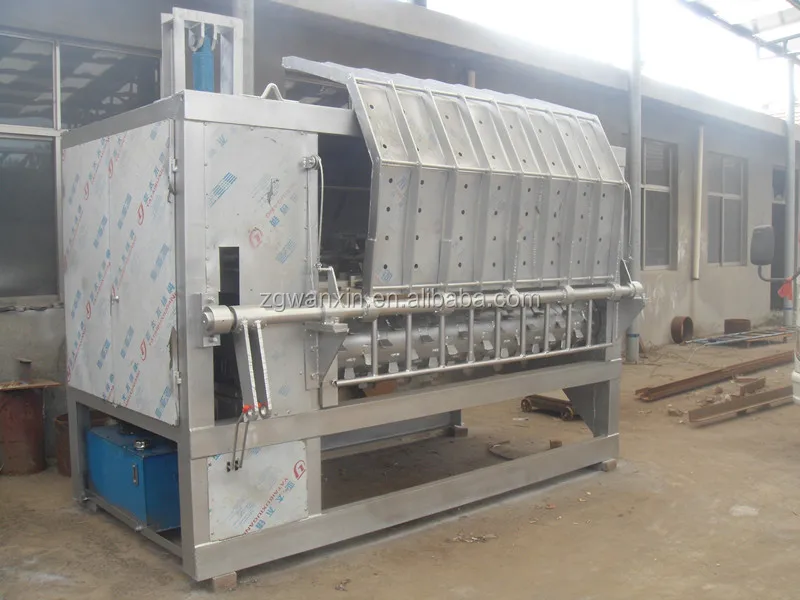

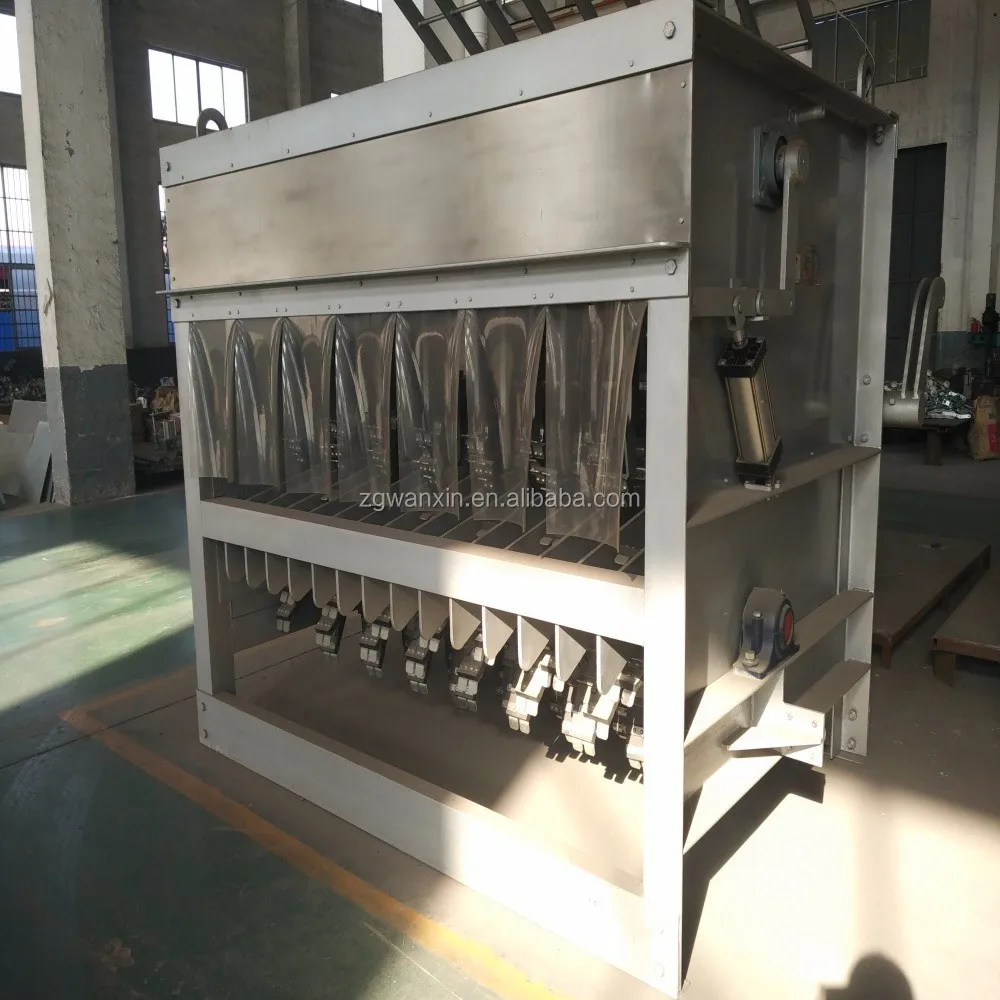

6 Roller type Goat hair remover machine

Product Overview

Description

Sheep Dehairing machine

Profile:

Hydraulic model

Machine size according to client’s request

Materials: All steel used for this machine is by 304SS, except the base of bearings. We will make cover to protect the rust of them. The cover is made by stainless steel sheet, sealed with rubber strips.

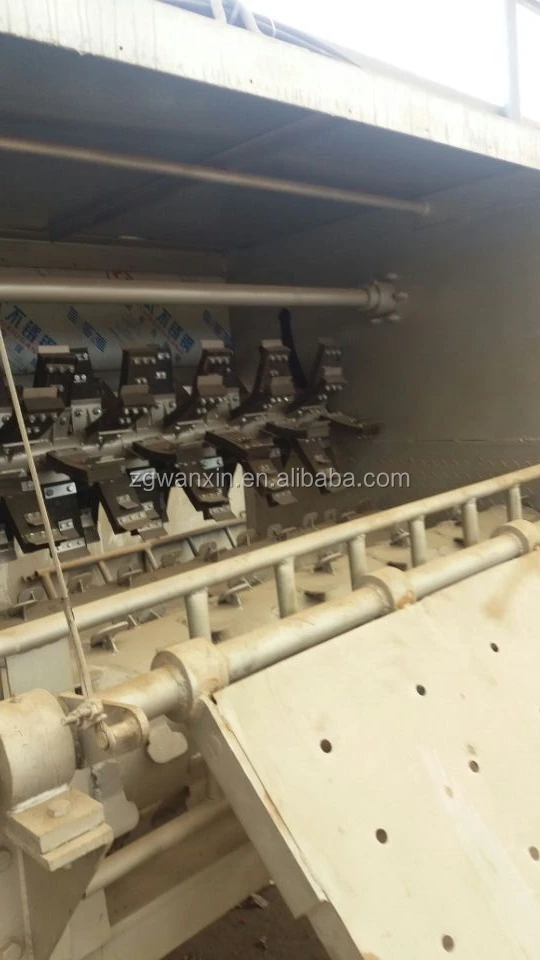

For roller model, each roller with rubber beater of 196pcs.

Beaters is made rubber with high elasticity.

Motors are imported

Hydraulic system is imported.

Bearings are china made, life time 2~3years

With packing materials to suit sea delivery.

Data sheet:

Equipment structure: horizontal roller structure.

Chain drive, so that the upper and lower rows of rollers to achieve relative rotation, which off the wool,

the two rows(Up and down) of unwinding roll spacing can be adjusted to meet the needs of different body sheep,

 Wool roller and frame are galvanized steel material, the cover of stainless steel.



Four/Six-axis sheep hair removal machine technical parameters:

Dimensions: 2600 * 2200 * 1600mm

Voltage: 380v/220V,50Hz

Power: 5.5Kw+4kw(reducer)

Weight: 1650kg

Production: 100-150 / hour

Max load: 2 sheep/time

Dehairing time: 45~60seconds

Dehairing chamber: L=1.5meter

Material: galvanized material, stainless steel cover



Dehairing rate: 95%min(hair/wool left area: Neck and Armpit)

-------------------------------------------------------------------------------------------------
