2021 New Tx/Rx Transceiver 1Km 5Km Long Range TI CC1310 868Mhz Wireless Rf Module for IOT Solution

Overview

•

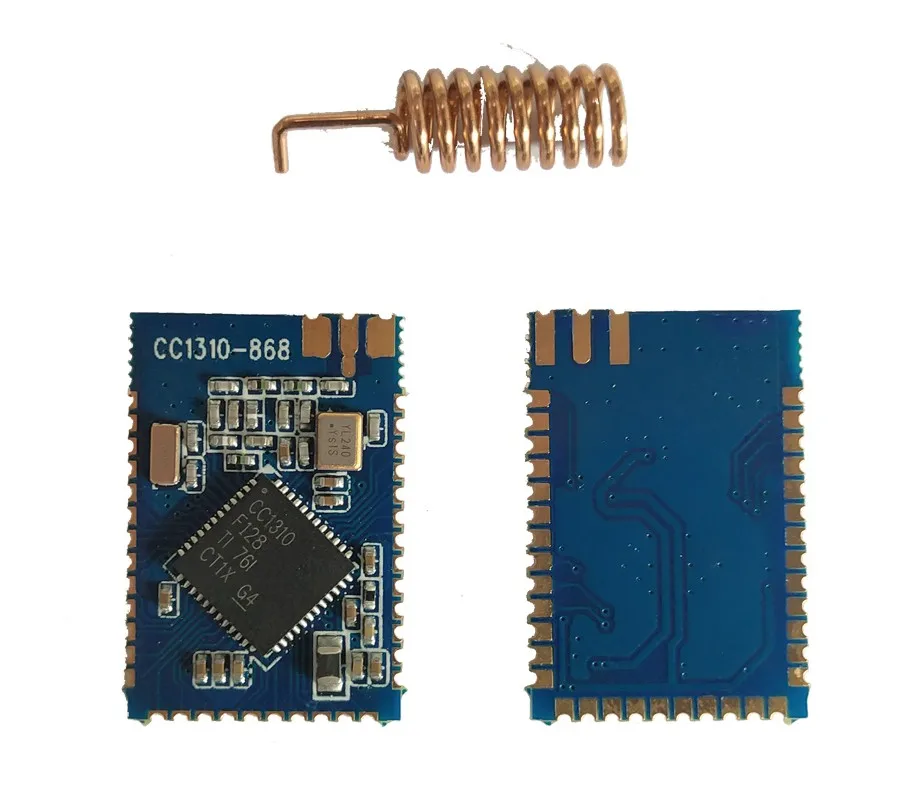

  The CC1310 RF module is a ultra low power and highly integrated UHF
  transceiver designed for super low power wireless applications. These certified
  modules, operating in 433/868/915 MHz ISM frequency band. It can be easily integrated
  into your application, thereby reducing development time and cost.

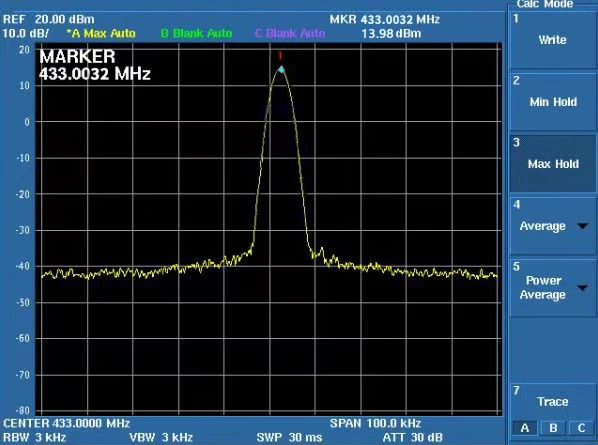

Test

Feature

•  Low power UHF wireless transceivers @868MHz


•  Supports FSK, GFSK, ASK/OOK and MSK


•  Ultra high sensitivity -124dBm,


•  Configurable data rates 4Mbps


•  Packet handling including address recognition


•  Separate 64 byte RX and TX data FIFOs


•  Wake-on-Radio functionality


•  Support automatic Clear Channel Assessment


•  RSSI Output & Link Quality Indictor


•  Low power 1.8~3.8V supply


•  I2C/I2S/UART/GPIO Interface

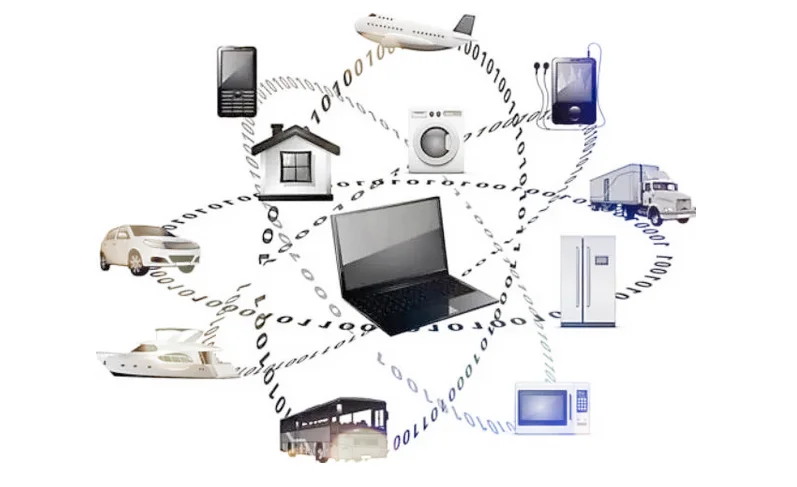

•  AMR – Automatic Meter Reading


•  Two-way RKE – Remote Keyless Entry


•  Low power telemetry


•  Home and building automation


•  Wireless alarm and security systems


•  Industrial monitoring and control


•  Wireless sensor networks

Warranty

• All products and accessories have been tested 3 times before the shipment.


• 3 months warranty, If there is no man made problem, we can offer technology service freely.


• We offer professional technology service, We can offer technology support when you need help.
