SMD LED Yamaha pneumatic feeder chip Mounting 4 heads machine

Product Overview

Description

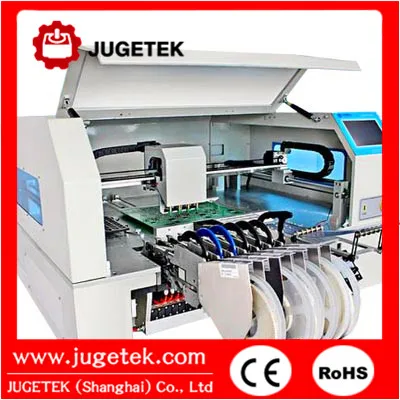

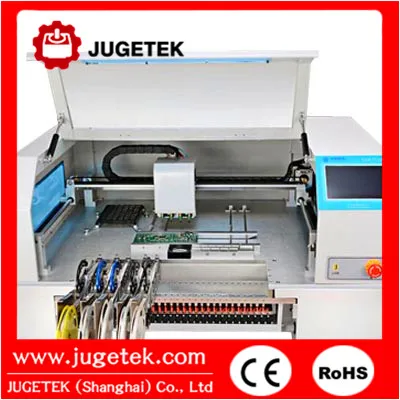

4 Heads SMT pick and place machine CHMT530P4 with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm

The operation system is industry level embedded Linux system, the main board of machine was researched by ourself, which is more relaible than windows system, and life time is much longer. CHMT530P4 using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor,BGA...etc,

Charmhigh CHMT530P4 is ready,100% tested well before ship out, QC passed.

Applications

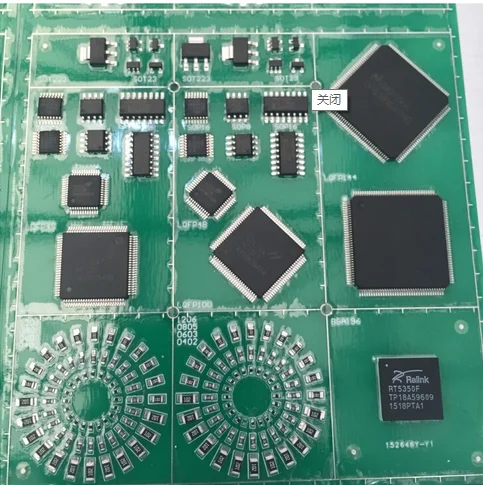

Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry

 Full touch screen operation

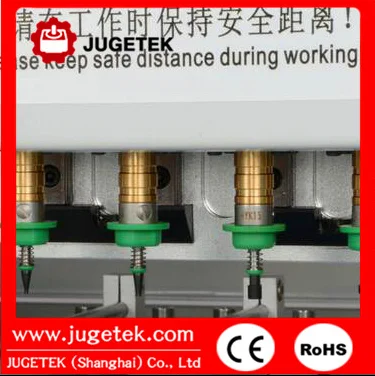

Juki nozzles: Different types 502-506

Yamaha Feeders:8mm / 12mm/ 16mm / 24mm

Tech support:
Ashley  Mob:008615021958504
Skype: robotdogg

whatsapp:008615021958504

Email:asliu at jugetek.com

Model	CHMT530P4
XYZ Axis travel	650mm(X)*760mm(Y)*15mm(Z)
PCB max size	450mm(L)*330mm(W)
Support components	0201-0402-5050, SOP, QFN,BGA etc.
Mounting speed	Without vision:8000cph With Vision:5500cph
Precision	±0.015mm
Placement head	4 heads
Feeding system	l Support max 30pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder)      11pcs general IC stack   Support IC tray
Vision detection	Double camera (up & down)
Motor control	XY Axis stepper motor with encoder closed-loop control Flexible S deceleration Z Axis reset detection
Components leakage detection	Vacuum and visual detection
Main board	High-reliability industry motherboard
Touch Screen	7 inches industry screen
Operation system	Embedded Linux system
External air source	0.5MPa
Power supply	AC220V 50Hz / AC110V 60Hz
Demension	1050mm(L)*780mm(W)*500mm(H)
Power	250W
Net weight	110Kg
