Ceramic nozzle /ceramic cup 10N45/10N46/10N50 for tig welding torch
Specification: ceramic nozzle /ceramic cup 10N45/10N46/10N50 for tig welding torch
10pc ceramic nozzle /ceramic cup / box
material: aluminal
model :10N50,10N49,10N48,10N47,10N46,10N45,54N18,54N16,54N15
- 12 years experience to export many countries around the world
- Completed range of Welding Products
- Professional srvice team to support customer
- Delivery the goods for stock after payment

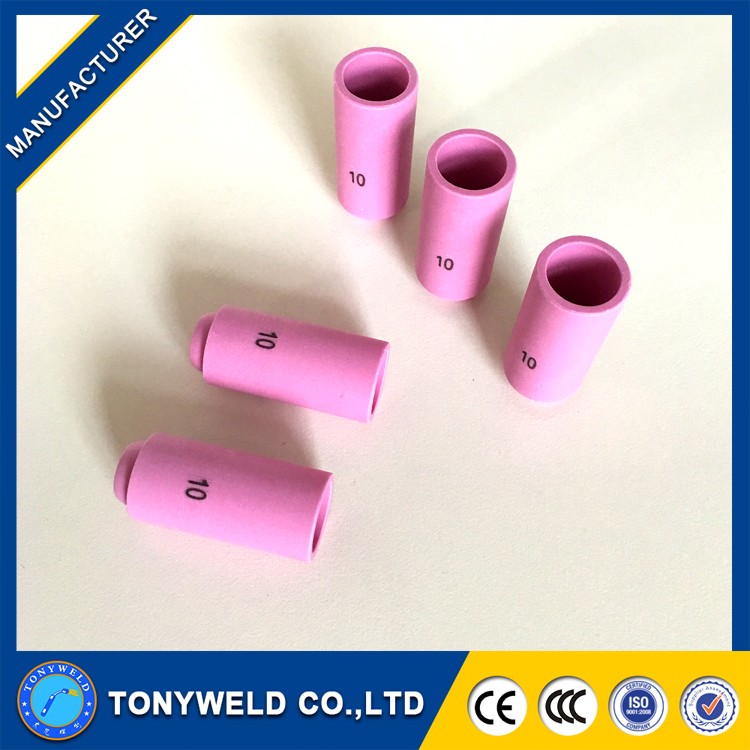

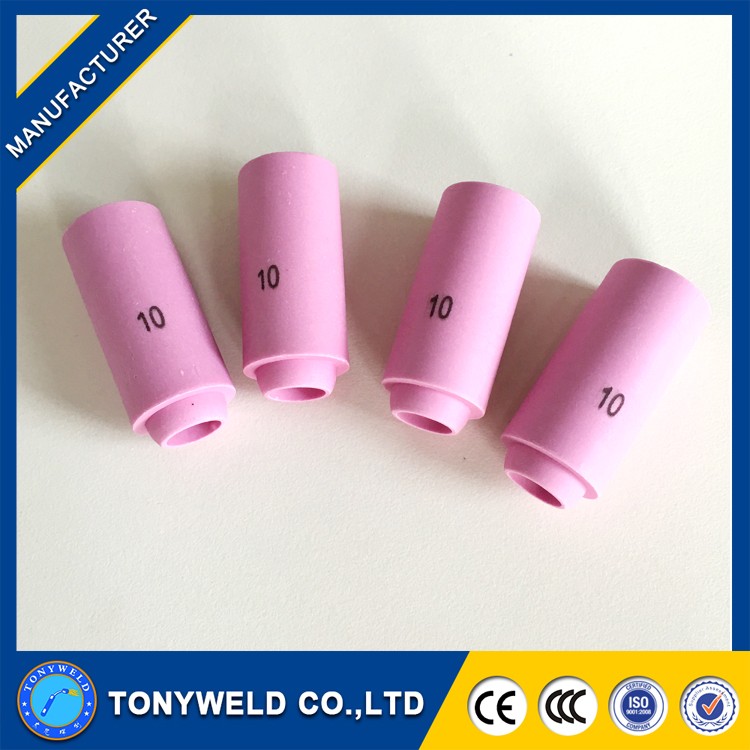

| ceramic nozzle /ceramic cup Show Time |
ceramic nozzle /ceramic cup
ceramic nozzle /ceramic cup
ceramic nozzle /ceramic cup
ceramic nozzle /ceramic cup
ceramic nozzle /ceramic cup
| Ceramic nozzle /ceramic cup 10N45/10N46/10N50 for tig welding torch Technical Data |
| Part No. | Length (mm) | size (inches) | size | Torches |
| 13N08 | 29 | 1/4 | 4 | 9 Series tig torch 20 series tig torch |
| 13N09 | 5/16 | 5 | ||
| 13N10 | 3/8 | 6 | ||
| 13N11 | 7/16 | 7 | ||
| 13N12 | 1/2 | 8 | ||
| 13N13 | 5/8 | 10 | ||
| 796F74 | 63 | 0.165 | 3 | 9 series tig torch 20 series tig torch |
| 796F75 | 1/4 | 4 | ||
| 796F76 | 5/16 | 5 | ||
| 796F77 | 3/8 | 6 | ||
| 796F70 | 76 | 0.165 | 3 | |
| 796F71 | 1/4 | 4 | ||
| 796F72 | 5/16 | 5 | ||
| 796F73 | 3/8 | 6 | ||
| 10N50 | 47 | 1/4 | 4 | 17 series tig torch 18 series tig torch 26 series tig torch |
| 10N49 | 5/16 | 5 | ||
| 10N48 | 3/8 | 6 | ||
| 10N47 | 7/16 | 7 | ||
| 10N46 | 1/2 | 8 | ||
| 10N45 | 5/8 | 10 | ||
| 10N44 | 3/4 | 12 | ||

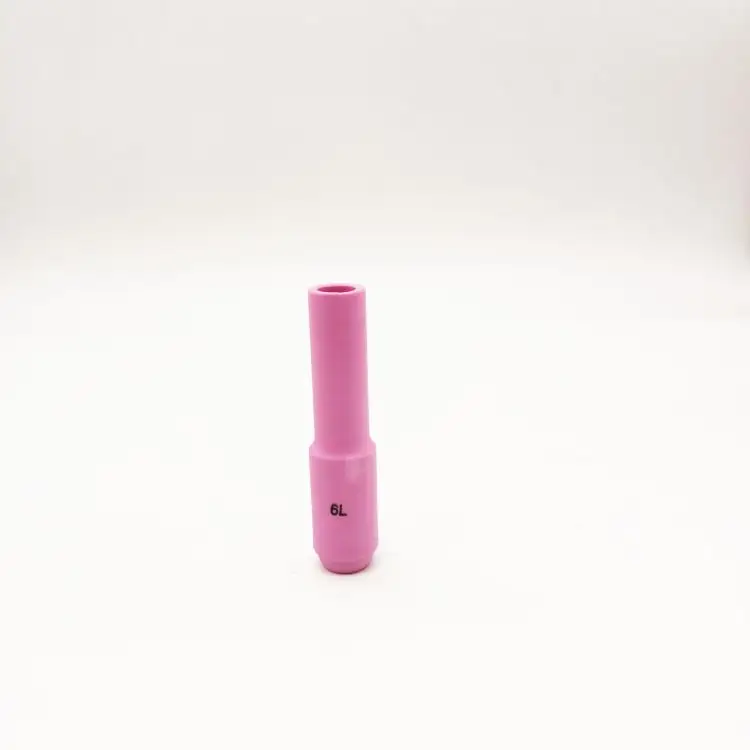

| 10N49L | 76 | 5/16 | 5L | 17 series tig torch 18 series tig torch 26 series tig torch |
| 10N48L | 3/8 | 6L | ||
| 10N47L | 7/16 | 7L | ||
| 53N58 | 25.4 | 1/4 | 4 | 9 series tig torch 20 series tig torch |
| 53N59 | 5/16 | 5 | ||
| 53N60 | 3/8 | 6 | ||
| 53N61 | 7/16 | 7 | ||
| 53N61S | 7/16 | Short | ||
| 54N18 | 42 | 1/4 | 4 | 17 series tig torch 18 series tig torch 26 series tig torch |
| 54N17 | 5/16 | 5 | ||
| 54N16 | 3/8 | 6 | ||
| 54N15 | 7/16 | 7 | ||
| 54N14 | 1/2 | 8 | ||
| 54N19 | 11/16 | short | ||
| 54N17L | 81 | 5/16 | 5L | 17 series tig torch 18 series tig torch 26 series tig torch |
| 54N16L | 3/8 | 6L | ||
| 54N15L | 7/16 | 7L | ||
| 57N75 | 47.6 | 3/8 | 6 | 9 series tig torch 12 series tig torch 17 series tig torch 18 series tig torch 26 series tig torch 27 series tig torch |
| 57N74 | 1/2 | 8 | ||
| 53N88 | 5/8 | 10 | ||
| 53N87 | 3/4 | 12 | ||
| 53N89 | ||||
| 14N57 | 31.7 | 1/4 | 4 | 12 series tig torch |
| 14N58 | 5/16 | 5 | ||
| 14N59 | 3/8 | 6 | ||
| 14N60 | 7/16 | 7 | ||
| 14N61 | 1/2 | 8 | ||
| 14N61-10 | 5/8 | 10 | ||
| 14N61-12 | 3/4 | 12 | ||
| Certificate Show Time |
| Ceramic nozzle / ceramic cup 10N45/10N46/10N50 Packing Size |
.10 piece of ceramic nozzle / ceramic cup 10N45/10N46/10N50
. then 500pc of ceramic nozzle / ceramic cup 10N45/10N46/10N50 packing in carton. the carton size is 35cm x 25cm x 15cm
| Our Service |
. supply the qualified products for ceramic nozzle /ceramic cup
. samples are available for ceramic nozzle /ceramic cup
. trial order are available for ceramic nozzle /ceramic cup
. processing with customer's samples for ceramic nozzle /ceramic cup
| About Us |
Changzhou Tonyweld.CO.LTD
A professionl manufacturer MIG/MAG welding torch,TIG welding torch and air plasma cutting gun.We have tens years exprience to export many countries,and our products is very competitive in the world.
Changzhou tonyweld can produces :
1.MIG/MAG,CO2 :Binzel 14AK,15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco 5#,Fronius AW4000,AW5000,AL3000,AL4000, Saf welding torch and gas nozzle,contact tip,contact tip holder,swan neck,gas diffuser liner etc.
2.Tig : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P) , collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,long/mediu/short cap etc.
3.Air plasma cutting :P80,P160,PT31,AG60,SG55,JG60,JG100,Trafimet serise cutting torches, torch head ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,earth clamp
5.welding helmet,electorde holder
6.tungsten electrode
