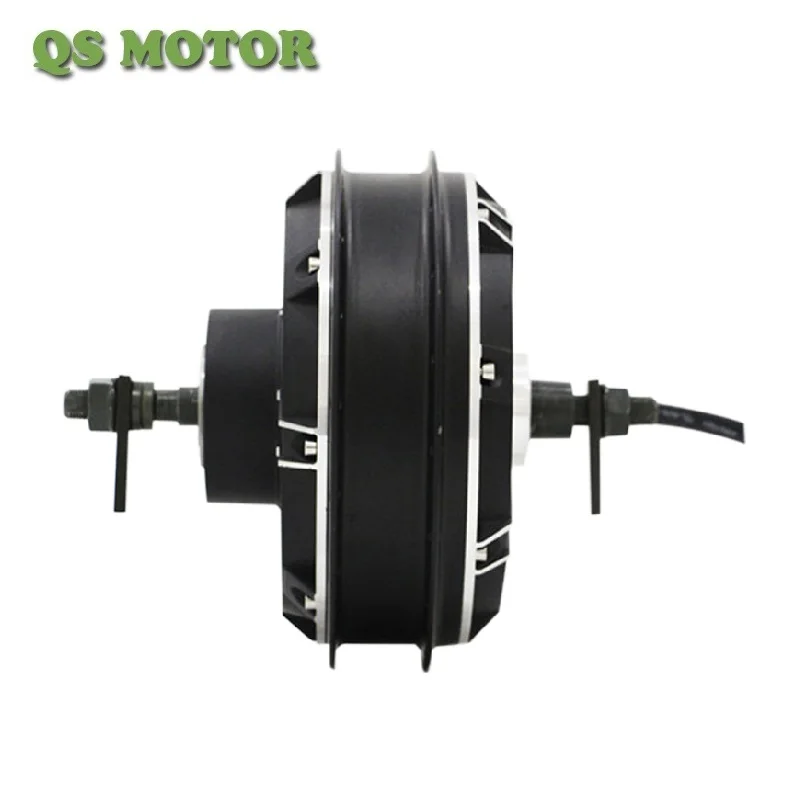

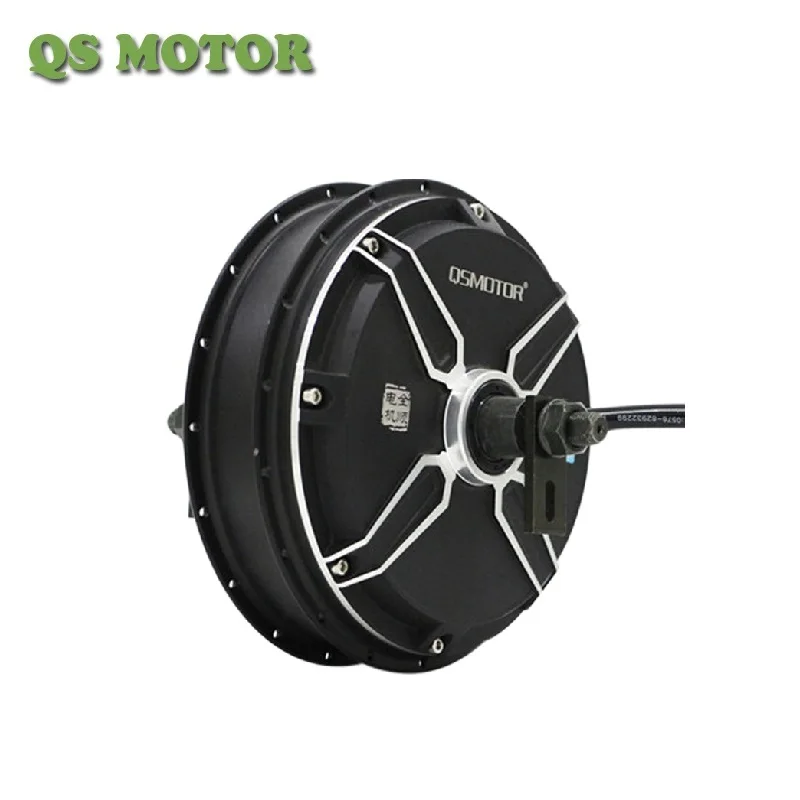

QS Motor 1000W 48V Spoke Hub Motor ( 205 Model ) For Electric Scooter 40H V2 Type

Product Overview

Description

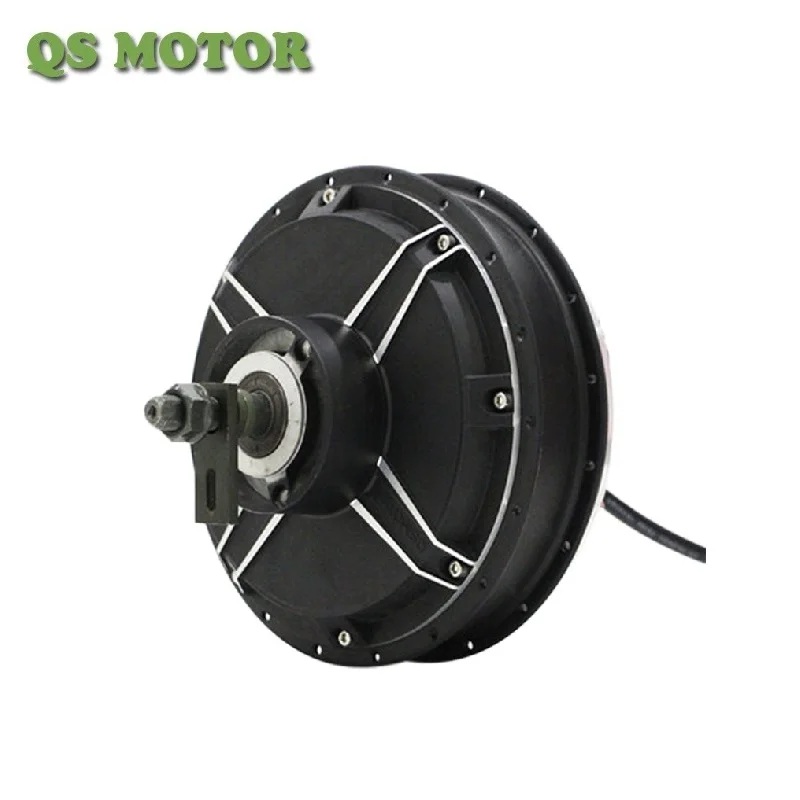

205 Spoke Hub Motor(40H) 1000W V2 Type





The 205 Spoke Hub Motor specially designed for Electric bicycle or Electric motorcycle, drum brake or disc brake type can be optional, speed can be customized from 25-70KMPH.









1.      Motor Type: BLDC Hub Motor with Permanent Manget

2.      Motor design: Double axle out

3.      Spoke hole: 3.4mm x 36pcs

4.      Matching Rim:16inch-26inch

5.      Magnet Height: 40MM

6.      No. of Pole Pairs: 23 paris

7.      Rated Power: 1000W

8.      Max Power: 1600W

9.      Rated Voltage: 48V( 60V/72V Can be optional)

10.  Speed: 45km/h (30-55km/h can be customized)

11.  Max No-load RPM: 650RPM

12.  Max Torque: 98N.M

13.  Max Efficiency: 90%

14.  Continious current:23A

15.  Max current:40-45A (Peak 70A in short time)

16.  Brake type: Disc brake or Brum brake(Optional)

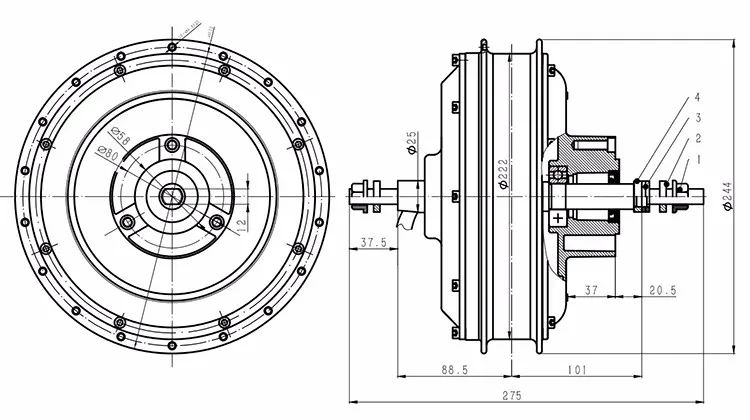

17.  Rear Fork width for installation: 200mm

18.  Winding Core material: Aluminium

19.  Cross Section of Phase wire: 8 mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  Color: Black or Silver

25.  N.W./ G..W. : 11kgs / 12kgs



26.  Package Size: 34*34*33CM
