Factory OEM ODM Design CCTV Board Low Illumination HD CMOS Sensor Pinhole Camera Module PCB Board with SMT Machines
- Category: >>>
- Supplier: Htw Tech Limited
Share on (60624434165):
Product Overview
Description
Related Products
Product Description

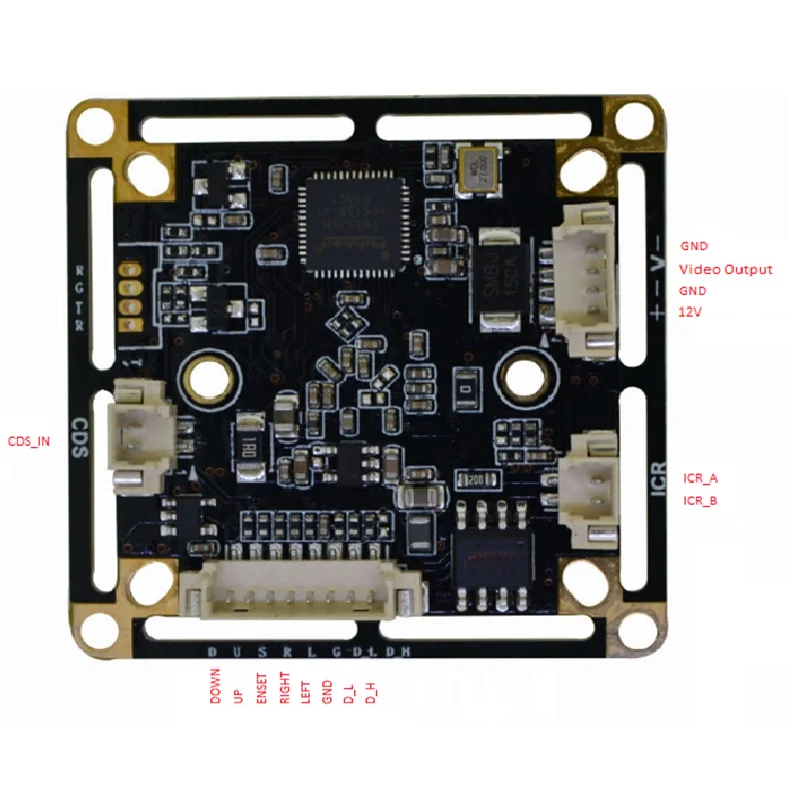

Product Name | 4 in 1 HD 2.0MP 1080P Camera Module |
Model | TT-2MHDF33-37 |
Function | supports exposure / white balance / 3D noise reduction / image enhancement / privacy shielding / motion detection functions |
Major Features:
F33 million high-definition image sensor;
AHD / TVI / CVI / CVBS output;
effective resolution up to 1932 * 1088;
AHD / TVI / CVI / CVBS output;
effective resolution up to 1932 * 1088;

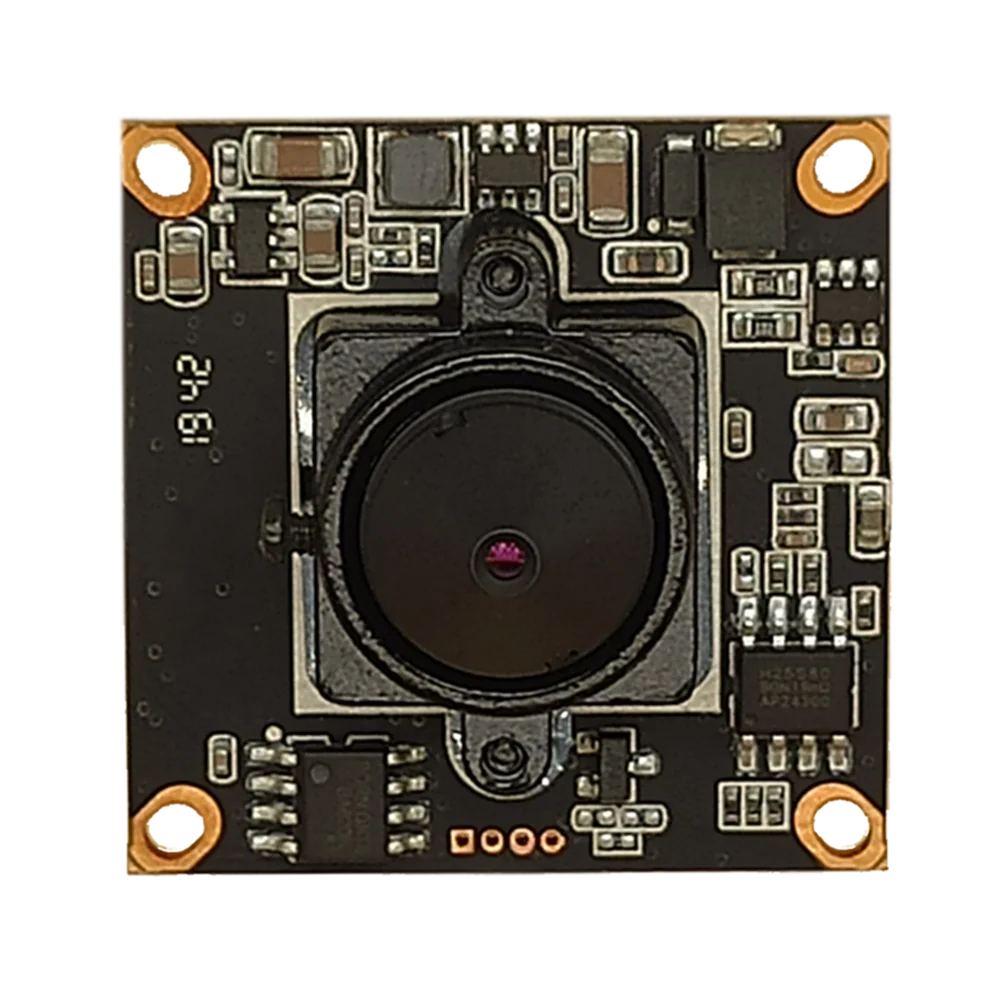

with 3.7mm Pinhole Lens
OSD supports 10 languages;
supports exposure / white balance, 3D noise reduction / image enhancement / privacy shielding / motion detection functions, etc ;
OSD supports 10 languages;
supports exposure / white balance, 3D noise reduction / image enhancement / privacy shielding / motion detection functions, etc ;
Use Fuhan FH8536H DSP with OSD function (color / black and white, PAL / NTSC switch);
Double filter switching, the day and night effect is clear, OSD switches multiple day and night modes;
Support UTC function, four in one output;
Power (600W) video (2KV) double lightning protection design;
OSP anti-oxidation PCB;

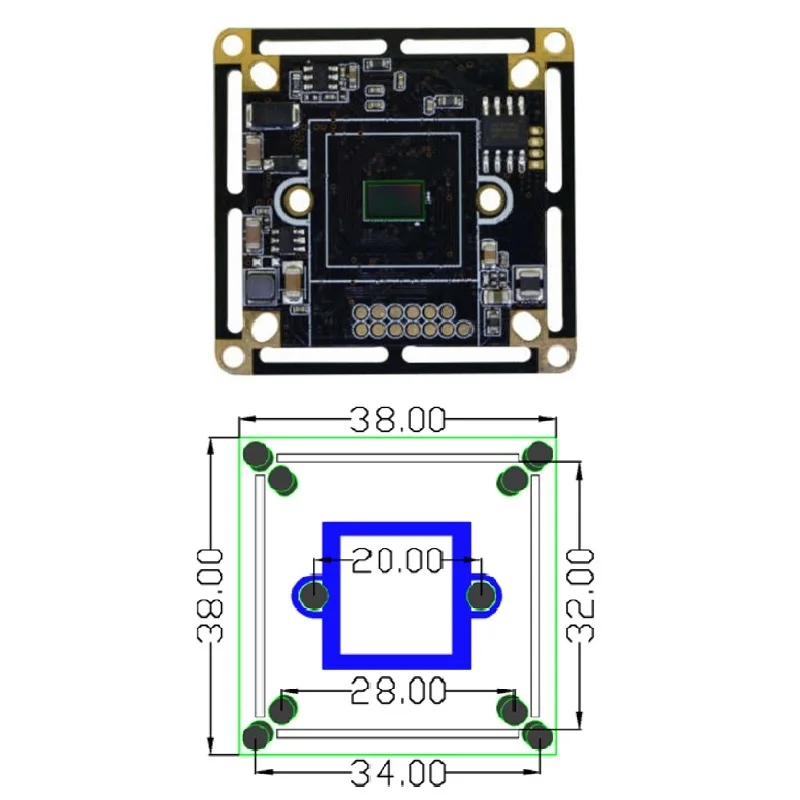

small size 32 * 32mm;
Double filter switching, the day and night effect is clear, OSD switches multiple day and night modes;
Support UTC function, four in one output;
Power (600W) video (2KV) double lightning protection design;
OSP anti-oxidation PCB;
small size 32 * 32mm;
Product Specifications
Imaging device | 1/2.9 F33 |
Imaging resolution | 1920 (H) × 1080 (V) |
Effective Pixels | 2 MP |
System format | PAL / NTSC (OSD switching) |
Lens | 3.7mm Pinhole Lens |
Day and night mode | External control (default) / automatic / color / black and white (OSD switch) |
Signal to noise ratio | ≥50dB |
Minimum illumination | 0.1LUX |
Backlight compensation (BLC) | AUTO |
Automatic Electronic Shutter (AES) | AUTO/ 1/50（1/60）-1/50,000sec |
Automatic white balance (AWB) | AUTO |
Day and night switching control voltage | OFF(DC 0V) / ON:DC 3V-8V |
OSD language (10 countries) | English / Simplified Chinese / Traditional Chinese / Russian / Spanish / French / Italian / Portuguese / Japanese / Korean |
Video output | AHD/TVI/CVI/CVBS |
Video recording takes up space | 1 min ≈ 38 MB |
Operating Voltage | DC12V / 59mA ± 6mA (wide voltage 9V-18V) |
working environment | -20℃ ---50℃ |
Company Introduction
TT INT'L / HTW has performed a remarkable achievement in Security Field since its established in 2004, based in Shenzhen China over the decades, we experienced from the traditional CCD CVBS/SDI analogue camera period went through to the HD CMOS camera period, and till current popular 4K IP camera system and HD Cloud Home Wi-Fi Camera.
Our Services & Strength
With 15 years of manufacturing and exporting experiences in surveillance monitoring, TT/HTW has been focusing on its quality and services with best competitive prices ever since, with highly experienced R&D team, advanced SMT machines and professional management teams, combined together to guarantee the quality control system in order to deliver the only qualified products to our customers.
Certifications
FAQ
1. What's the MOQ?
MOQ 100 pcs. If you need less, it’s ok, but the price will be changed based on your quantity.
2. What is your quality warranty?
1 year warranty.
3. Should we use our logo/brand?
Yes, of course. OEM is absolutely supported.
4. What certifications do you have?
All electronic products are with CE and RoHS.
5. What’s the lead-time?
Normally it takes 5~7 working days after receiving payment (based on the actual quantity).
6. Are you factory or trade company?
We are manufacturer since 2004 located in Shenzhen, Guangdong, China.
7. Do you hold quantities in stock ready to ship?
Yes, we usually hold some quantities in stock, such as 100pcs or 200pcs are ready to ship.
8. What about your after-sale services?
We have 100% QC before shipment. If some unexpected problems happen, we hope to solve these problems with our customers through
friendly ways as below:
(1). If it’s quality problem, customers must provide photos or videos and other evidences to us for identify. After confirmation,
we’ll send the new products to replace the damages in next order.
(2). If it’s man-made damaged, customers should take full responsibility.
MOQ 100 pcs. If you need less, it’s ok, but the price will be changed based on your quantity.
2. What is your quality warranty?
1 year warranty.
3. Should we use our logo/brand?
Yes, of course. OEM is absolutely supported.
4. What certifications do you have?
All electronic products are with CE and RoHS.
5. What’s the lead-time?
Normally it takes 5~7 working days after receiving payment (based on the actual quantity).
6. Are you factory or trade company?
We are manufacturer since 2004 located in Shenzhen, Guangdong, China.
7. Do you hold quantities in stock ready to ship?
Yes, we usually hold some quantities in stock, such as 100pcs or 200pcs are ready to ship.
8. What about your after-sale services?
We have 100% QC before shipment. If some unexpected problems happen, we hope to solve these problems with our customers through
friendly ways as below:
(1). If it’s quality problem, customers must provide photos or videos and other evidences to us for identify. After confirmation,
we’ll send the new products to replace the damages in next order.
(2). If it’s man-made damaged, customers should take full responsibility.
