TPO fiber backed thermoplastic polyolefin waterproofing membrane

Product Overview

Description

flat roofing materials tpo waterproof membrane

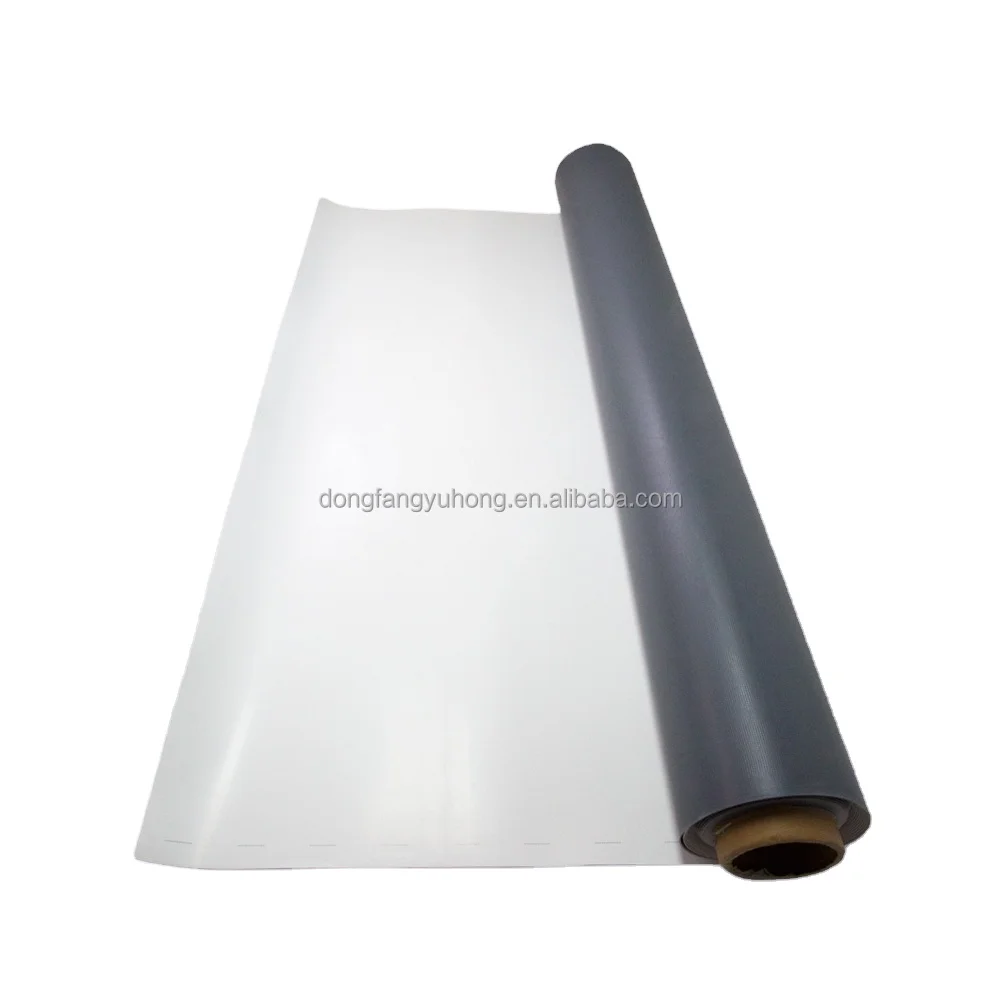

PMT-3020TPO is a waterproof sheet, consisting of thermoplastic polyolefin compound resin materials as the base stock, reinforced with fiber backing materials. There have two kinds of thickness: 1.2mm and 1.5mm.

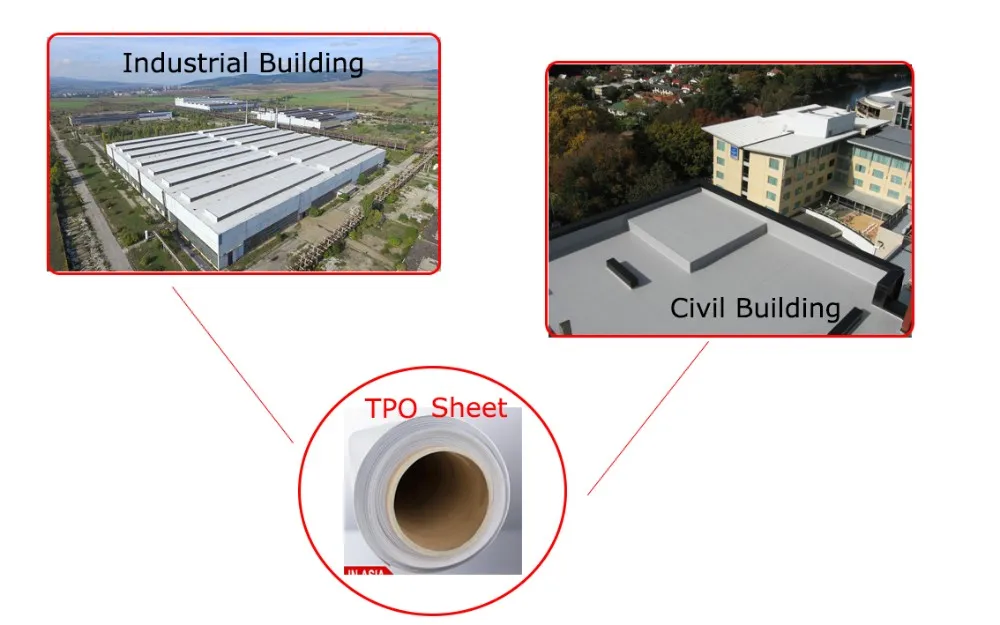

Various roofing waterproof projects, such as industrial and civil buildings, public constructions;

Full adhered system for concrete substrate or mechanically attached systems.



Weather resistance and durability;

Excellent weld ability;

No any crisp agents to prevent materials brittleness;

1. Intermediate enhanced polyester mesh fabric to have high tensile strength, fatigue resistance and penetrating resistance suitable for mechanically attached roofing systems;


2. Excellent the same high and low temperature resistance as rubber materials which can keep flexible at -50° C and keep mechanical strength in high temperature;


3. Excellent chemical resistance to acids, bases, and restaurant exhaust emissions;


4. Dimension stability;



   • White-based light-color and smooth surface with high reflection, energy saving and anti-dust functions;


   • Use heat welding for the seam areas to form a reliable seamless waterproof layer.







CE



Rolled with hard materials and packed with plastic bags or woven bags.

Above quantities are indicative only. We can produce it according to your demands.



PMT-3020TPO material should be stored in well-ventilated place and avoid being exposed to the sun or rain. The temperature in stored places can not be higher than 45° C. It only can be put horizontally in five-level. It has to be avoided acid, alkali, oil and organic solvents. The shelf life is 1 year.



PMT-3020TPO material should avoid inclination or lateral drift during transportation. When necessary, covering with felted fabric.



Application System

Yuhong not only provides TPO waterproofing membrane, but also dedicates to integrated roofing systems. Yuhong TPO single ply roofing waterproof system includes mechanically attached roofing system, fully adhered roofing system and ballasted roofing system.

Mechanically Attached Roofing System



Yuhong provide the completed line of compatible accessories and components, including fasteners, sealants, adhesives for membrane, cleansers, insulation, vapor retarders and flashing, etc.

Yuhong also provide economical and reliable roofing system designs for our customers according to their demands.



Application Methods

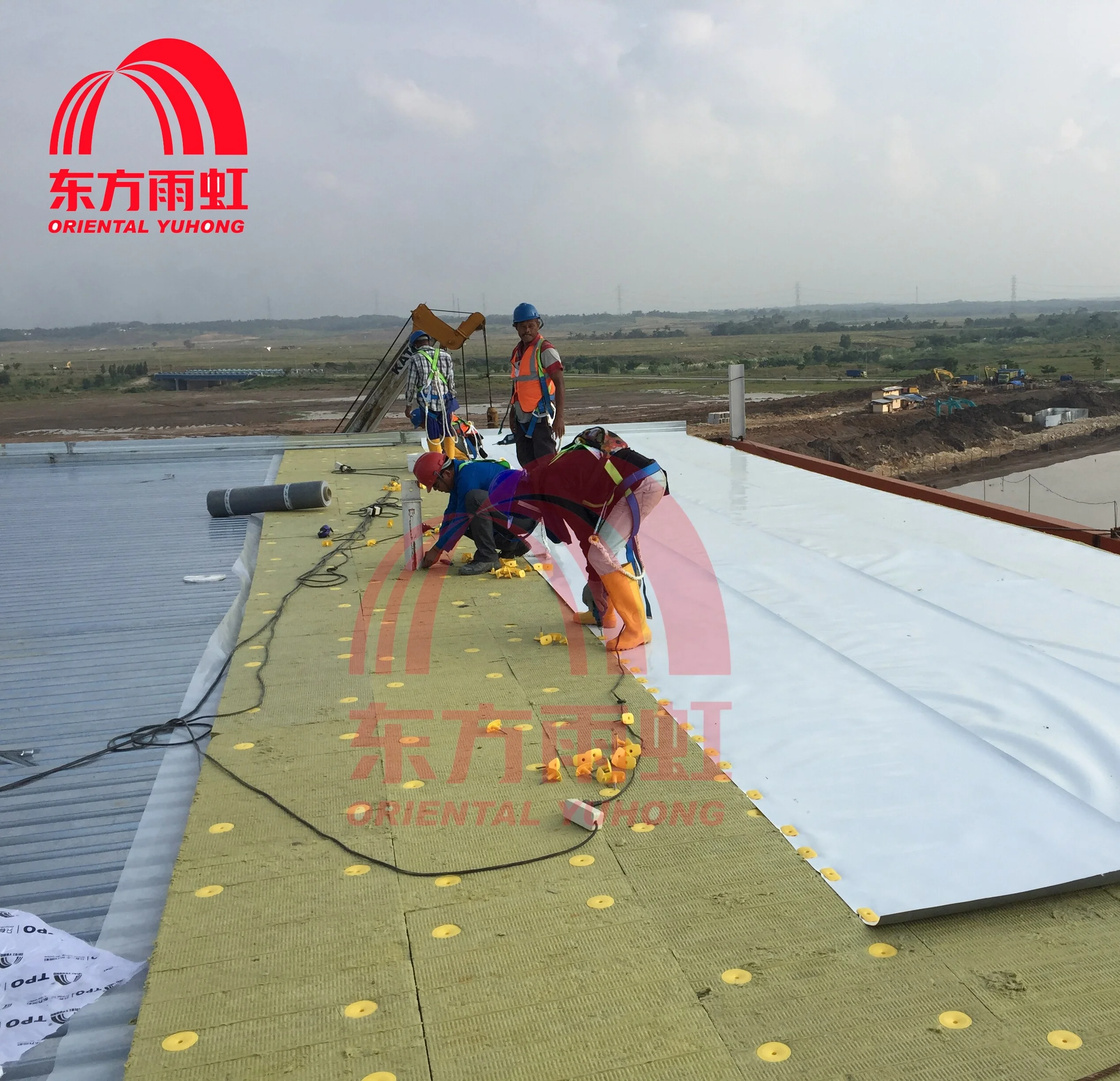

For Mechanically Attached Roofing System

Before application, spread TPO membranes on substrate in advance. Install TPO membranes perpendicular to steel deck ribs on the substrate without distortions according to the flange. The overlapping width is 120 mm. The minimum overlapping distance of membrane short side direction is 50 mm. Fasteners are installed according to designed position. Hot-air welding is adopted for laps with 40 mm welding width.



For Fully Adhered Roofing System

Before application, spread TPO membranes on substrate in advance. Install TPO membranes on the substrate without distortions according to the flange. The overlapping width should be more than 50 mm. Hot-air welding is adopted for laps with 40 mm welding width. Professional adhesives need to be used on both underside and substrate surfaces to adhere and maintain.



For Ballasted Roofing System

Before application, spread TPO membranes on substrate in advance. Install TPO membranes on the substrate without distortions according to the flange. The overlapping width should be more than 50 mm. Hot-air welding is adopted for laps with 40 mm welding width.



Attentions

1. TPO membranes reflect heat and light, wearing protective clothing (long-sleeved shirt, long-barreled trousers), and wearing a filter to protect the skin and eyes from UV-induced damage.


2. Security measures for roof perimeter are necessary when application. Sheet surface is slippery when wet, taking care to avoid slide.


3. Sealants and adhesives are flammable containing solvents. They will be dangerous when exposure to heat, even have the possibility to catch fire and explode.


4. Sealants, adhesives, cleaners should be avoided contacting with skin and eyes.


5. No smoking during application.
