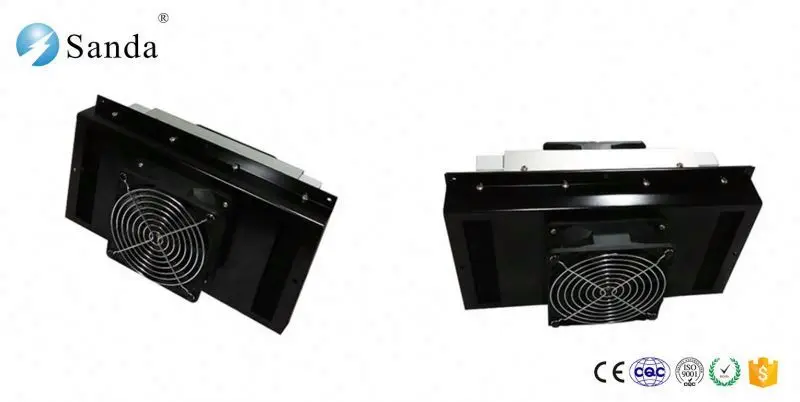

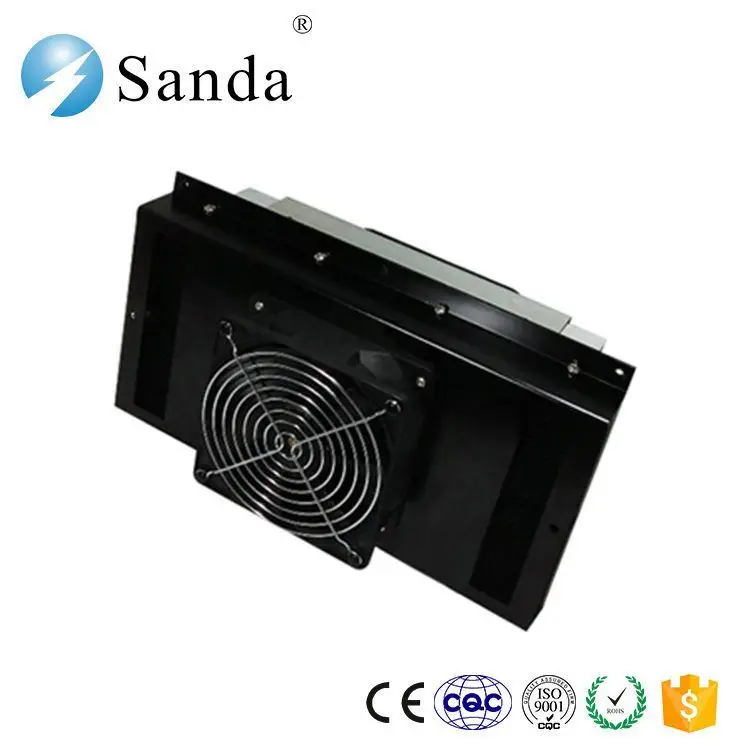

150W cooling capacity with long lifespan portable mini tent air cooler

150W cooling capacity with long lifespan portable mini tent air cooler

Thermoelectric air conditioner operate by the Peltier effect(which also goes by the more general name thermoelectric effect).The device has two sides,and when DC current flows through the device,it brings heat from one side to the other,so that one side gets cooler while the other gets hotter.The ' hot' side is attached to a heat sink so that it remains at ambient temperature,while the cool side goes below room temperature.In some applictions,multiple coolers can be cascaded together for lower temperature.

Performance Curve

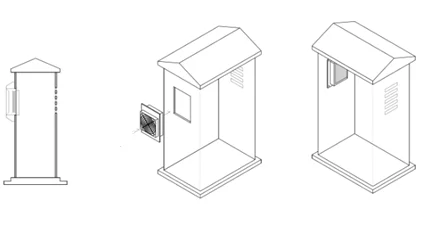

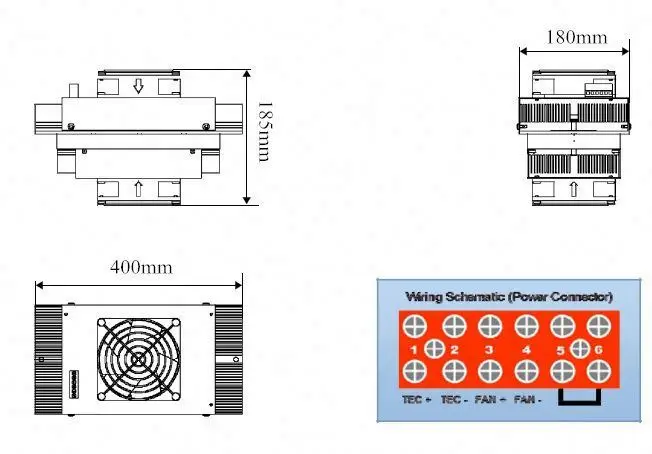

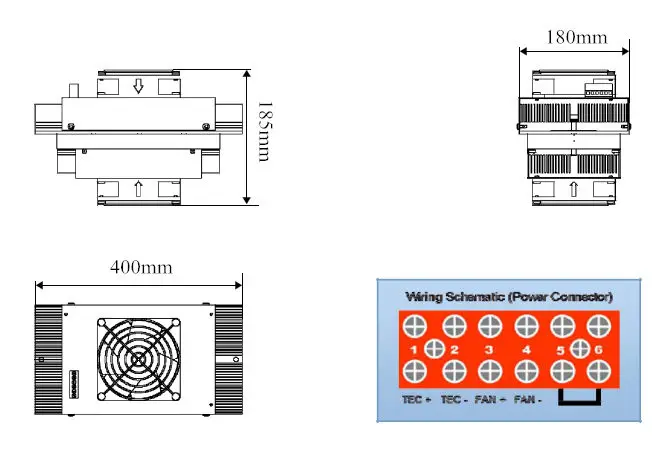

Drawing

1. The hot side of the thermoelectric cooler is mounted on the outside of the box

2. Use four M4 screws with flat washers to lock and  fix the air cooler;

3. Products need to be installed vertically(Heat sink fin is vertical;

4. Avoid to external shock and damage.

Fan blades and heat sink need to be kept clean to reduce the risk of heatsink overheating and

cooling power decrease.

Zhuzhou Sanda Electron Manufacturing Co.,Ltd is a modernized high-tech enterprise engages in the research, produce and supplier of intelligent instruments for electric power grid and switch cabinet.
   We design,produce and sell:
1. Multi-function electric meter, multi-function network meter, multi-function harmonic meter, digital ammeter, digital voltmeter.
2.Switchgear intelligent operating devices, switch state indicator.
3.Cabinet air conditioners, thermoelectric cooling units, TEC air conditioners and dehumidifiers.
4.Temperature and humidity controller, dry-type transformer temperature and humidity controller,dry-type cooling fans.

   Widely use in electricity facilities worldwide:
• Oil & chemical, mechanical
• Construction and are applicable for terminal body.
• High voltage switch cabinet, substation.
• Low voltage box
• Low-voltage AC power distributing cabinet
• Low voltage cabinet.
