RC tug boats brushless twin motor ESC 300A from ESC factory

Product Overview

Description

      RC tug boats brushless twin motor ESC 300A from ESC factory





 Feature:



 l   The firmware is upgraded recently .

l Battery voltage from 12V to 65V for super high voltage version.

l Two way communication while connecting it with computer.

l Motor wire can be checked  while Connecting the power battery.

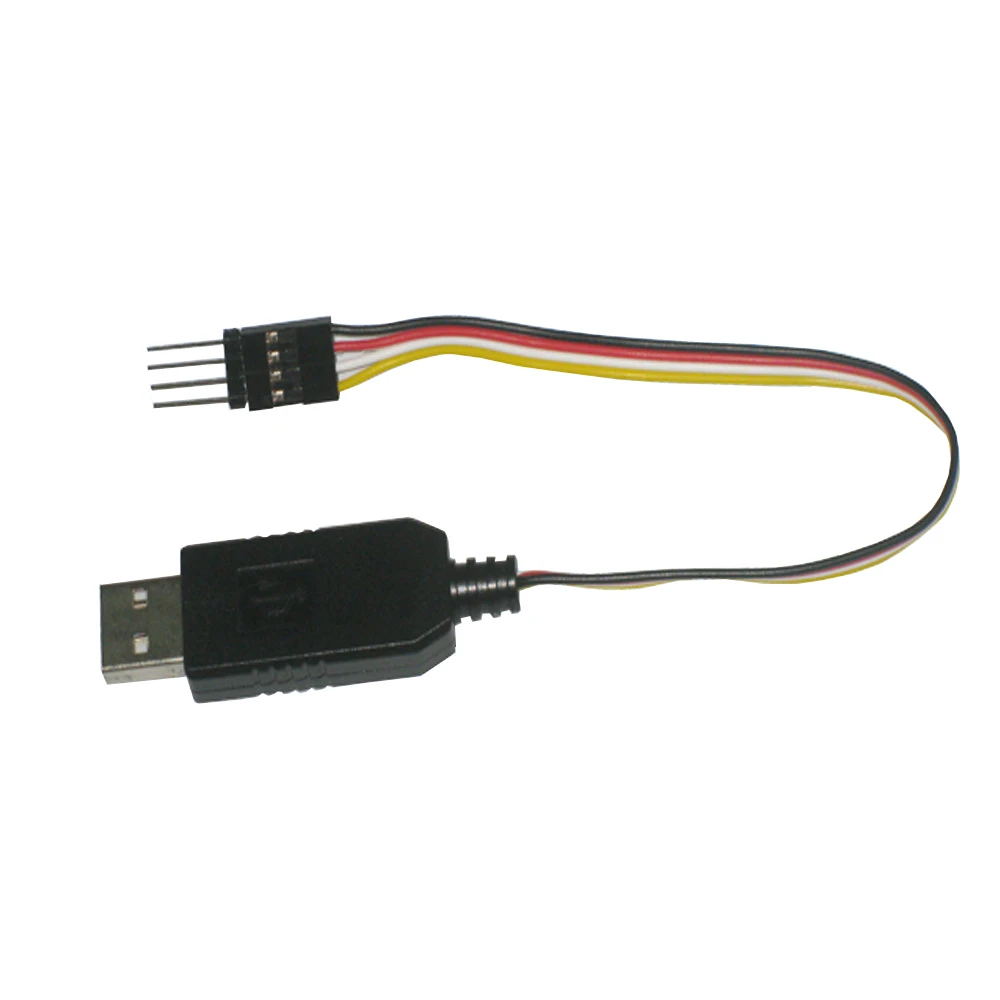

l Simply set function value by Prog-Box or by PC via USB link wire.

l Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.

l Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-.4-1.0V,LiFe from2.2-2.8V

l Reverse function. the delay time of reverse is adjustable.

l The power of the motor forward/ reverse can be set.

l Automatically detection the throttle route or can be set a fixed number by manual operation

l Auto cut off the power within 3 seconds if no radio signs.

Timing setting may be adjusted (0°-30°) to suit the motor type.



Setting function value:



1. Reverse: On/Off.



2. Timing:0°,1°,2°,3°,4°……30°.



3. Frequency: 8KHz, 16 KHz, 32 KHz.



4. Acceleration:  Soft / Medium / Hard.



5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.



6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.



7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.



8. LiIo/Pol  CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.



9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V



10. Cut Off  Type::Slow down,Hard. l



11. Power limited forward: Off, 75%, 50%, 25%.



12. Power limited reverse: Off, 75%, 50%, 25%.



13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.



14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.



15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.



16. Throttle curve: Logarithmical,Linear,Exponential.



17. Rotation direction: Left, Right.



18. Timing monitor (TIMING MONTITOR): ON, Off.



 Note:the red mark is the factory default value,you can setting function value by youself.

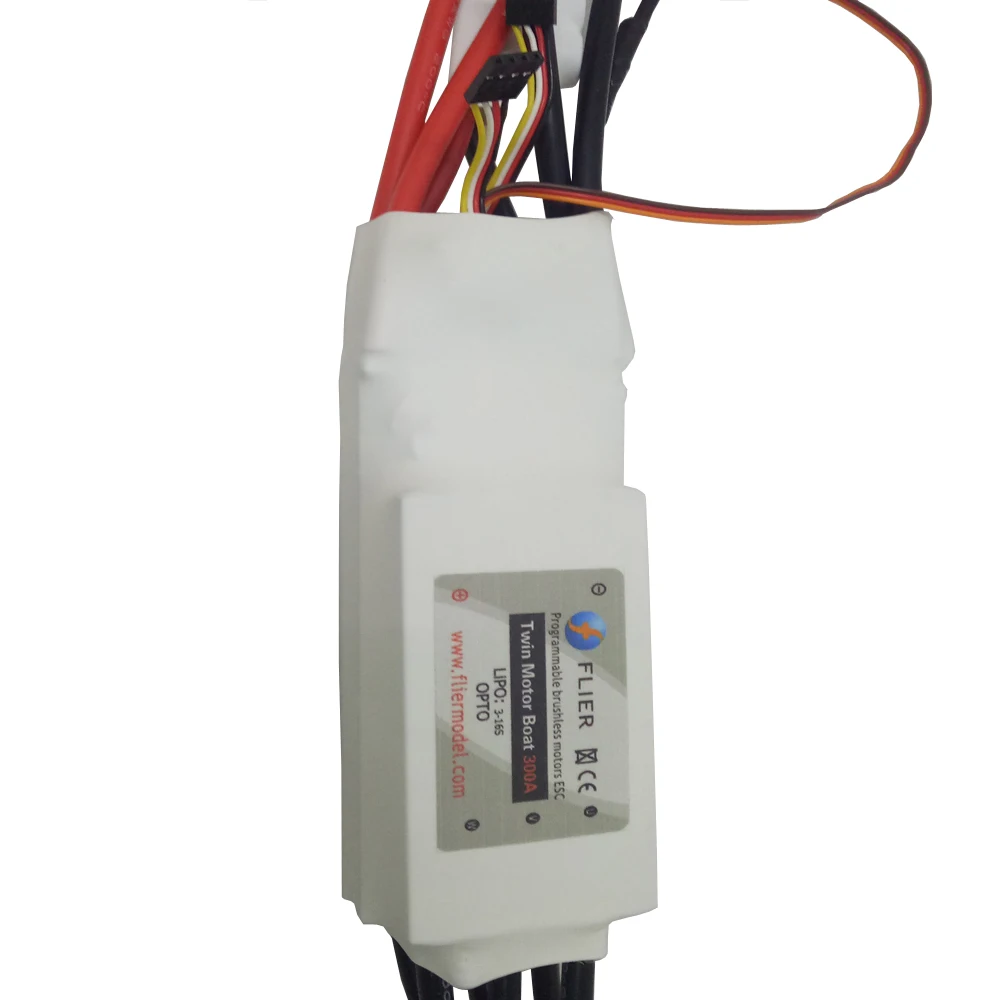

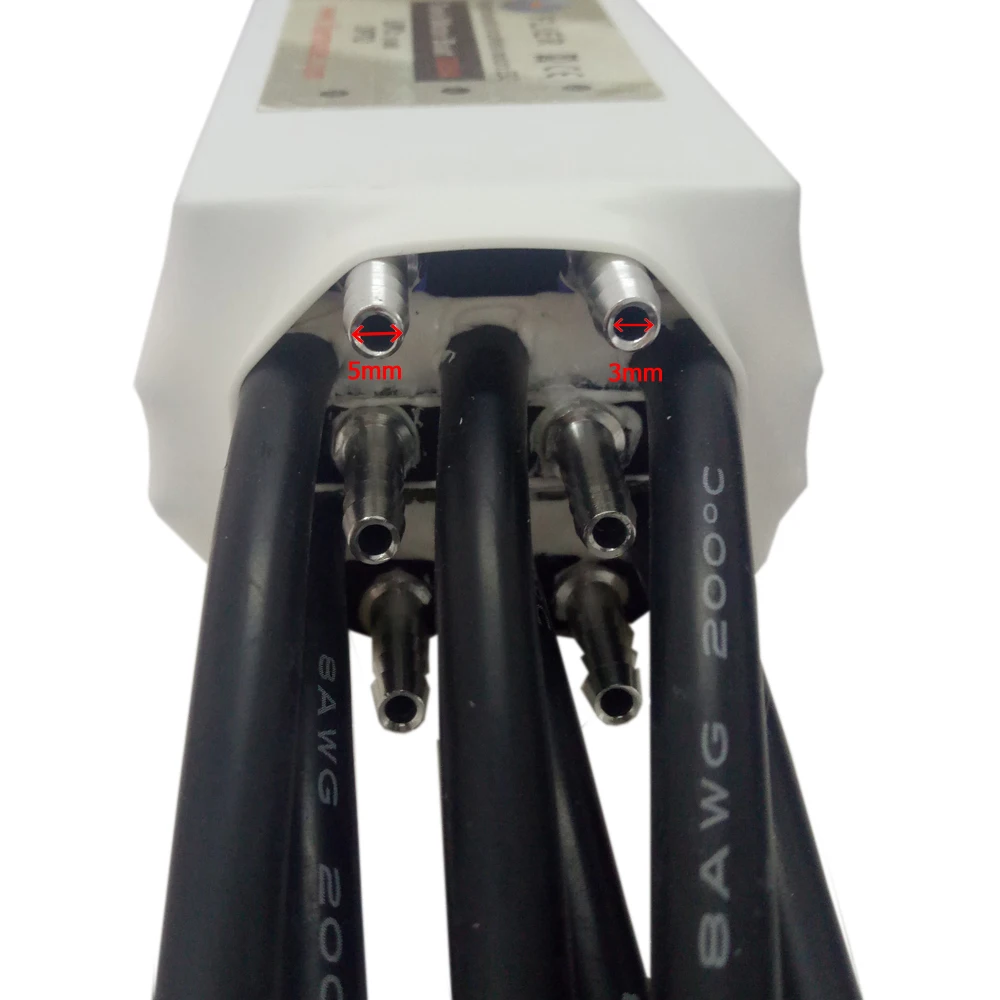

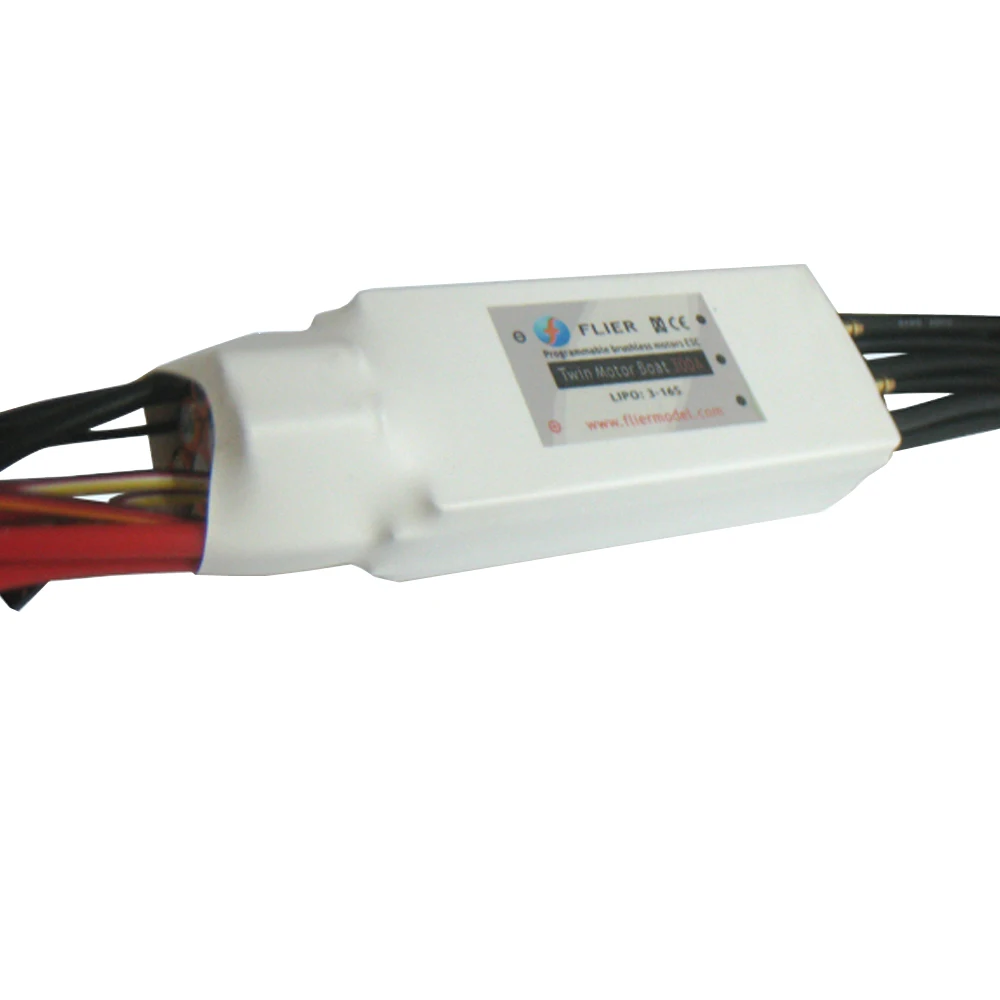

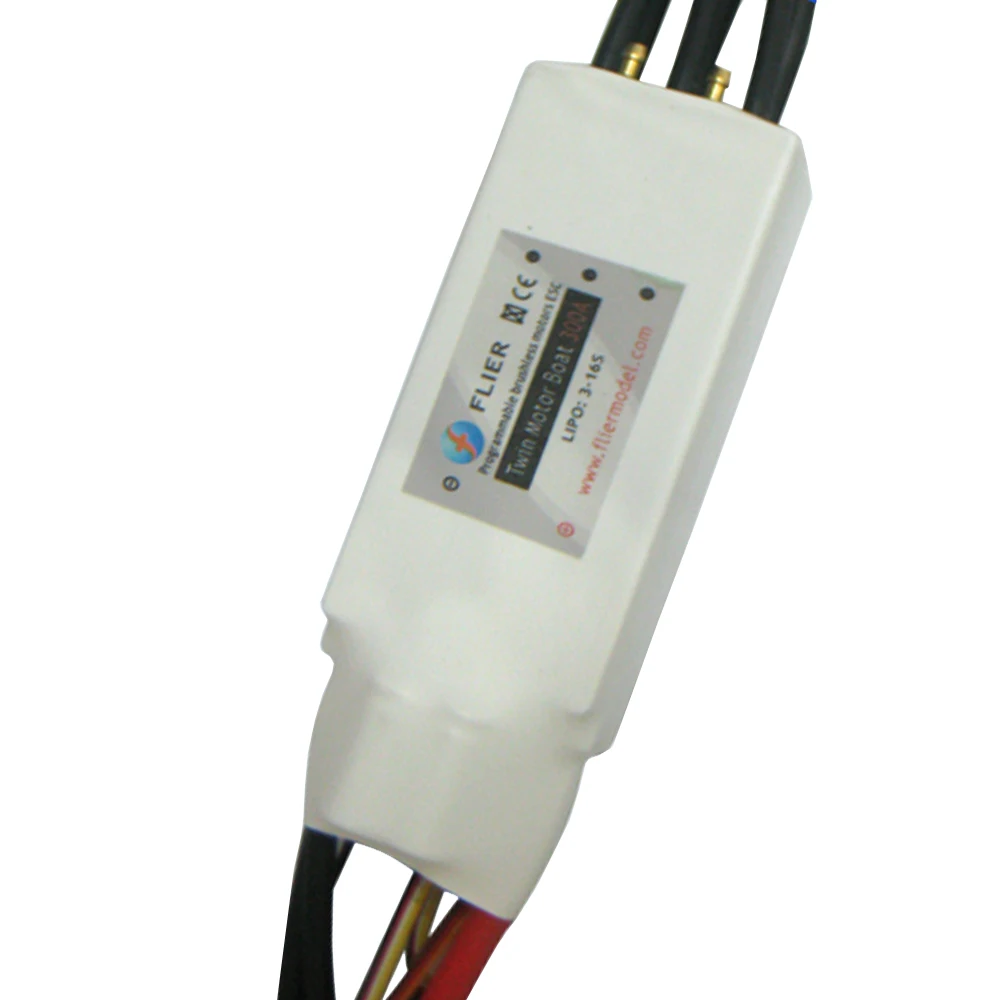

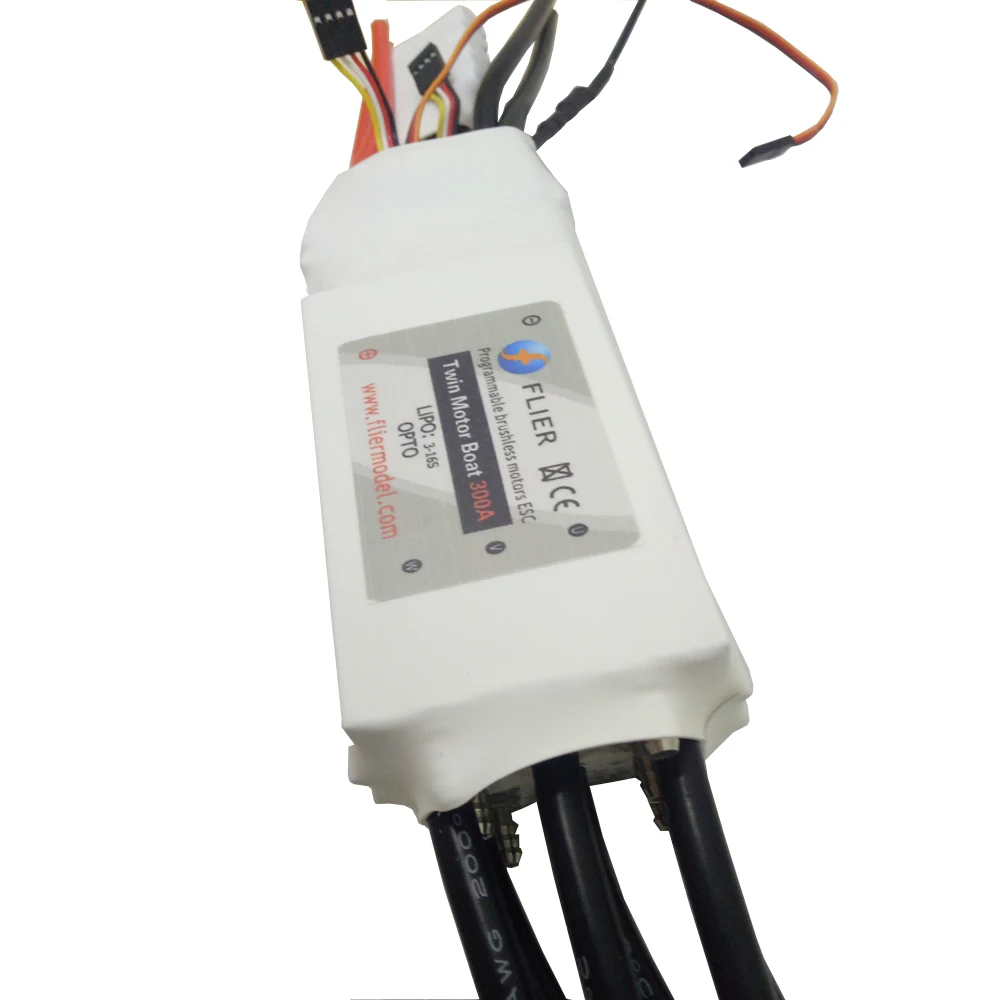

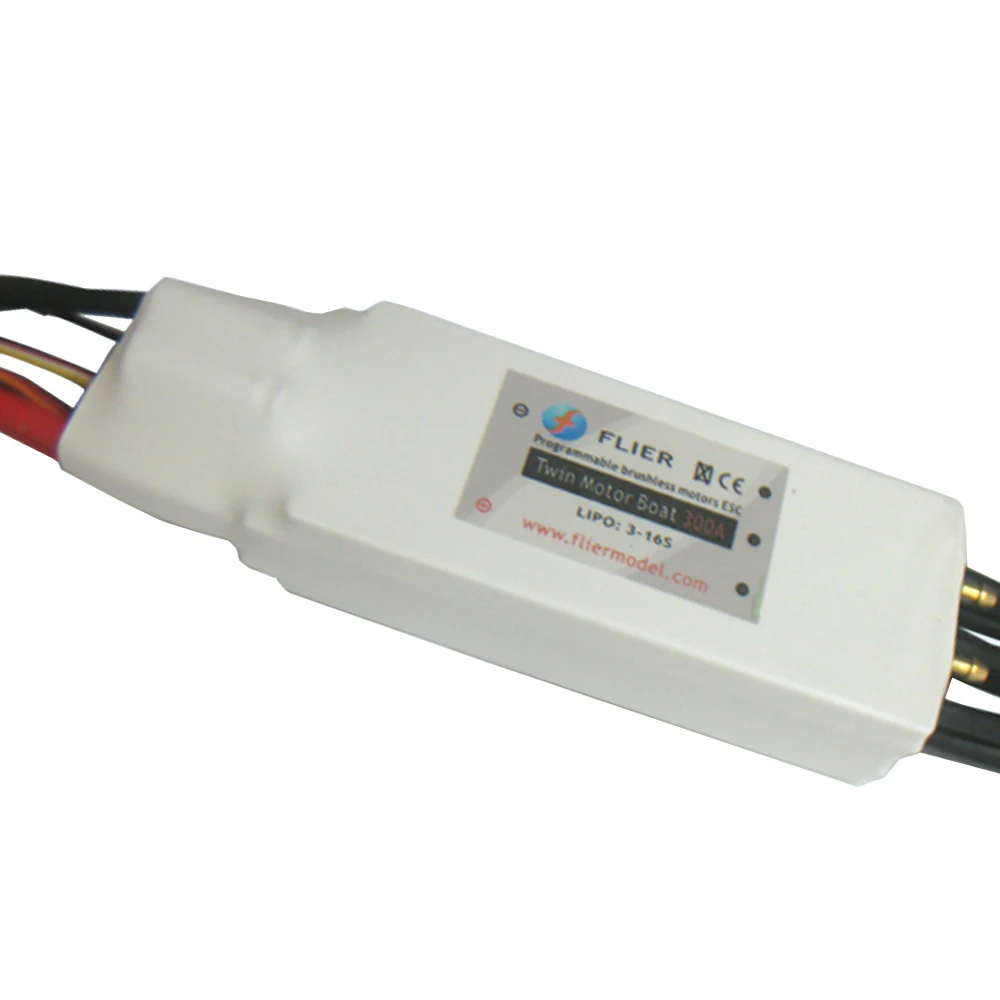

 Pictures:





How to connect it?



Trade Terms



1.Payment :T/T ,Paypal,West union .

2.Production lead time :5 days for 100-200 pcs ,10days for 200-300pc

3.Sample can be delivered within 3 days.

4.Discounts are offered based on order  quantities .

5.MOQ: 2 pcs



Shipping&Return:



1. Items will be shipped within 3 business day after payment completed received.

2. Items are shipped from DHL Express ,UPS ,EMS,, reach most of the countries within 3-7 days respectively.

3. Warranty Period is 2 yrs for this item.

4. If product can not work, or find it as defects within in 7 days after receipt, please contact us, we will replace or refund.

5. All emails will be answered within 1 working day.
