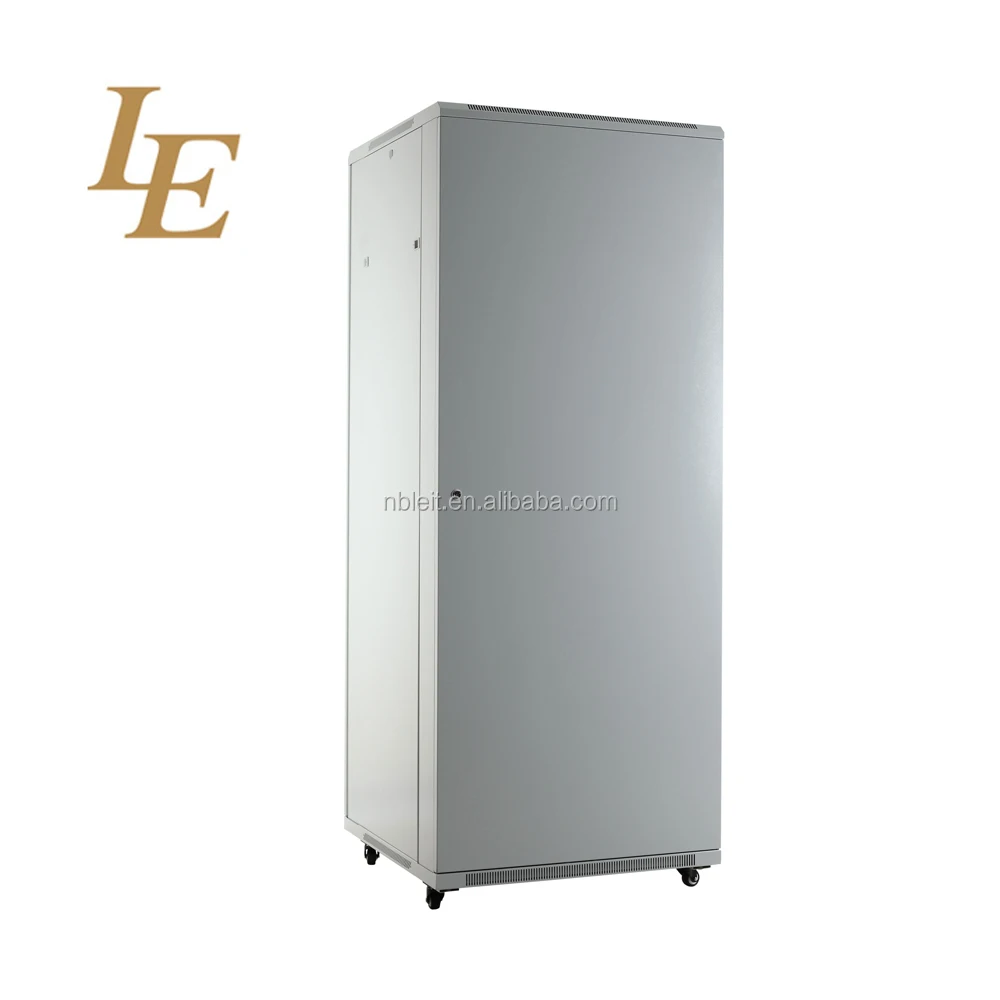

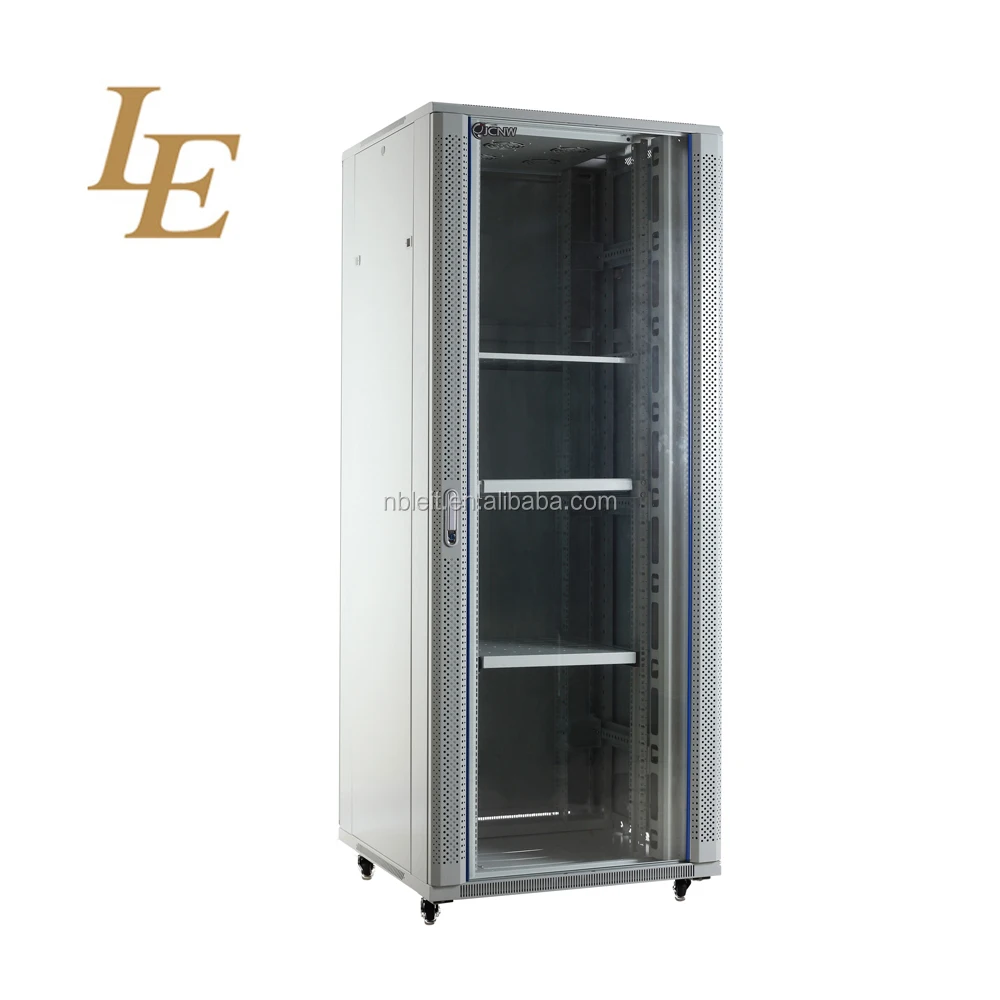

Data Center Network Cabinet Server Rack 18U 24U 32U 37U 42u 19 Inch

Product Overview

Description

 General description of 18U 24U 32U 37U 42u 19 Inch data center network cabinet server rack

  1.Excellence quality with disassembled structure,can be flat packing and easy to transport;
  2.Steel front and rear door each with advanced spring lock and small round lock;
  3.Removable side panel with latches, easy to install, optional lock;
  4.Cable entry on the top and bottom;easy to manager cable;
  5.Adjustable feet and castors are available simultaneously;
  6.S-shaped mounting profile, free to move forward and back;
  7.Various optional accessories for common using;

Standard	ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard
Material	SPCC quality cold rolled steel Thickness:mounting Profile:2.0mm,Others:1.2mm Tempered glass Thickness:5mm
Loading Capacity	Static loading: 800kg(on the adjustable feet)
Degree of protection	IP20
Surface finish	Degreasing,Pickling,Phosphating,Powder Coated
Product specification	18U-47U
Width	600mm,800mm
Depth	600mm,800mm,900mm,1000mm,1200mm
color	Ral9004; Ral9005; Ral7035
