Water Filling Machine HS Code
- Category: >>>
- Supplier: Zhangjiagang Fillex Beverage Machinery Co. Ltd.
Share on (60624886963):
Product Overview
Description
Product Description

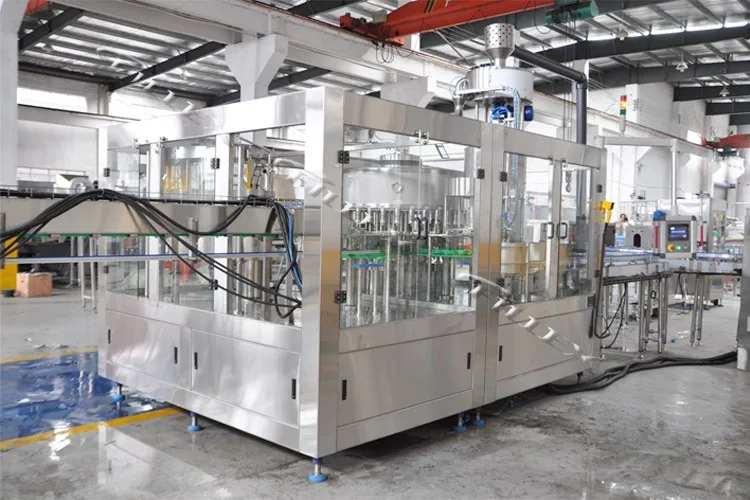

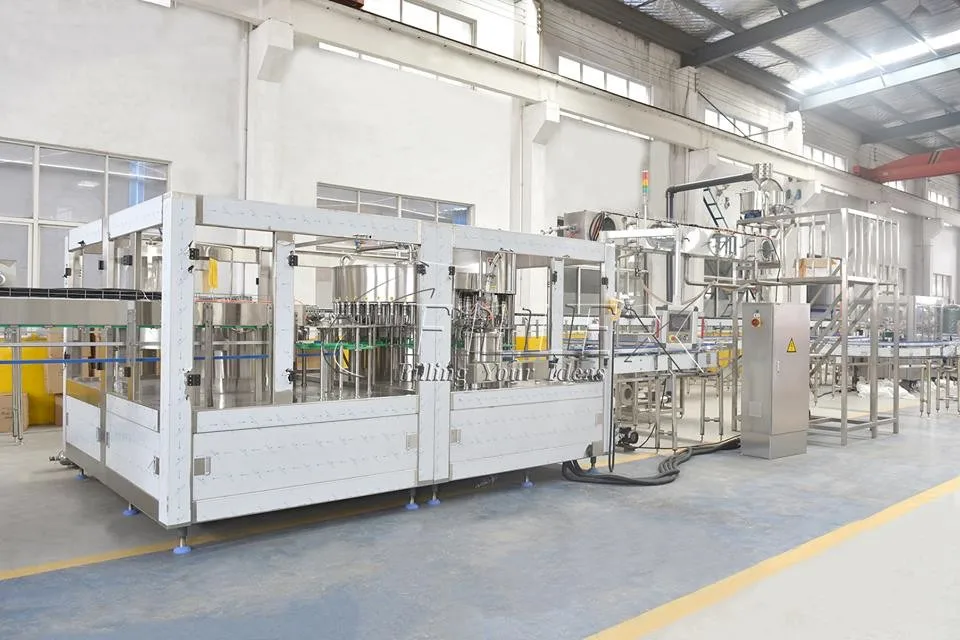

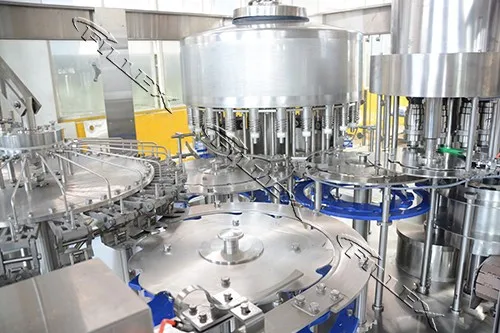

Fully Auto PET Round Bottle Water Filling Machine
This water filling machine has washing,filling,capping three functions in one body,total process is automatic.
Bottles are transferred to water filling machine through poking bottle star-wheel.The bottle is hold by neck holding
plate after it is in the bottle filling machine. The filling valve ascends and descends by the action of cam. It applies pressure filling method. When filling valve descends and touches bottle jack, it opens and finishes the filling course, when finished, the filling valve ascends and leaves the bottle while the bottle is transferred into capping machine through transition star-wheel that clamps bottle neck.
SPECIFICATIONS FOR WATER FILLING MACHINE | ||||||||||
Model(RFC-W) | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-8 | 40-40-10 | |||||
Capacity(BPH) | 5000 | 8000 | 12000 | 15000 | 18000 | |||||
Suitable to Bottle Shape | Round and Square container Bottle diameter: 50-120mm Bottle Height: 160-320mm | |||||||||
Drive Motor(KW) | 2.42 | 3.12 | 3.92 | 3.92 | 5.87 | |||||
Water Consumption(T/H) | 1.5 | 1.5 | 2 | 2 | 3 | |||||
Compressed air Consumption(m³/min) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |||||
Dimension(L*W*H)mm | 2360*1770*2700 | 2760*2060*2700 | 2800*2230*2700 | 3550*2650*2700 | 4700*3320*2700 | |||||
Detailed Images

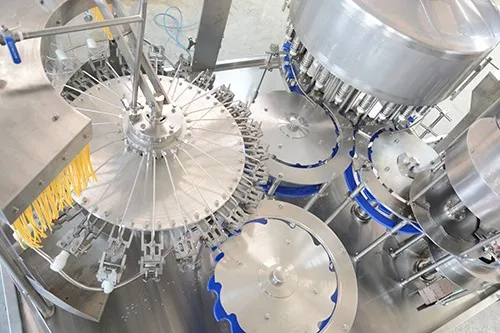

Rinser
l. The rotary wheel is a fully stainless steel welded structure.

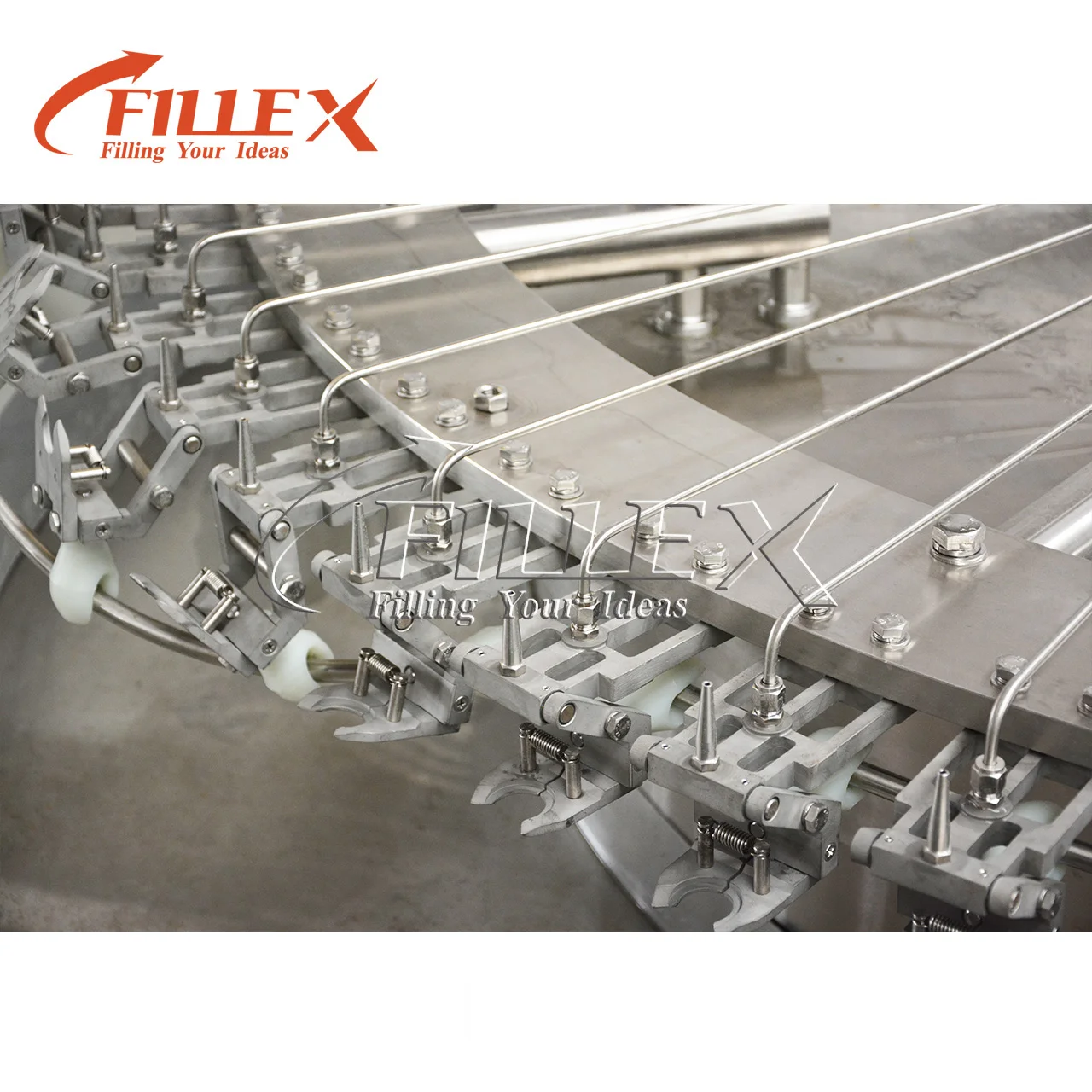

2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp
grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a
traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner
wall, and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Transfer starwheel
7. Made of stainless steel of superior quality.
8. Equipped with bottle jam protection device.

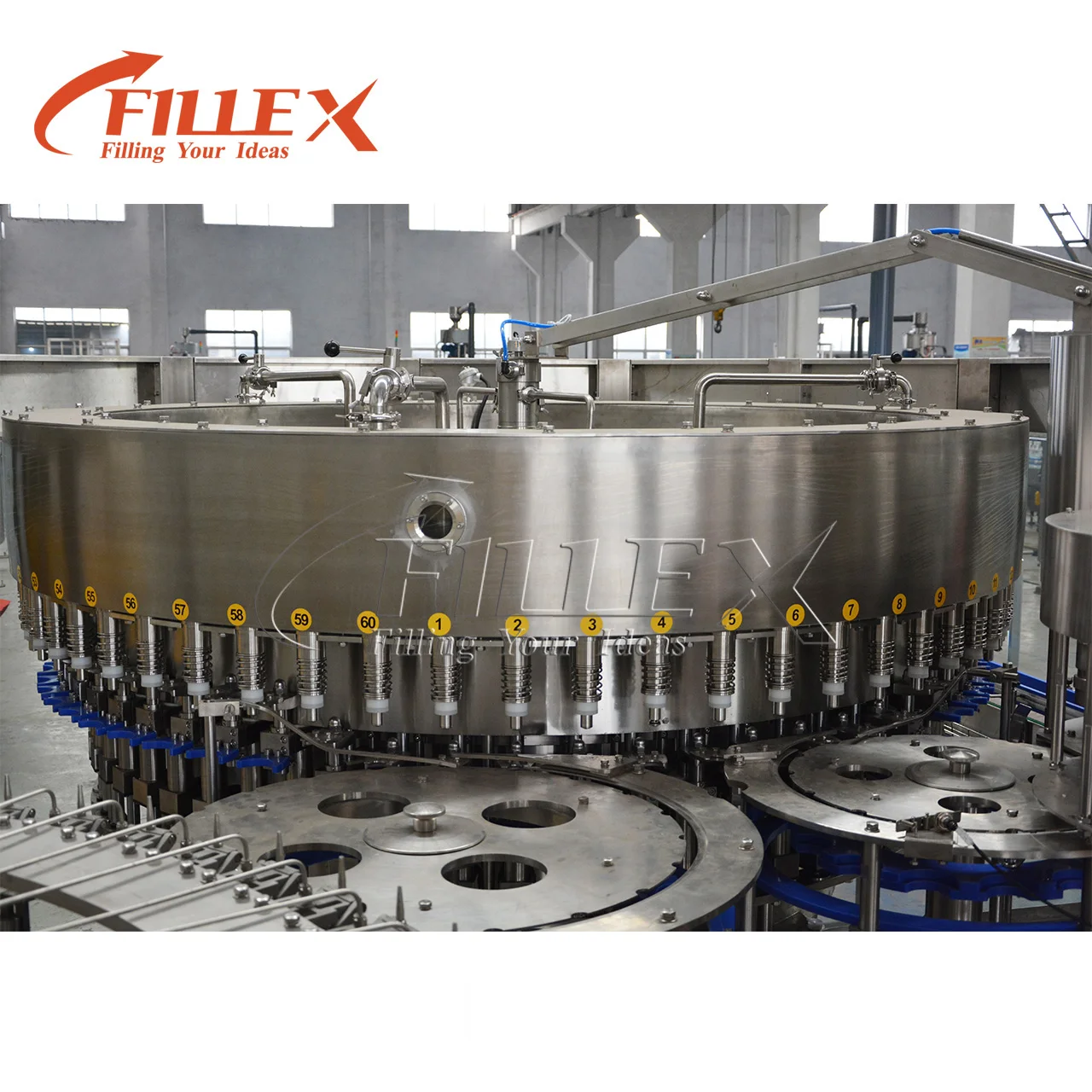

Filler
l. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.

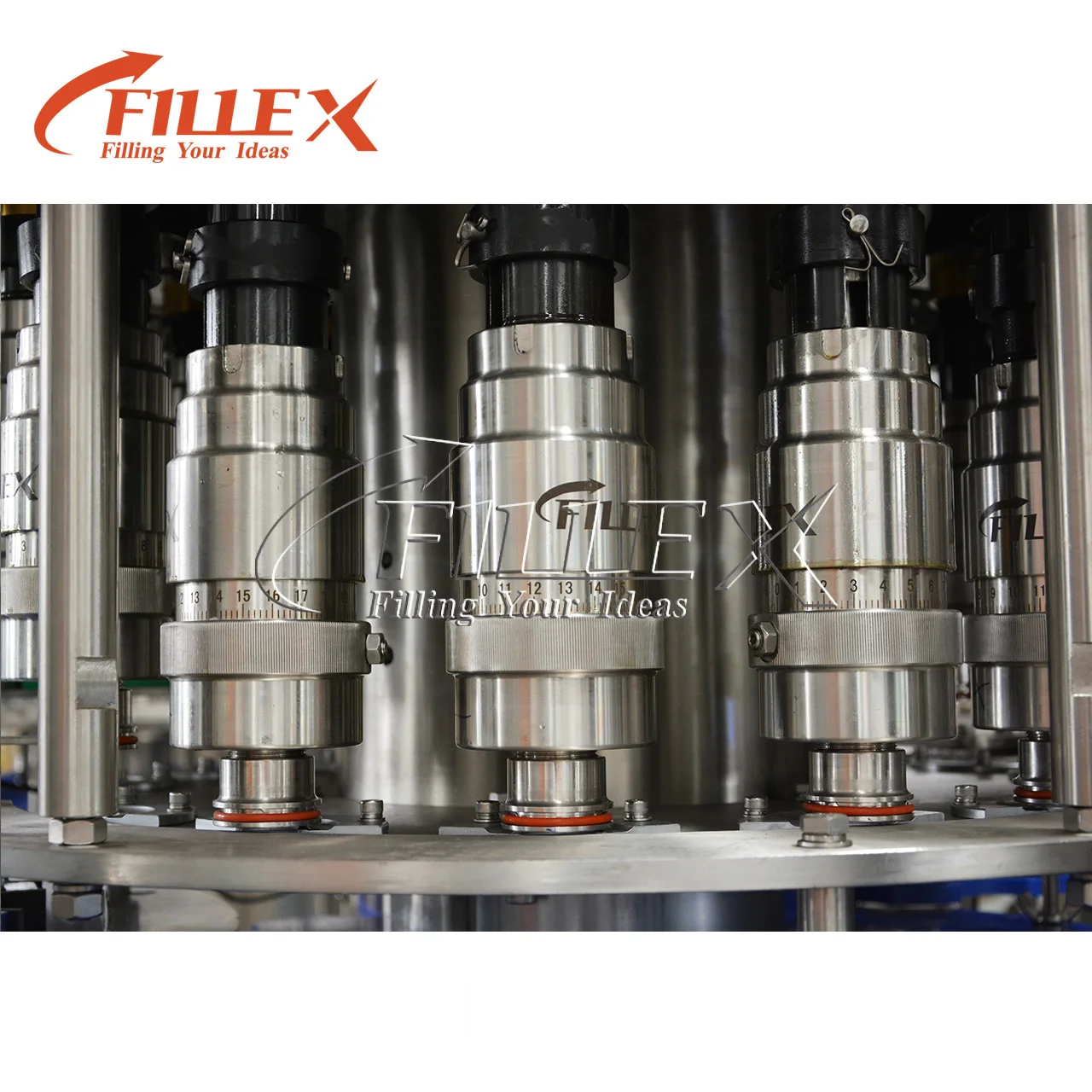

3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
6. Level of cylinder is controlled with float-ball.
7. Filler is driven through gears inside the machine frame.
8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
