Серия CB, 9,52 мм, синий медный охлаждающий конденсатор

Product Overview

Description

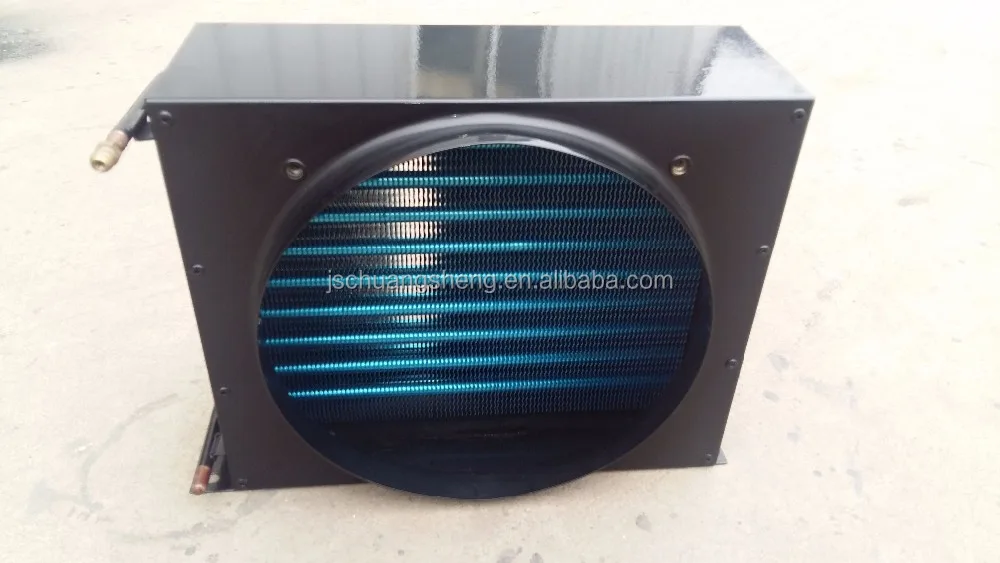

CB series air cooled condenser

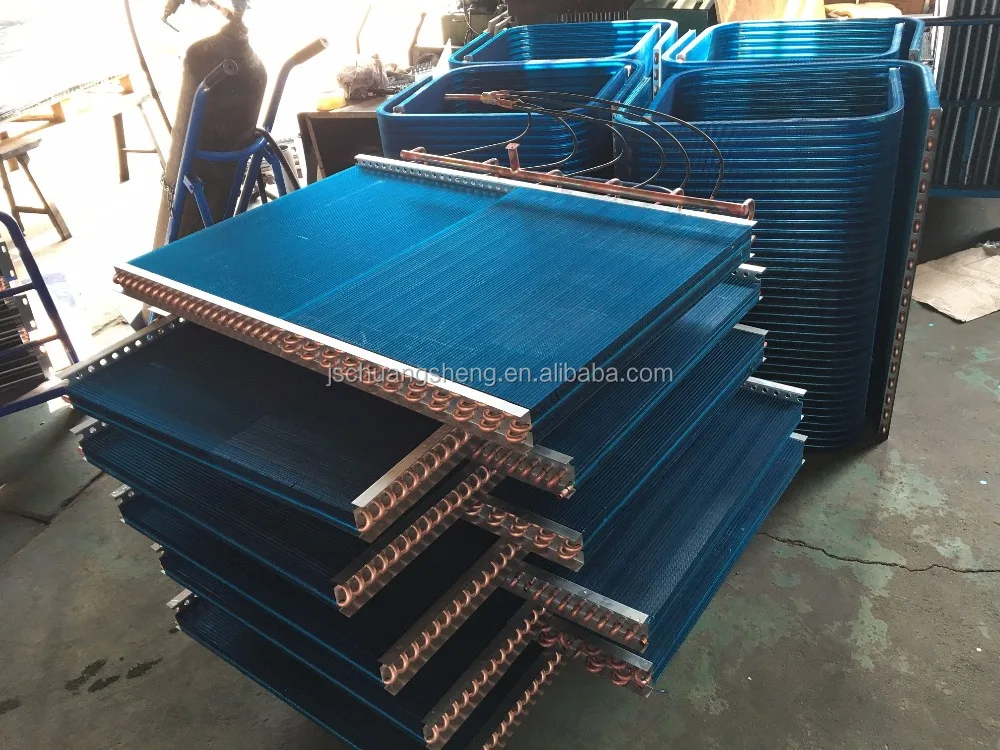

(Blue fin,9.52mm copper tube, 1-3 ventilators, tube space 21.65x25mm, galvanized steel casing with black painting, optional paint & fans)

Model	Tubes No	Capacity DT1=15K		Fin Spacing	Surface	Ventilator		Dimension (mm)				Connection
		(HP)	(KW)	(mm)	(m2)	No x Φmm	Air Flow	A	H	W	L	Inlet	Outlet
CB-1/4HP	2 x 10	1/4	1.33	3.17	2.1	1 x 250	1100	360	281	102	300	3/8"	3/8"
CB-1/3HP	3 x 10	1/3	1.75	3.17	3.1	1 x 250	1100	380	270	120	300	5/8"	3/8"
CB-1/2HP	4 x 10	1/2	1.99	3.17	4	1 x 250	1100	380	270	140	290	5/8"	5/8"
CB-3/4HP	4 x 12	3/4	3.33	3.17	5.8	1 x 300	2050	450	370	152	350	5/8"	5/8"
CB-1HP	4 x 14	1	4.19	3.17	7.7	1 x 300	2050	490	370	152	400	5/8"	5/8"
CB-1.5HP	4 x 16	1.5	6.3	3.17	11	1 x 350	3110	600	422	182	500	5/8"	5/8"
CB-2HP	4 x 18	2	9.02	3.17	14.8	1 x 400	4235	660	473	182	600	5/8"	5/8"
CB-2.5HP	5 x 18	2.5	10	3.17	18.5	1 x 400	4235	710	473	200	600	3/4"	5/8"
CB-3HP	6 x 18	3	11.66	3.17	22.2	1 x 400	4235	710	473	234	600	3/4"	5/8"
CB-4HP	6 x 22	4	14.23	3.17	27.1	1 x 400	4235	710	575	234	600	3/4"	5/8"
CB-5HP	4 x 30	5	17.22	2.83	36.8	1 x 450	5600	910	780	215	800	3/4"	5/8"
CB-3HPCD	4 x 16	3	12.87	2.83	24.5	2 x 350	6220	1110	420	182	1000	3/4"	5/8"
CB-4HPCD	4 x 20	4	16.07	2.83	30.6	2 x 350	6220	1110	525	182	1000	3/4"	5/8"
CB-5HPCD	4 x 24	5	19.27	2.83	36.8	2 x 400	8470	1110	625	195	1000	3/4"	5/8"
CB-6HPCD	4 x 26	6	25.1	2.83	47.8	2 x 400	8470	1310	680	195	1200	3/4"	5/8"
CB-7.5HPCD	4 x 32	7.5	30.87	2.83	58.8	2 x 450	11200	1310	830	215	1200	7/8"	5/8"
CB-10HPCD	4 x 32	10	39.2	2.83	78.3	2 x 500	15800	1710	830	230	1600	1-1/8"	7/8"
CB-12HPCD	4 x 36	12	44.6	2.83	88.2	2 x 630	25600	1710	928	230	1600	1-3/8"	1-1/8"
CB-15HPCD	4 x 36	15	50.2	2.83	99.2	2 x 630	25600	1910	928	230	1800	1-3/8"	1-1/8"
CB-18HPCD	4 x 36	18	60.6	2.83	121.5	3 x 500	23700	2090	928	230	1980	1-3/8"	1-1/8"
CB-20HPCD	4 x 42	20	66.2	2.83	131.4	2 x 710	40600	2110	1075	227	2000	1-5/8"	1-3/8"
CB-25HPCD	4 x 42	25	72.8	2.83	142.9	2 x 710	40600	2310	1075	227	2200	1-5/8"	1-3/8"
