Magnetic Stirring Tank With Bottom Magnetic Stirrer
- Category: >>>
- Supplier: Shanghai Gorun Machinery Technology Co. Ltd.
Share on (60625074505):
Product Overview
Description
Product Description

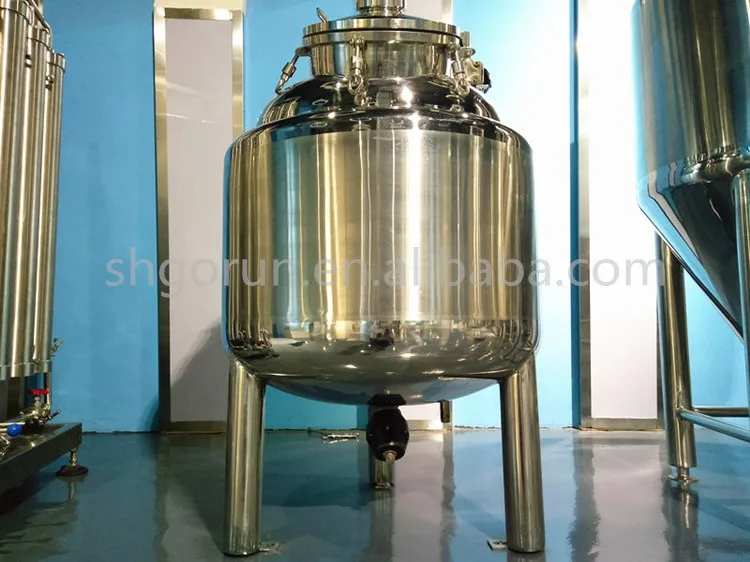

Magnetic Stirring Tank With Bottom Magnetic Stirrer
Introduction :
Magnetic agitation tank is composed of tank body and a magnetic agitator. All the
parts are made of high quality acid resistant stainless steel ( 304 or 316L ) and
conform to GMP standard. The inner surface adopt mirror polish. The tank bottom
use arcdesign, which makes no dead angle of the tank. The inlet design makes a continuous
filling possible. The outlet design is good for discharge process. The structure of tank
adopt oval tan top ad standard tank jacket. There is a magnetic agitator at the bottom.
The agitator has the advantage of small distance from the tank bottom, low requiement
of liquid level. As a result, the is no precipitation problem and solve the problem of top
mixer requires a minimal liquid level.
Working Principle:
The magenetic agitating is an application f a magnetic coupling. Beucase the repulsion
between the different poples of the magnetic material, we drive the magnetic agitator
by continuous changing the polarity of the magnetic base. The shaft of motor and reducer
connect with the inner magnetic ring. The agitation shaft connected with the out magnetic
ring . The out magnetc ring rotates with the inner magnetic ring, and make the agitation
shaft rotate according , The inner ring and outer ring are sapareted by a seal cover. The
ractor cavity and the out environment are separated by the seal cover. So it is one of the
most reliable No-leak design, and a necessities for no-leak reactors.
Main technical parameters
| Model | Motor(kw) | Volume(L) | Speed(r/min) |
| GRMS-20 | 0.2kw | 50-200L | 120-1400 |
| 0.4kw | 50-200L | 120-1400 | |
| GRMS-40 | 0.55kw | 200-500L | 120-1400 |
| 0.75kw | 200-500L | 120-1400 | |
| GRMS-60 | 1.1kw | 500-1000L | 120-1400 |
| 1.5kw | 500-1000L | 120-1400 | |
| GRMS-80 | 1.5kw | 800-2000L | 120-1400 |
| 2.2kw | 800-2000L | 120-1400 | |
| GRMS-100 | 3kw | 1500-3000L | 120-1400 |
| 4kw | 1500-3000L | 120-1400 | |
| GRMS-120 | 4kw | 2000-5000L | 120-1400 |
5.5kw | 2000-5000L | 120-1400 | |
| GRMS-140 | 7.5kw | 3000-100000L | 120-1400 |
Company Information
1.OUR COMPANY
1.Shanghai Gorun Machinery technology Co,. Ltd derived from Shanghai Geshi filtration company which is founded on 1993.
2.It is committed to the installation and commissioning of pharmaceutical, food, chemicals, electronics and other industrial equipment design, production and supporting the project.
3.Our core product is certficated by authority third-party,meet GMP ,America FDA standard,CE,ISO900,SGS,TUV.
4.There is a professional workshop with 6000 square meters area speaically to manufacture these equipments.
5.Main products:CIP system,Water treatment system,Stainless steel tanks,Heat exchanger,Filteration equipment,Filter cartridge.
.
2.OUR TEAM
Our company has a fine business, to understand management, innovation and courage, love and hard work of the workforce, have an age with a reasonable level of education a wealth of technical personnel.
3.OUR CUSTOMERS
Our customers are from all over the world. Customers favorable comments based on our high-quality products, professional and efficient services.
Related Products
1.Stainless steel tanks(with agitator,heating,cooling,emulsifying,storage etc)
2.Filter cartridges and filter housings
3.Water purification RO pure water system
4.CIP cleaning system
5.Tube and shell heat exchanger
6.Special customized system
Packing and delivery
Services and FAQ
Per-sale service:
♦ We would like to supply you all the details you need.
♦Provide drawings according to your requirements after we get your company information.
♦ Make customized products according the drawings.
After-sale service:
♦Provide lifetime after-sale technical support.
♦If necessary,our technicians can go to debug the machine with air ticket,visa,accommodation and labor cost provided by your party.
♦ You can consult any relevant questions by phone,E-mail and communicate online.
FAQ
| Q: Are you manufacturer or trading company? | A: Gorun is a professional manufacturer. |
| Q: What is your business scope? | A: Medicine, Food, Beverage, Dairy ,chemical and cosmetic industries. |
| Q: How could we confirm the details of the products? | A: Gorun will provide all technical support for you to confirm,and the drawings also send you for free if we get your company information. |
| Q: How long the warranty will be? | A: 1 Year warranty. |
| Q: How about the installation? And what if the machine goes down | A: There are two options: a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. b. On-line service will be provided.Its easy to installate because we will dibug it when we send it. |
| Q:Whats the payment terms? | A: T/T,D/A,D/P,L/C,western union,paypal,cash etc. |
| Q: Can we become your distributor in our country? | A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent. |
