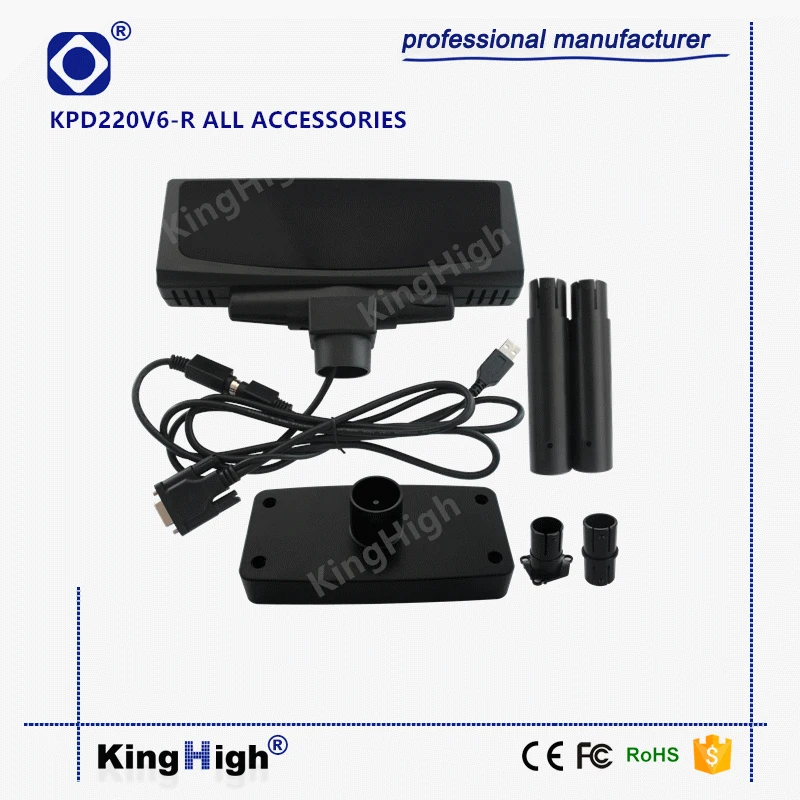

POS Customer Display Unit RS232 Port POS System VFD Display KPD220V6-R

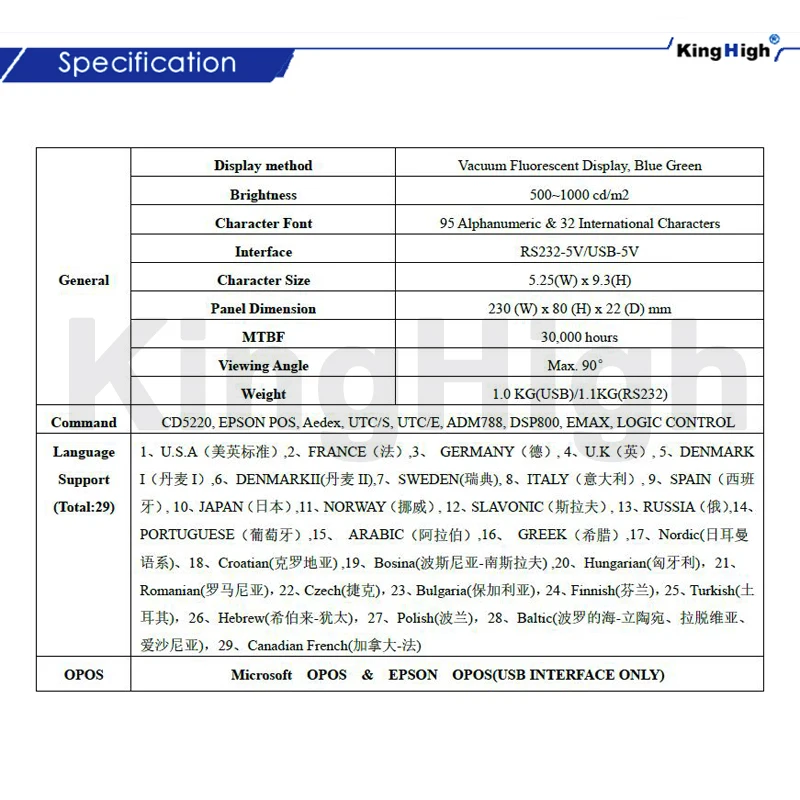

General	Display Method	POS Customer Display RS232 Port VFD Display
	Number of Characters	20x2 for 5x7 dot matrix
	Brightness	350-700cd/m2
	Character Font	95 Alphanumeric & 32 International Characters
	Interface	RS232
	Character Size	5.25(W)x9.3(H)
	Dot Size(X*Y)	0.85*1.05mm
	Dimension	200*72*24
	Power	5VDC
Command	CD5220, EPSON POS, Aedex, UTC/S, UTC/E, ADM788, DSP800, EMAX, LOGIC CONTROL
Language Support (Total:29)	1,U.S.A; 2,FRANCE; 3,GERMANY; 4,U.K; 5,DENMARK I; 6,DENMARK II; 7,SWEBEN; 8,ITALY; 9,SPAIN; 10,JAPAN; 11,NORWAY; 12,SLAVONIC; 13,RUSSIA; 14,PORTUGUESE; 15,ARABIC; 16,GREEK; 17,Nordic; 18,Croatian; 19,Bosina; 20, Hungarian; 21,Romanian; 22,Czech; 23,Bulgaria; 24,Finnish; 25,Turkis; 26,Hebrew; 27,Polish; 28,Baltic; 28,Canadian French;



















1. SCOPE

This specification applies to VFD POS Customer Display USB Port POS Display Pole

VFD Display (Model No: KPD220V6-U) manufactured in CHINA.





2. FEATURES

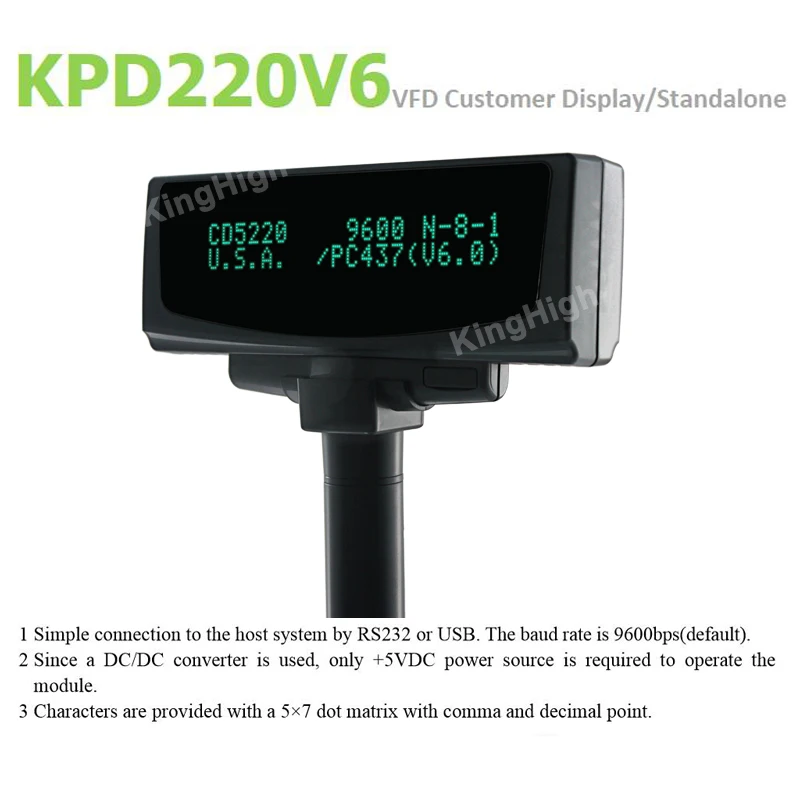

2.1 Simple connection to the host system by RS232. The baud rate is 9600bps(default).

2.2  Since a DC/DC converter is used, only +5VDC power source is required to operate

the module.

2.3  Characters are provided with a 5×7 dot matrix with comma and decimal point.



3. GENERAL DESCRIPTIONS

3.1  This specification becomes effective after being approved by the purchaser.

3.2  When any conflict is found in the specification, appropriate action shall be taken upon

agreement of both parties.

3.3  The expected necessary service parts should be arranged by the customer before the

completion of production.



4. PRODUCT SPECIFICATIONS

  4.1  Type

Type	KPD220V6-U
Digit Format	5 * 7 Dot Matrix with Comma and Decimal point, Annunciator









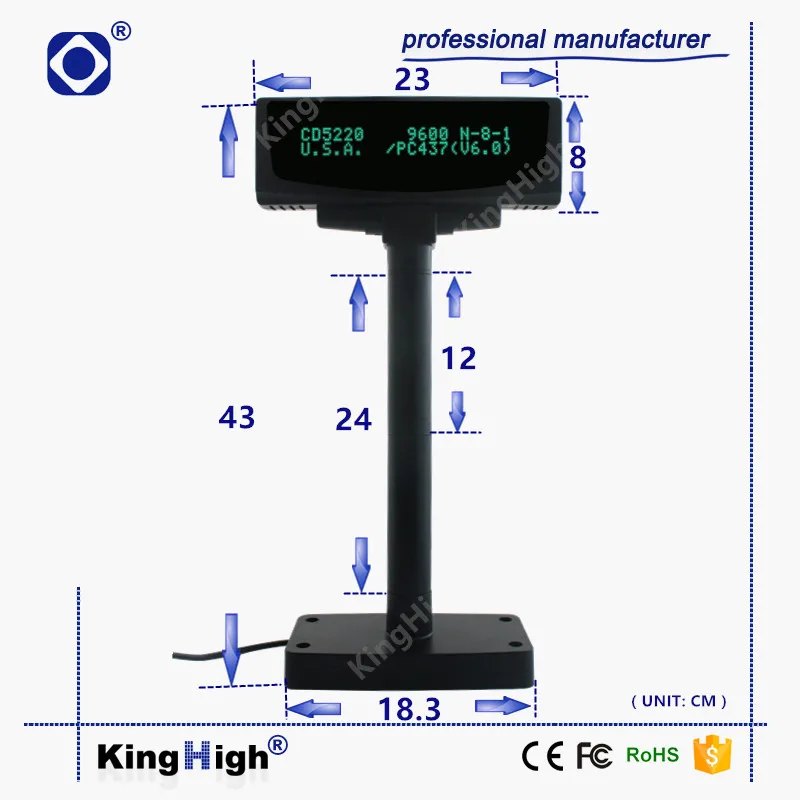

4.2 Outer Dimensions,Weight

Parameters	Symbols	Specification	Unit
Outer Dimensions	W * H * t	200*72*24	mm
Display Area	W * H	157.05* 22.86	mm
Character Size	W * H	5.25 * 9.03	mm
Dot size	W * H	0.85* 1.05	mm
Weight		180	G



















4.3 Environment Conditions

Parameter	Min.	Max.	Unit
Operating Temperature	-30	70	℃
Storage Temperature	-40	85	℃
Operating Humidity	-30	85	%
Vibration (10 ~ 55 Hz)	-	0.5(Displacement)	mm
Shock	-	40(Duration =11ms)	G
Storage Humidity	-	95	%
