Concrete waterproofing material HDPE membrane

Product Overview

Description



PMT-3030TPO is a waterproofing sheet, consisting of thermoplastic polyolefin Compound resin materials as the base stock, reinforced with polyester mesh fabric.

There have two kinds of thickness: 1.2mm and 1.5mm.





Various roofing waterproof projects, such as industrial and civil buildings,

Mechanically attached waterproofing system.





Weather resistance and durability; Excellent weld ability;

 No any crisp agents to prevent materials brittleness;

Intermediate enhanced polyester mesh fabric to have high tensile strength, fatigue resistance and penetrating resistance suitable for mechanically attached roofing systems;

Excellent the same high and low temperature resistance as rubber materials which can keep  flexible at -50° C and keep mechanical strength in high temperature;

Excellent chemical resistance to acids, bases, and restaurant exhaust emissions; Dimension stability;

White-based light-color and smooth surface with high reflection, energy saving and anti-dust functions;

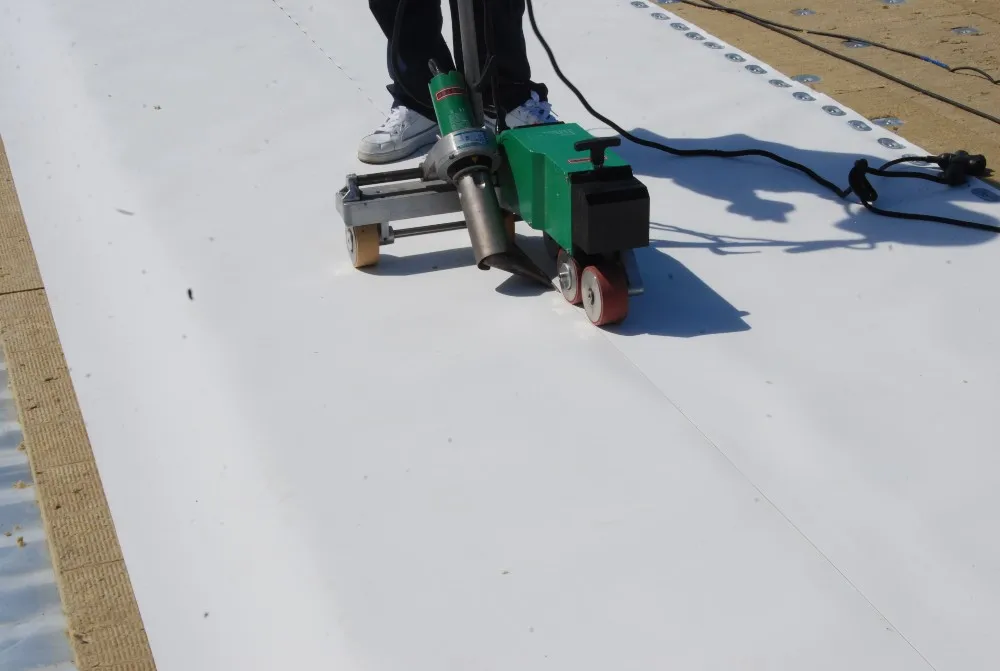

Use heat welding for the seam areas to form a reliable seamless waterproof layer.

















Rolled with hard materials and packed with plastic bags or woven bags.

Above quantities are indicative only. We can produce it according to your demands.



Storage:

PMT-3030TPO material should be stored in well-ventilated place and avoid being exposed to the sun or rain. The temperature in stored places can not be higher than 45° C. It only can be put horizontally in five-level. It has to be avoided acid, alkali, oil and organic solvents. The shelf life is 1 year.



Transport:

PMT-3030TPO material should avoid inclination or lateral drift during transportation. When necessary, covering with felted fabric.





Yuhong not only provides TPO waterproofing membrane, but also dedicates to integrated roofing systems. Yuhong TPO single ply roofing waterproof system includes mechanically attached roofing system, fully adhered roofing system and ballasted roofing system.

Mechanically Attached Roofing System



Yuhong provide the completed line of compatible accessories and components, including fasteners, sealants, adhesives for membrane, cleansers, insulation, vapor retarders and flashing, etc.

Yuhong also provide economical and reliable roofing system designs for our customers according to their demands.



Application Methods

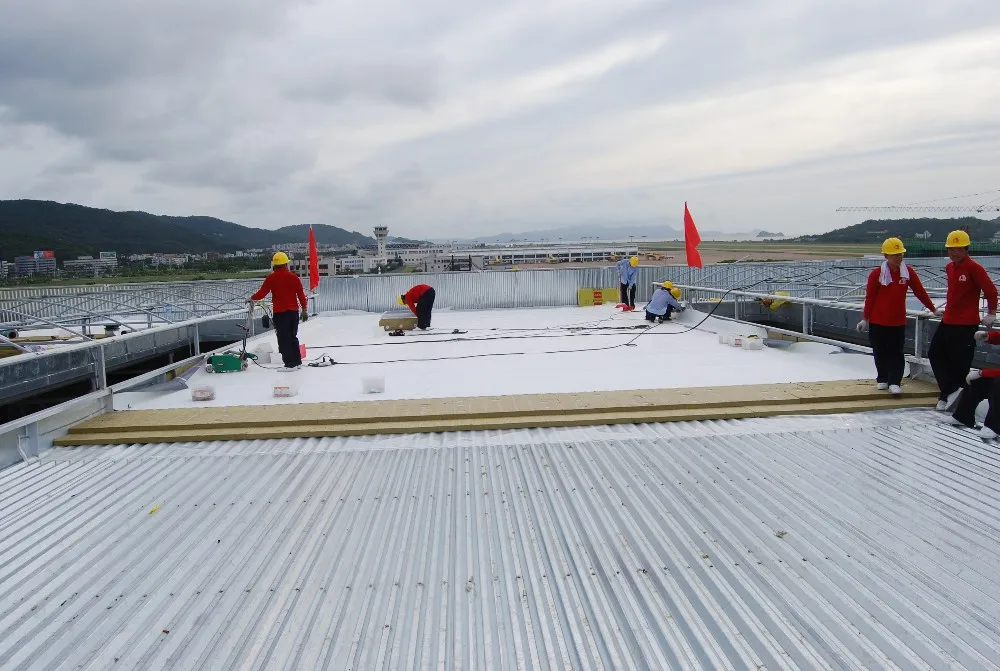

Before application, spread TPO membranes on substrate in advance. Install TPO membranes perpendicular to steel deck ribs on the substrate without distortions according to the flange. The overlapping width is 120 mm. The minimum overlapping distance of membrane short side direction is 50 mm. Fasteners are installed according to designed position. Hot-air welding is adopted for laps with 40 mm welding width.
