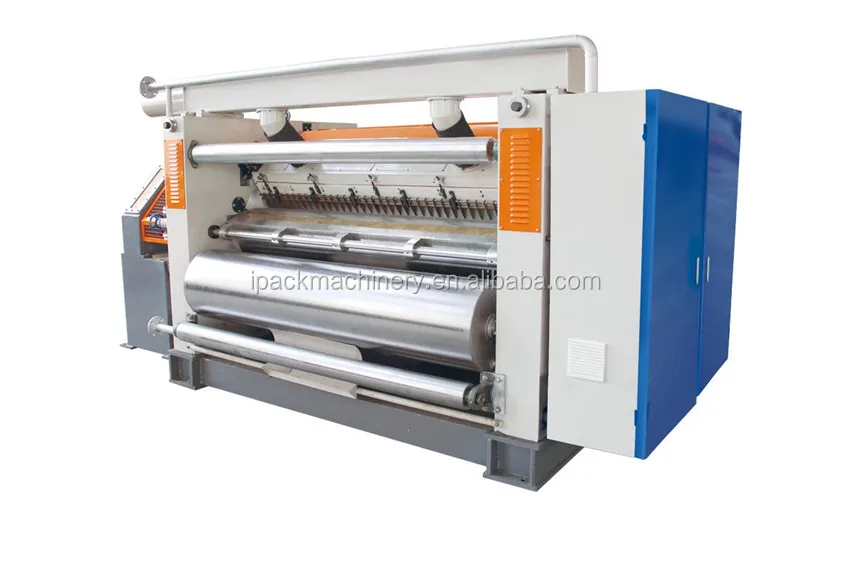

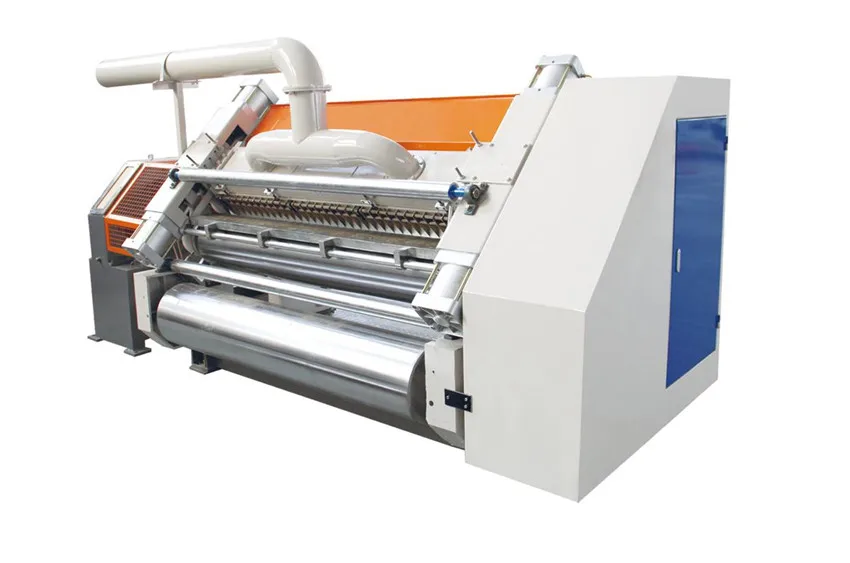

Single Facer Corrugated Machine
- Category: >>>
- Supplier: Cangzhou Ipack Machinery Manufacture Co. Ltd.
Share on (60625136404):
Product Overview
Description
Glue Rollers:
Diameter | Φ215mm |
Processing Way | Surface of glue roller is grinded, then with 25 line rut type net dot,then plating chrome Surface of glue banlance roller is grinded then plating chrome |
Control Way | Penumatic cylinder control of the Lifting Up-down |
Glue Supply | Glue circulating system(storage tank+glue pump) |
Corrugated Rollers:
Diameter | Down Roller:Φ280mm |
Material | 48CrMo high quality alloy steel, rigidity HRC55°-58° |
Processing Way | The surface of upper-lower roller is plating chrome, annealing, hardening and tempering, surface grinded |
Fulte Type | (U/V) ACBEF |
Material band or origin | Henan Jiyuan Iron & Steel Steel
|
Heating way of the reel paper | Steam heating |
Press Rollers:
Diameter | Φ284mm |
Material | medium steel (MS)45# |
Processing Way | The surface is grinded then plating chrome, hardening and tempering(With Buffer) |
Control Way | Penumatic cylinder control of the Lifting Up-down |
Material band or origin | Zhong Yuan Special Steel |
Preheater Rollers:
Diameter | UP Roller:Φ320mm |
Material | seamless steel tube |
Material band or origin | Tianjin Iron & Steel |
All connected by flexible metallic tubes | |
Common Spec:
Width of Paper | 1600mm/1800mm |
Style of Transmit cardboard | Vacuum Cover adsorbable style, Hight pressure Draw fan.with wind control Adjusting & noise deadening device. |
Style of Control Roller | Pneumatic control the upper roller, pressure roller and glue roller |
Lubrication | Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller’s gears |

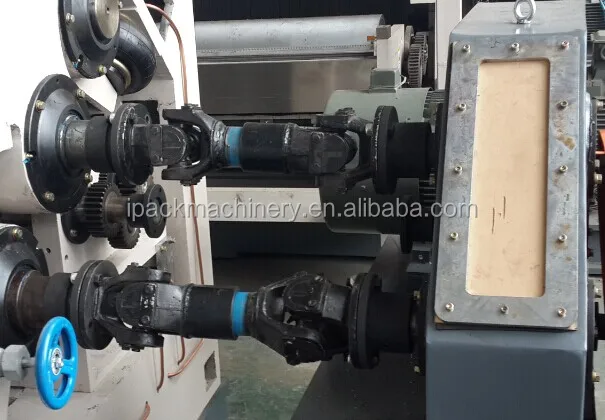

Driving Way:With frequency inverter | |
Wallboard & machine stand: cast iron,thickness:200mm | |
Common Spec:
Working width: 1600mm/1800mm
Operation Direction: Left or right (decided by the workshop of customer)
Design Speed: 100m/min
Temperature: 160—210℃
Air pressure: 1.0—1.3Mpa
Corrugated Flute Type: UV or UVV
Spec of Motor:
Main Motor: 7.5kw Nominal voltage: 380V 50Hz Continuous (S1) working Type
Fan Motor: 7.5kw Nominal voltage: 380V 50Hz Continuous (S1) working Type
