Product Overview

Description


Truck Body Details
\t

Ice Cream Truck Body

Key Features

\t
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
\t
Truck Body Outer Size
\t
2.7m(L)x1.7m(W)x1.5m(H)
ice cream truck body
\t
Truck Body Inner Size
\t
2.49m(L)x1.49m(W)x1.29m(H)
ice cream truck body
\t
Roof/Floor Panel
\t
105mm Thickness
\t
Side Wall Panel
\t
105mm Thickness
\t
Front Wall Panel
\t
105mm Thickness
\t
Rear Door Panel
\t
105mm Thickness
\t
Panel Structure
\t
All Closed Sandwich
\t
Panel Insulation
\t
FRP + PU Foam + FRP
\t
Side Door Quantity
\t
4 (Four) Sets
\t
Side Door Location
\t
2 Sets On Left/2 Sets On Right
\t
Side Door Type
\t
Single Opening
\t
Side Door Size
\t
580mm(W) x 1,100mm(H)
\t
Rear Door Type
\t
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
\t
Truck Body Flooring
\t
Reinforced Floor Covered With Removable PVC Grating ice cream transportation truck body
\t
Cargo Control System
\t
Stainless Steel Internal Dividers To Divide 4 (Four) Cargo Spaces ice cream truck body
\t
Ceiling Light ice cream truck body
\t
2 (Two) Sets of 12/24V Multi-Voltage LED
\t
Marker Light ice cream truck body
\t
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
\t
Ceiling Light Switch ice cream truck body
\t
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
\t
Insulating Curtain ice cream truck body
\t
European Standard -40C PVC Strip Curtain System For Side & Rear Doors
\t
Refrigeration Unit
Service Ladder
\t
None/Optional ice cream transportation truck body
\t
Refrigeration Unit        Service Platform
\t
None/Optional ice cream transportation truck body

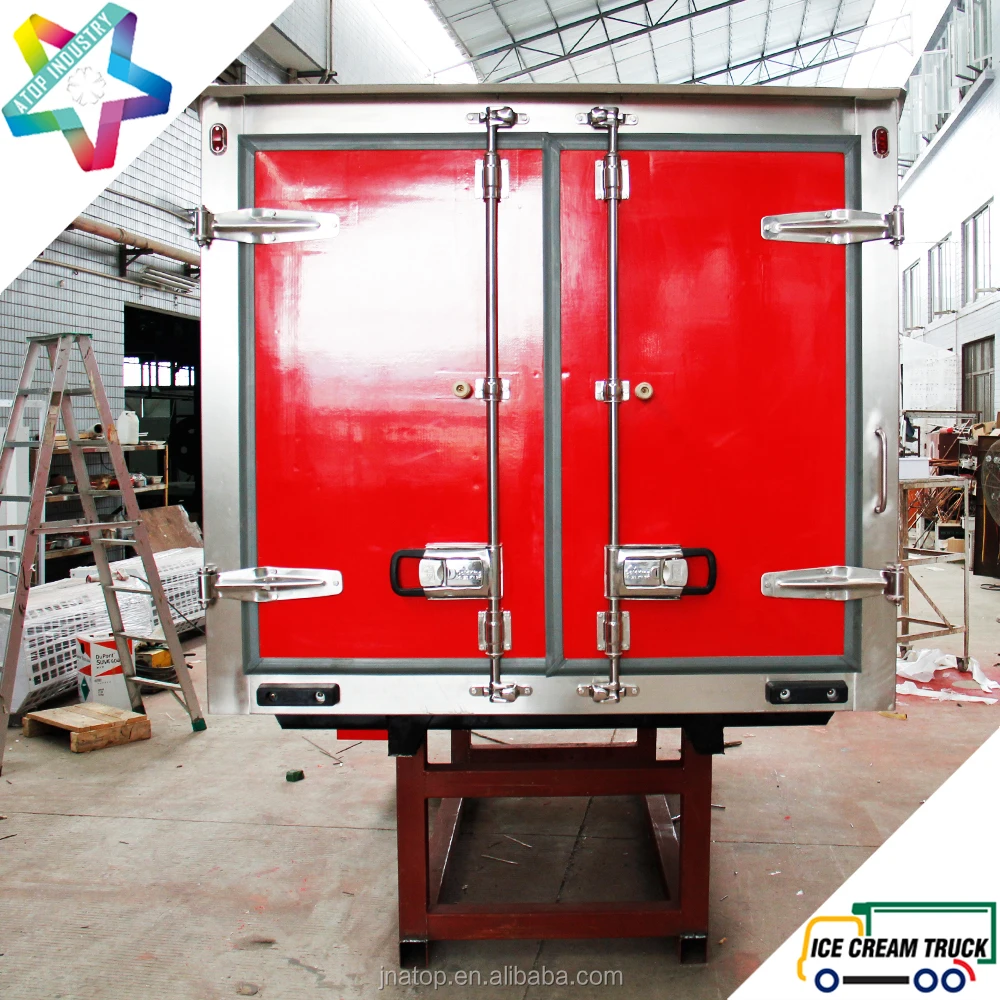

Full Size Double Opening Rear Door

With Full Sets of Stainless Steel Ice Cream Truck Body Lock Sets & Hinges, Sealed By Low Temperature High Quality Ice Cream Truck Body Door Gasket; ice cream transportation truck body

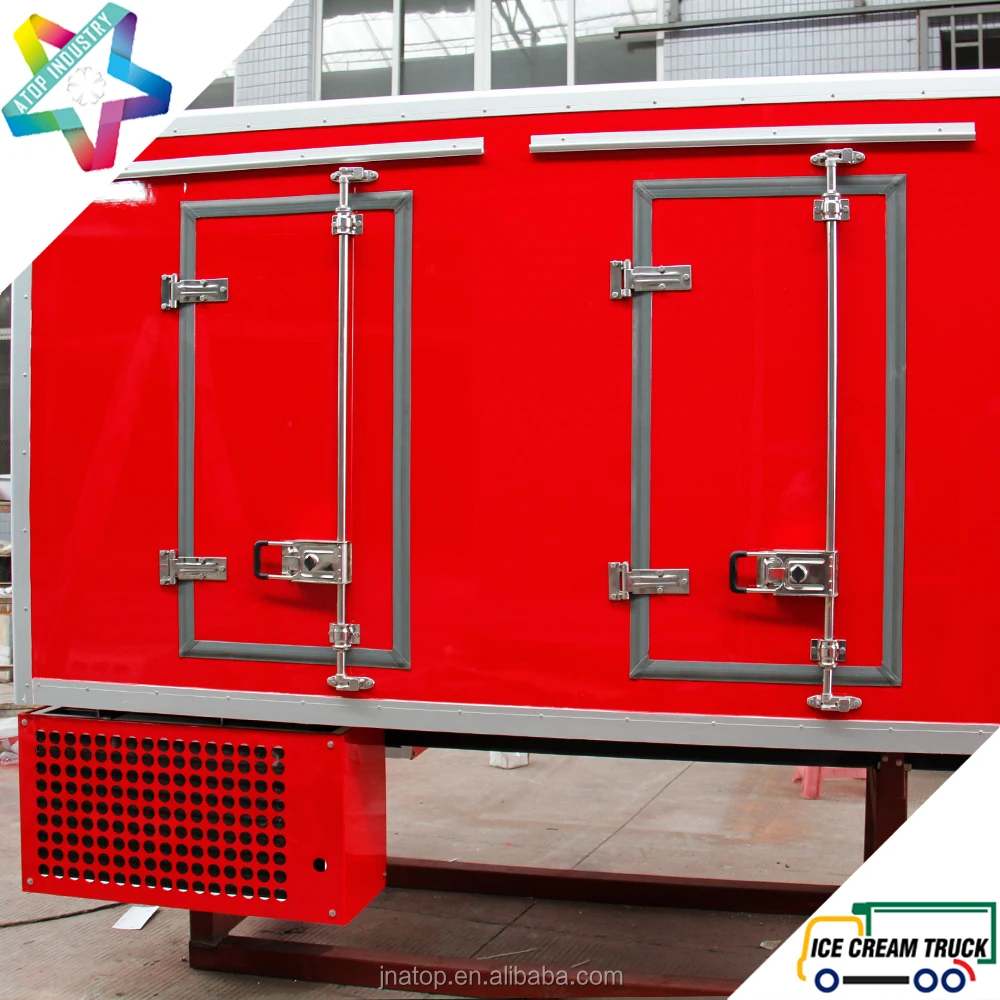

Single Opening Side Door

4 (Four) Sets of 580mm(W) x 1,100mm(H) Single Opening Ice Cream Truck Body Side Door, Each 2 (Two) Sets of Ice Cream Truck Body Side Door At Left & Right ice cream transportation truck body

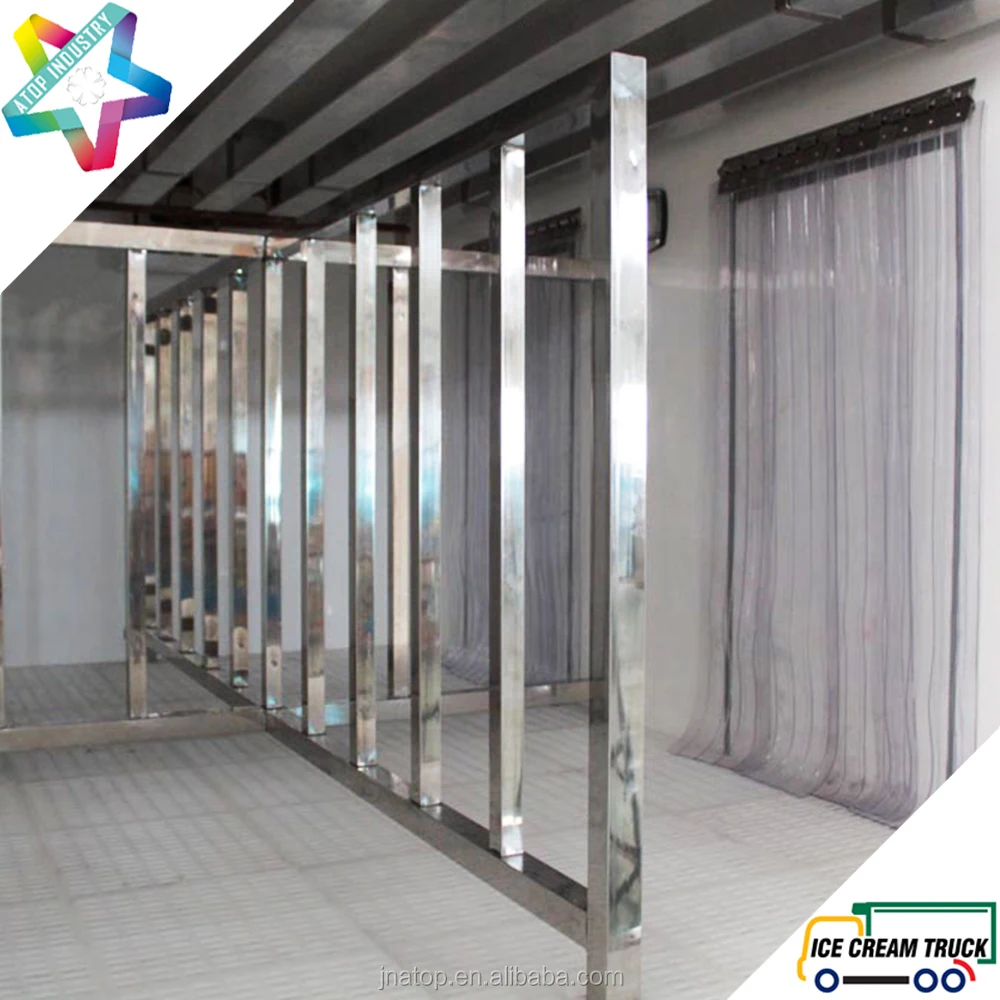

Internal Dividers
Internal Dividers In Stainless Steel To Divide 4 (Four) Cargo Space For Rapid & Efficient Loading & Delivery ice cream transportation truck body

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage

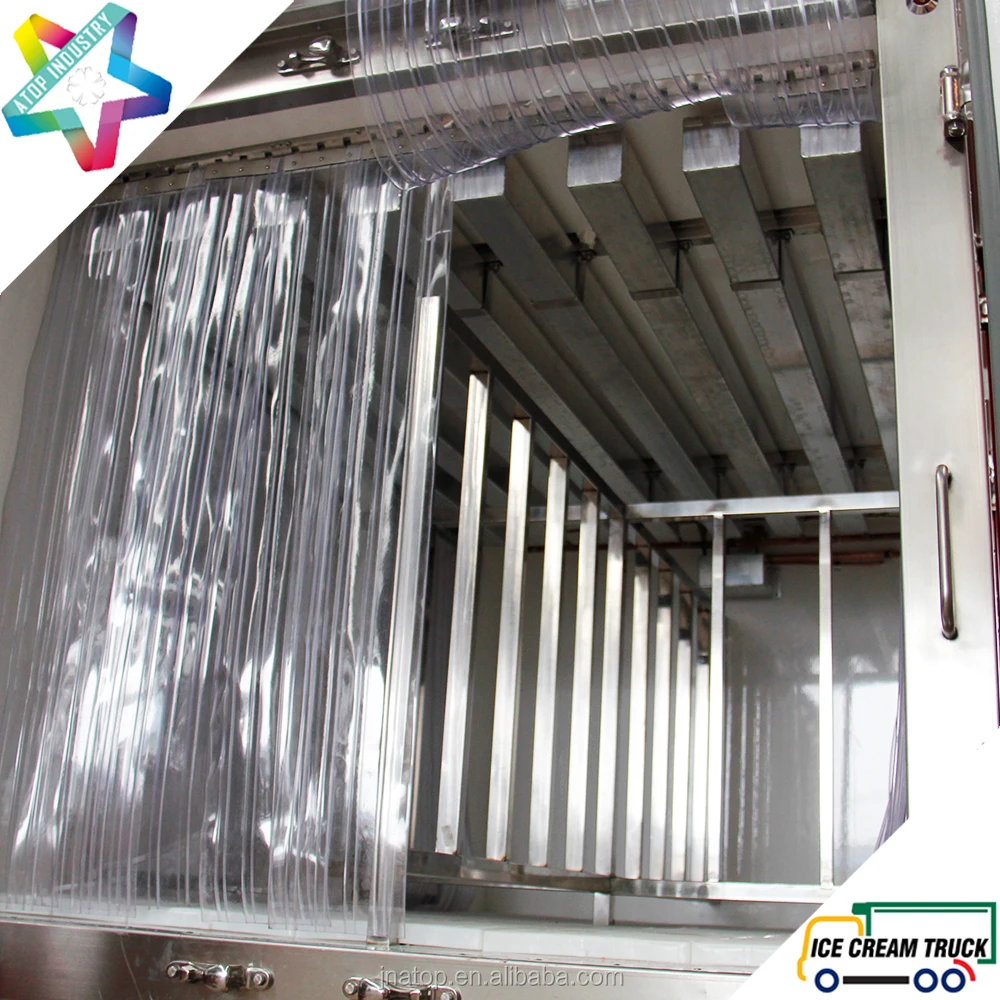

Insulating Curtain

Full Sets of European Standard -40C PVC Strip Curtain System For Side & Rear Doors To Keep Avoid Cooling Lost

Kooltube Unit

ColdKing Kooltube eutectic system

is a holdover or latent heat storage system. It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
\t
Refrigeration Unit Model
\t
KT205-08N
\t
Refrigeration Unit Brand
\t
ColdKing
\t
Refrigeration Unit Type
\t
AC Power Driven Eutectic Solution, Condenser Split ice cream truck body
\t
Refrigeration Capacity
\t
1,650W (@ -40C)
\t
2,295W (@ -35C)
\t
3,960W (@ -25C)
\t
Total Refigeration Heat Exchange Rate
\t
3,772Kcal/h ice cream truck body
\t
Refrigerant
\t
HFC R404a
\t
Defrost
\t
Manual Warm Water
\t
Condenser Mounted Method
\t
Under Chassis
\t
Kooltube Beams Assembly
\t
2.05m(L) x 08 Pcs
\t
Compressor Brand & Power
\t
Bitzer 2.0Hp
\t
Expansion Valve
\t
Danfoss
\t
Condenser Fan
\t
EBM
\t
Thermometer
\t
REFCO
\t
Power Supply Voltage/Phase/Frequency
\t
220V/3Ph/60Hz ice cream truck body

2050mm(L)  x 8 pieces Kooltube Beams ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. ice cream transportation truck body ice cream transportation truck body

Quality Durable & Stable Compressor

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison.

Danfoss Parts ice cream transportation truck body

Schneider Electric Control ice cream transportation truck body

EBM Fan ice cream transportation truck body

Optional Items

Hydraulic Tail Lift ice cream truck

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available ice cream transportation truck body

Cargo Control System

Smart & customized cargo Loading control system ice cream transportation truck body

Roll Carts Ice Cream Truck Body

Roll carts for rapid and efficient loading, delivery and unloading goods ice cream transportation truck body

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy ice cream transportation truck body

Products Show

5.0m Ice Cream Truck

5.0m ice cream truck body fitted on FUSO truck chassis ice cream transportation truck body ice cream transportation truck body

2.4m Ice Cream Pickup Truck

2.4m (L) x 1.8m(W) x 1.5m(H) ice cream pickup truck body fitted on Hilux pickup chassis ice cream transportation truck body

4.9m Ice Cream Truck

4.9m ice cream truck body fitted on Isuzu NPR truck chassis ice cream transportation truck bodyice cream transportation truck body

Packing & Delivery
Professional Packing & Loading For Different Transportation Method ice cream transportation truck body

Export Truck Fleet In Seaport ice cream transportation truck body
Ice Cream Truck Body
Large Order Quantity Queue Up Delivery ice cream transportation truck body
